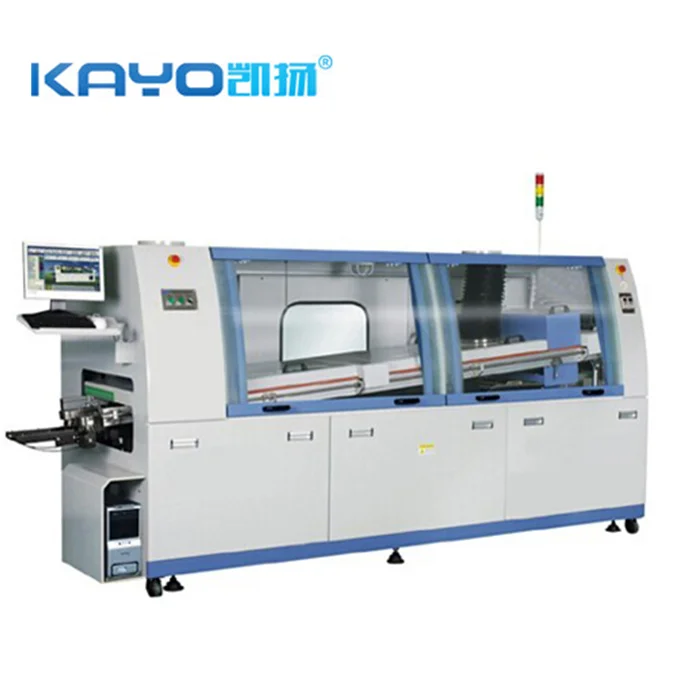

KAYO 350S Automatic Wave Soldering Computer PLC control SMT Soldering Machine
- Category: >>>
- Supplier: Wuxi KAYO Automation Equipment Co. Ltd.
Share on (62274840335):
Product Overview
Description
KAYO 350S Automatic Wave Soldering Computer PLC control SMT Soldering Machine
Product Description
1. Body linear design, use spray technology, nice and durable.
2. Three independent 1.6m preheating area, full hot air preheating, with spotlight compensation device, make PCB boards to get good welding effect.
3. Patented die-casting type titanium alloy chain claws, non-stick tin, never deformation, long life.
4. The whole processing observation window, easy to operate and maintain.
5. Tin oven up/down and in/out, automatic and manual adjustment combined. With backrest design to prevent misuse damage to the machine.
6. Equipped with cooling module, temperature compensation module, suitable for lead-free soldering and a variety of process requirements.
7. Latest invented ultra-smooth, ultra-high filter, significantly weaken the tin flow shocking and turbulence generating in the flow channel, stable tin wave, significantly reduced oxidation, easy maintenance.
8. Transmission mechanism adopts precise modular design, transmission accuracy, long life, easy maintenance.
9. Rosin spray device can be pulled out and removable, easy to clean and maintain.
10. Isolated spray device, fluxer smoke discharged from the dedicated air duct.
11. Strong parameter library function, all kinds of PCB process parameters can transfer and operate on-demand.
12. Adopt professional industrial computer control system to ensure the system’s reliability and stability.
13. According to the user set the date, time and temperature control parameters for automatic switching machine.
14. System fault self-diagnosis, fault reasons automatically display, troubleshooting methods can query at any time.
15. Heating temperature uses PID closed-loop control, temperature control stable and reliable.
16. Closed-loop automatic tracking spray system, spray width and time automatically adjusted, can set advanced and extended spray time on demand.
17. Automatically generate wave when passing boards, reducing the amount of tin oxidation to the maximum.
18. Transport system uses clutch limited power + current limiter dual protection.
19. Short circuit and overcurrent protection system.
20. Transport system closed-loop control. Stepless speed regulation, precisely control PCB preheating and welding time.
21. Industrial computer control system dual-wave soldering device, in addition to be compatible consistent machine’s automation performance, it also adopts streamlined body design, simple and convenient computer window system, make the automated production and management records to a higher level.
Specifications
Item | KAYO-350S |
Controlling Method | Computer+PLC |
Transmission Motor | 1P AC220V 120W |
Transmission Speed | 300-1500mm/min |
Substrate Width | 50-350mm (W) |
Transmission Height | 750±50mm |
Wave No. | 2pcs |
Preheating Zone | Power: 6KW, Length: 1600mm, Three PID Controlling Temperature: Room temperature-350℃ |
Preheating Method | Hot air |
Tin Oven Heating | 14KW (cast iron heating plate) (room temperature-300℃) |
Tin Oven Capacity | 300KG |
Wave Height | 0-12mm |
Wave Motor | 3P AC220V 0.18KWx2pcs |
Finger Cleaning Pump | 1P AC220V 6W |
Cooling | Forced centrifugal blower |
Cooling Zone No. | 2pcs |
PCB Transmission Direction | L→R(R→L) |
Nozzle Moving Motor | Air Cylinder/Stepper Motor |
Fluxer Capacity | Max5-2L |
Fluxer Pressure | 4-7BAR |
Soldering Angle | 3-7° |
Powerv Supply | 3P AC380V 50HZ 63A |
Total Power/ Operation Power | 26KW/5.5KW |
Body Dimensions | 3000(L)×1400(W)×1800mm(H) |

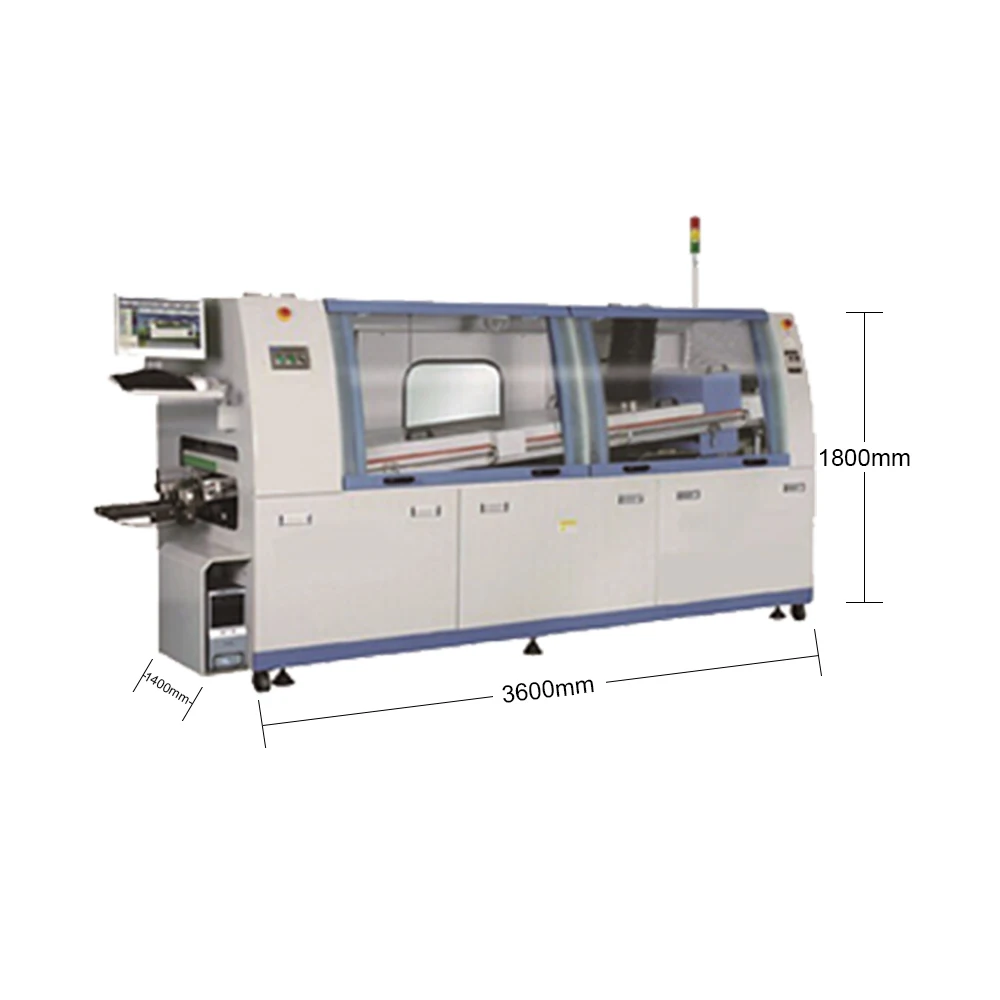

Shape Dimensions | 3600(L)×1400(W)×1800mm(H) |
Net Weight | 1300KG |
Exhaust Demand | 20CBM/MIN 2(Channel), inner diameter 240mm |
Packaging & Shipping
Company Information
KAYO Automation has factories in Beijing, Wuxi (Jiangsu Province), Jiaxing (Zhejiang Province) and Shenzhen cities with more than 10000m2 production capacity and 150 employees.
KAYO Automation is a professional manufacturer focusing in SMT pick and place machine, solder paste mixer, screen printer, automatic loader, inspection conveyor, reflow oven, automatic unloader, and other auxiliary equipment.
We have our own integrated R&D, the Flying camera technology and granite work table had come out, will be mass production in near future. The sales volume of pick and place machine had reached more than 800 sets in half a year.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. We have exclusive agent in France, Brazil, Israel. And all of our machines are wildly used in Electronic circuit, Photovoltaic, LED industry, PCB Prototyping, Electronic manufacturing instruments and apparatuses.
KAYO supply one-stop SMT solution, we can support you on Semi-automatic and Full automatic production line. The core staff of the R&D team has 15 years of experience in SMT market. And our technician can speak English, will support you 24-hour service.
KAYO welcome 3 kinds of cooperation Dealer, distributor and OEM/ODM to get mutual benefit in future.
KAYO Automation always insist on the business philosophy of "CUSTOMER FIRST, SERVICE FIRST", and strives to let more customers use high-quality SMT equipment with excellent performance and competitive prices.
