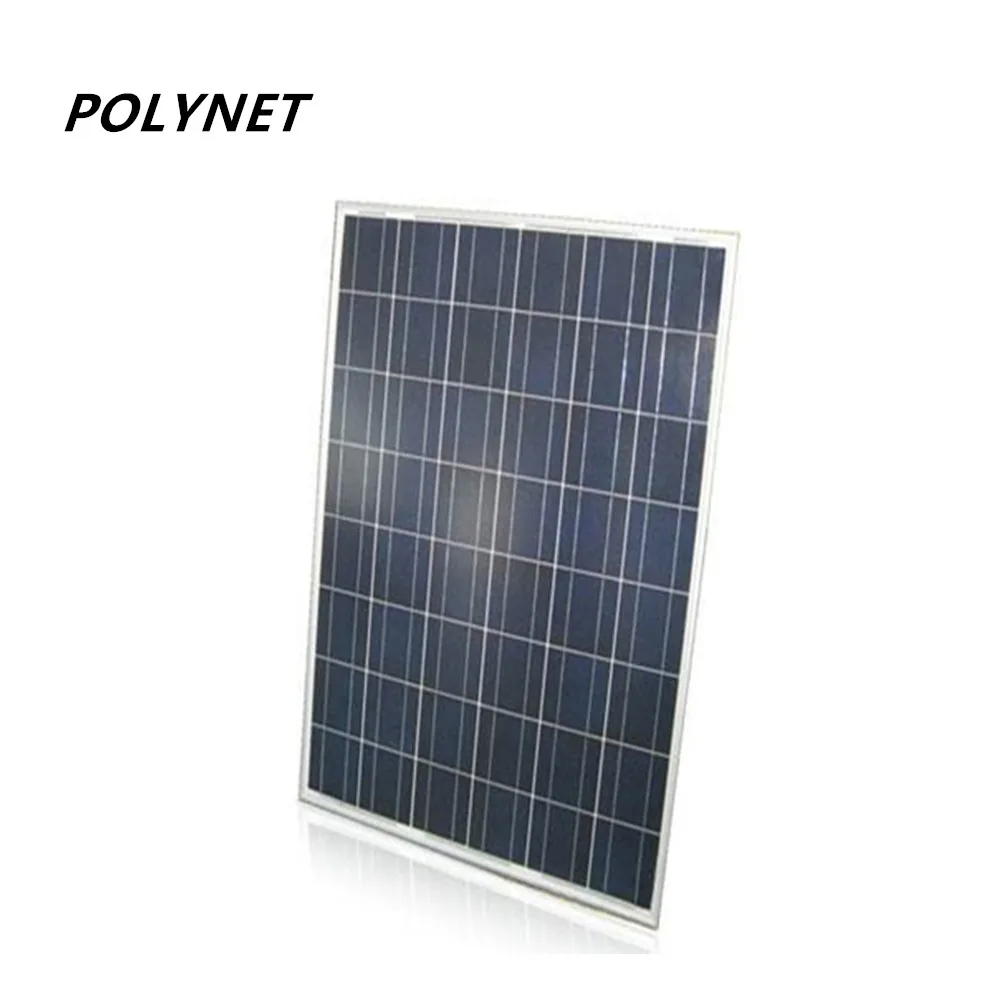

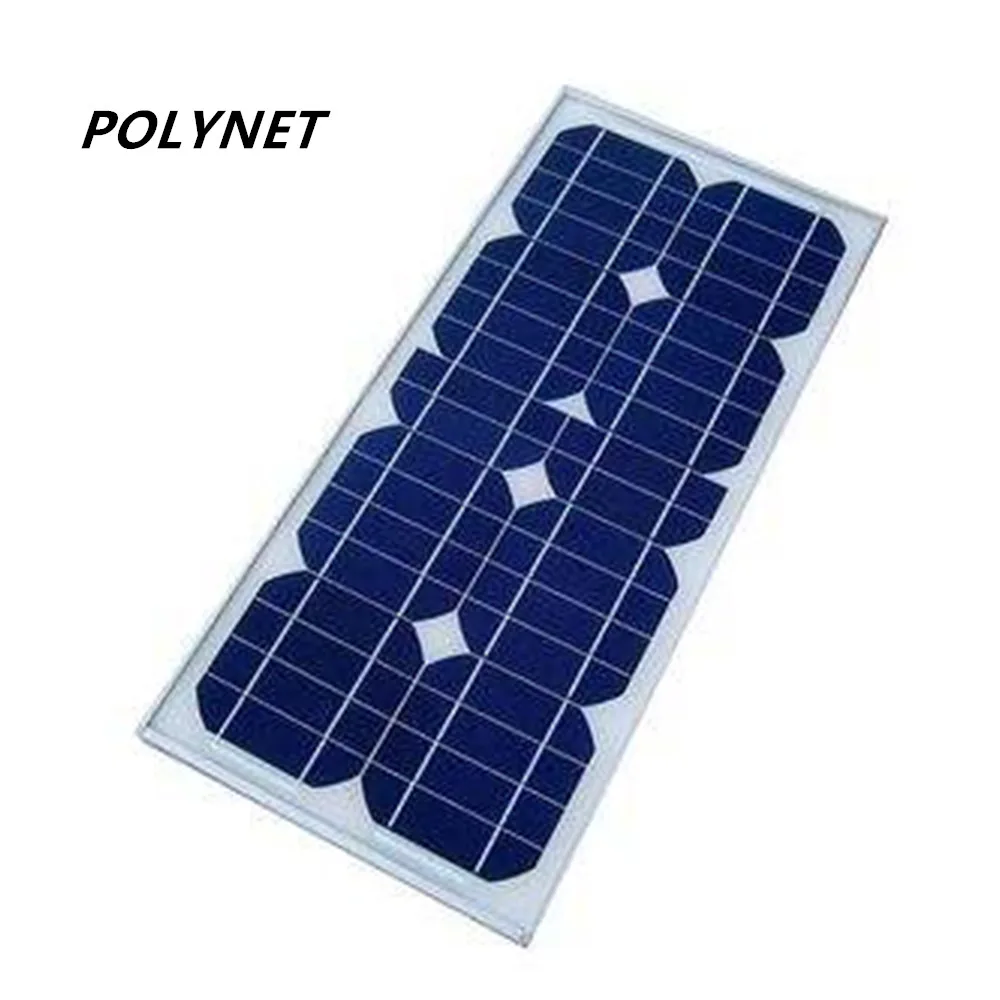

Polynet 12v 30wp 50 watt pv module 30w 40w 45w 50w 55w 60w mono poly solar panel
- Category: >>>
- Supplier: Hefei Polynet Products Co. Ltd.
Share on (62274909957):
Product Overview
Description
Polynet 12v 30wp 50 watt pv module 30w 40w 45w 50w 55w 60w mono poly solar panel
| Model Type | Peak Power | Weight(Kg) | Dimensions(mm) | Vmp | Imp | Voc | Isc |
| PN5M-36 | 5W | 0.73 | 170x350x35 | 17.5 | 0.29 | 21.6 | 0.33 |
| PN10M-36 | 10W | 1.09 | 270x350x35 | 17.5 | 0.58 | 21.6 | 0.65 |
| PN15M-36 | 15W | 1.71 | 375x350x35 | 17.5 | 0.86 | 21.6 | 0.97 |
| PN20M-36 | 20W | 2.11 | 475x350x35 | 17.5 | 1.15 | 21.6 | 1.30 |
| PN30M-36 | 30W | 3.36 | 380x670x35 | 17.5 | 1.72 | 21.6 | 1.93 |
| PN40M-36 | 40W | 4.09 | 480x670x35 | 17.5 | 2.29 | 21.6 | 2.59 |
| PN50M-36 | 50W | 4.82 | 580x670x35 | 17.5 | 2.86 | 21.6 | 3.23 |
| PN60M-36 | 60W | 5.52 | 675x670x35 | 17.5 | 3.43 | 21.6 | 3.87 |
| PN70M-36 | 70W | 6.29 | 775x670x35 | 17.5 | 4.00 | 21.6 | 4.52 |
| PN80M-36 | 80W | 7.02 | 875x670x35 | 17.5 | 4.58 | 21.6 | 5.17 |
| PN85M-36 | 85W | 7.35 | 920x670x35 | 17.5 | 4.86 | 21.6 | 5.49 |
| PN90M-36 | 90W | 7.76 | 975x670x35 | 17.5 | 5.14 | 21.6 | 5.81 |
| Model Type | Peak Power | Weight(Kg) | Dimensions(mm) | Vmp | Imp | Voc | Isc |
| PN5P-36 | 5W | 0.73 | 170x350x35 | 17.5 | 0.29 | 21.6 | 0.33 |
| PN10P-36 | 10W | 1.09 | 270x350x35 | 17.5 | 0.58 | 21.6 | 0.65 |
| PN15P-36 | 15W | 1.71 | 375x350x35 | 17.5 | 0.86 | 21.6 | 0.97 |
| PN20P-36 | 20W | 2.11 | 475x350x35 | 17.5 | 1.15 | 21.6 | 1.30 |
| PN30P-36 | 30W | 3.36 | 380x670x35 | 17.5 | 1.72 | 21.6 | 1.93 |
| PN40P-36 | 40W | 4.09 | 480x670x35 | 17.5 | 2.29 | 21.6 | 2.59 |
| PN50P-36 | 50W | 4.82 | 580x670x35 | 17.5 | 2.86 | 21.6 | 3.23 |
| PN60P-36 | 60W | 5.52 | 675x670x35 | 17.5 | 3.43 | 21.6 | 3.87 |
| PN70P-36 | 70W | 6.29 | 775x670x35 | 17.5 | 4.00 | 21.6 | 4.52 |
| PN80P-36 | 80W | 7.02 | 875x670x35 | 17.5 | 4.58 | 21.6 | 5.17 |
| PN85P-36 | 85W | 7.35 | 920x670x35 | 17.5 | 4.86 | 21.6 | 5.49 |
| PN90P-36 | 90W | 7.76 | 975x670x35 | 17.5 | 5.14 | 21.6 | 5.81 |

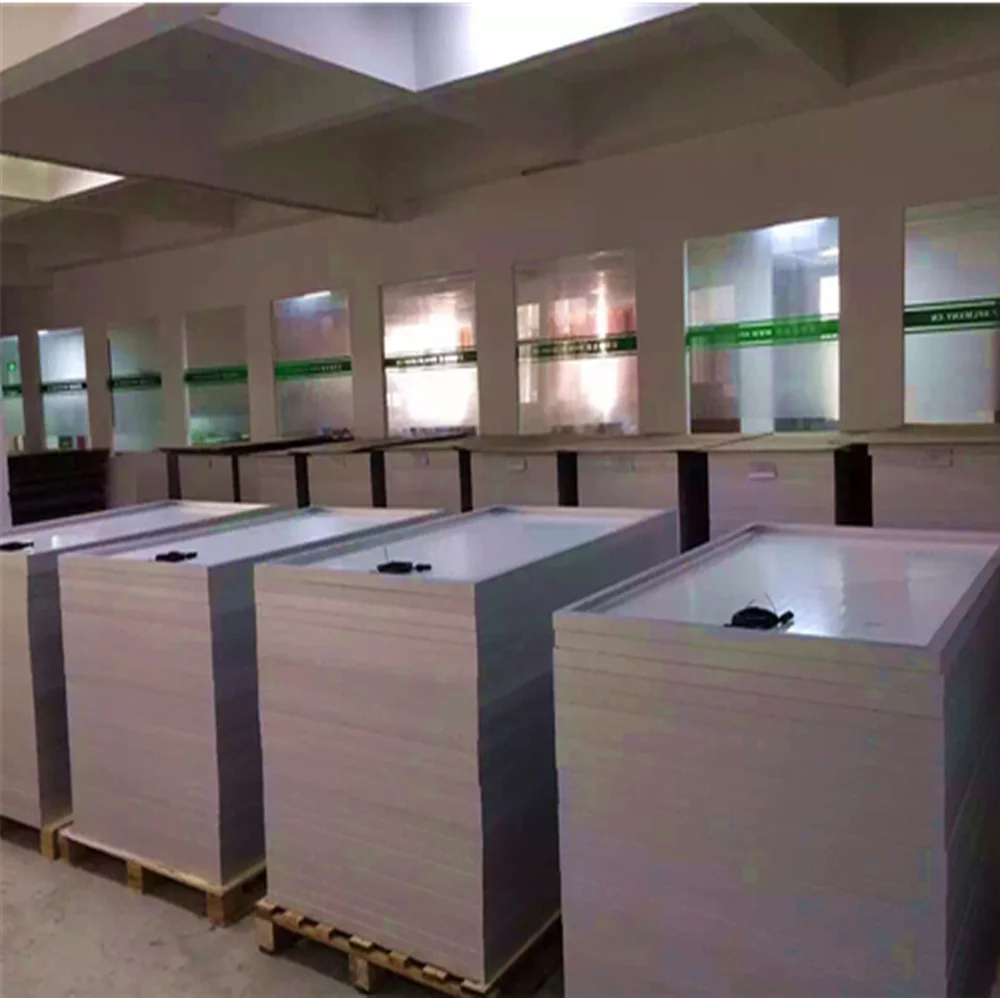

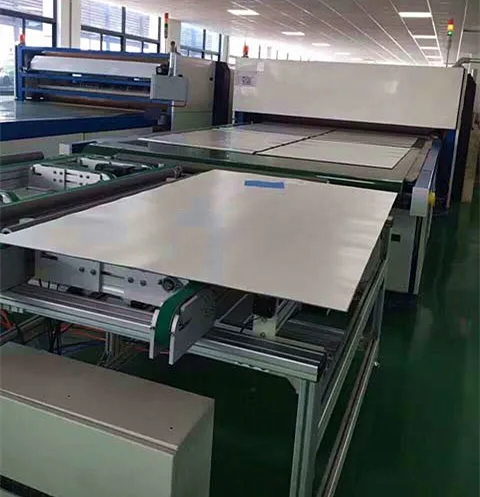

Factory production
QA system
We conduct the following test on every solar panel.
Before Polynet Solar modules are distributed, they must undergo a broad range of specific tests that guarantee the quality of the production. This allows us to ensure that our modules meet the most stringent requirements so that you get a return on your investment.

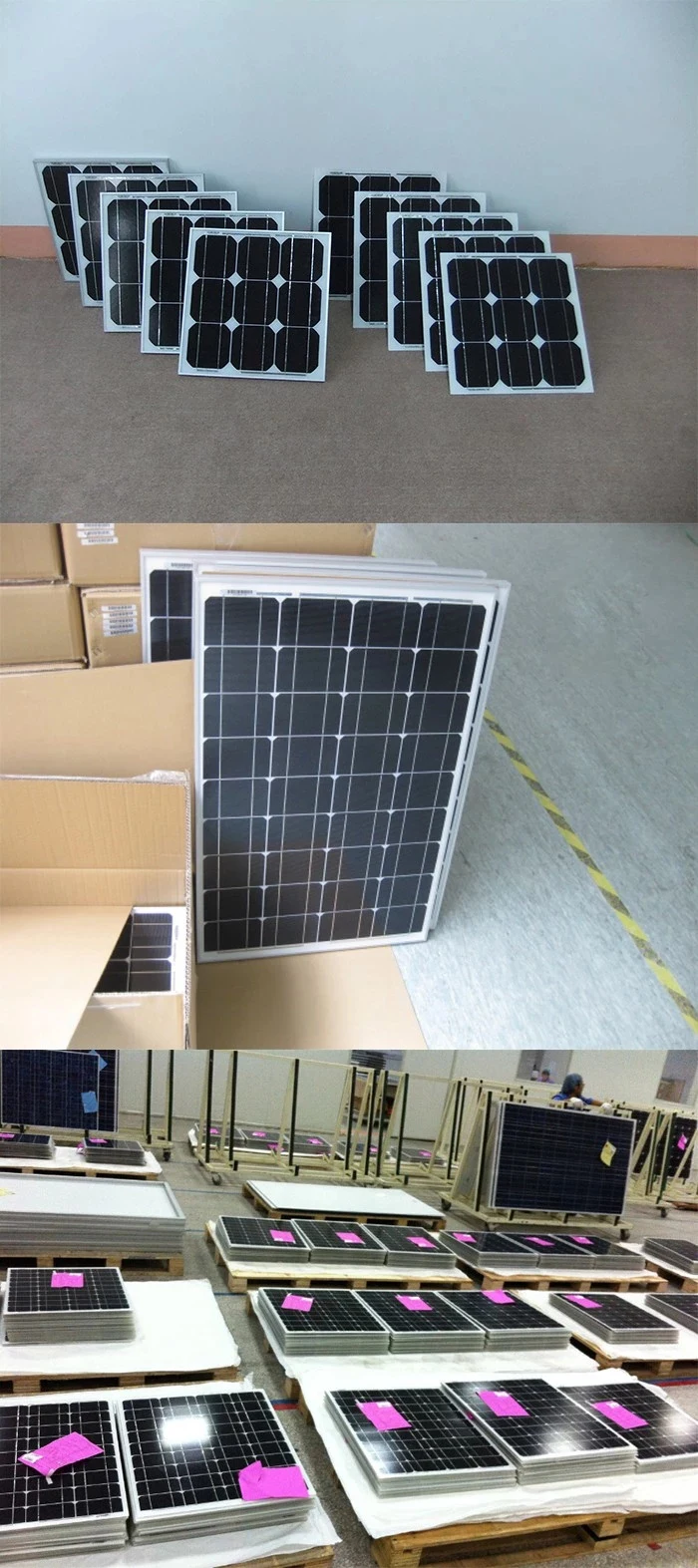

Packing & Delivery
Normally packing: 1pc/2pcs/3pcs/10pcs/21pcs/25pcs per carton
Individual packing requirement is acceptable.
By Sea | Delivery from Shanghai or Nanjing seaport | ||||
By Air | Departure from Shanghai Pudong Airport | ||||
By Express | Post by DHL, EMS, UPS, TNT. | ||||
By Train | Delivery from Shanghai or Hefei | ||||
By Bus | Delivery from Hefei | ||||
