This equipment is all numerical control metal sheet slotted machine. This machine adopts the advanced CNC system, the design is novel. With high machining accuracy, simple operation, no noise, no vibration and other characteristics. The machine is used in sheet metal parts (containing stainless steel, aluminum, copper, iron, rubber boards, acrylic plates and some other special plates). V-groove, U-groove and other irregular groove processing, especially for sheet metal before bending V groove processing.
Performance and Features
---HRK type CNC metal sheet slotting machine is an upgrade product developed by our scientific research personnel on the basis of domestic and foreign metal sheet slotting machine. This machine has all the properties of the traditional machine. Fully solve the customer in the actual operation process encountered a series of problems.
---The equipment is welded by steel plate, the internal stress is eliminated by vibration aging, the strength, rigidity and stability of the whole machine are higher than the equivalent products at home and abroad.
---The equipment adopts the backfeed structure and the ingenious design of the universal ball makes the equipment will not destroy the surface of the sheet metal when feeding and discharging. Adjustable movable working table can ensure the accuracy of grooving depth in each part.
---The equipment adopts the processing technology of the front and rear three forming knives, which greatly reduces the iron chips produced in the process, and greatly improves the precision of the processing of the traditional five knives, because the bottom of the grooves produced by the five knives may produce multiple bottom lines.
---The equipment adopts full pneumatic clamping, press, working fast, so that the processed products have no clip marks, indentation, all processing process tracking cooling blow. The lighting system in the working area is even more extreme.
---The equipment adopts a gear rack of high-speed alloy steel, a ball wire rod with a large pitch, and a high-precision and silent linear guide rail. the main shaft system is driven by a high torque servo motor and an inlet star speed reducer. so that the tool rest is more stable and quick when the work piece is processed.
---The high-strength plate is used as the base surface of the workbench, which makes the workpiece easy to be worn. And the table plate and the fuselage workpiece adopt the movable adjustable type, so that the distance precision from the knife tip to each point of the table is guaranteed to be about 0.02mm.
---The equipment adopts PLC man-machine interface programming. Special slotting machine system process two modes. Operators are easy to learn and understand, accurate positioning.
---The equipment clamps, the compacts all adopt the full pneumatic control. Make this machine in the idea of energy conservation and environmental protection reached a high point.
---The overall shape of the equipment is simple, generous, beautiful, frame structure set, in line with the operation habits of all kinds of technical personnel, so that operators can fully meet the production and technical requirements.
Structure Brief Introduction

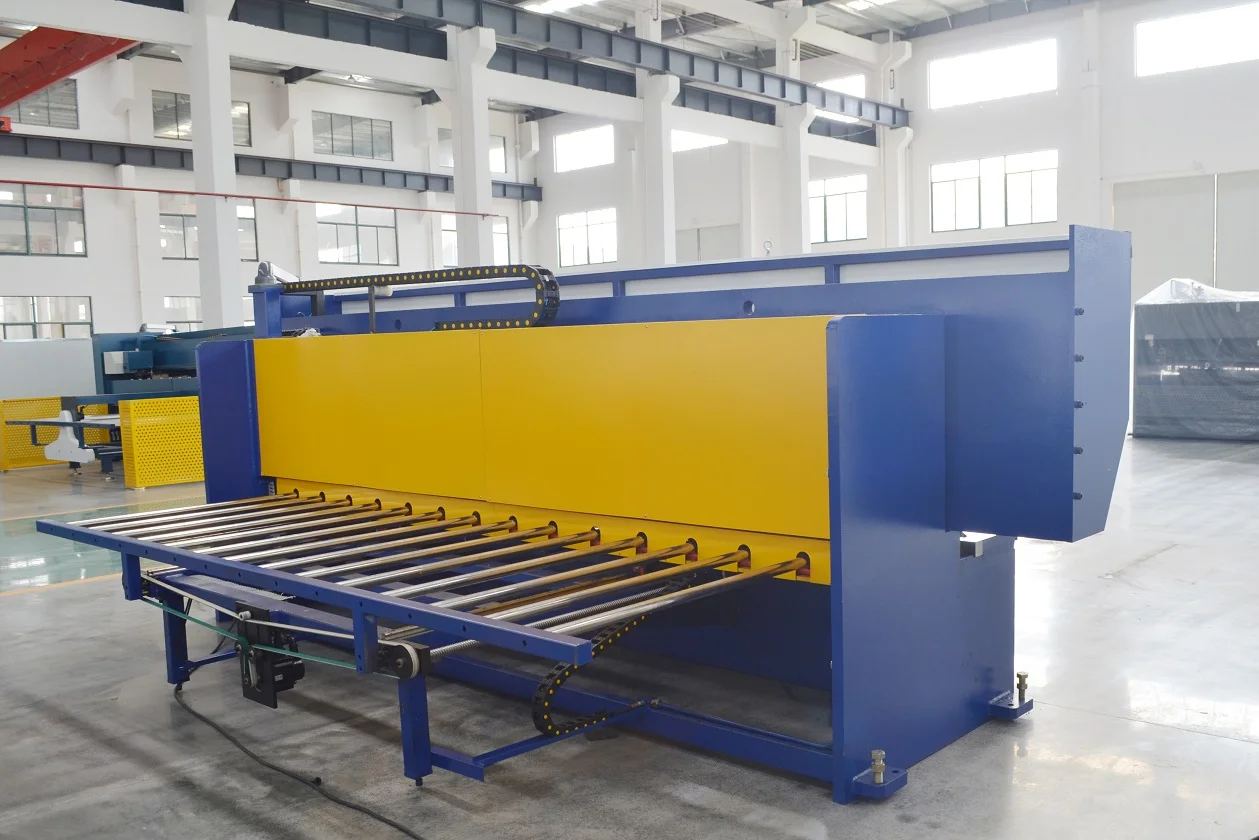

HRK series NC metal slotting machine has compact structure, reliable performance and convenient operation. Its structure mainly consists of three groups of servo motor transmission system, pneumatic clamp system and main steel frame.

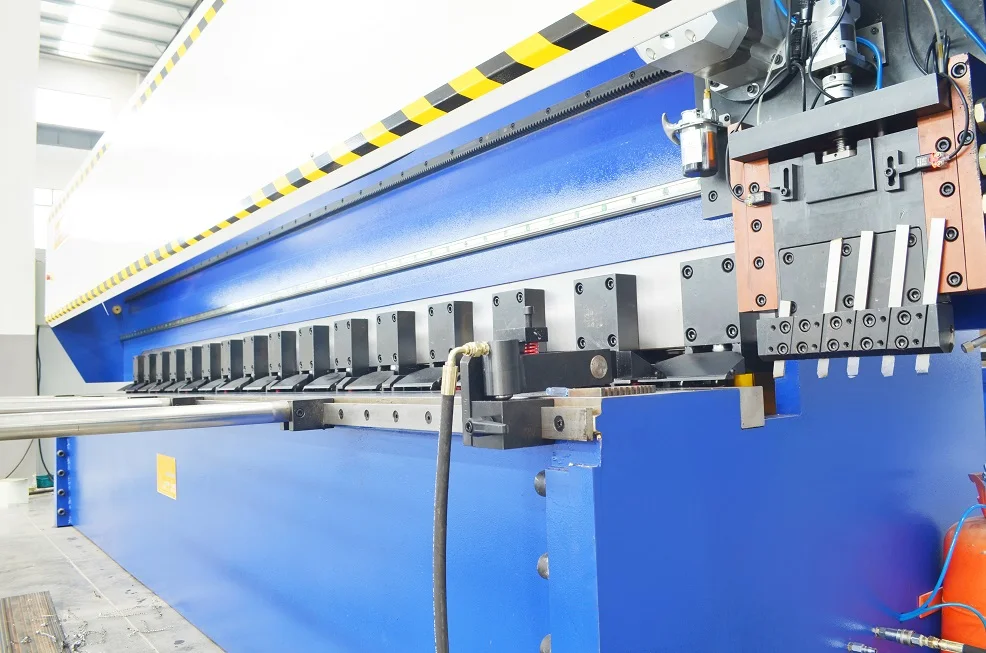

---Y-axis system
The Y axis system is composed of main motor ECMA-F21830 AC servo motor, star reducer synchronous belt, same step wheel, high precision gear rack, linear guide rail and so on. Its function is that the servo motor drives the precision gear through the star reducer to drive the tool holder to make straight motion on the linear guide rail to provide the planing power.

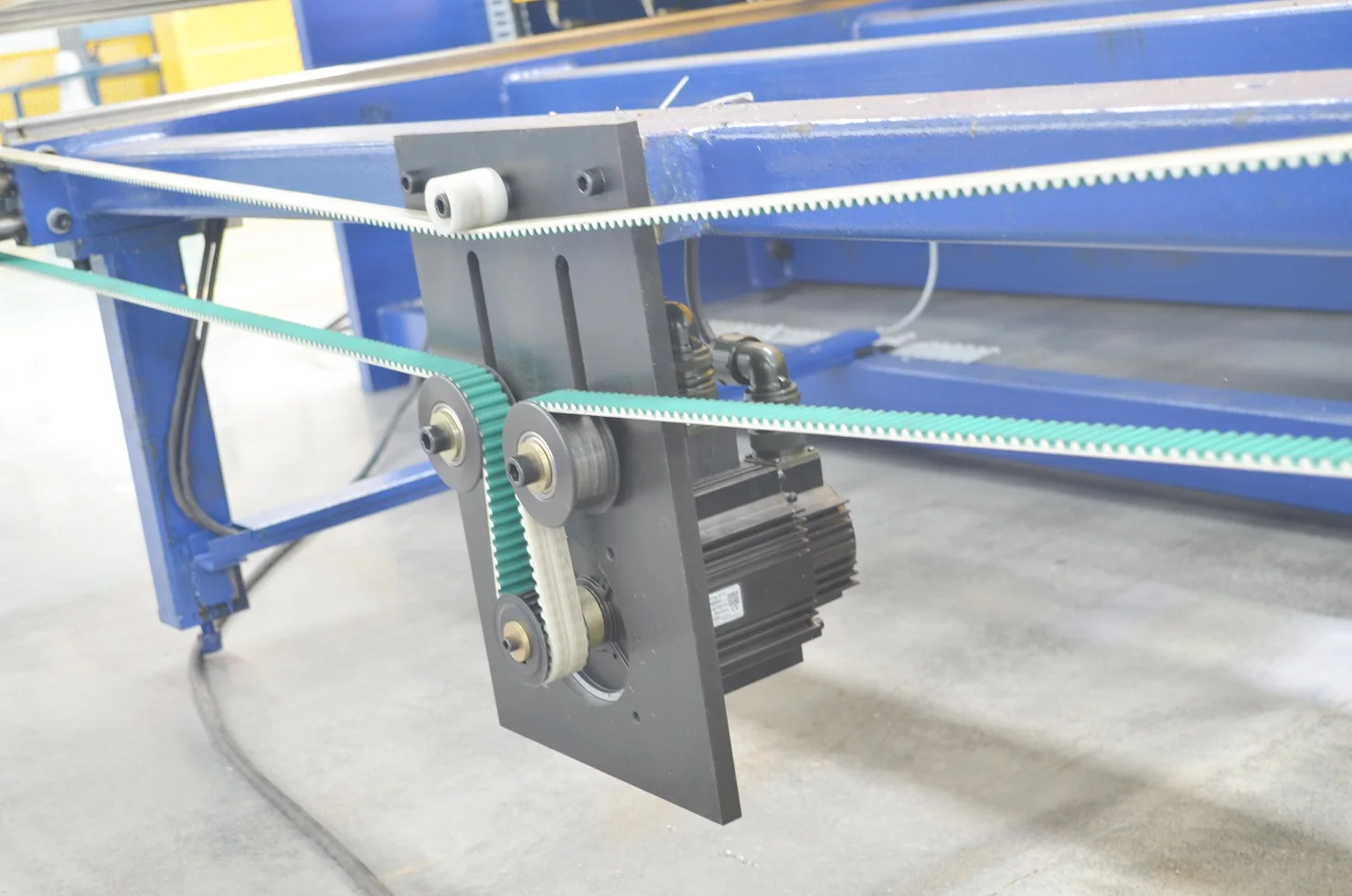

---X axis system
The X-axis system of the equipment is composed of a motor E21320 AC servo motor, a synchronous belt, a synchronous wheel, a ball wire rod, a linear guide rail, a rear stop frame, a tailing clamp and the like. which is characterized in that a motor is driven by a synchronous wheel to drive a ball wire rod to drive a rear stop material frame to move linearly on a linear guide rail through a synchronous belt, so as to provide the accurate positioning power of the rear stop material dragging mechanism,

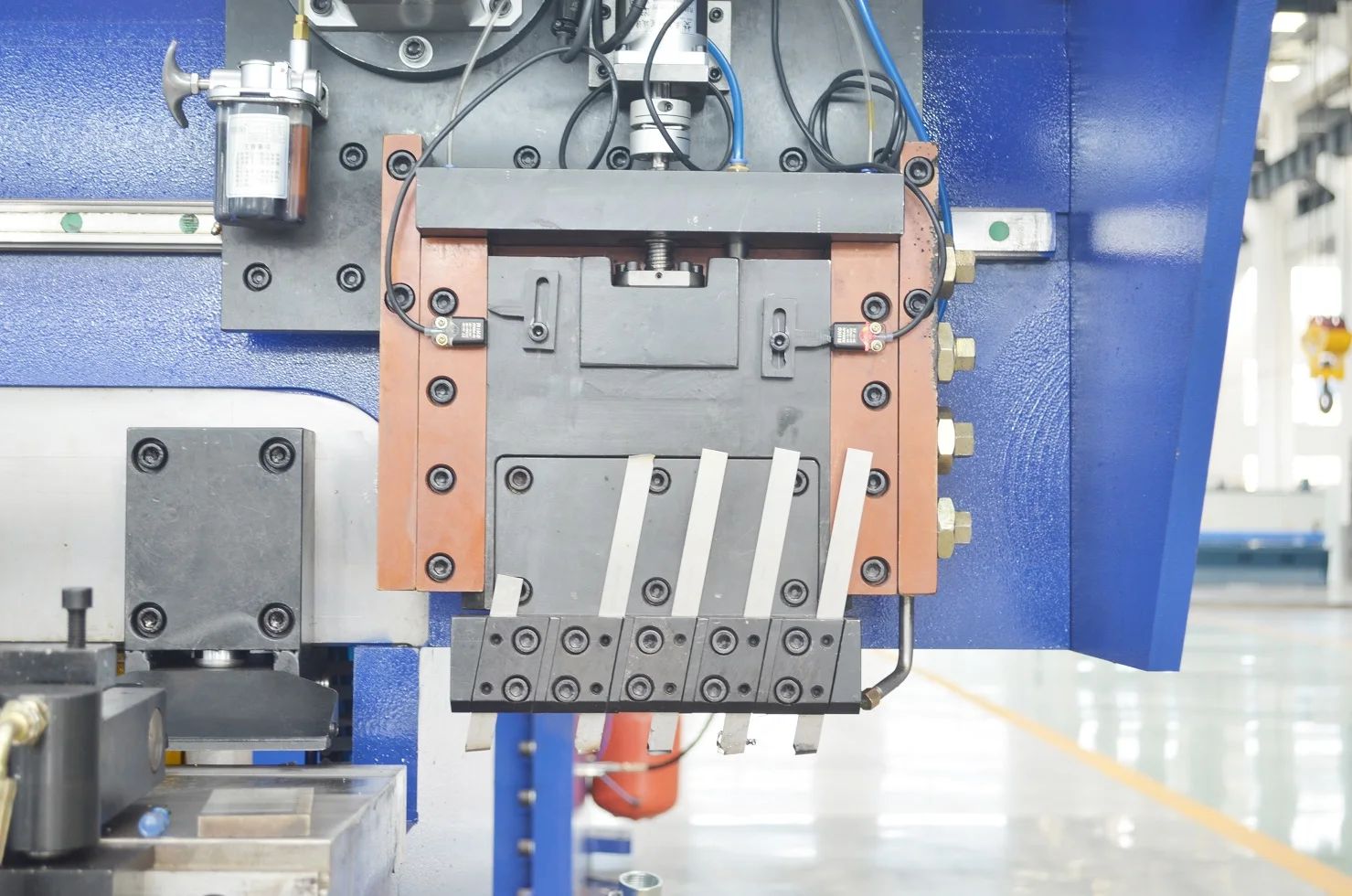

---Z axis system
The Z axis system consists of AC servo motor C20604, synchronous belt, synchronous wheel, ball wire rod, tool holder and other parts. Its function is that the synchronous wheel drives the ball wire rod to drive the tool holder to move in a straight line through the synchronous belt to provide accurate positioning power for the tool holder mechanism.
---pneumatic system
The pneumatic system of this equipment is divided into two groups. Its function is to provide clamping force when trailing the plate. The clamp pneumatic system clamps the plate in front of the planer and prepares for the planing.

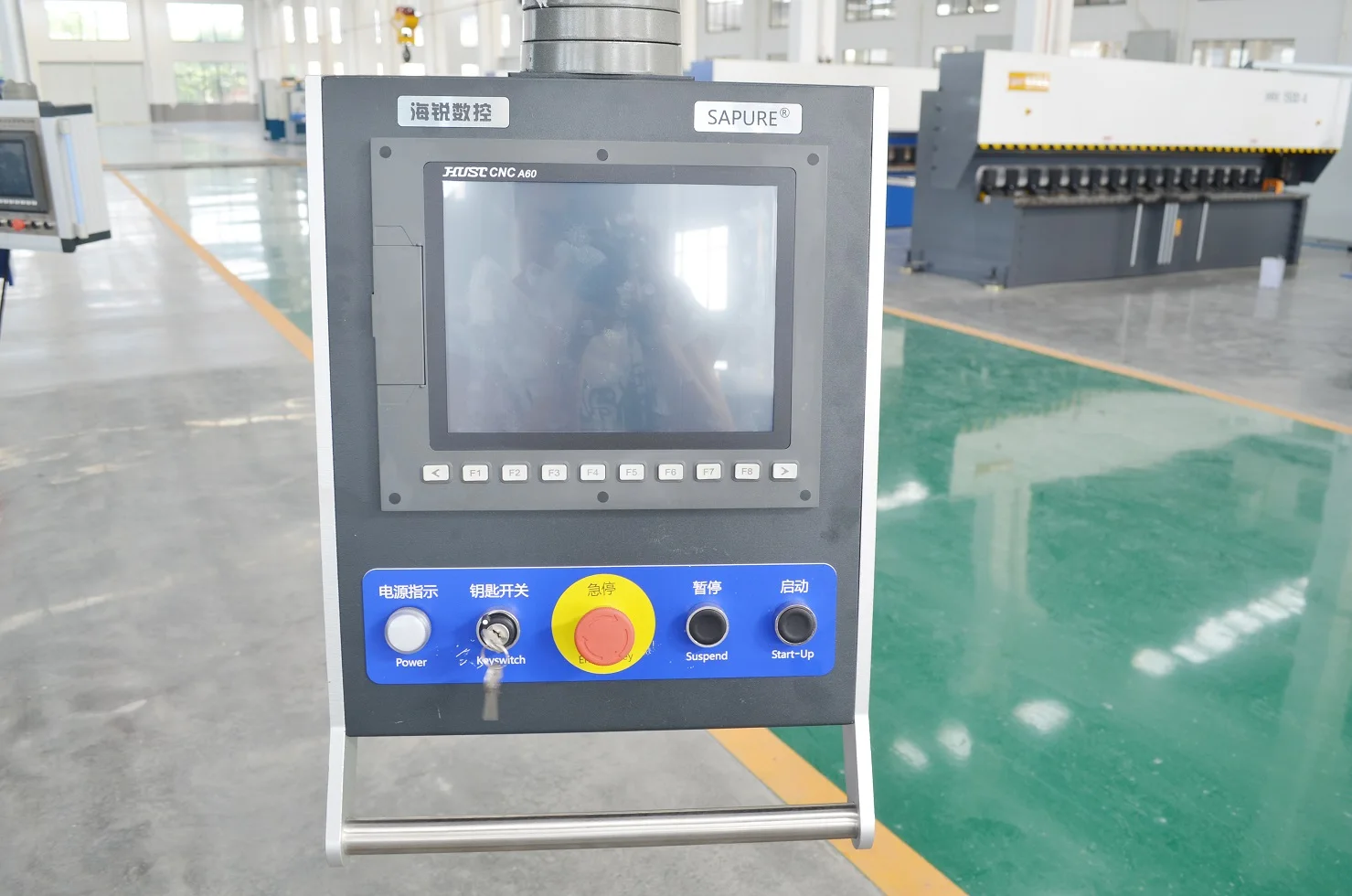

---electric control system
The electrical control system consists of PLC, driver, touch screen, electronic control element, electrical cabinet and other accessories. Electrical cabinet installation and the inside of the machine wall board, easy maintenance, and strong protection performance. The work of this device can be realized by touch screen control.
HRKModel
HRK1250-4000
Processing Plate Thickness
0.4-6mm
Processing Plate Size
1250x4000mm,
The length of the processing board is more than 4 meters. Please consult the sales .
Grooving Speed
5m to 70m per minute
X-axis Positioning Accuracy
0.05mm
Y-axis Positioning Accuracy
0.05mm
Z-axis Positioning Accuracy
0.05mm
Maximum Grooving Depth
3mm
Size(L*W*H)
5900mm*2050mm*2300mm
Description of application effect
HRK Series CNC Grooving Machine is widely used in household appliances, furniture, cabinets, curtain walls, decoration, elevators, advertising and other industries.
Detailed Images
Packing&Shipping
Before the machine is shipped, the mould will be coated with antirust oil. Special and effective packing. The machine is transported by standard container, and the common ones are 40 OT / 20 OT / 40 HQ / 40 GP / 20 GP. Inside the container, there will be more wire rope and multiple angle fixing machines.
We will also make videos to let you know how the equipment is loaded into the container.
Please contact our sales consultant for the best shipping plan and accurate quotation
