aluminum collapsible tubes 80T punching machine
- Category: >>>
- Supplier: Wuxi Packaging Technology Co. Ltd.
Share on (62275260356):
Product Overview
Description
Product Description

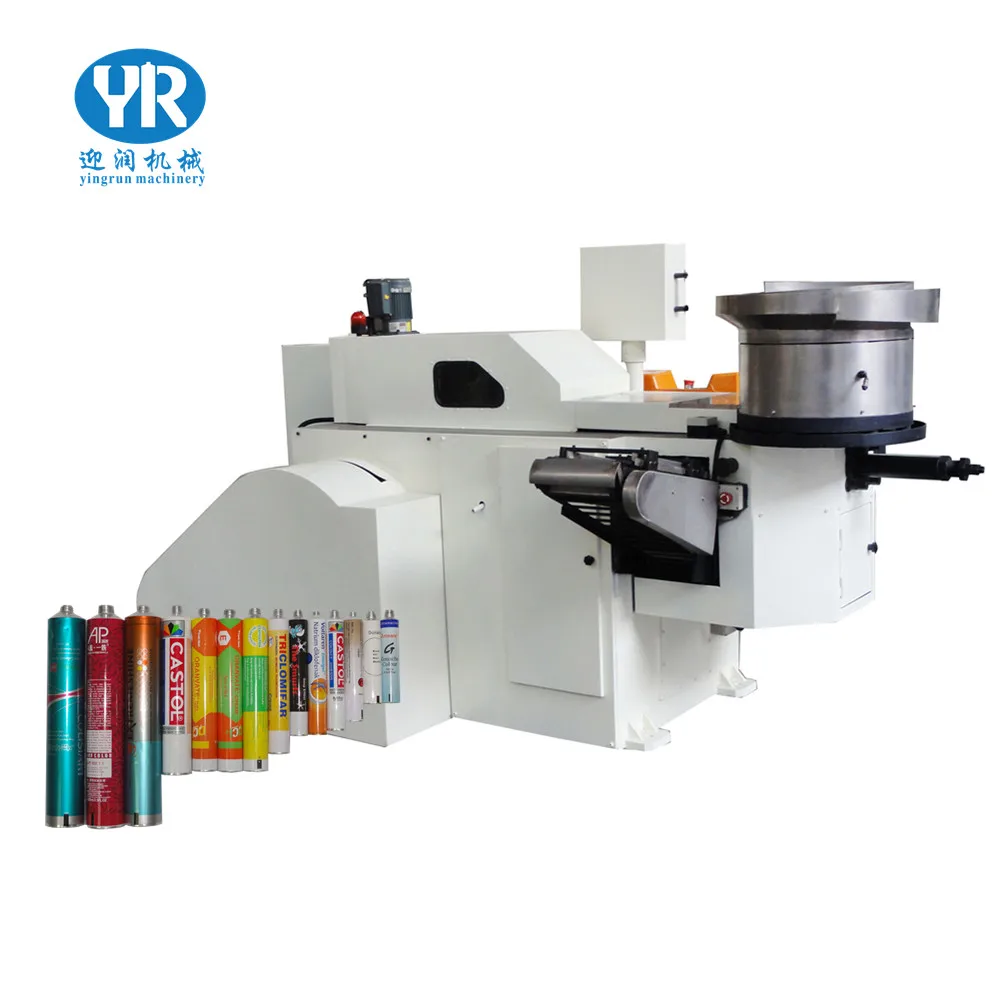

Horizontal extruder is also called horizontal extrusion press machine. This is a specialized equipment which extrudes aluminum and other non-ferrous slugs into germ tubes or cylindrical objects and other shapes.
The 80T extrusion press machine developed by our company, is a high speed aluminum extrusion device of new generation. This equipment comes with vibratory bowl which automatically arrange the aluminum slugs in order and send them to the laying-off rail. The machine manipulator sends the slugs precisely into the punch cavity. Under the action of the crank-shaft connecting rod, swing rod and sliding block, the aluminum slugs are extruded in desired shape and size.
The clearance between lip of punch and die controls pipe thickness. Through the annular slot between the die bottom and tip of punch, the slugs are pressed and turned into germ tubes, the extruded part is automatically unloaded to the out feed conveyor which transfers the product to next operation stage.
Main features
- 1. The complete machine is controlled with SIEMENS PLC, which ensures smooth control and synchronize the operation with Fail safe lubrication, automatic detection of tube sticking to die and punch, are added features.
- 2. The machine adopts whole cast steel structure (one-time casting) and has excellent rigidity and impact resistance.The body of the lathe is processed by large processing center. Mandrel and some other units are processed by CNC equipment, reaching high precision degree.
- 3. The seat of the tip of punch adopts the form of double inclined plane with accurate location. Punch base and connecting rod employ adjustable structure, which can eliminate the gap caused by the wear and tear of long term operation and ensure long-term high precision of equipment.
- 4. The key parts usehigh quality bronze alloy to reduce friction coefficient, increase wear resistance and prolong working life.
- 5. The machine employs whole closed lathe body design, which can avoid the dropping of lubricant onto the floor.
- 6. Easy operationand maintenance. The machine meets the concept of energy conservation and environmental protection.
Related Products

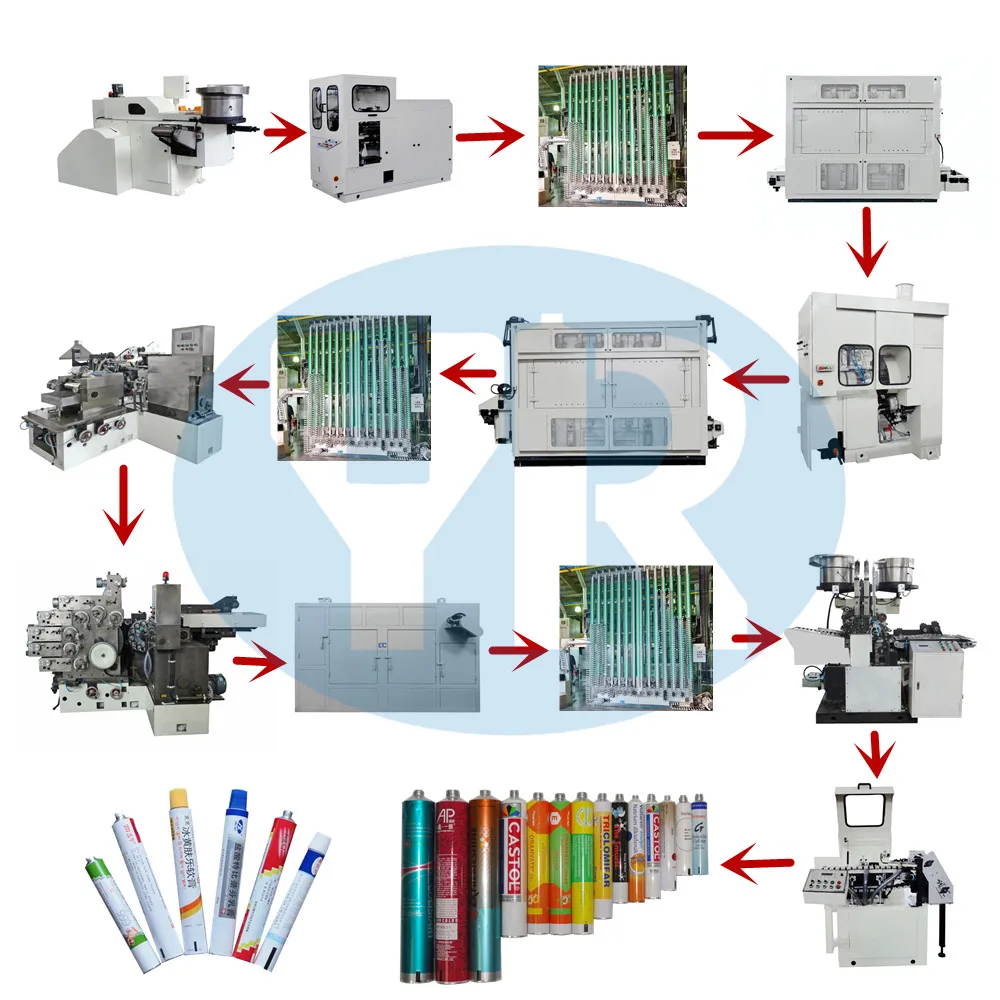

Aluminum soft tubes line

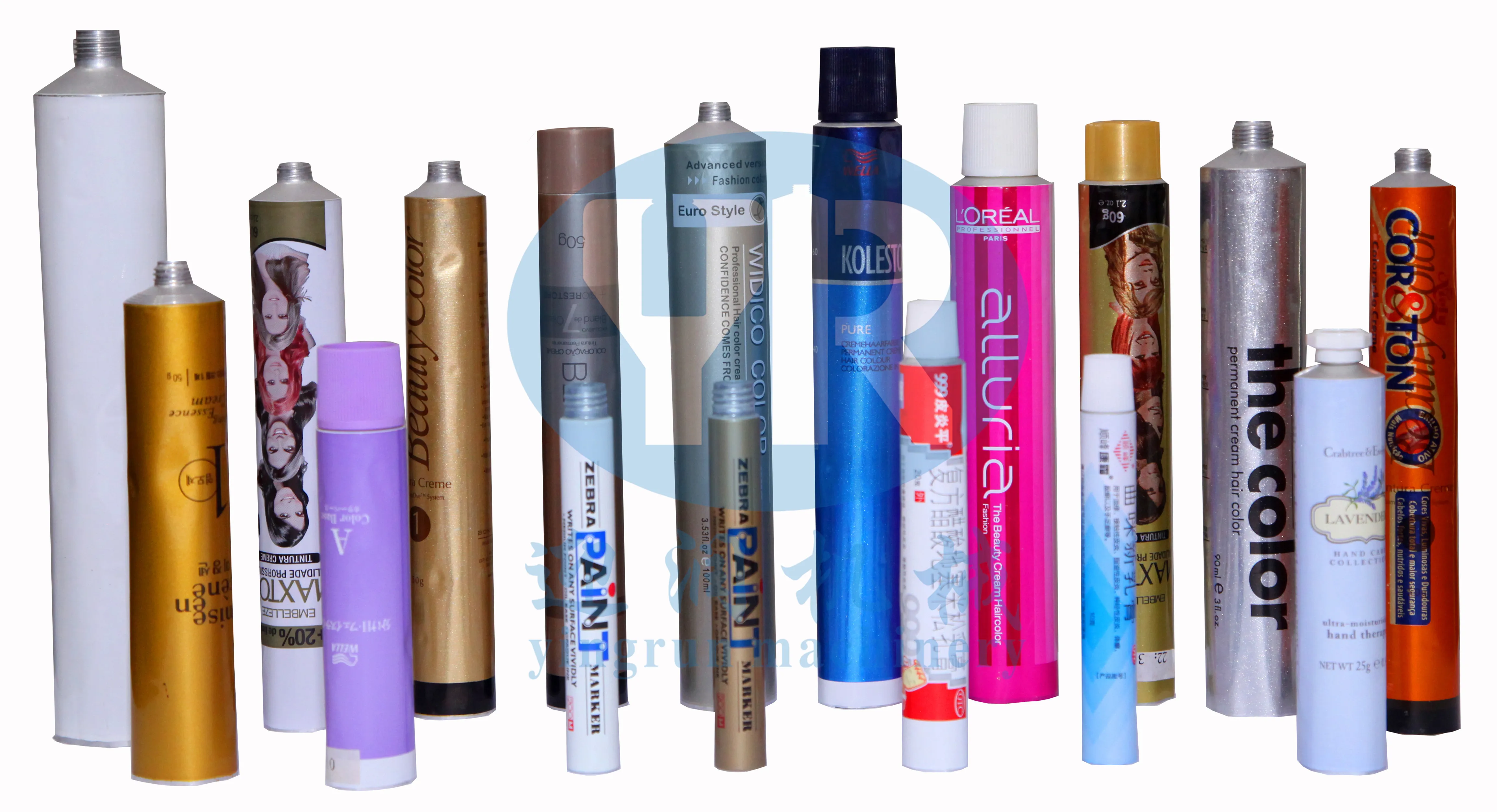

Aluminum soft tubes line or collapsible tubes line is a set of machines to produce tubes to pack products like ointment, artistic pigment, cosmetics, sealant, toothpaste, shoe polish, AB glue, hair dye, tomato sauce, chocolate sauce, instant adhesive, pen barrel, cigar, etc.

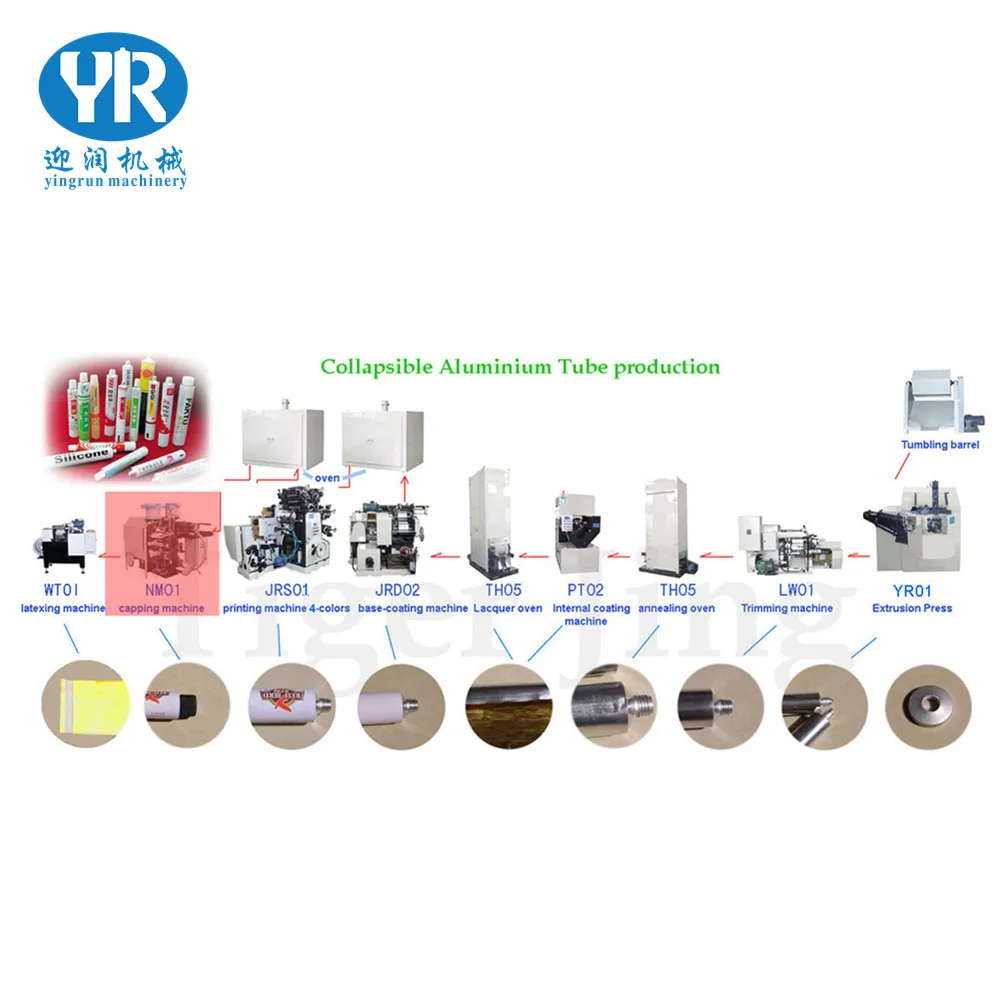

The YR series aluminum tubes lines produced by us are fully automatic. Each equipment of the series can work alone or form an automatic production line partially or fully, according to client’s needs. The machines include Extrusion press, Trimming , Annealing oven, Internal lacquering machine, Lacquering curing oven, Accumulator, Base-coating machine, 6-color and 8-color printing machine, Drying oven, Capping machine, Latexing machine and Packaging machine.
Other Machines
8-color Printing Machine
8-color printing machine is suitable for printing the surface of metal tubes like aluminum tubes and cans. It can realize polychrome printing of patterns in eight colors.
- 1. Tube diameter range: φ16mm-φ25mm or φ25-φ35mm
- 2. Tube length range: ≤250mm
- 3. Production speed: ≤100-120tubes/min
- 4. Motor power: 17KW
- 5. Dimensions: 3445*2318*2168mm
- 6. Net weight: 9600kg
- 7. Intake pressure: 0.6Mpa
Trimming Machine
Trimming machine is also called aluminum tube trimming machine. This multi operation machine can work alone or form a production line by connecting with other machines. The operation includes trimming and sizing of the tube nozzle, thread forming, shoulder finishing, and trimming the tube to required length.
1. Tube diameter range: φ16mm-φ40mm
2. Tube length range: 200mm
3. Production speed: ≤120tubes/min
4. Motor power: 35KW
5. Dimensions: 2800*2500*1900mm
6. Net weight: 2800KG
7. Extruded thread range: ≤φ14mm (outer diameter)
Capping Machine
Capping machine is used to cap aluminum tubes. Some products equipped with cleaning tops can have the cleaning function. The machine has a wide range of application and can cap various tubes.
1. Tube range: φ16-φ25mm or φ25-φ35mm
2. Tube length: ≤200mm
3. Production speed: 90-120 tubes/min
4. Motor power: 6.6KW
5. Dimensions: 2250*2200*2140mm
6. Weight: about 3200KG
7. Intake pressure: 0.6Mpa
Latexing Machine
Aluminum tube latexing machine is also called end spraying machine. It is supporting equipment for aluminum collapsible tube production line. The equipment can work alone or part of automatic production line by connecting with other aluminum manufacturing devices.
1. Tube range: φ16-φ25mm or φ25-φ35mm
2. Tube length: ≤200mm
3. Production speed: ≤120 tubes/min
4. Burning power: 6.3KW
5. Dimensions: 1600*1300*1280mm
6. Weight: about 1200KG
7. Intake pressure: 0.6Mpa
Certificate
Company Introduction
Wuxi Packaging Technology Co.,Ltd is located in Wuxi city, which is 150km away from Shanghai.
The company is mainly focus on producing and selling machines for aluminum collapsible tubes line, aluminum aerosol cans line and toothpaste line, has taken part in this field for 20 years. Our machines have passed the European CE certification. We also provide professional consultation and service for clients.
Our machines are widely used to produce aluminum collapsible tubes, aluminum aerosol cans and bottles, fill toothpaste and other paste products.
“Create value for clients by professional service” is our forever company tenet. We are looking forward to cooperating with friends from different countries and creating the brilliancy together.
Customer Photos
FAQ
Q: What’s the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What’s the warranty time?
A: One year start from installed.
Q: How to use?
A: We offer paid installation, commissioning and training.
Q: Can I visit your factory?
A: You’re welcomed any time.
