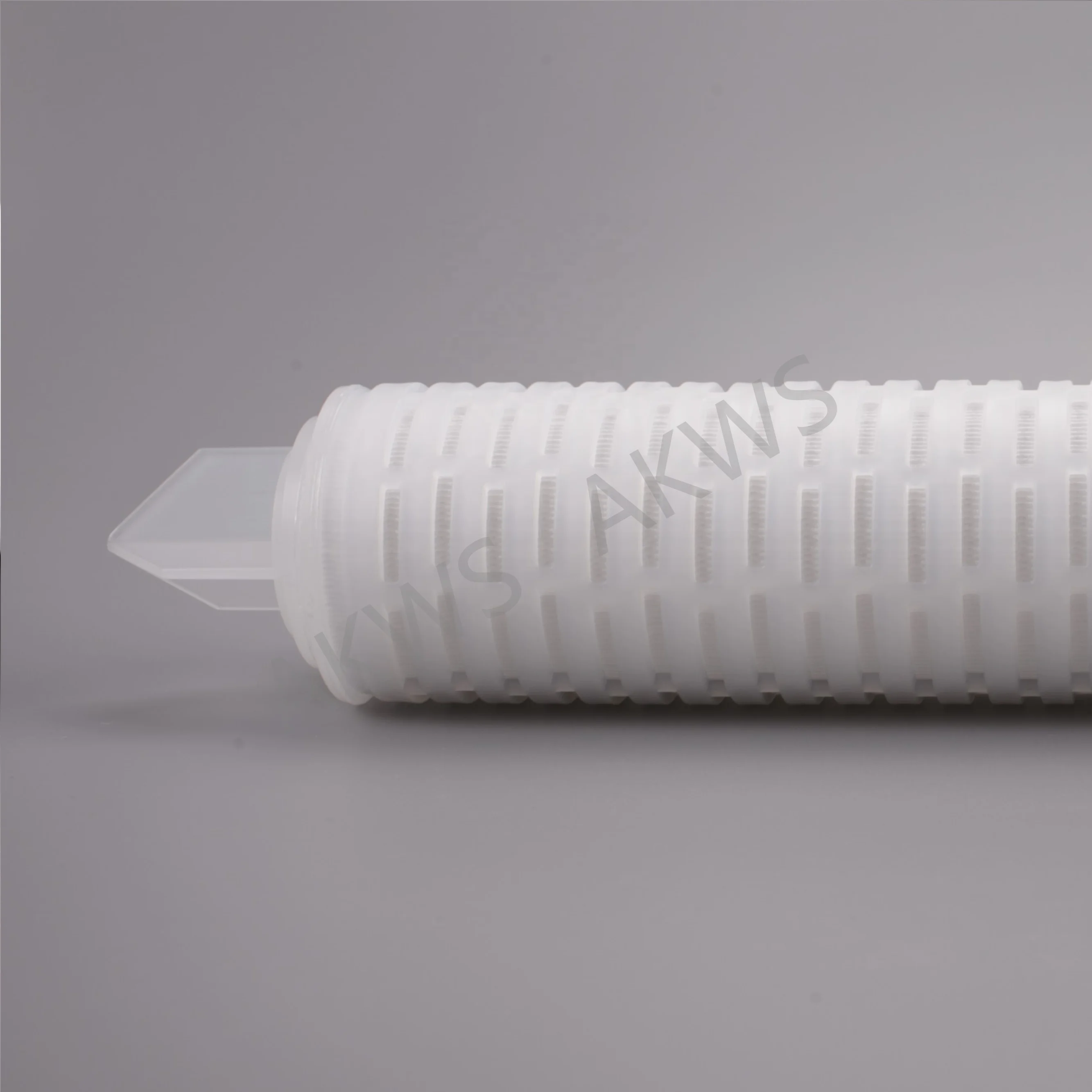

White Mircofiberglass tube pleated filter cartridge element suitable for gas pre filtration

Product Overview

Description

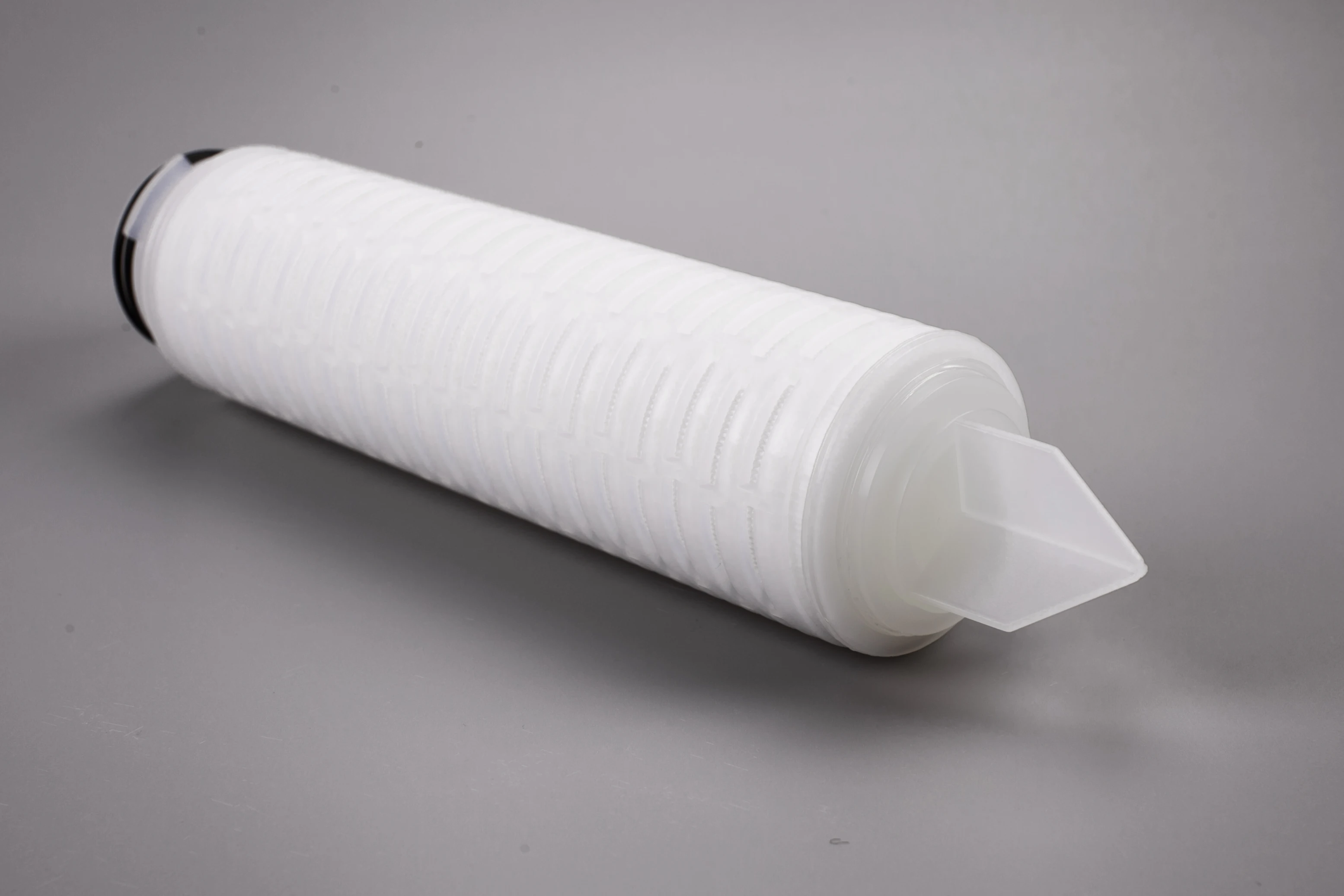

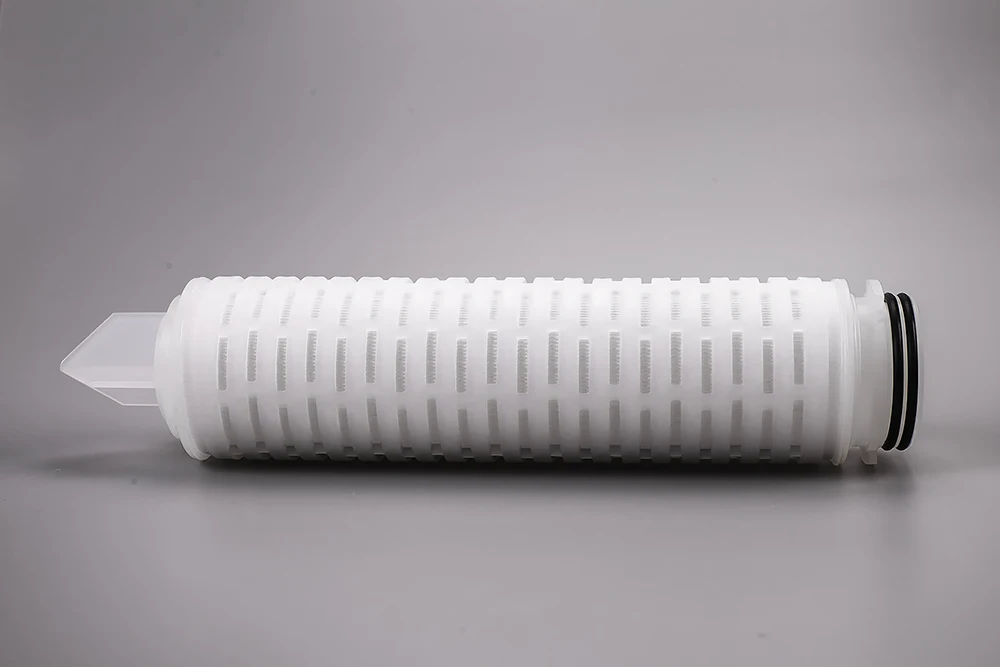

White Mircofiberglass tube filter element

Gas Pre-Filtration Pleated Filter Cartridge



Product Features

lMade Up of Ultra-Fine Glass Fiber And Imported Non-Woven Fabric.

lGraded Pore Size Change Provides Super High Pollutant Capacity, with Excellent Retention Ability For Particletibs In Gastanding Chemical Compaility, Hes. igh Porosity and Low Pressure Drop.

lGood Absorbability and High Filtration Efficiency.



Specifications



Materials of Construction:

Filter Media: Micro glassfiber

Hardware: Polypropylene

Center Core: Polypropylene

Supporting Material: Polypropylene

End Caps: Polypropylene

Gasket/O-rings: Silicone,Buna-N,EPDM.



Dimensions:

Outside Diameter:2.67”<68mm>

Length: 5”~40”<127mm~1016mm>



Specifications can be customized

Performance Specifications



Retention Ratings: 0.01,0.3,0.5um

Maximum Differential Pressure:

75psid(5.1bar )@68℉(20℃)

40psid(2.8bar) @150℉(65℃)



Recommended Change Out Differential Pressure:

35psid(2.4 bar)



Applications

lCompressed Air for Oil Removal And Particle Filtration

lPretreatment for Fermentation Air, Etc.







Ordering Information

Product Name	Retention Rating	Cartridge Length	End Configurations	Materials of O-rings/Gaskets
PGA	0.01,0.3,0.5μm Absolute	5”,9.75”,10”,20”, 30”,40”	DOE=No Symbol 3=SOE with 222 O-rings, Flat Closed End 8=SOE with 222 O-rings, Fin End 7=SOE with 226 O-rings, Fin End	N=Buna-N E=EPDM                               S=Silicone
