Многоканальный тестер сопротивления постоянного тока с компаратором AT5108
- Category: >>>
- Supplier: Changzhou Applent Instruments Ltd.
Share on (62275322912):
Product Overview
Description
Product Effects

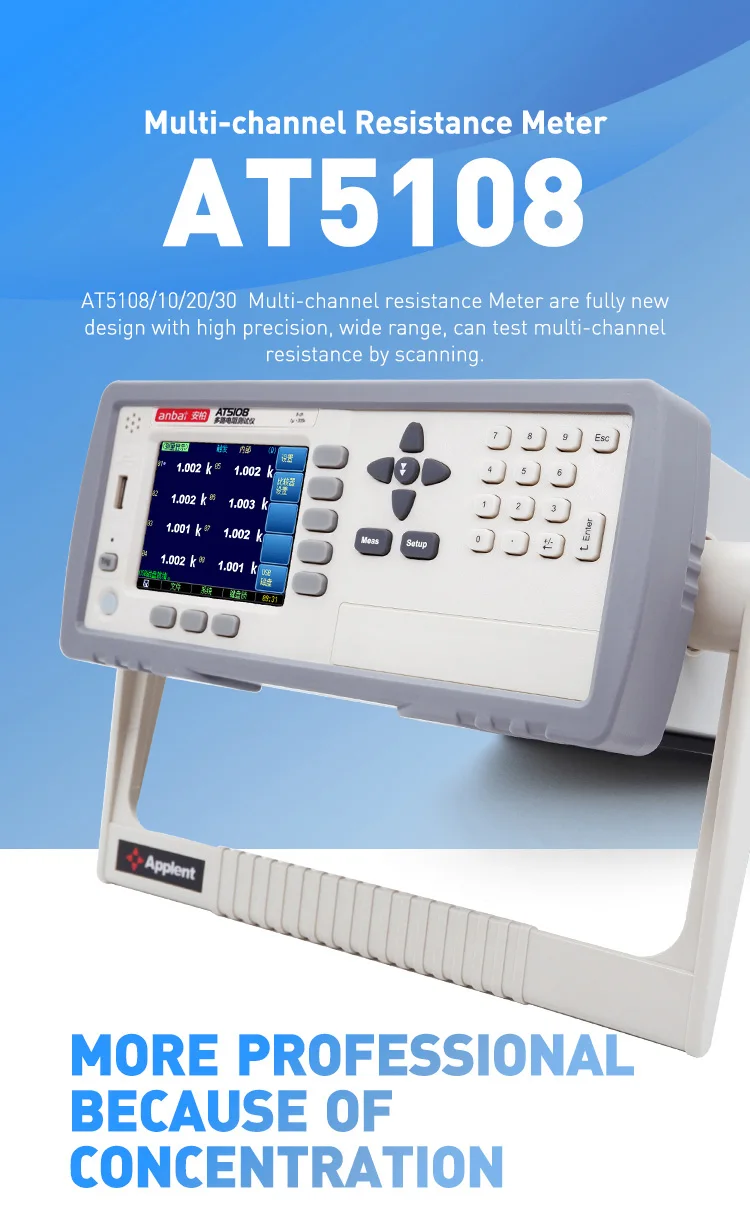

AT5108/10/20/30 Multi-channel resistance Meter are fully new design with high precision, wide range, can test multi-channel resistance by scanning. and each channel can set comparator separately.

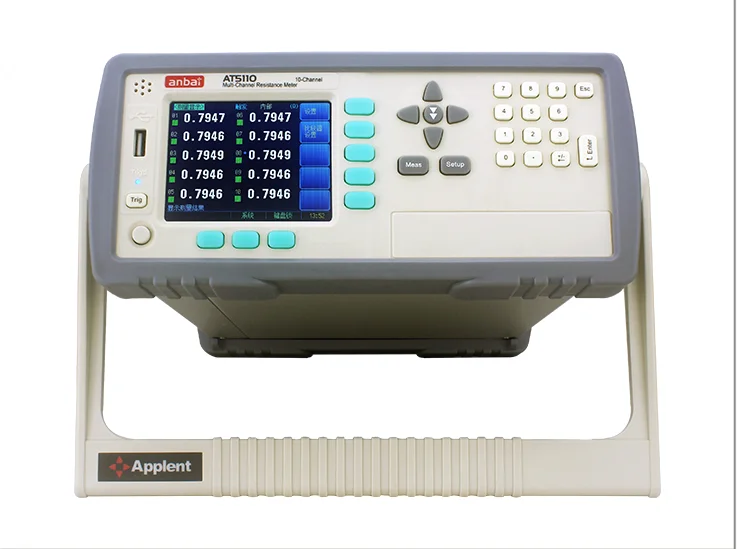

AT5110, AT5210 adopt high preformance ARM micro processor control, color 3.5 inch LCD can display multiple resistance values simultaneously, resistance test range 1μΩ ~ 300kΩ, max display 30,000 dgt.
The temperature compensation function of instrument can meet different test requirements. used for automatic equipments, can output multiple OK/NG signals by RS232C & Handler interface, support SCPI & Modbus agreement,
apply for auto sorting system to complete the automatic assembly line production to improve the test ability of production Automation.
Product Description
Accessories
Product parameter
| SPECIFICATIONS | |
| Parameter | DC resistance |
| Channel | AT5108: 8 channels (scanning) |
| AT5110: 10 channels(scanning) | |
| AT5120: 20 channels(scanning) | |
| AT5130: 30 channels(scanning) | |
| Accuracy | 0.05% |
| Max reading | 30,000 |
| Measurement RANGE | 1μΩ ~ 30kΩ |
| Signal source | Max current:<1A |
| Range | auto,manual,nominal |
| Speed | 30ms/channel(manual) |
| Display results | AT5108: 8 channels show |
| AT5110: 10 channels show AT5120: 20 channels show | |
| AT5130: 30 channels show | |
| Adjustment | Short circuit zero correction for each channel |
| Trigger | internal |
| manual level external remote | |

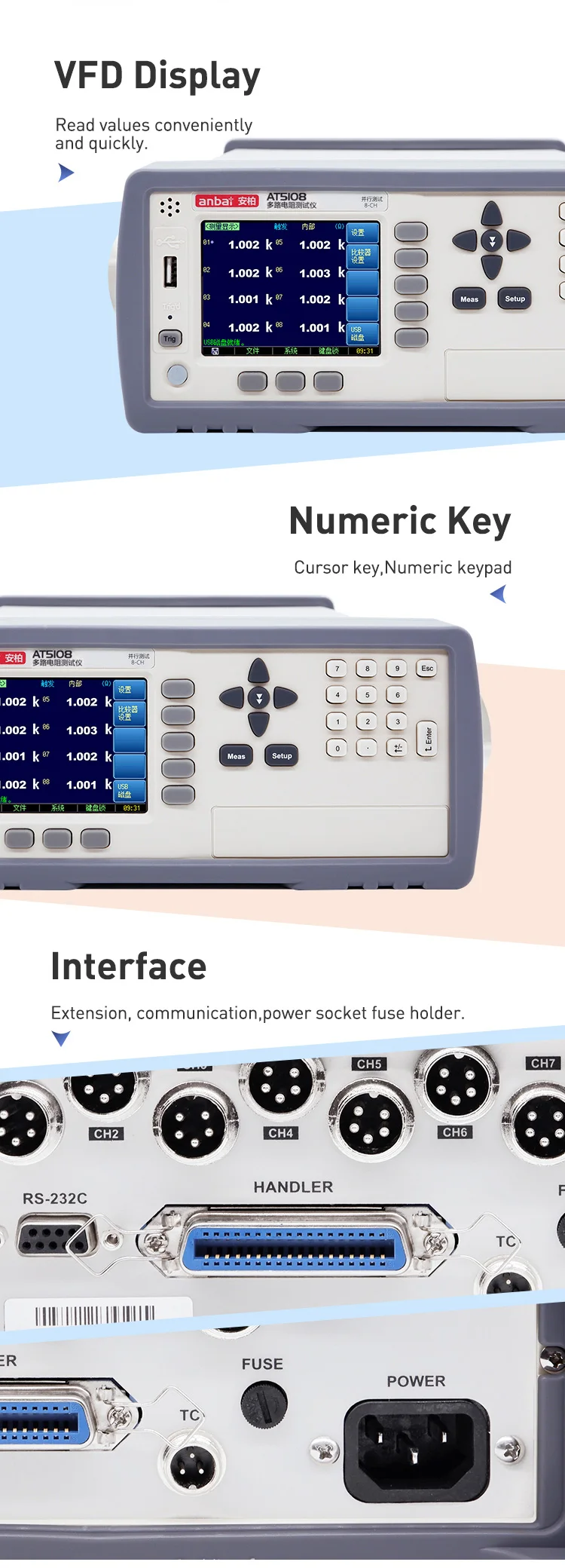

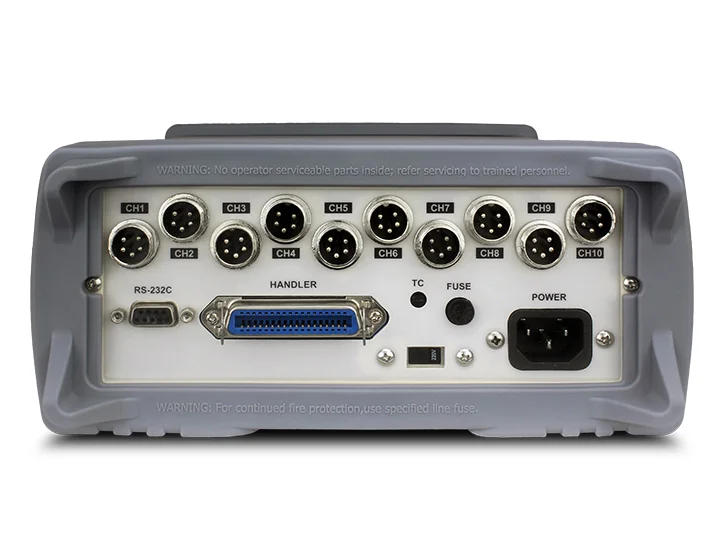

| Interface | RS-232C (SCPI ) |
| HANDLER(PLC) | |
| USB | |
| Comparator | each channel can set and output independently |
| Absolute tolerance value±TOL Percent tolerance value %TOL | |
| Direct reading value comparison | |
| Test lead | 4 terminal shield for each channel(2 check &2 driving terminal) |
| and external shielding ground section | |
| Others | color TFT-LCD display |
| resistance upper & lower limit set temperature compensation function | |
| keyboard lock | |
| Power supply | Voltage:198VAC ~ 250VAC |
| Frequency:50Hz | |
| Max power:15VA | |

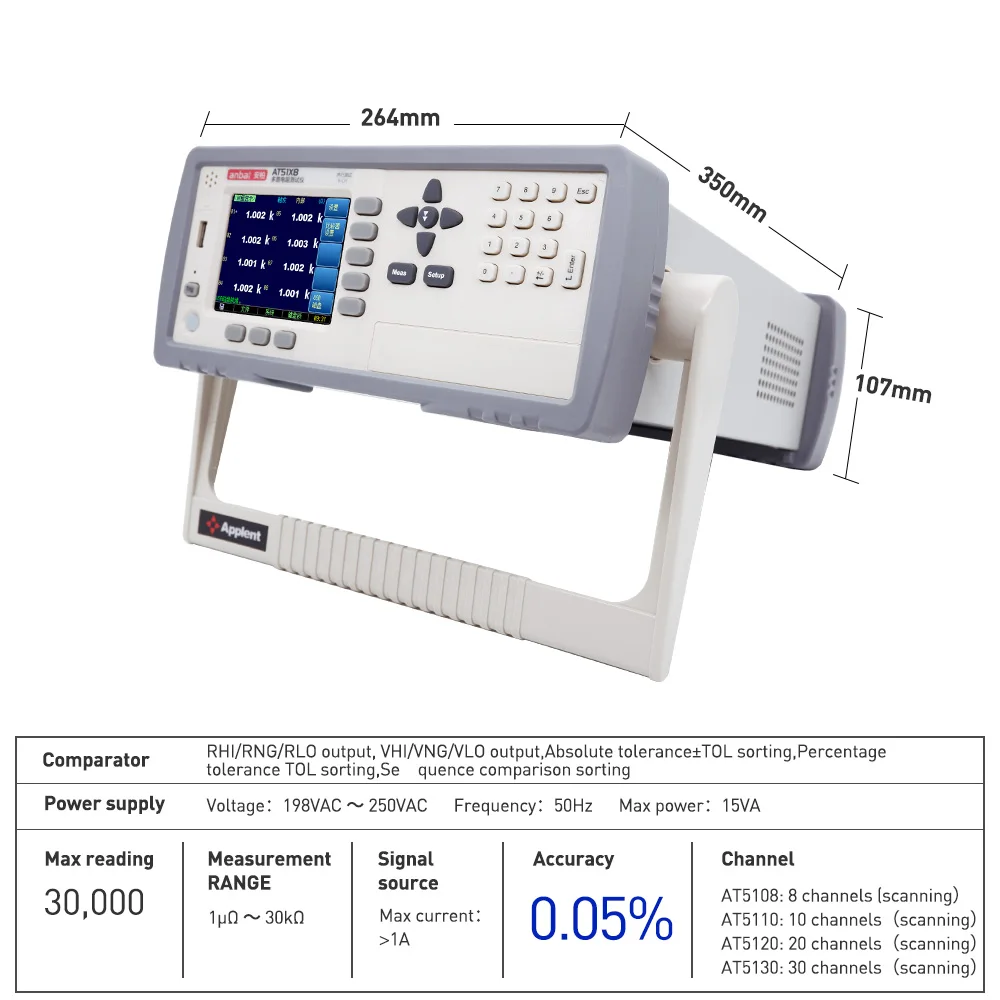

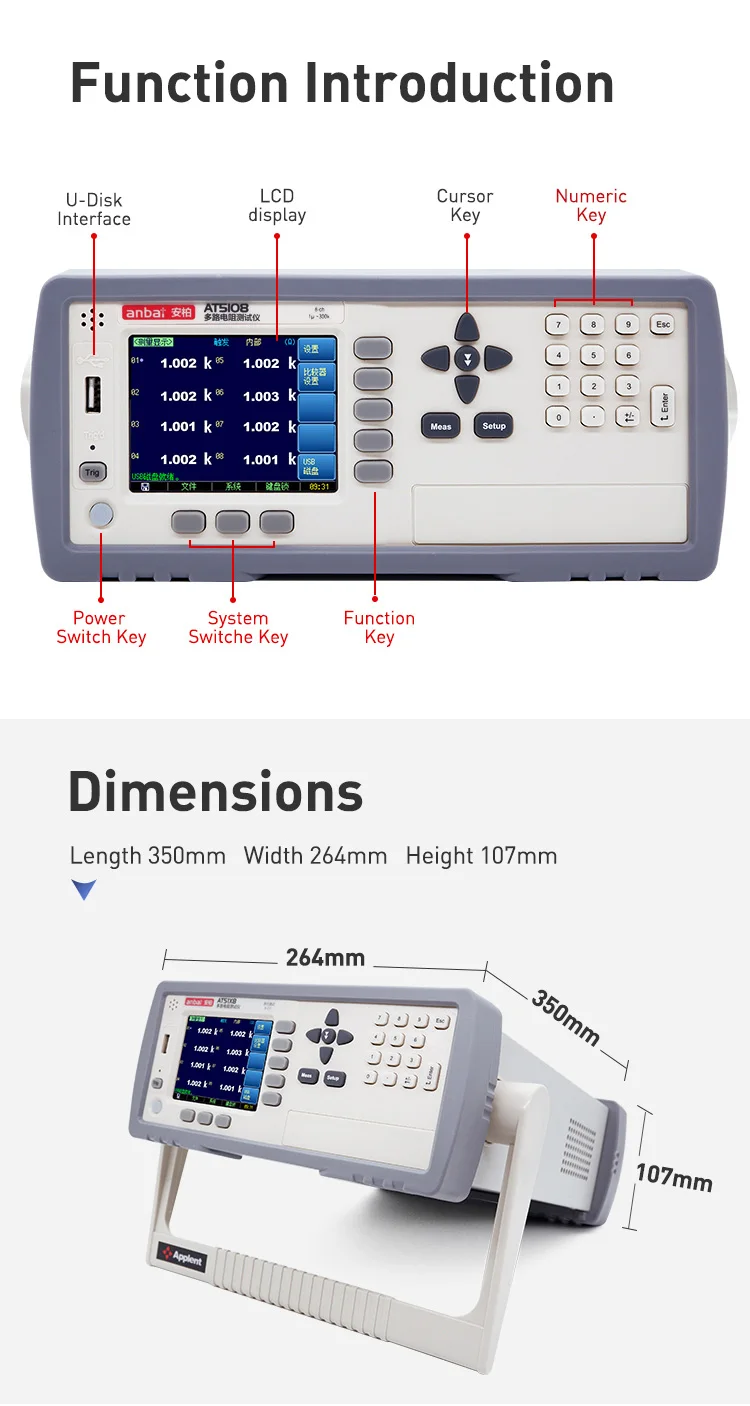

| Sizes | 264 x107x350 mm |
| Weight | 4kg |

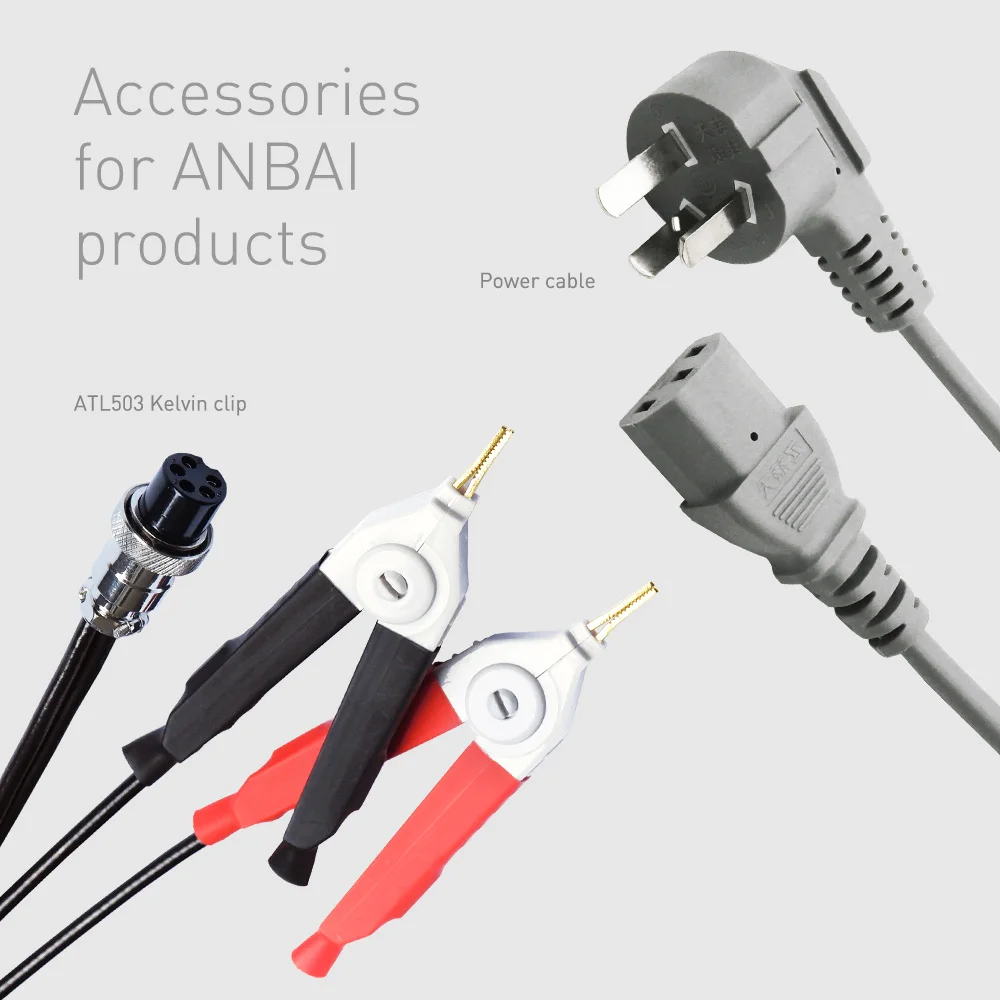

| Accessories | ATL503 Kelvin clip |
Packaging & Shipping
Certifications
Trade Shows

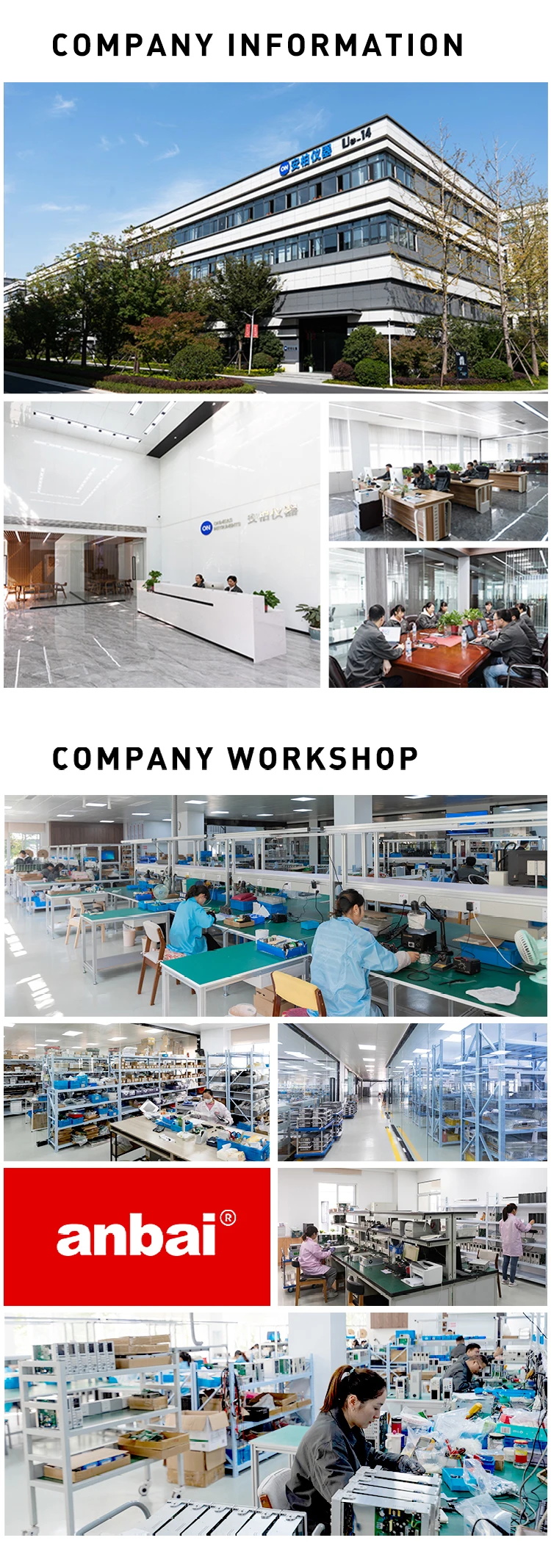

Company Information
