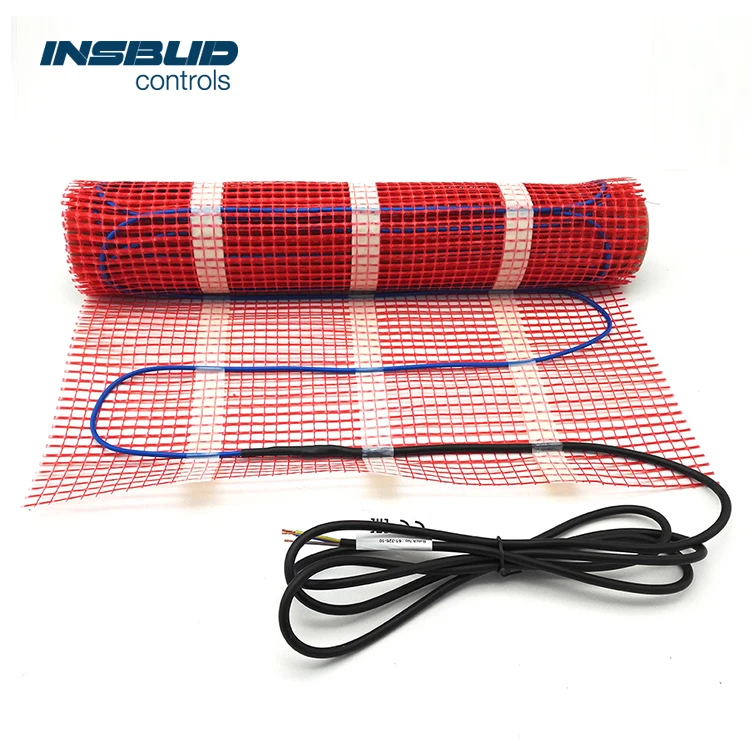

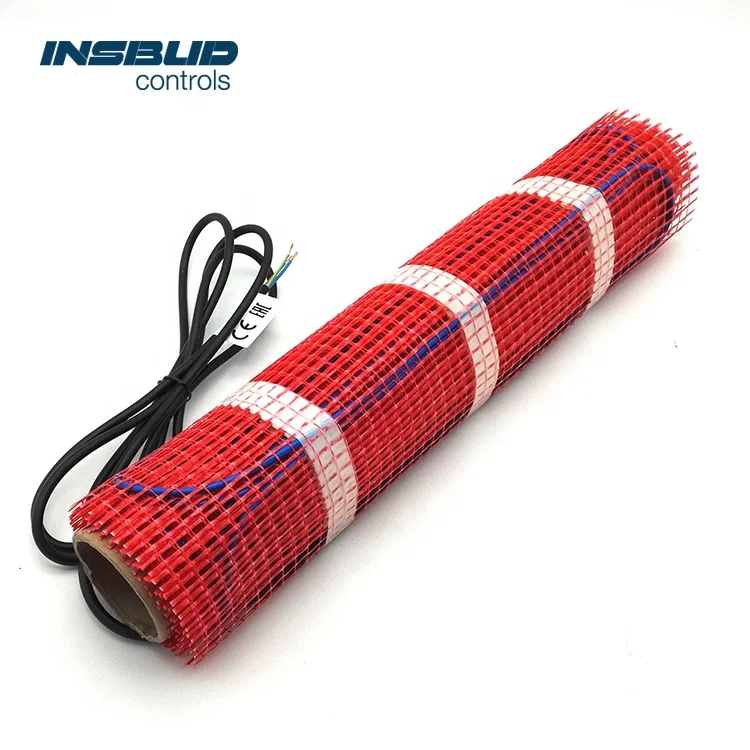

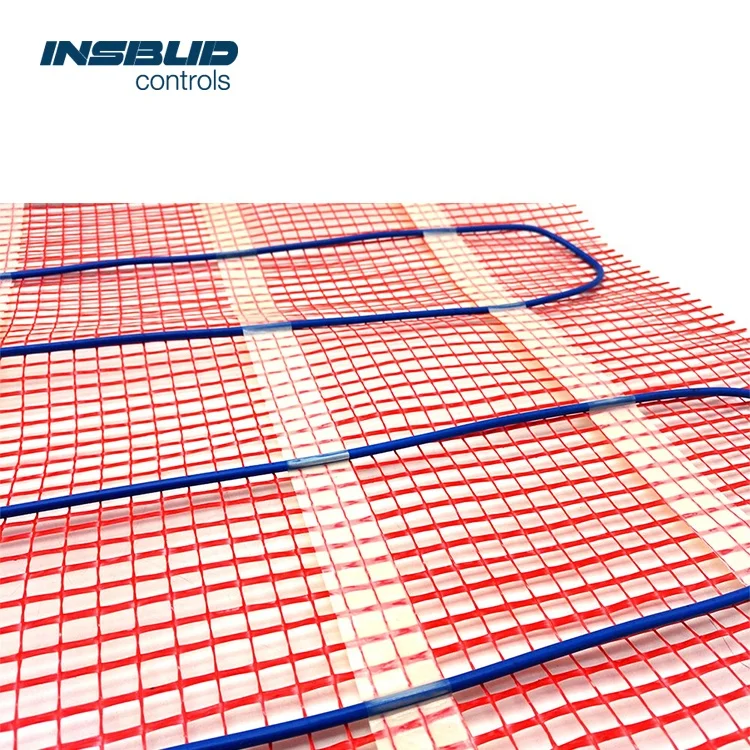

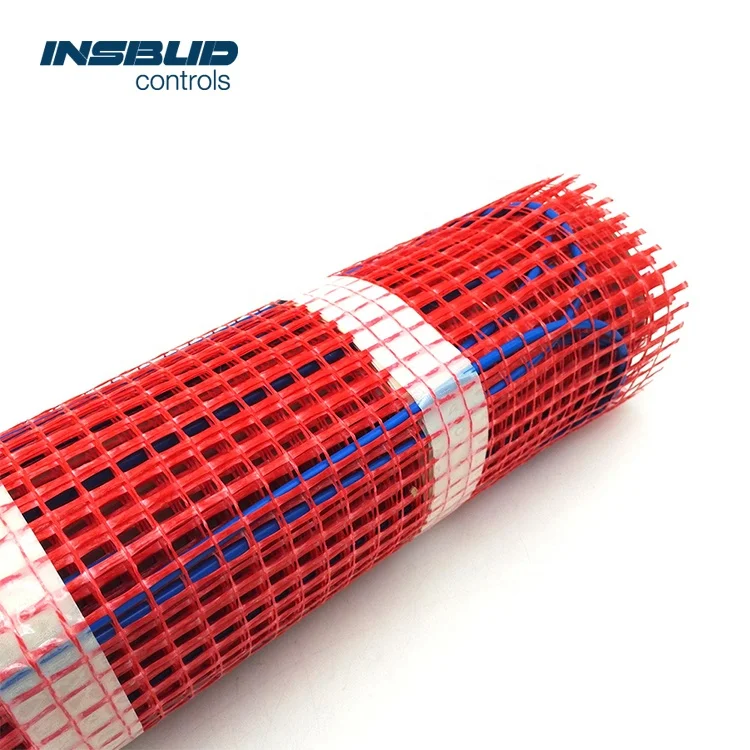

Floor Warming System Intelligent Electric Underfloor 220v Heating Mat
- Category: Floor Heating Systems & Parts >>>
- Supplier: Nanjing Insbud Controls Company Limited
Share on (62275387501):
Product Overview
Description
Product Description
Type | Voltage (v) | Power (w) | Resistance (Ω) | Cable length (m) | Square meter (m2) |
TRHMS-100 | 220 | 50 | 968.00 | 4.2 | 0.5*1 |
TRHMS-100 | 220 | 100 | 484.00 | 8.3 | 0.5*2 |
TRHMS-100 | 220 | 150 | 322.67 | 12.5 | 0.5*3 |
TRHMS-100 | 220 | 200 | 242.00 | 16.7 | 0.5*4 |
TRHMS-100 | 220 | 250 | 193.60 | 20.8 | 0.5*5 |
TRHMS-100 | 220 | 300 | 161.33 | 25.0 | 0.5*6 |
TRHMS-100 | 220 | 350 | 138.29 | 29.2 | 0.5*7 |
TRHMS-100 | 220 | 400 | 121.00 | 33.3 | 0.5*8 |
TRHMS-100 | 220 | 500 | 96.80 | 41.7 | 0.5*10 |
TRHMS-100 | 220 | 600 | 80.67 | 50.0 | 0.5*12 |
TRHMS-100 | 220 | 700 | 69.14 | 58.5 | 0.5*14 |
TRHMS-100 | 220 | 800 | 60.5 | 66.9 | 0.5*16 |
TRHMS-100 | 220 | 900 | 53.78 | 75.3 | 0.5*18 |
TRHMS-100 | 220 | 1000 | 48.4 | 83.7 | 0.5*20 |
TRHMS-100 | 220 | 1200 | 40.33 | 100.4 | 0.5*24 |
Outer sheath :FEP corrosion and heat-resistant material
Ground wire:Tinned copper wire
Shield layer :Aluminum foil
Inner conductor :Alloy resistance wire
Inner insulation:PFA transparent ,Teflon
External diameter:3-6mm
Cold length:4m
Voltage :220v(customizable)
Power per unit area:100w/m2;150w/m2
Max .Surace temperature :85℃
Max.Bending coefficient:5D
Installed easily:
Installed in the tile adhesives do not impact the floor elevation
Friendly:
Can be directly laid on the original floor without any treatment to the original floor
Widely used:
Be suitable for various floor decorative materials: concrete floor, wood floor, the old tiles floor , terrazzo floor...
Thin preheat layer,heat fast:
With the system activated, it can reach the desired floor temperature in 20-30 minutes.
Safe:
High efficient and convient heating system
Installation
