5 axis CNC milling machine center vertical with factory price VMC1060
Vertical type cnc milling machining center vmc 1060 | ||||||
Table | Size | mm | 1200*600 | |||
Travel of 3 axis(X/Y/Z) | mm | 1000/600/600 | ||||
Max table load | kg | 800 | ||||
T-slot | Number*width*space | mm | 5*18T*110 | |||
Spindle | Spindle taper | BT40 | ||||
Spindle center to column | mm | 650 | ||||
Spindle nose to table | mm | 120-750 | ||||
Max spindle speed | rpm | 8000/12000 | ||||
Spindle Motor power | kw | 11 | ||||
Accyracy | Positioning accuracy | mm | ±0.005 | |||
Repeatability | mm | ±0.003 | ||||
Axis motor | Power of X/Y/Z | kw | 4.5/4.5/5.0 | |||
Feeding Speed | Rapid feed of X/Y/Z | mm/min | 30000 | |||
Cutting feed of X/Y/Z | mm/min | 15000 | ||||
Parameters | Weight | kg | 8500 | |||
Dimension(L*W*H) | mm | 3400*2900*2750 | ||||
Power | v | 380/415/440 | ||||
Bearing | Japan NSK or German FAG optional | |||||
Controller | Taiwan Syntec/ Japan Mitsubishi/Japan Fanuc | |||||
Motor | Japan YASKAWA /Mitsubishi/Fanuc Servo Motor | |||||
Tools Magazine | Taiwan Sanjie/Deta arm type 24 tools capacity | |||||
Guide Ways | Taiwan Hiwin / Taiwan PMI | |||||

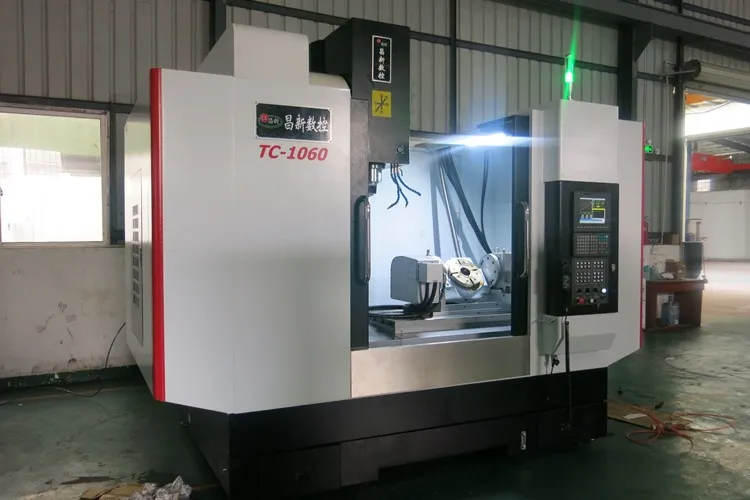

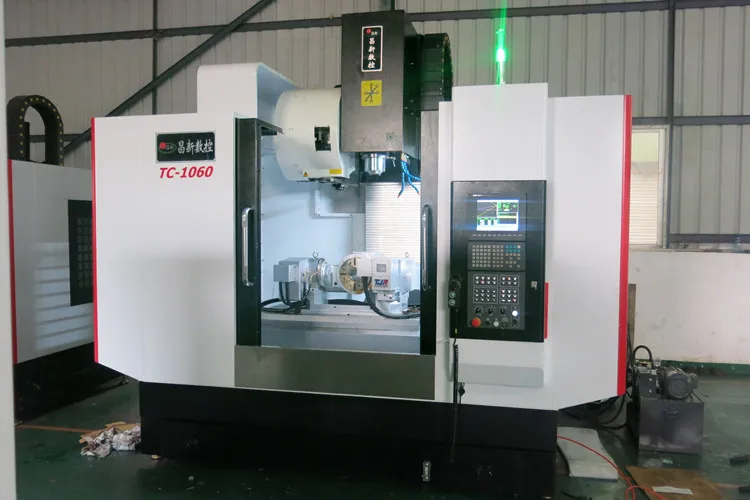

Products Show

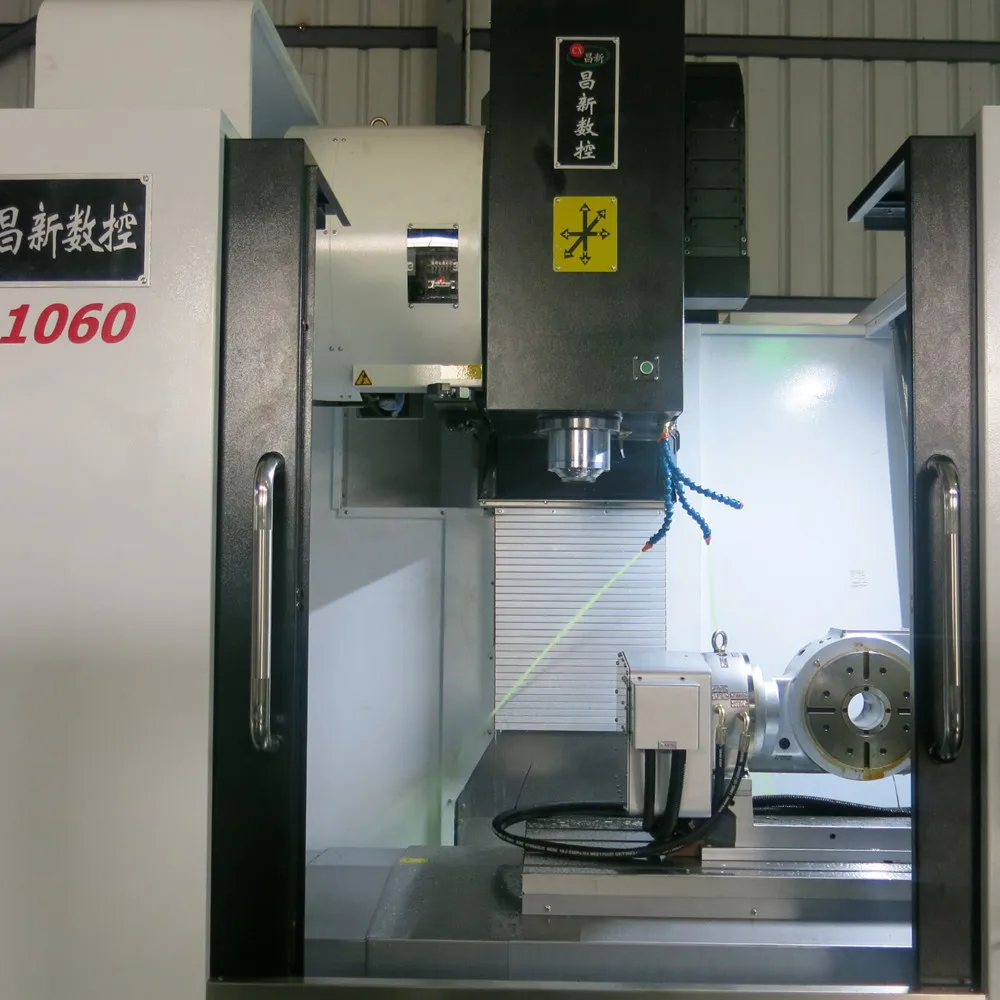

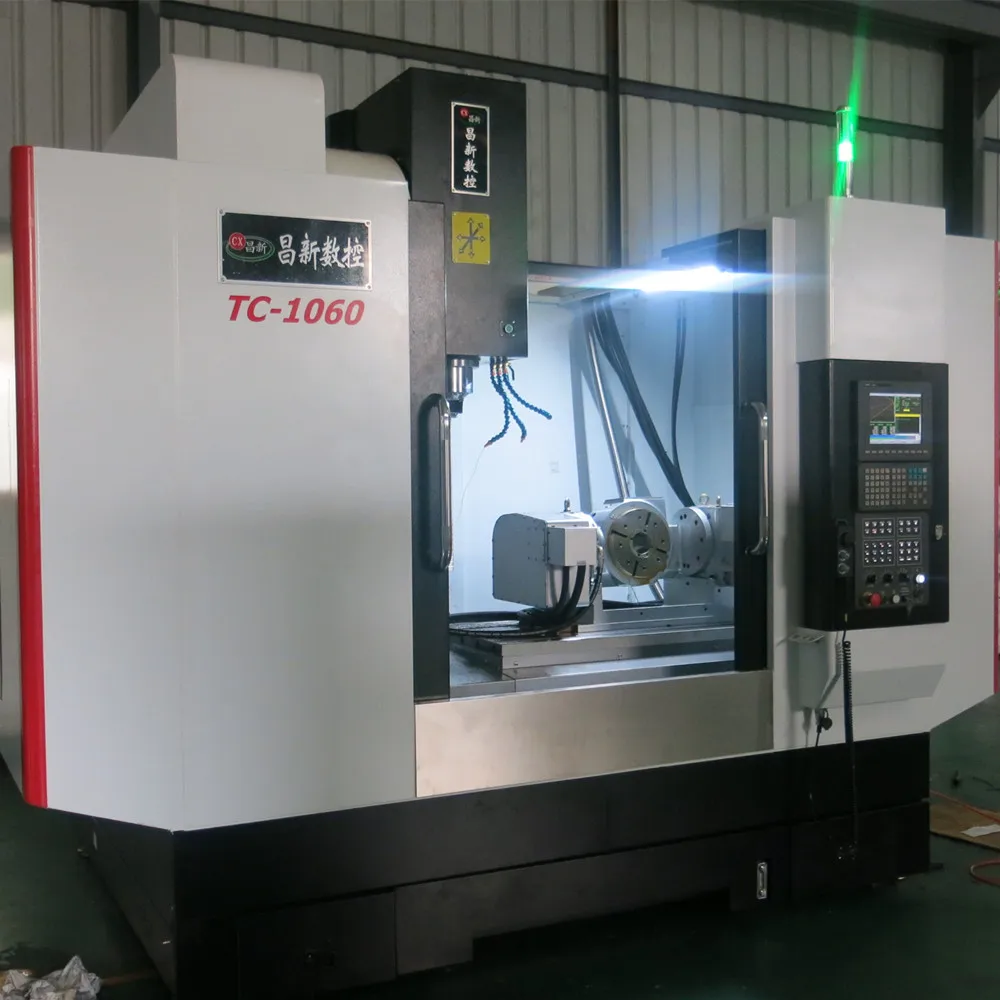

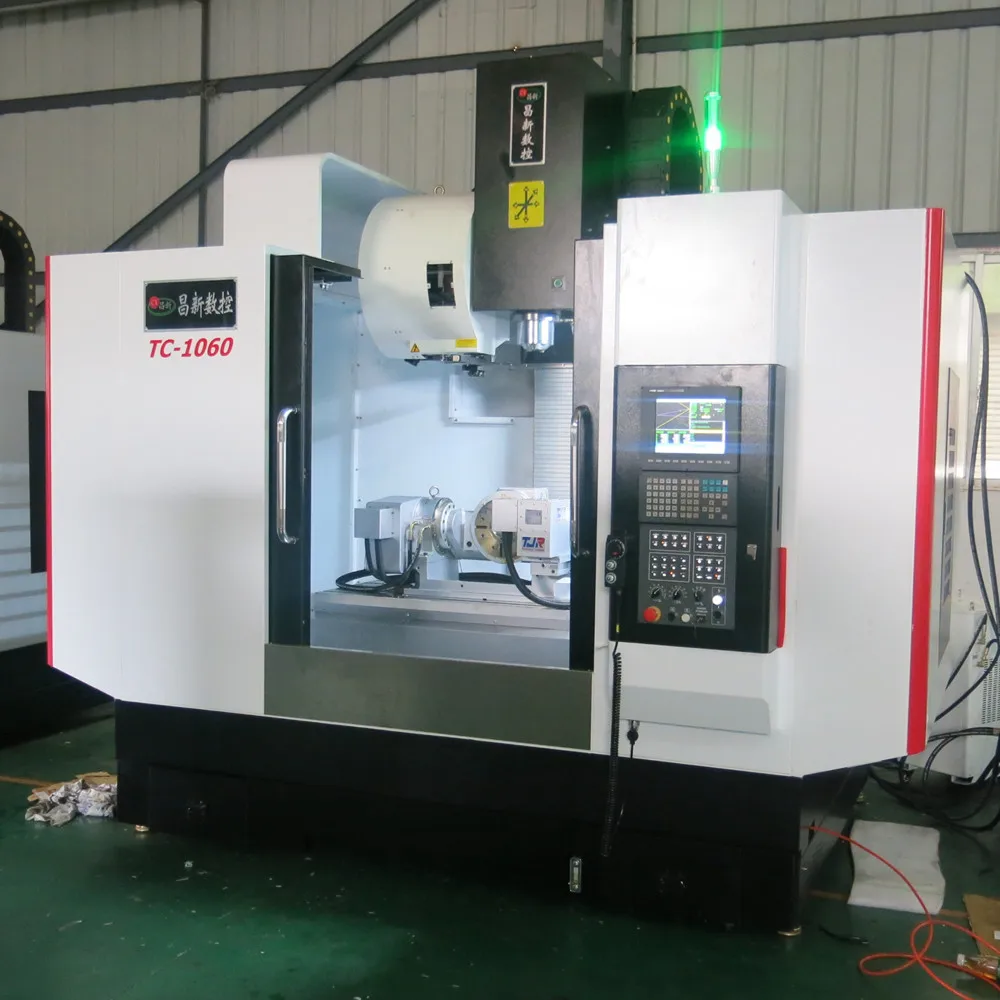

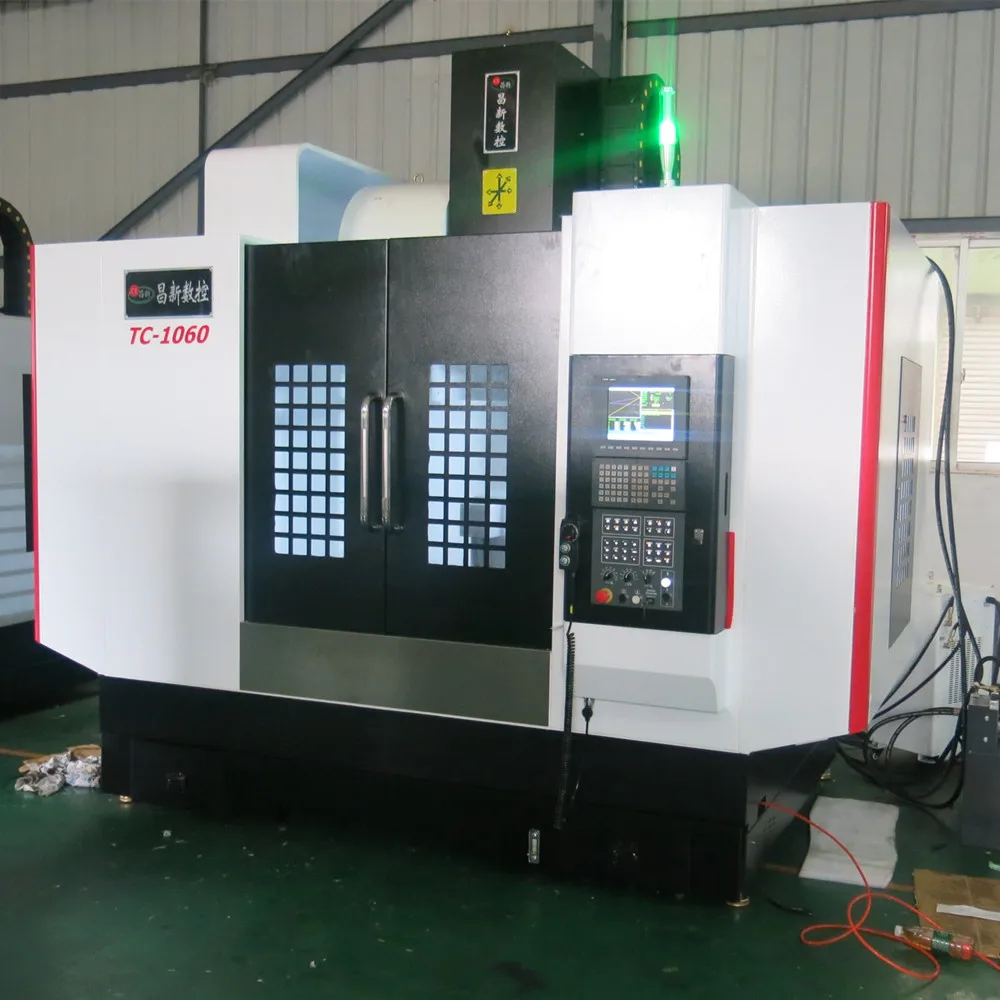

5 axis CNC milling machine center vertical with factory price VMC1060
Optional Tools

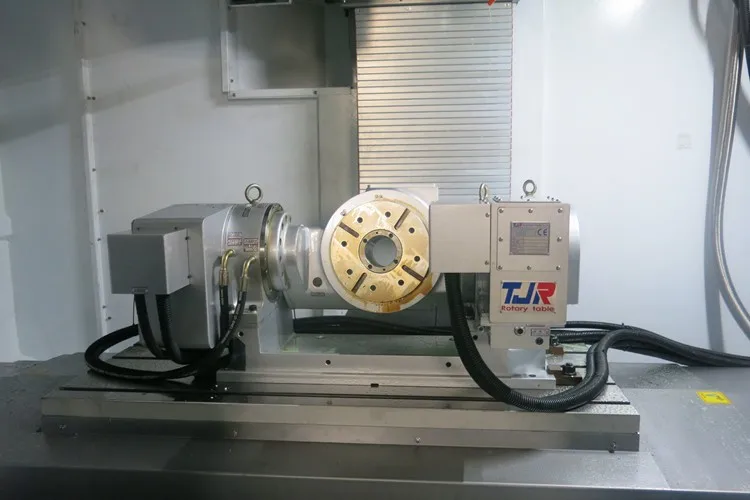

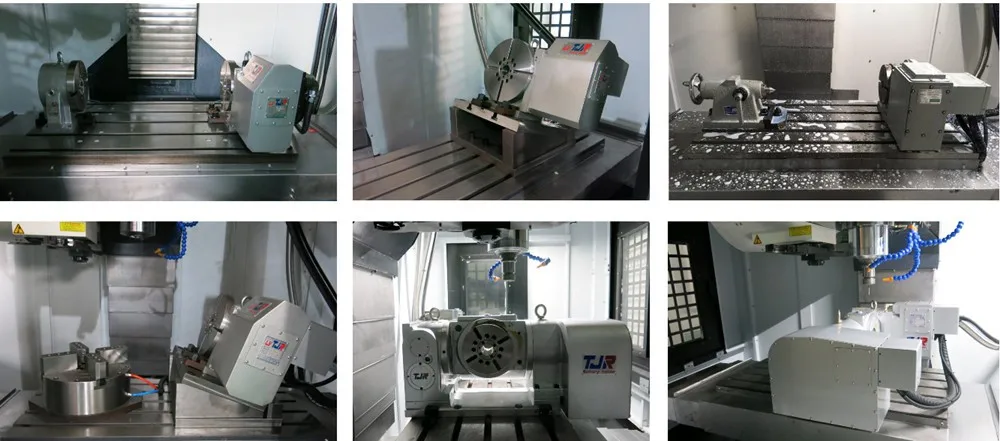

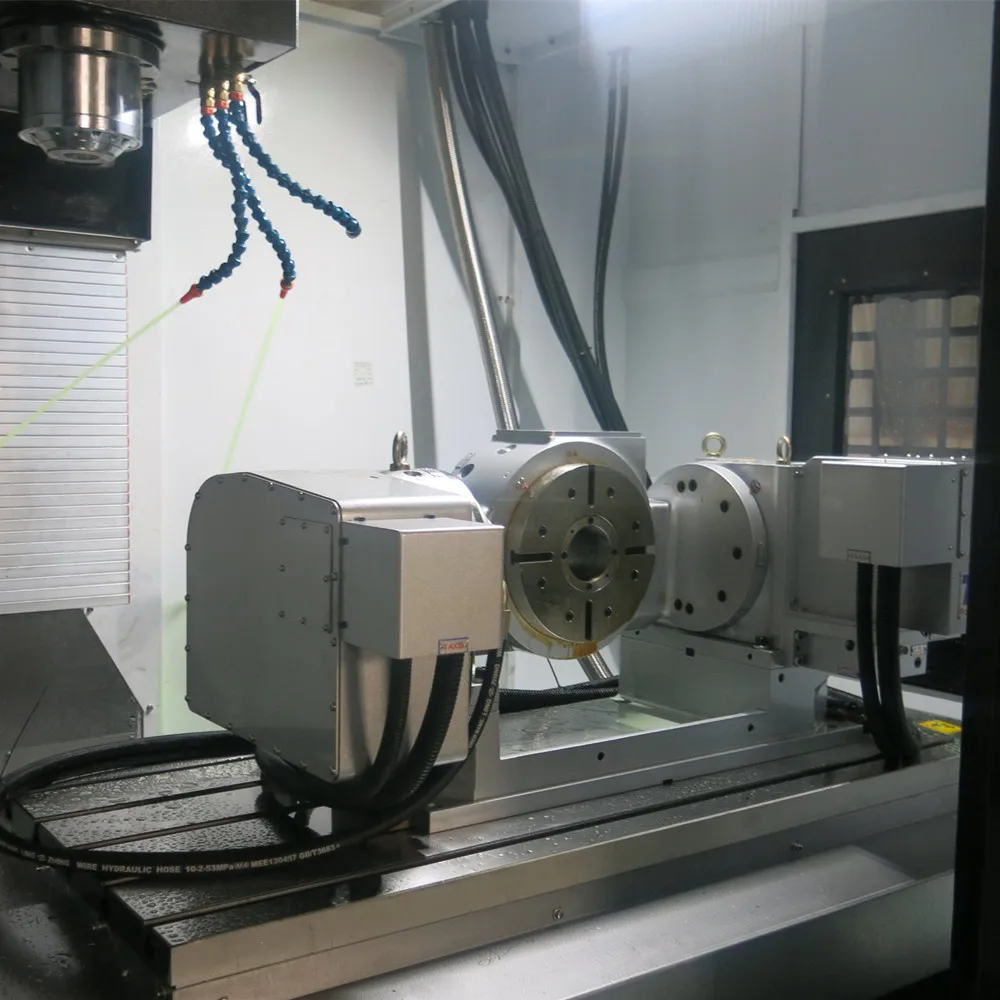

The 4th axis and the 5th axis : Taiwan TJR rotary table. CNC Tilting Rotary Tables Min. indexing angle –0.001°
High performance cheap price vertical metal cutting taiwan cnc milling machine vmc 1060
Our Service

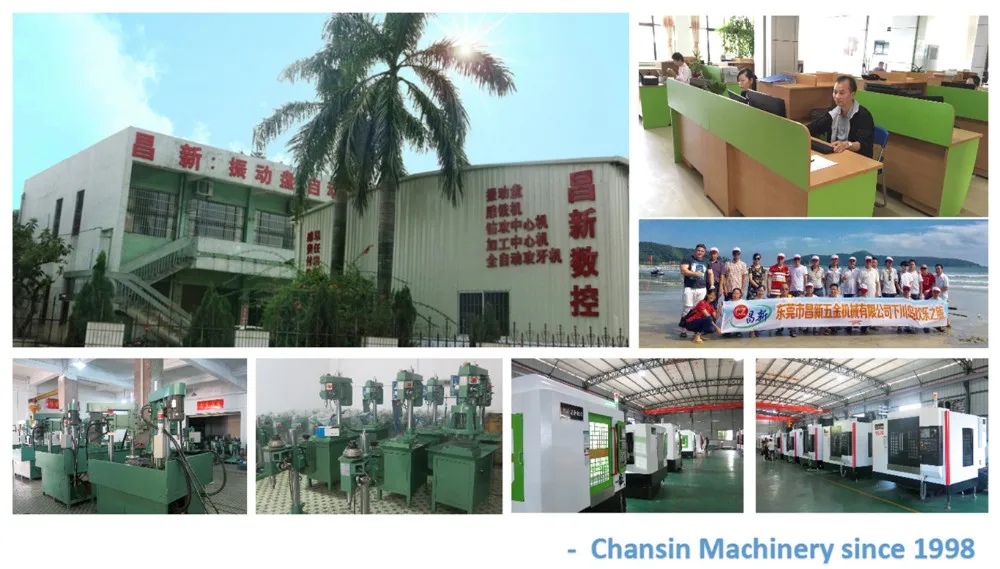

Our Company
Dongguan Chansin Hardware Machinery Co., Ltd. was founded in 1998, which is one of the leading manufacturers in China producing auto drilling machine, auto tapping machine, cnc milling machine and cnc machining centre. We have professional technology team integrating R & D, production, selling and service. Our engineers are available to overseas service machinery and have training class. Our company takes a tenet of mutual benefit, long-term cooperation, common development, and looking forward to building business relations with customers all over the world. High performance cheap price vertical metal cutting taiwan cnc milling machine vmc 1060
Our Certifications
Customer Photo
Our customers come from all over the world. Such as Vietnam, Iran, Ruissa, Ukraine, Armenia,Algeria,Columbia,Pakistan, Indonesia,Egypt,India,Netherlands , Malaysia, Singapore, Finland, Turkey, Slovenia,Nepal,Azerbaijan and so on.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 15-20 days if the goods are in stock. or it is 30-40 days if the goods are not in stock, it is according to quantity.
Q: Do you provide OEM service?
A: Yes, OEM service is acceptable.
Q: What is your terms of payment ?
A: 40% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
New condition vertical 5-axis cnc milling machine center vmc1060 with factory price New condition vertical 5-axis cnc milling machine center vmc1060 with factory price New condition vertical 5-axis cnc milling machine center vmc1060 with factory price
