You hope to provide your customers with excellent scratch-proof surface, while achieving the highest efficiency in your process. Infrared and UV solutions can help you achieve this goal.
Coating on metal, plastic, glass, wood or ceramic substrates, two-dimensional or three-dimensional substrates - numerous different coating processes are used in industrial production.
All coatings, whether paints, inks or adhesives, require perfect, dry and cured surfaces.
According to the combination of process and curing coating, infrared heating, ultraviolet or two technologies,
For example, "mixed curing" is an effective solution.

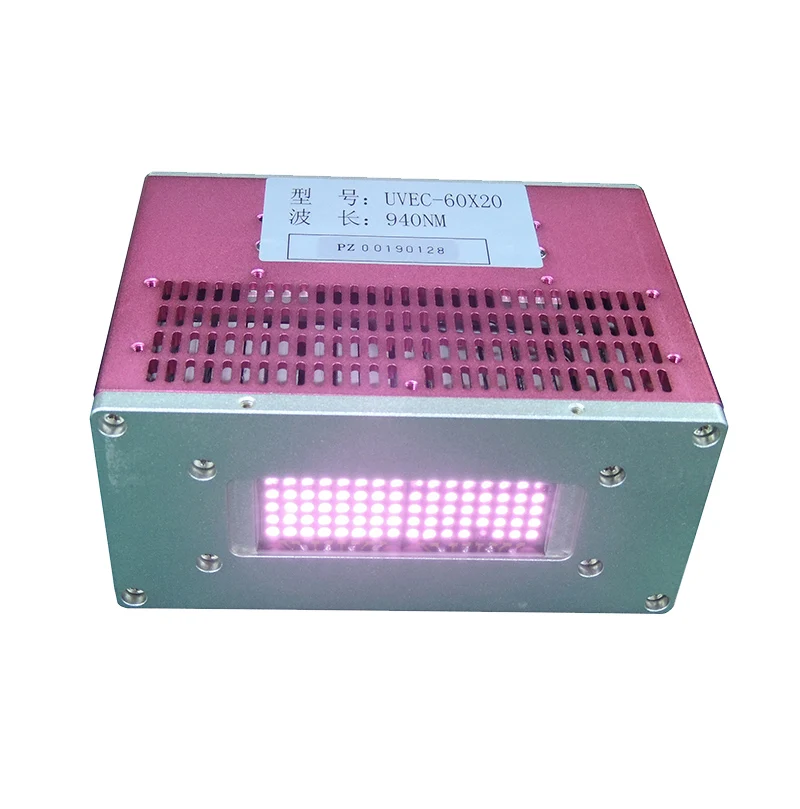

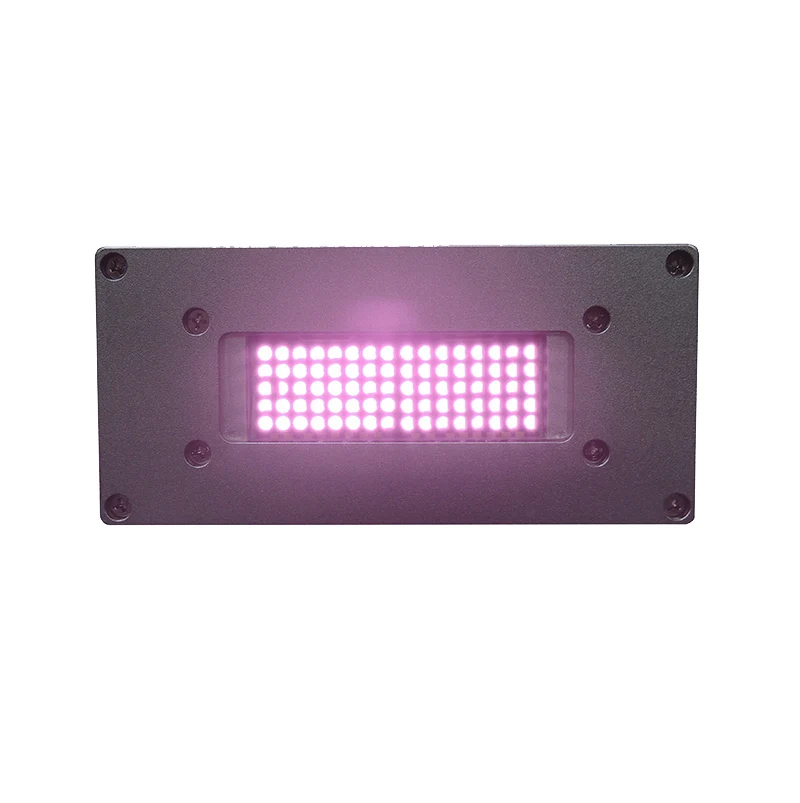

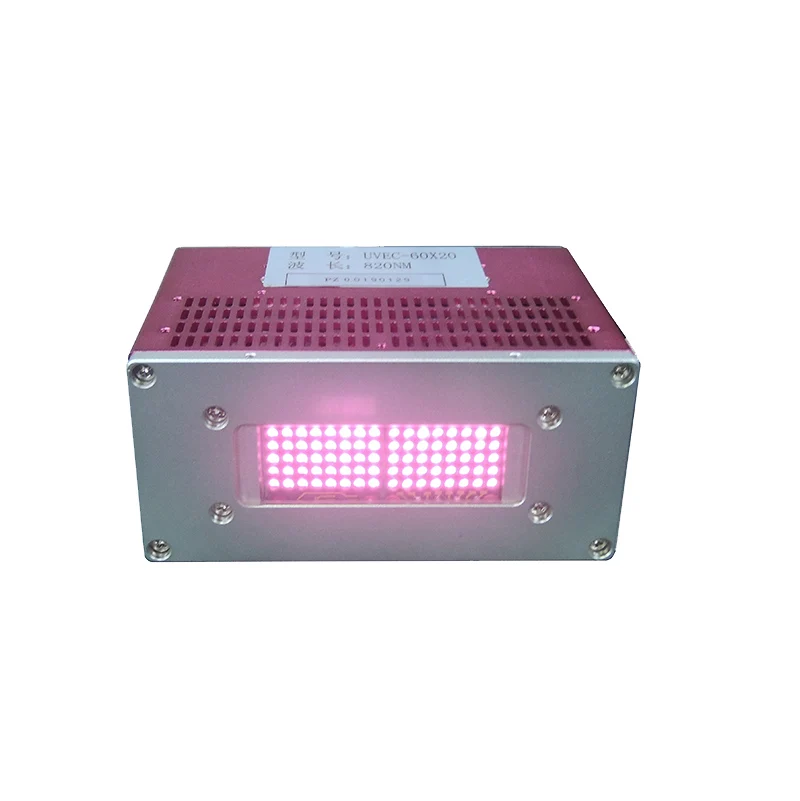

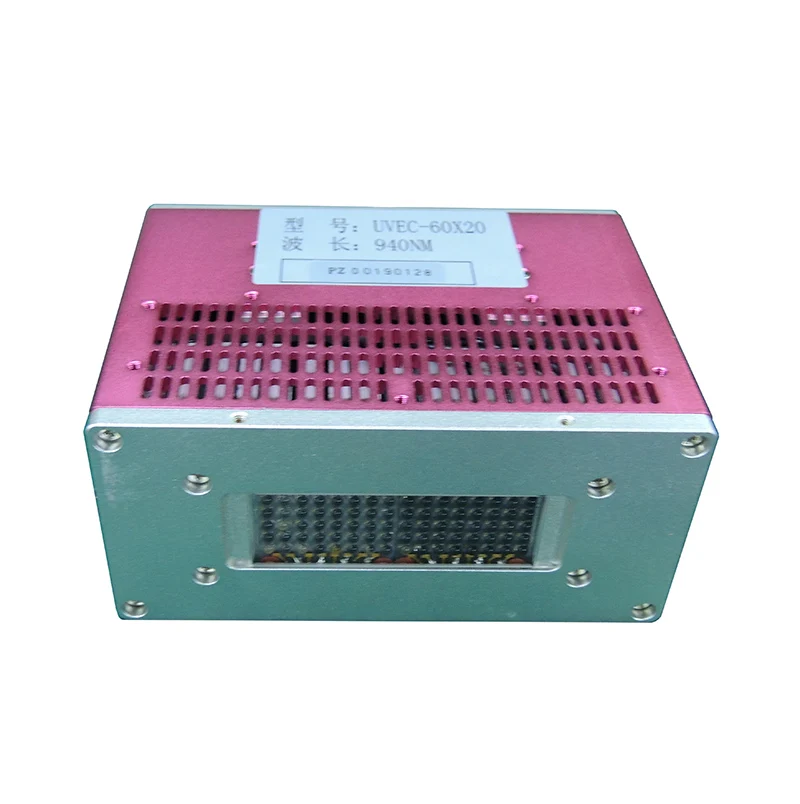

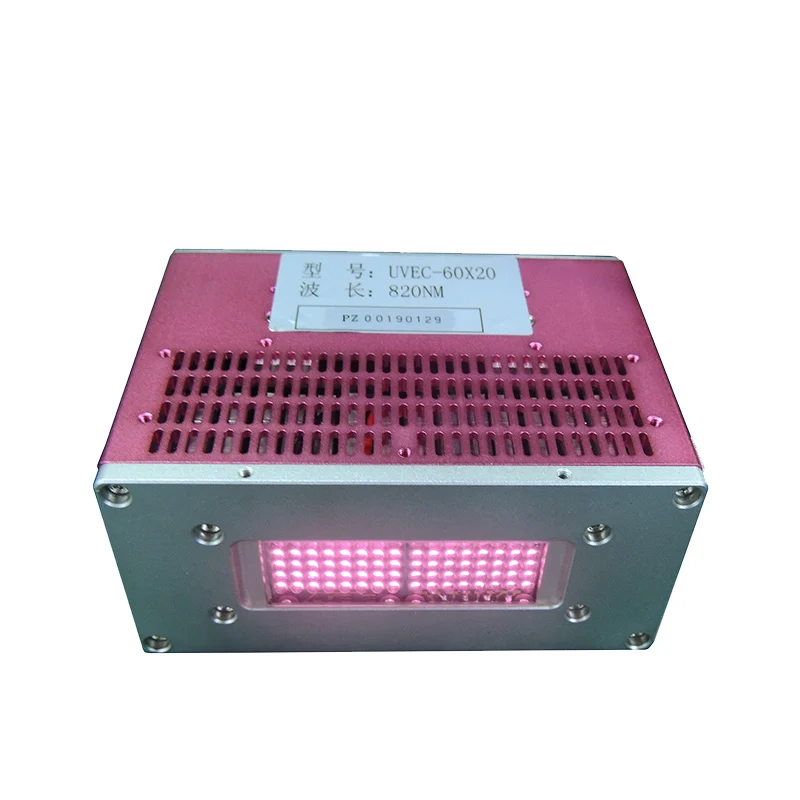

Type of irradiator
UVEC-60x20
Recommended exposure height
3~10(mm)
DIRECTIVE
940NM/820NM
illumination
2000 mW /cm^2
Effective irradiation area
30X20(mm)
Operating distance of irradiator
3-10(mm)
Size of irradiation head
490*36*69(mm)
Exposure head weight
0.4KG
Driver model: LP-300W 60-80V
Driver size: 210*161*54 (mm);
Driver weight: about 1.4Kg;
Input power: 100 W
Power supply AC220-240/50HZ
Control mode: high and low level
Output Voltage: Constant Current Adaptive
