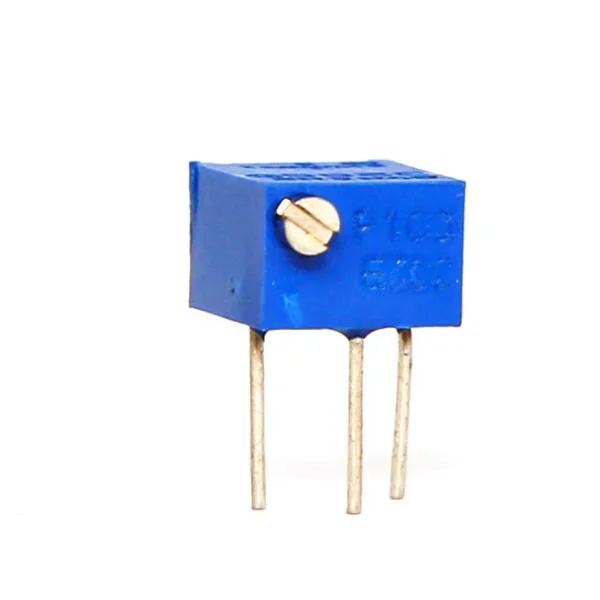

Потенциометры 3266P 1 103LF 12 оборотов 0,25 Вт

Product Overview

Description

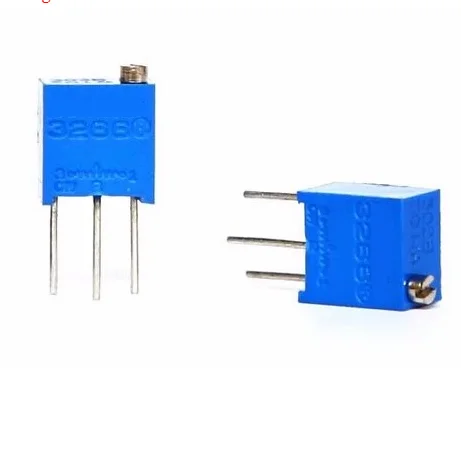

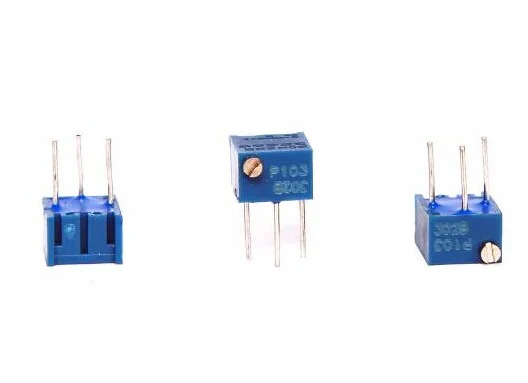

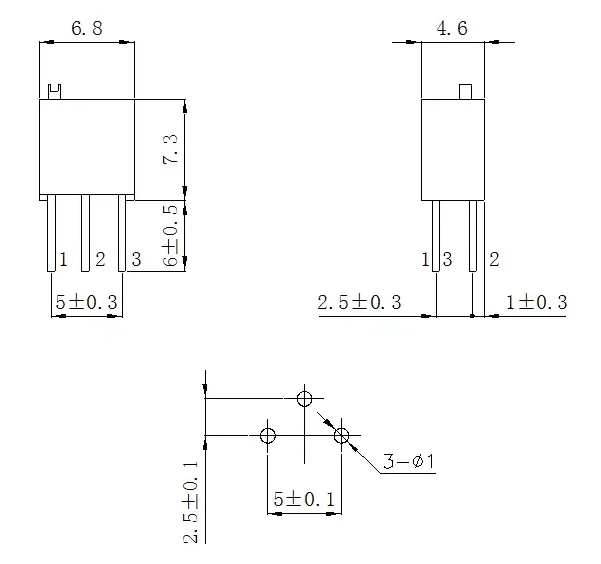

12 turns laps 0.25W 3266P-1-103LF potentiometers

Rectangular cermet trimmer 3266W potentiometers

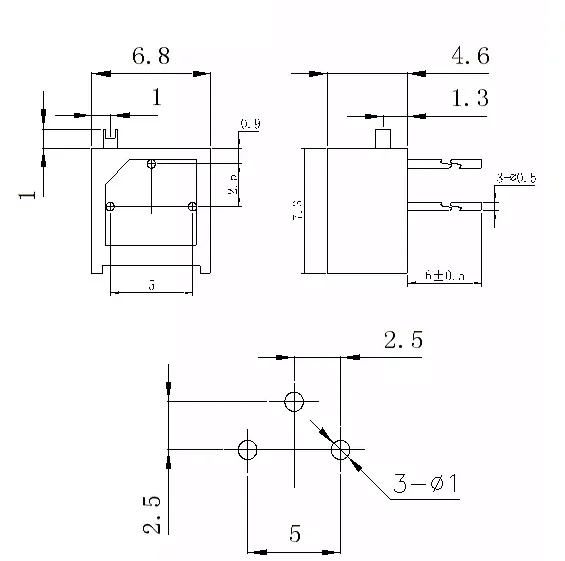

3266P-1-103L and 3266W-1-103L specifications:

Electrical  Characteristics			Range of nominal resistance			10Ω~5MΩ
			Resistance tolerance			±10%
			Terminal resistance			≤±1%R or 2Ω
			Contact resistance variation (CRV)			≤±1%R or 3Ω
			Insulation resistance			≥ 1GΩ (100V AC)
			Withstand voltage			600V (DC or AC peak value)
			Effective electrical travel			≥70% of mechanical travel
Environment  Characteristics			Rated power			0.25W ( 300V max)
			Temperature range			-55°C~+125°C
			TCR			±250×10-6/°C
			Collision (390m/S2, 4000 times)			ΔR≤±1%R
			Vibration (10-500HZ, 0.75mm, 6h)			ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
			Temperature variation (-55°C/30min,			ΔR≤±2%R,
			+125°C/30min, 5 cycles)			ΔUab/Uac≤±2%R
			Climate category (IEC68-2-2)			ΔR≤± (5%R+0.1Ω), Insulation Resistance
			Electrical endurance (0.25W, 1000h)			ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
			Mechanical endurance (200 cycles)			ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
			Steady damp heat (IEC68-2-3, Ca, 96h)			ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ
Physical  Characteristics			Total mechanical travel			12±2  laps
			Starting torque			≤25mN.m

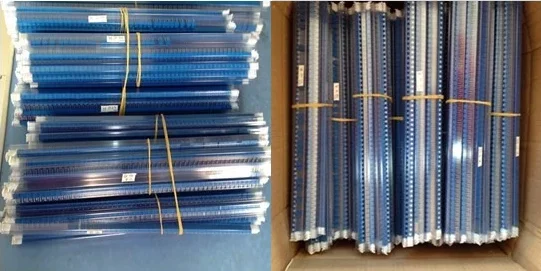

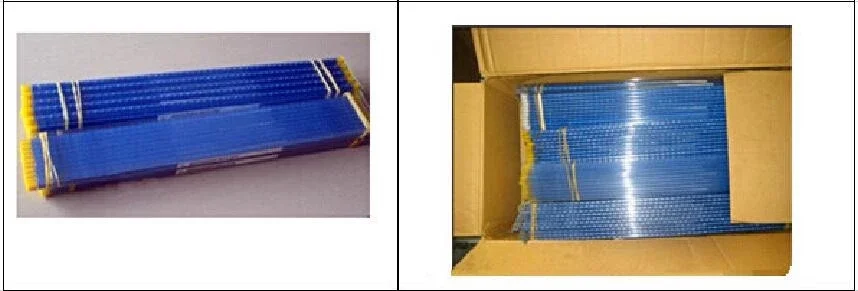

			Standard package			50 pcs /tube

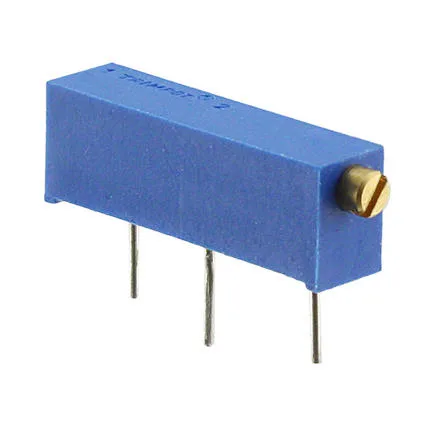

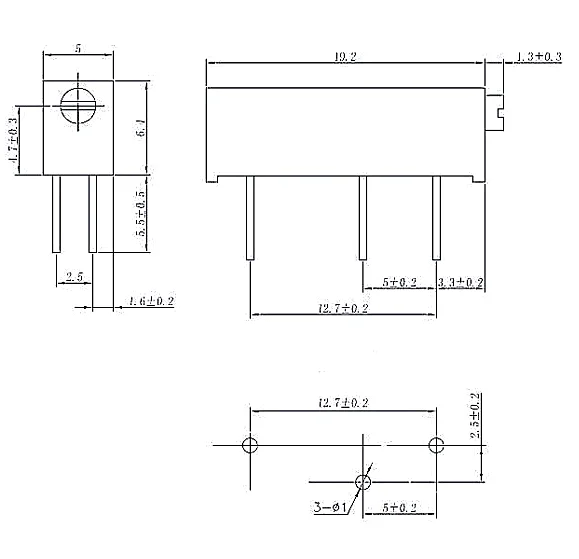

recommend: Rectangular cermet trimmer potentiometers

Please tell me norminal resistance you need?







welcome inquiry
