Перезаряжаемая Светодиодная панель 60x60, аварийный комплект питания
- Category: Emergency Lights >>>
- Supplier: Zhongshan Aimoxi Electric Co. Ltd.
Share on (62275639628):
Product Overview
Description
Product Description
Rechargeable 60x60 led panel light emergency kit power supply
EPMC converter is designed for use in emergency luminaries in conjunction with LED modules and LED control.The lorward voltage range 15V to85V makes it ideal for use with most LED modules.
EPMC series provides 4 kinds of emergency outputcurrent selection
3085 N,3085N-10/12/14/16( DIP set100-200-300-400-500-600-700-800mA )
According to the requirements of the output power in emergency mode,through the external DIP switch setting.The modules are designed to be installed by breaking into the low voltageconnection betweenthe mains LED Driver and the LEDs and allows the LEDs to be operated as normal under mains healthy condi tions and operated atreduced light output in an emergency. The modules automatically adjusts the output LED power to provide the best match between the battery and the load,providing maximum illumination whilst ensuringlull battery duration and are compatible with a wide range of lighting
Standard Feature
1-3H duration
Emergency lighting LED Driver for manual testing
-Compatible with all dimmable and non-dimmable constant current LED Driver
2-pole technology: 2-poleLED module changeover and delayed power switching for the LED Driver
-Automatic shut down of output if LED load is out of range
-constant current power output
Maximum light output for all LED modules
Electronic charge system
-Deep discharge protection
-Short-circuit-prool battery connection
Polarity reversal protection for battery
TECHNICAL SPECIFICATION
1 Input voltage :AC220V - 240V, 50-60Hz
2 Normal function Indicating LED Equipped15-55VDC range
2 Emergency Function Testing Device Equipped
3 Emergency Time 3 hours
4 Battery Protection Device Equipped
5 Operating Temp 0 ~ 40℃
6 Battery High Temp Battery Pack, NI-CD battery
7 Charging Time 24 hours
8.Applications: LED light 250W or below
Applications
- Corridor/Stairs
- Washroom
- Warehouse
- Parking underground
- Cookroom/balcony
- Schools, Colleges & Universities
- Hospitals
Detailed Images
15-85V 25-250W

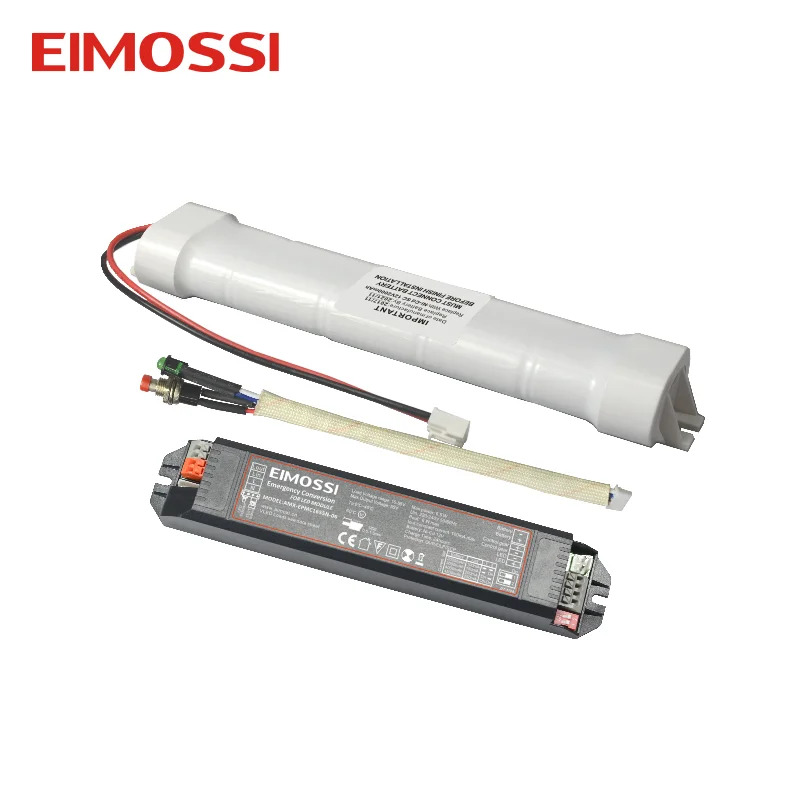

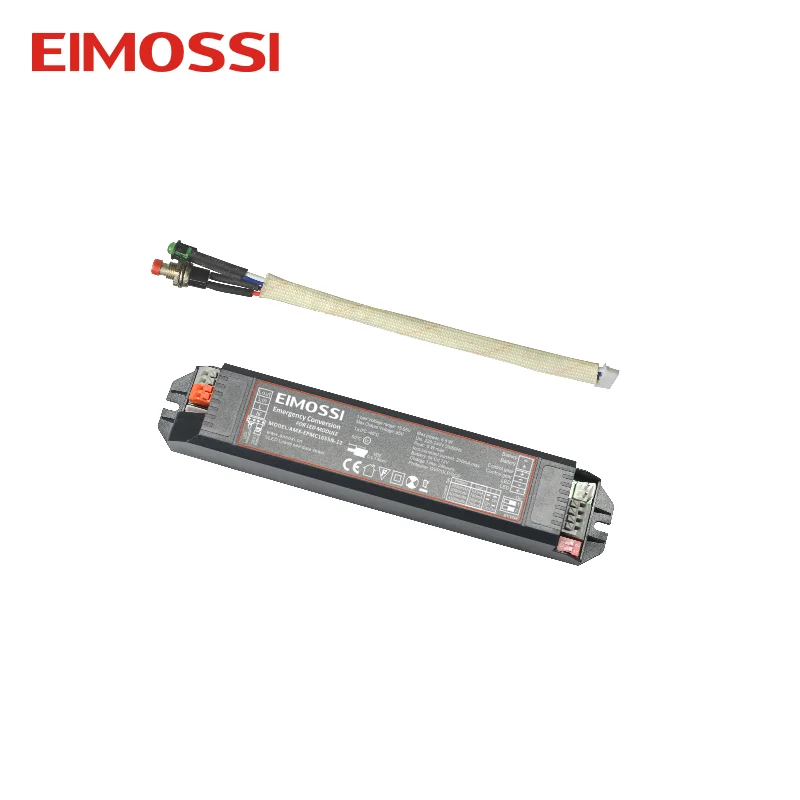

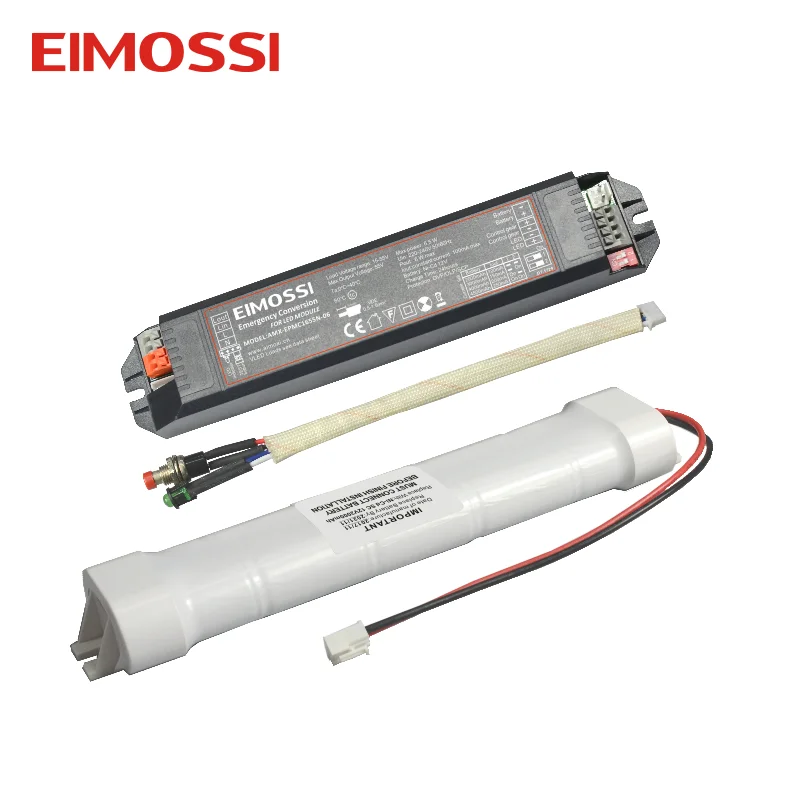

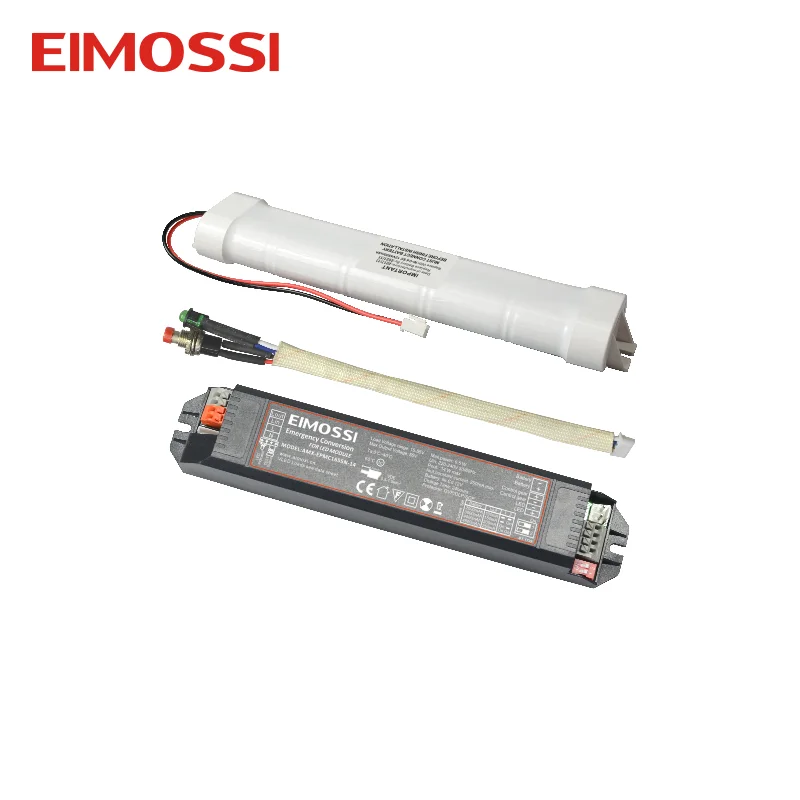

Rechargeable 60x60 led panel light emergency kit power supply
Rechargeable 60x60 led panel light emergency kit power supply
Wiring Diagams
