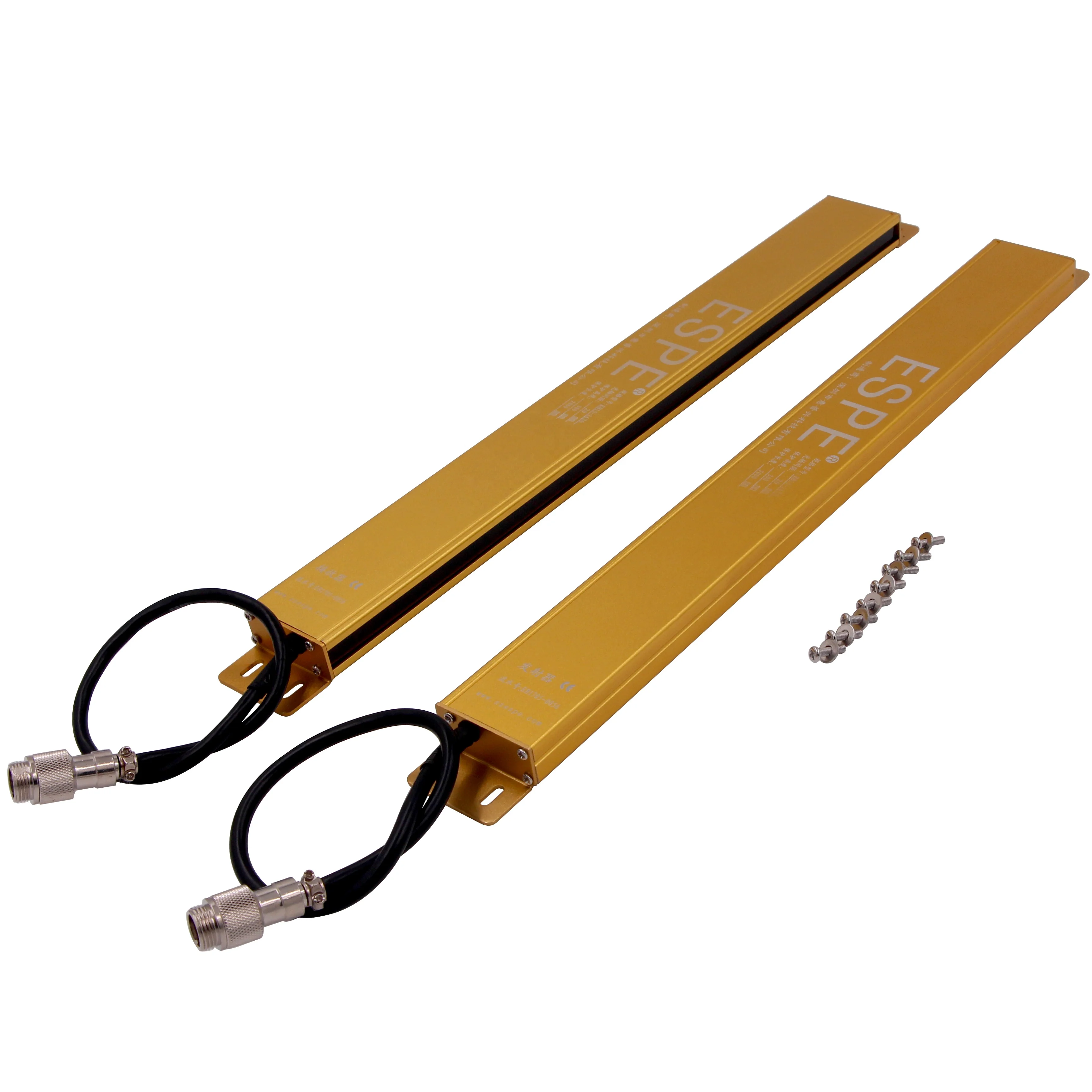

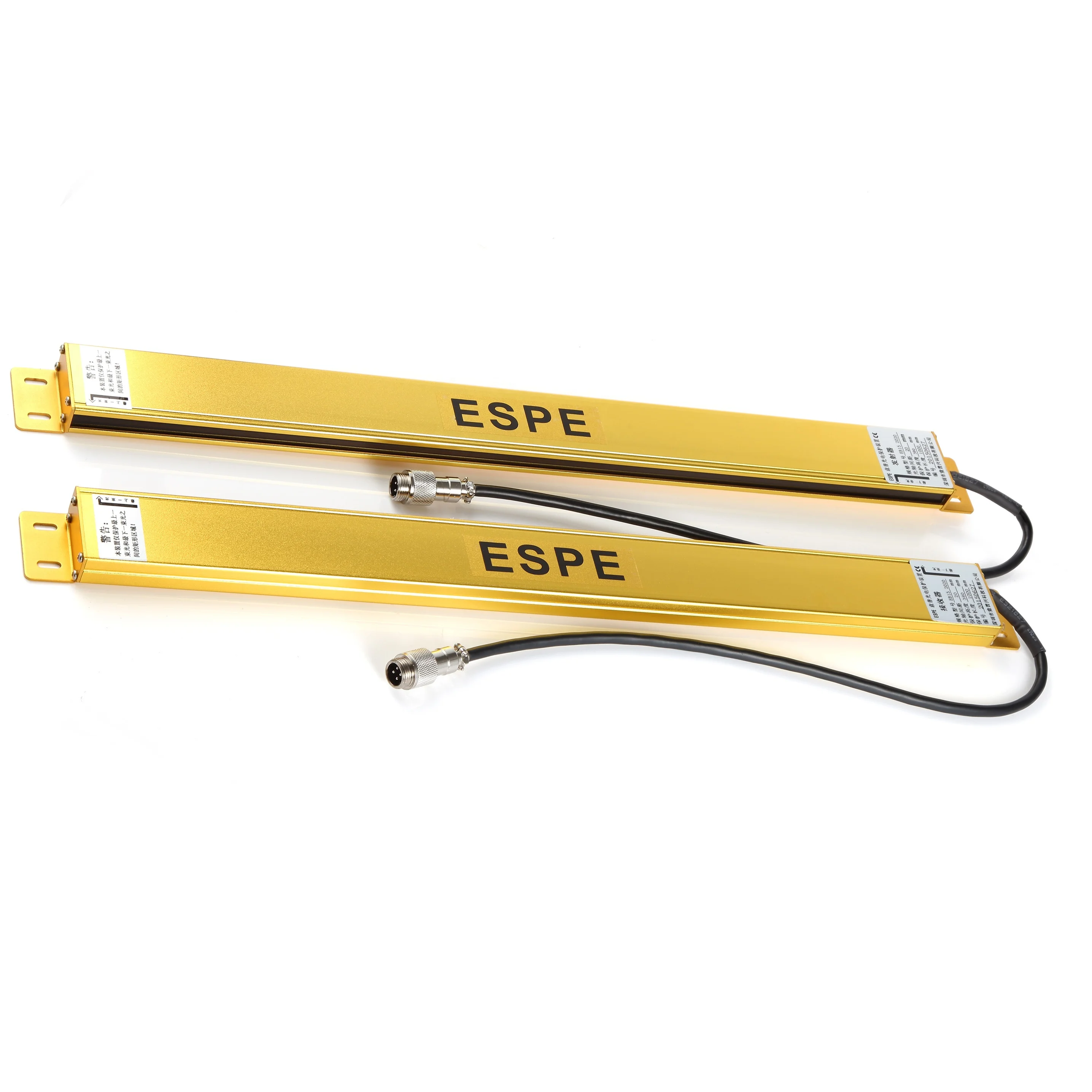

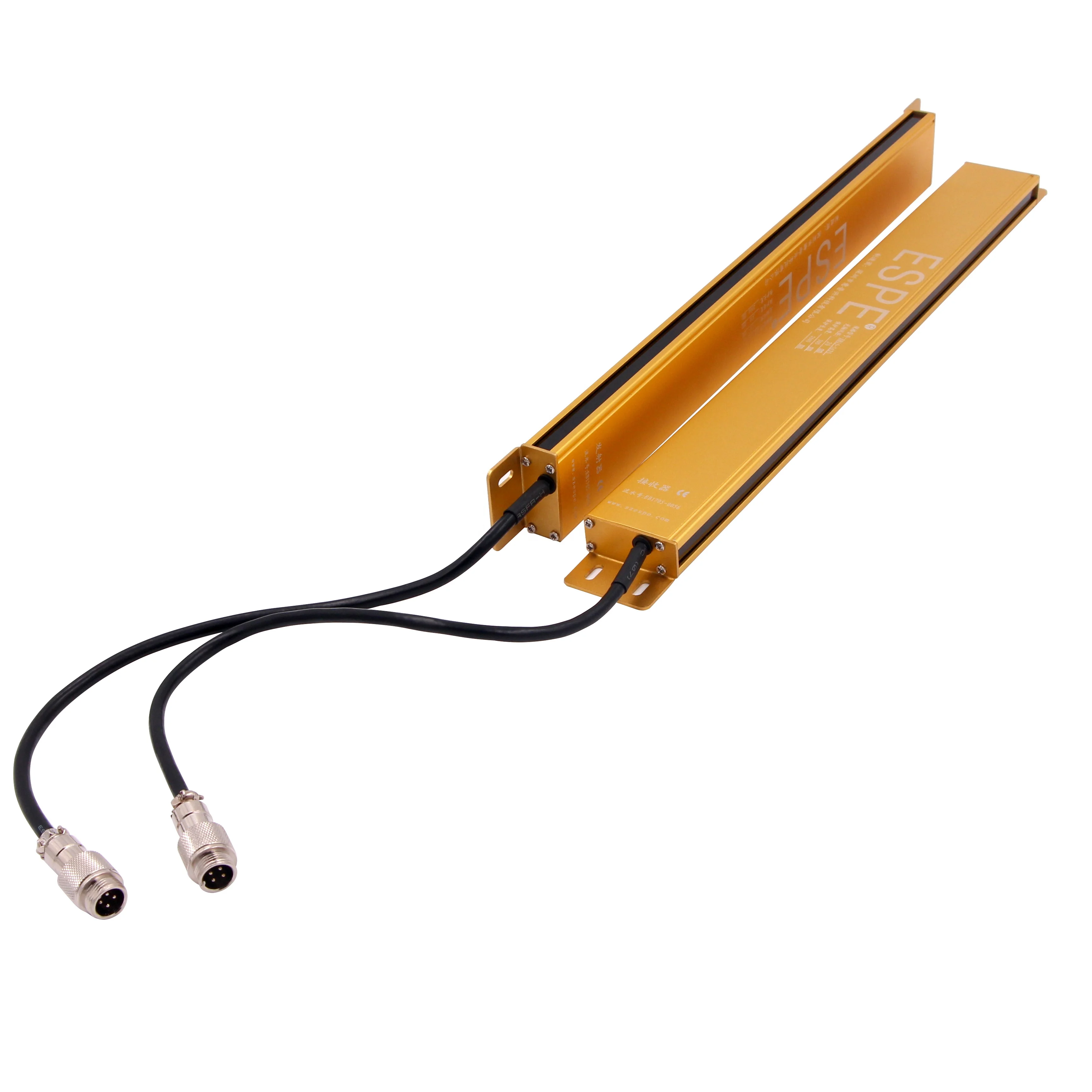

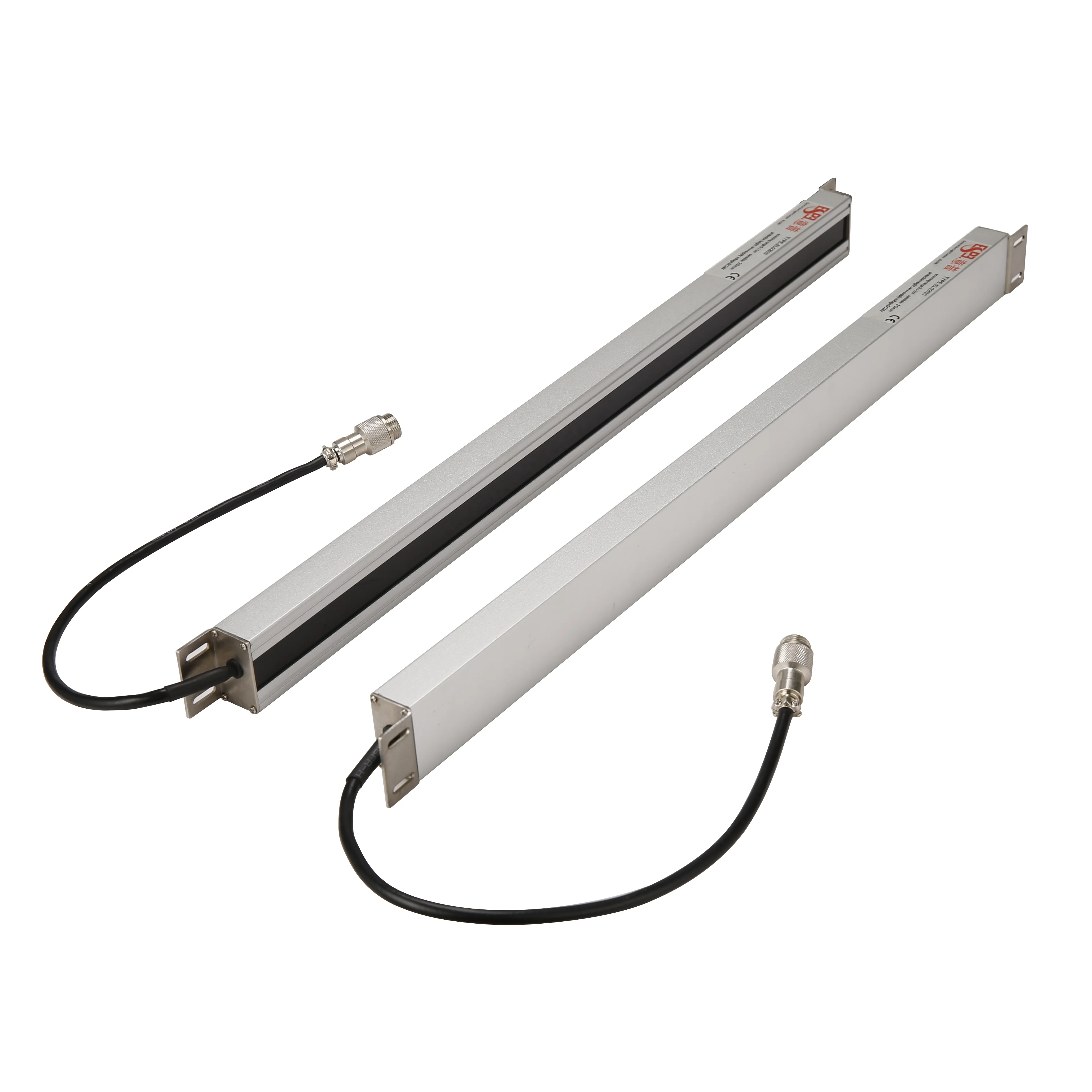

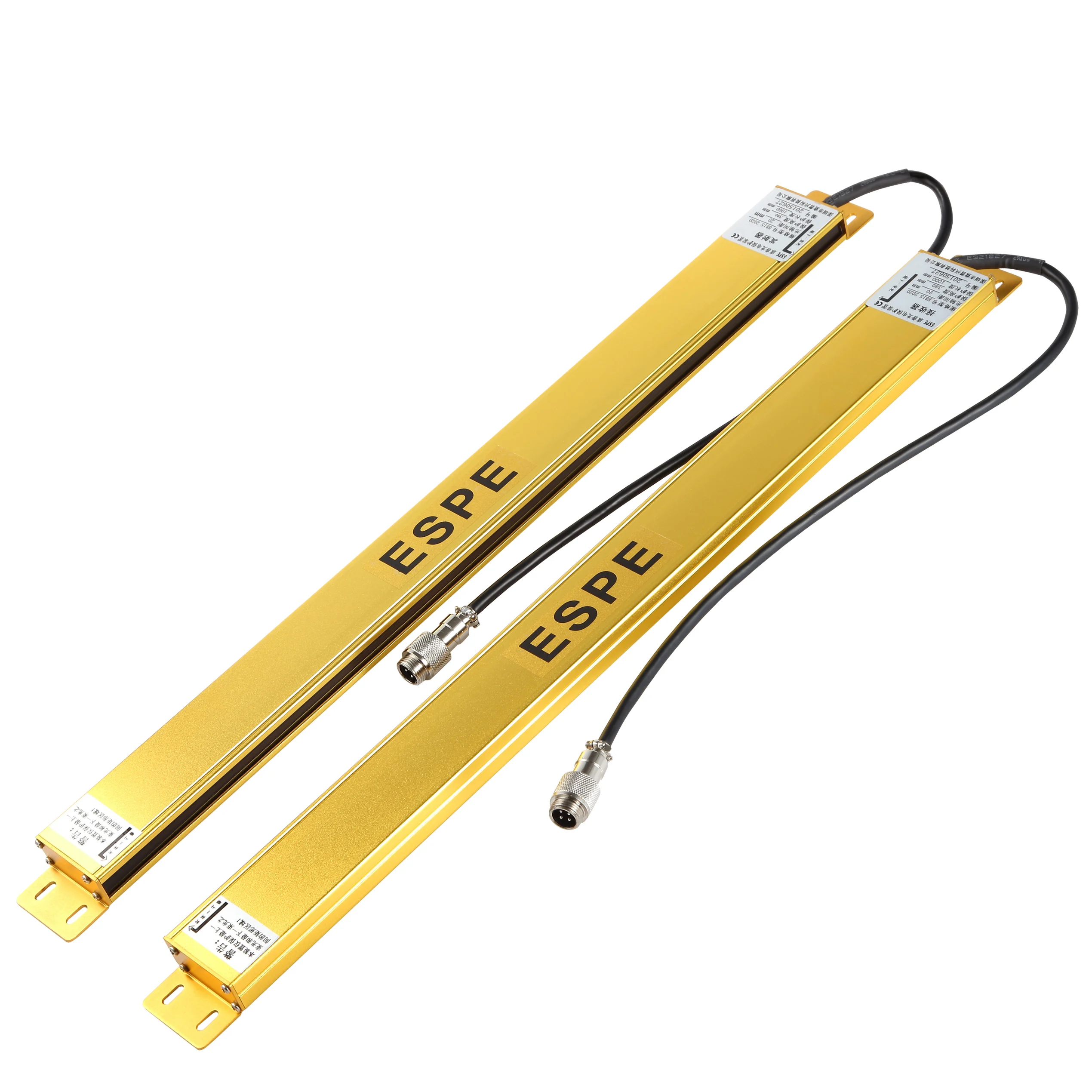

Ultra thin enclosure EB15 series safety laser fence npn pnp sensor safety light curtain sensor barrier for small machine
- Category: >>>
- Supplier: Shenzhen ESPE Technology Co. Ltd.
Share on (62275690236):
Product Overview
Description
Ultra-thin enclosure EB15 series safety laser fence npn pnp sensor safety light curtain sensor barrier for small machine
Products Description
EB15 series safety light curtain
Ultra-thin enclosure ,well application to AOI test equipment and non-standard auotomaiton equiment
MOQ:1 set The shortest delivery time:1 working day

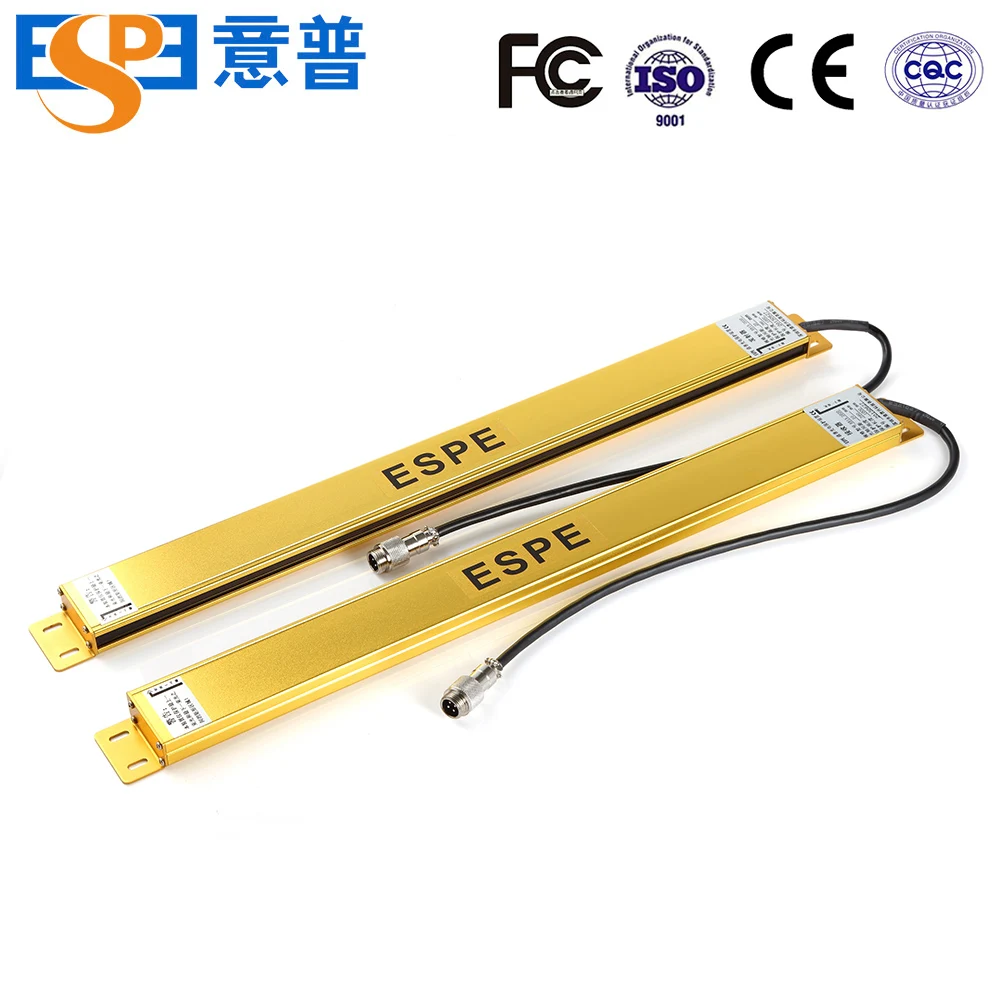

Certification:FCC and CE
Warrenty:1 year
Shipping:Support Express（DHL，Fedx，TNT etc.）, Air freight and Sea transportation

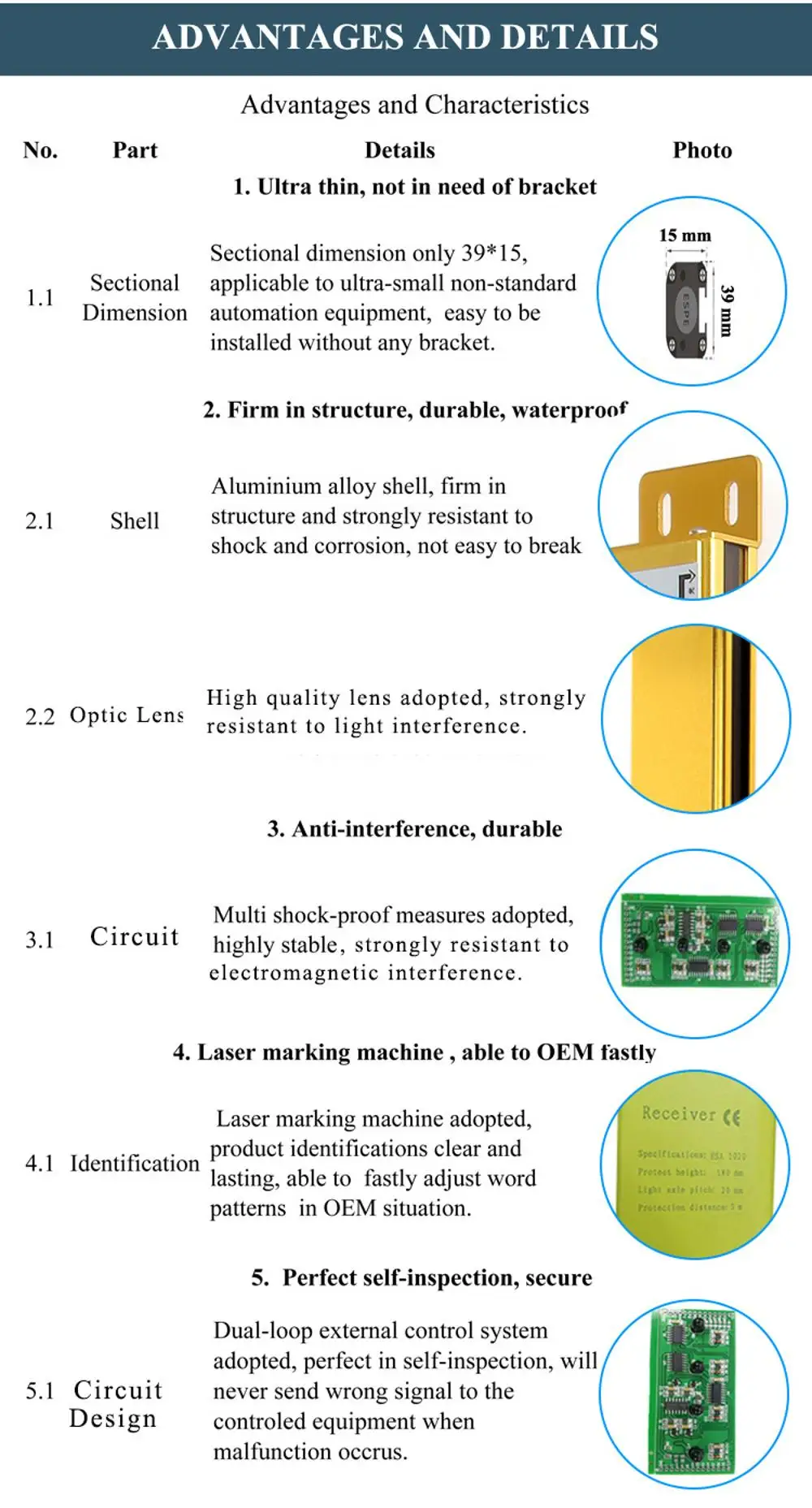

Products Advantages

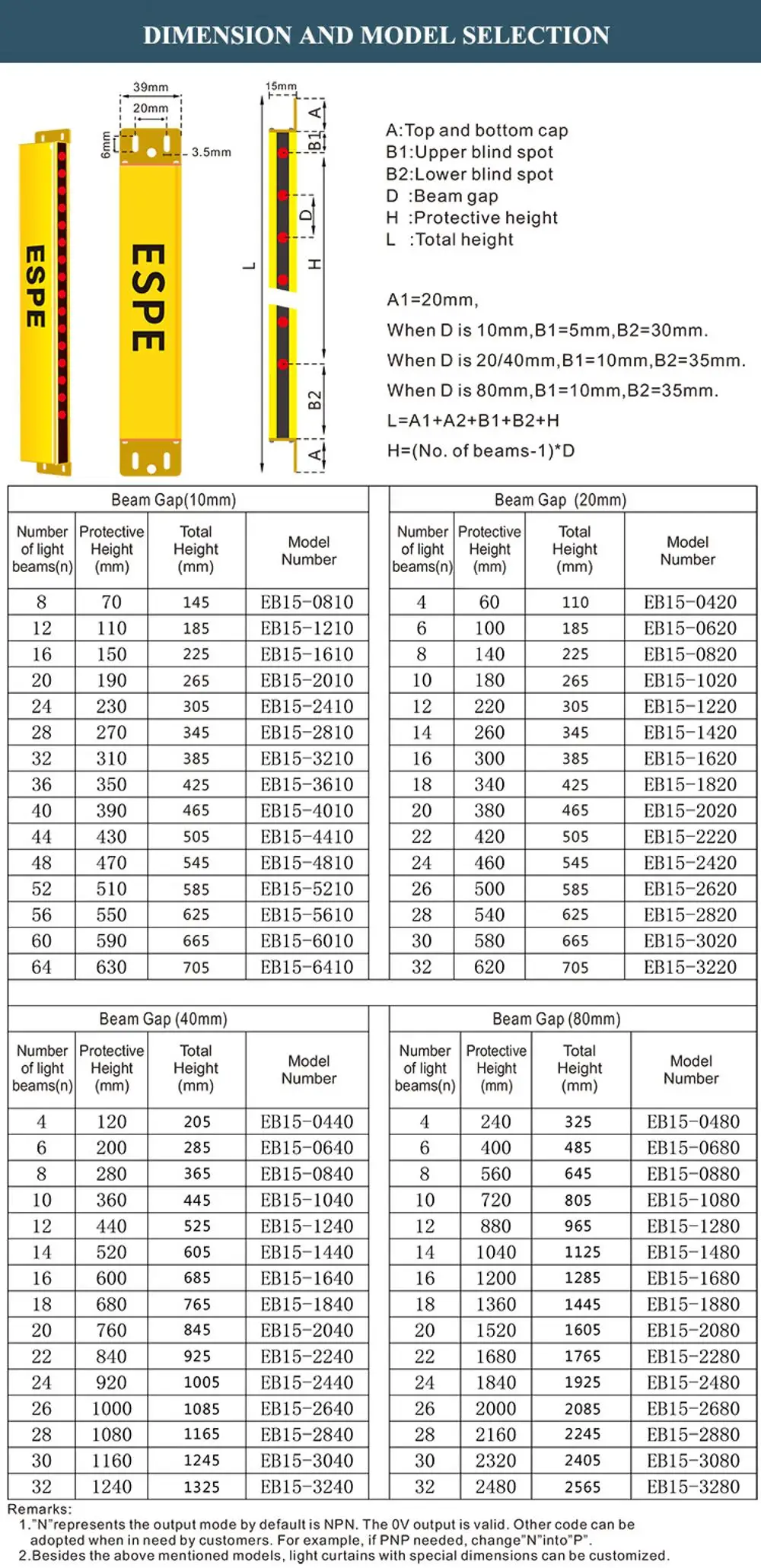

Product Paramenters
Protective Height | 300mm | Working Tmeperature | -10℃-55℃ | ||
Beam Gap | 20mm | Resolution | 25mm | ||
Power Voltage | DC24V±20% | Output Current | ≤200mA | ||
Watts | ＜5W | Response Time | ＜10 ms | ||
Insulation Resistance | ≥100 MΩ | Deploy form of Infrared | Oppposite type | ||
Sensing Distance between emitter and receiver | 1.5 meters (Standard),1.5-3 meters can be customized | Sectional Dimension | 39*15mm | ||

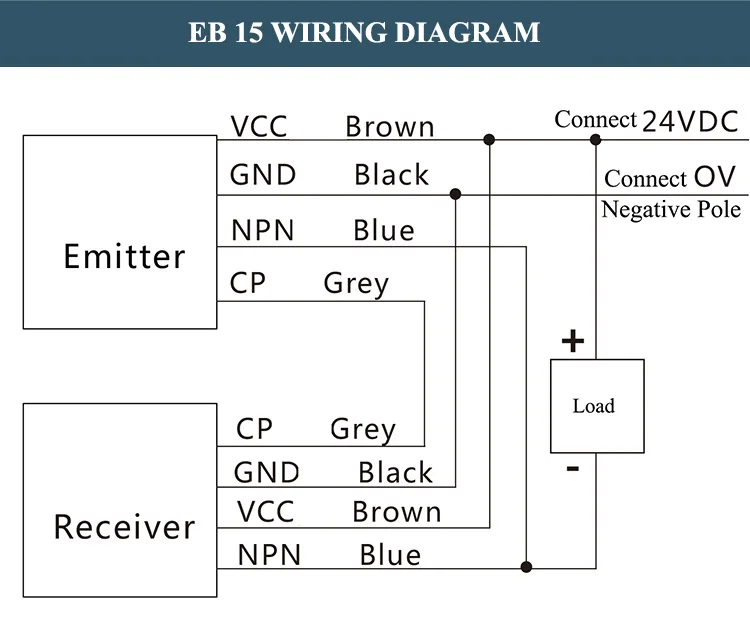

Output Mode | (Standard)NPN NC. ,others can be customize,such as PNP ,Relay | ||||

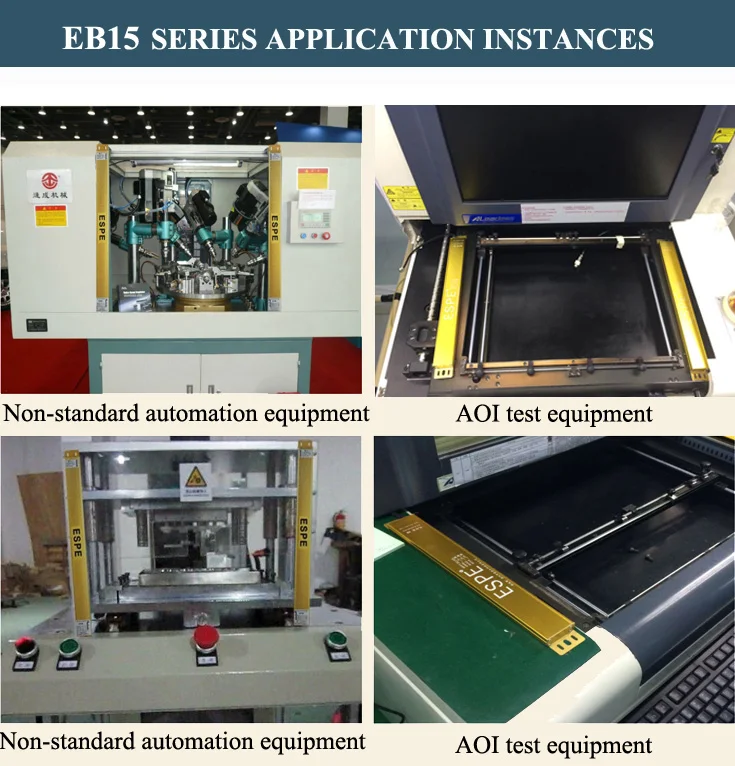

Application Instances
Recommend Products
Company Profile
Shenzhen ESPE Technology Co.,ltd is a Hitech manufacturer, which specializes in R&D and production of infrared safety&measuring&detection light curtains.
As China's pioneer since 2003,we became one of the three co-drafters of National Safety Standard of Machinery Industry,China.
Package&Freight
Support Express and Air freight and Sea transportation
Each set of safety light curtain will be paking into one carton
FAQ
FAQ
1.The products voltage
AC: working voltage is DC24V , other requirements can be customize.
2.What the max accuracy ?
AC: 2.5mm
3.Is the light curtain waterproof?
AC: The waterproof level of the safety sensor is IP65. If you wanna IP67 or more,you can customize the exterior enclosure.
4.How long will you take once a order placing?
AC: We are MFR of safety light curtain, having a large inventory, for the standard products,the leading time is 2-3 days.
5.Do you have the QA?
AC: We provide one year warranty.
