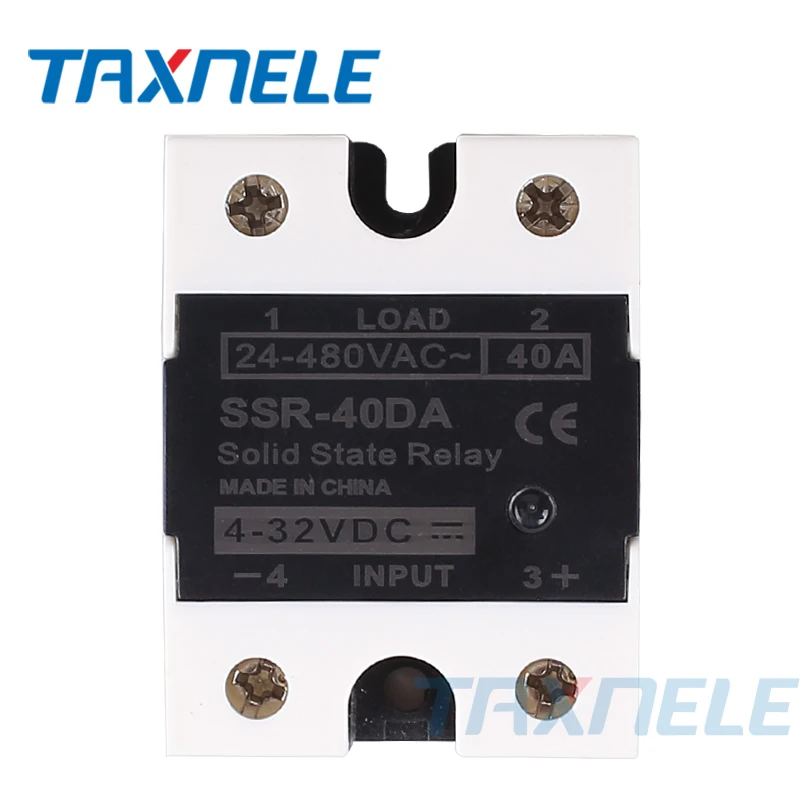

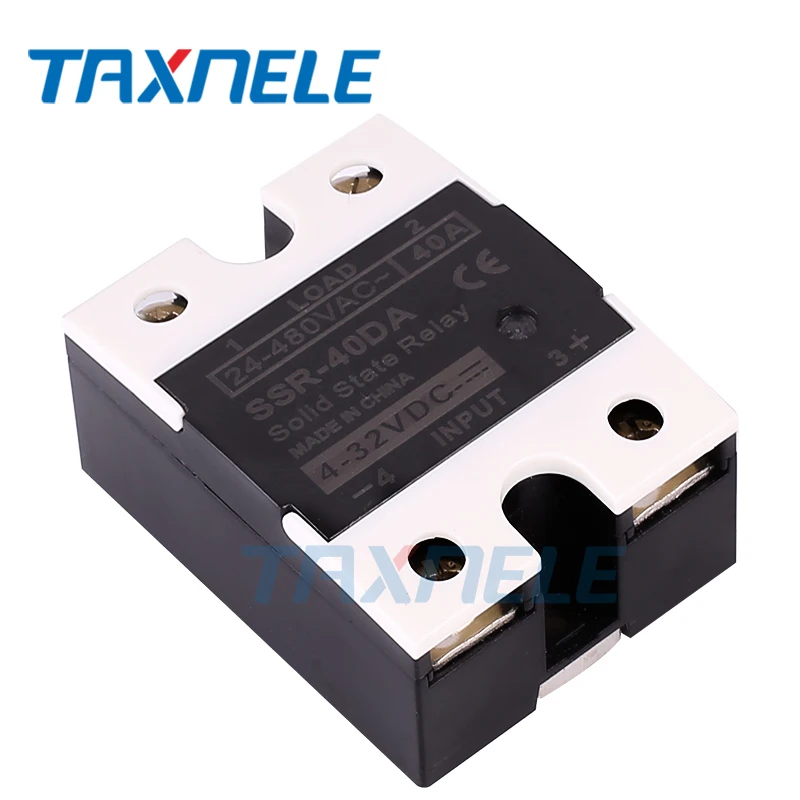

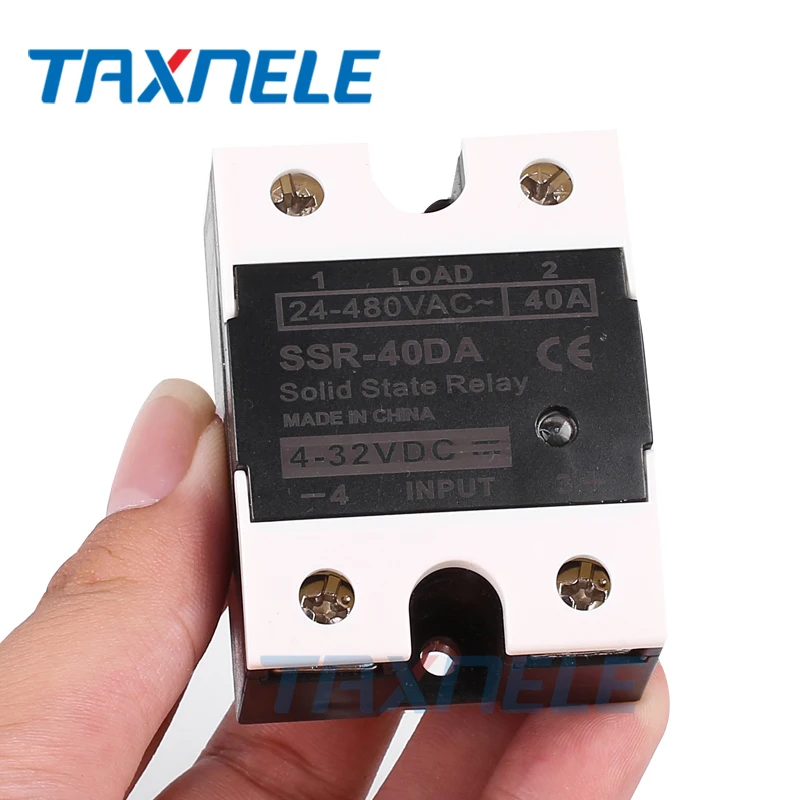

DC To AC SSR 40DA SSR 25DA 10DA Solid State Relay 4 32VDC Input 24 480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR
DC To AC SSR-40DA SSR 25DA 10DA Solid State Relay 4-32VDC Input 24-480VAC Output solid state relay Industrial Single black SSR

DC To AC SSR 40DA SSR 25DA 10DA Solid State Relay 4 32VDC Input 24 480VAC Output solid state relay Industrial Single black SSR

Share on (62275776366):


Price:

Quantity:


Product Overview

Description


Miniature SSR- 25DA Electromagnetic Solid State Relay Single Phase SSR 10DA DC Control AC Relay Flip cover



Product Description





 1.Product attributes


SSR -10DA Single phase Solid state relay





















































Load Current:10A
Load Voltage:   24~480VAC
Control Voltage:4~32VDC
Control Current:3~25MA
On Voltage:     ≤ 1.5VAC
Off Leakage Current:   ≤4MA
On-off Time:     ≤ 10MS
Dielectric Strength:2500VAC
Insulation Resistance:100M Ω /500VDC
Ambient Temperature:-25~+75°C
Work instruction:LED
Weight90g




SSR -25DA Single phase Solid state relay





















































Load Current:25A
Load Voltage:   24~480VAC
Control Voltage:4~32VDC
Control Current:3~25MA
On Voltage:     ≤ 1.5VAC
Off Leakage Current:   ≤4MA
On-off Time:     ≤ 10MS
Dielectric Strength:2500VAC
Insulation Resistance:100M Ω /500VDC
Ambient Temperature:-25~+75°C
Work instruction:LED
Weight90g





SSR -40DA Single phase Solid state relay





















































Load Current:40A
Load Voltage:   24~480VAC
Control Voltage:4~32VDC
Control Current:3~25MA
On Voltage:     ≤ 1.5VAC
Off Leakage Current:   ≤4MA
On-off Time:     ≤ 10MS
Dielectric Strength:2500VAC
Insulation Resistance:100M Ω /500VDC
Ambient Temperature:-25~+75°C
Work instruction:LED
Weight90g

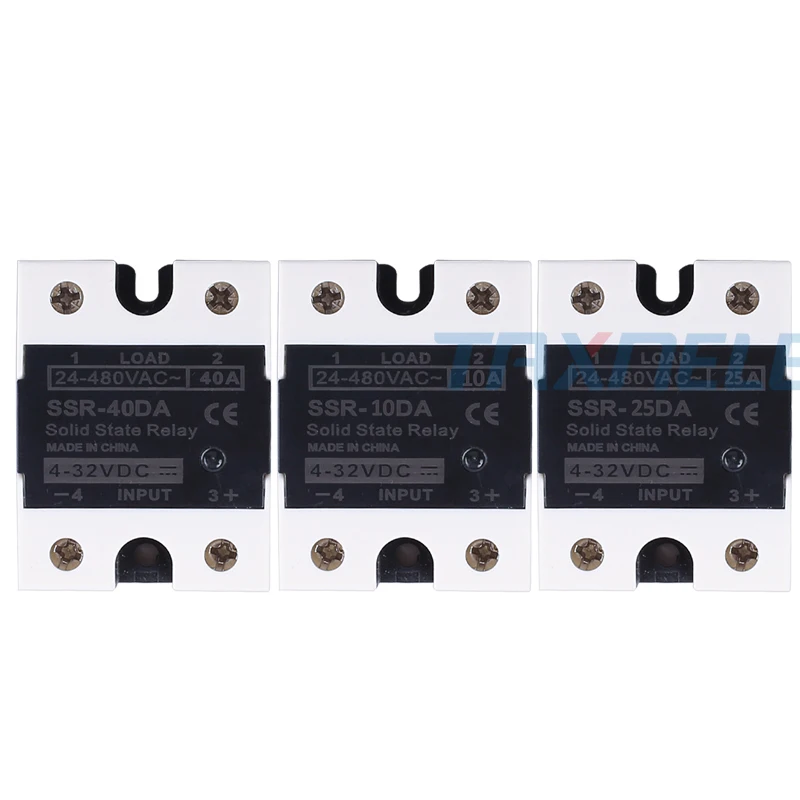

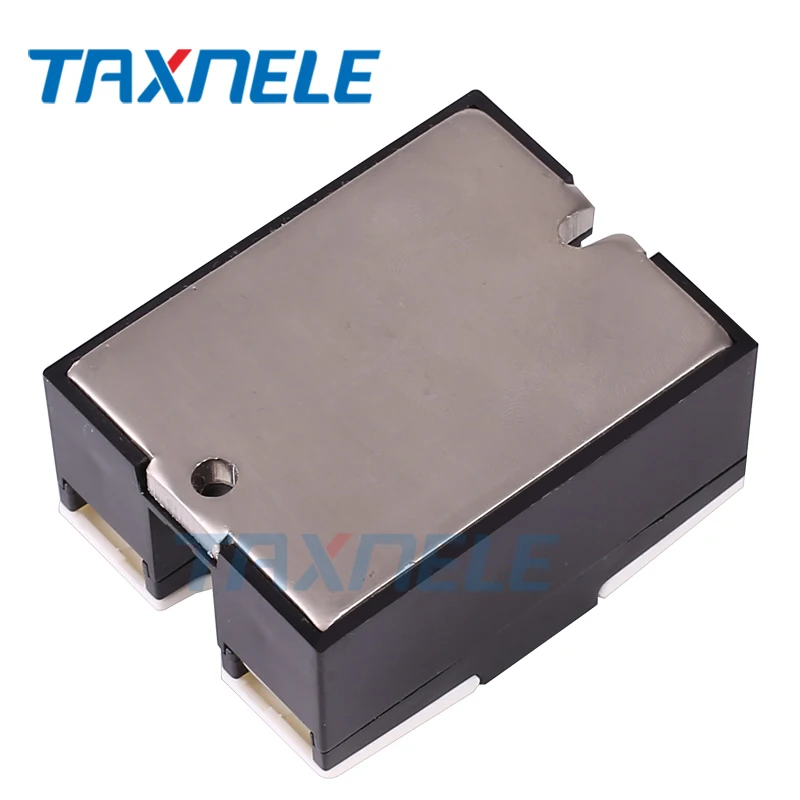

   2.Product display


1 (1).jpg1 (2).jpg1 (3).jpg1 (4).jpg1 (5).jpg1 (6).jpg
