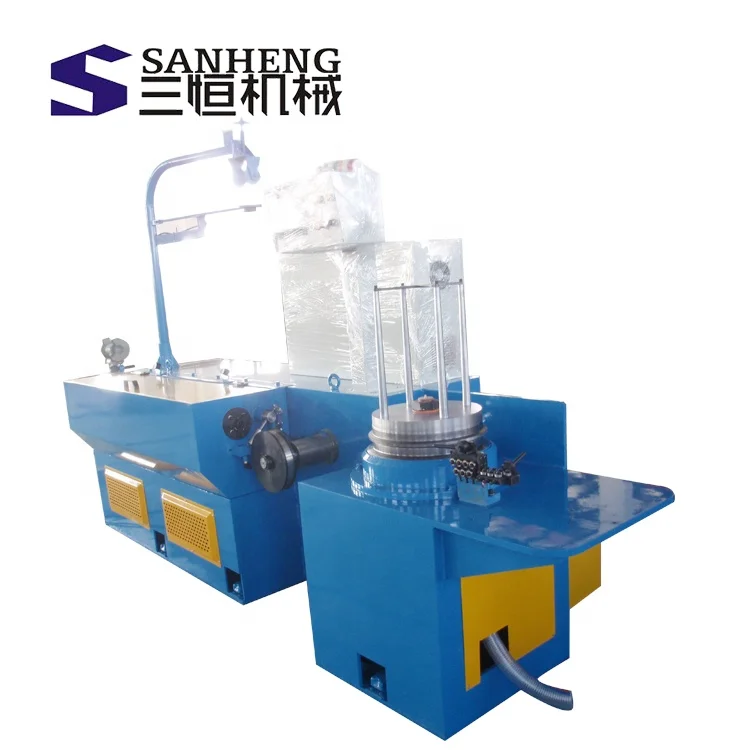

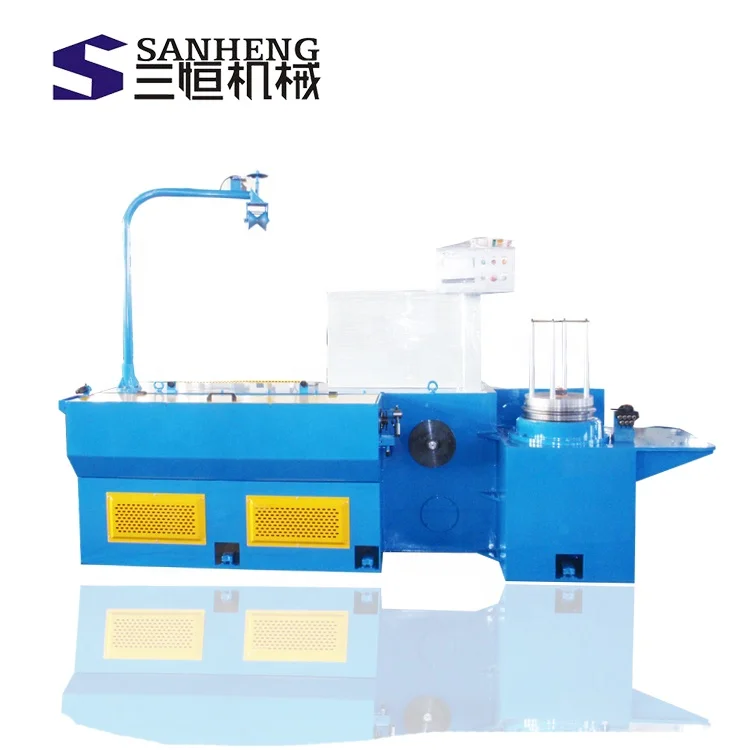

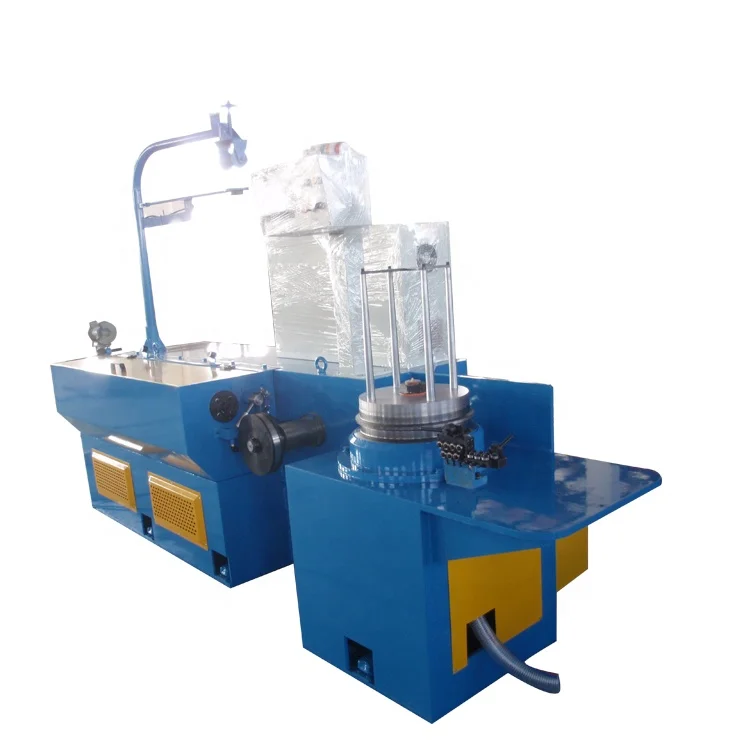

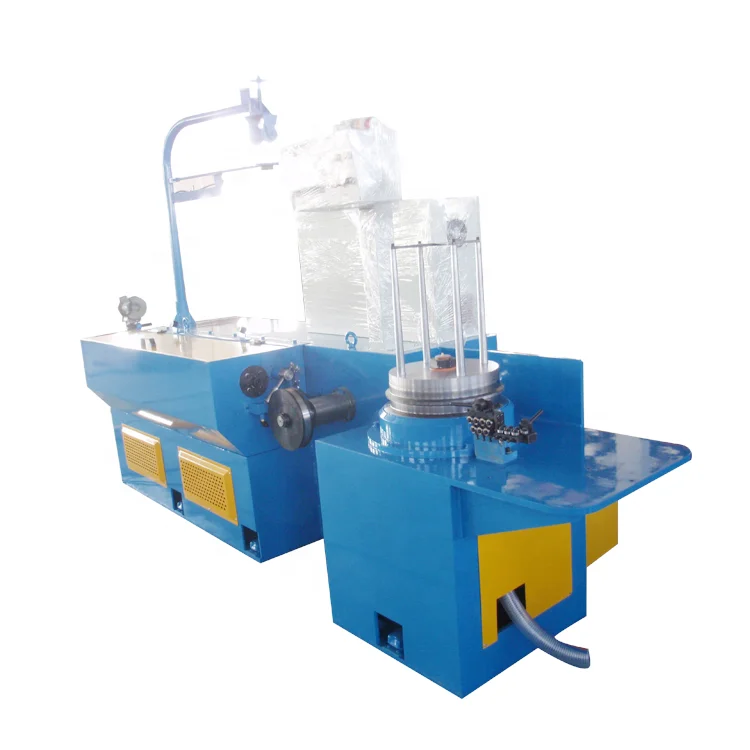

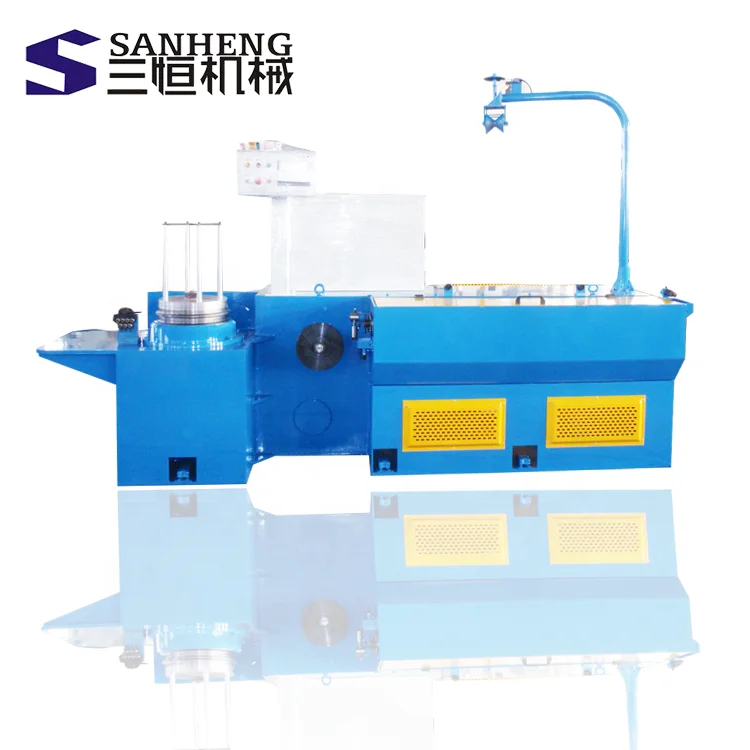

Main use: This product is used for drawing stainless steel material with tensile strength not more than 900 N / mm, Max. inlet diameter : 1.25mm and Min. outlet diameter : 0.1mm

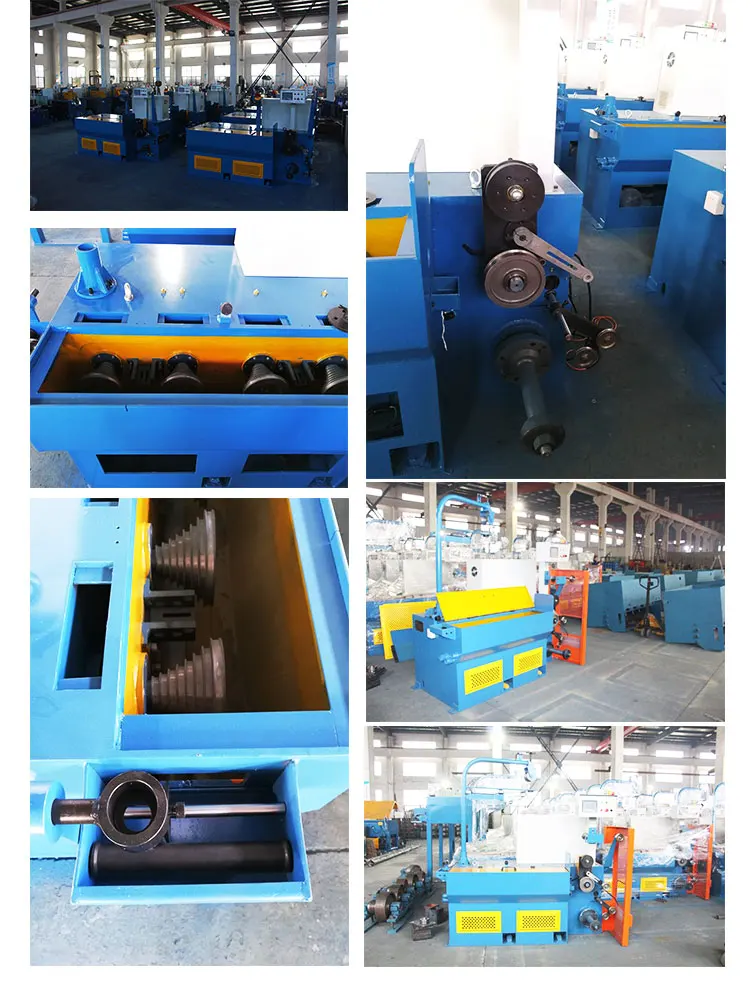

Detailed Images
Item
Parameters
Item
Parameters
Drawing Material
S.S. 304
Number of Towers
4 Group
Max.Inlet
2.7mm
Drum Diameter
253 mm
Min.Inlet
0.5mm
Water Tank Volume
0.252
Number of draft
24
Main Motor Model
YVP160L-4P
Partial Compression Ratio of The Machine
#1- #20 : 1.15 %; #15 : 1.1%
Main Motor Power
15 Kw
Total Compression Ratio
91%
Motor Speed
1470 Transfer / Min
Speed(Max)
600 M/Min
Equipment Dimensions
2.010 X 1.050 X 2.500 (m³)
Wire Strength
700-900Mpa
Equipment Weight
1800 Kg
Brake Time
5s
Product Usage
Certifications
Exhibition
After Sales Service
1.Installation and commissioning
1.1 Installation foundation map.
1.2 Hanging rings on the two corners of the machine for lifting equipment.
1.3 Adjust the level of the wet wire drawing machine.
1.4 Fastening the wire drawing frame.
2.Pre-operation check
2.1 Check if the connection fastening parts are loose.
2.2 Check that the wires are securely installed.
2.3 Check that the electrical grounding is in compliance.
2.4 Check if the voltage in the circuit is normal.
2.5 Check for leaks in the lubrication area of each lubrication part.
FAQ
1.How about our quality ?
We continuously develop and improve our products and are widely used in many fields such as industrial, technical, medical and aerospace. Quality is at the world's leading level
2.How about the price ?
Very low price, don’t worry about it, All fees you pay will be used on your machine. The price depends on your expectations of the machine.
3.How about our service?
Once we get your inquiry for our products, we will make offer within one hour ,and for reply you any doubt at any time
4.How about the brand of electric parts of machine?
We use famous brand as following
Siemens / HD motor
Siemens /ABB / Inovance inverter
Siemens/ Inovance touch screen
Schneider low voltage electric. etc.
5.How about packaging?
1.Plastic wrap with dryer agent
2.Plywood box with plastic wrap and dryer agent
3.Carton with plastic wrap and dryer agent
4.SEA , TRAIN , AIR according to clients requirement
6.How about the delivery?
We promise that we provide wire machine, mold, brushed powder machine test operation service in the workshop, and then free shipping, you carefully check and then ship
7.How about delivery time?
It is 30 days. According to your specific requirements for the machine.
8.How about the after service?
When the machine has a problem, the Engineers available to service machinery overseas
9.How to prove what you said?
If you are convenient, you can visit our factory at any time, and when you visit us, you will see the running machine in our factory.
10.Where is our factory?
No.520 Yungu Road, Changshou, Zhouzhuang Town,Jiangyin,214424 China
Our company is only 32 minutes away from ShuoFang International Airport in southern Jiangsu, we can pick you up when you come to this airport
11.How about the invitation letter?
We will do that according to your request , and give you invitation letter in one week.
