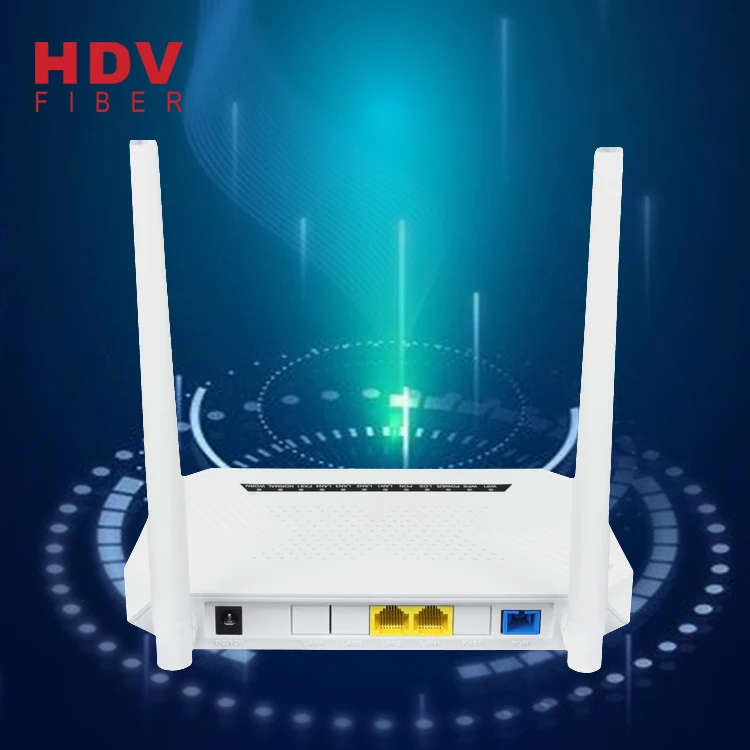

Ftth Modem Fiber Optic Ont Router Pon Onu 1GE 1FE WIFI XPON ONU





9603C-1G1F+WIFI_01

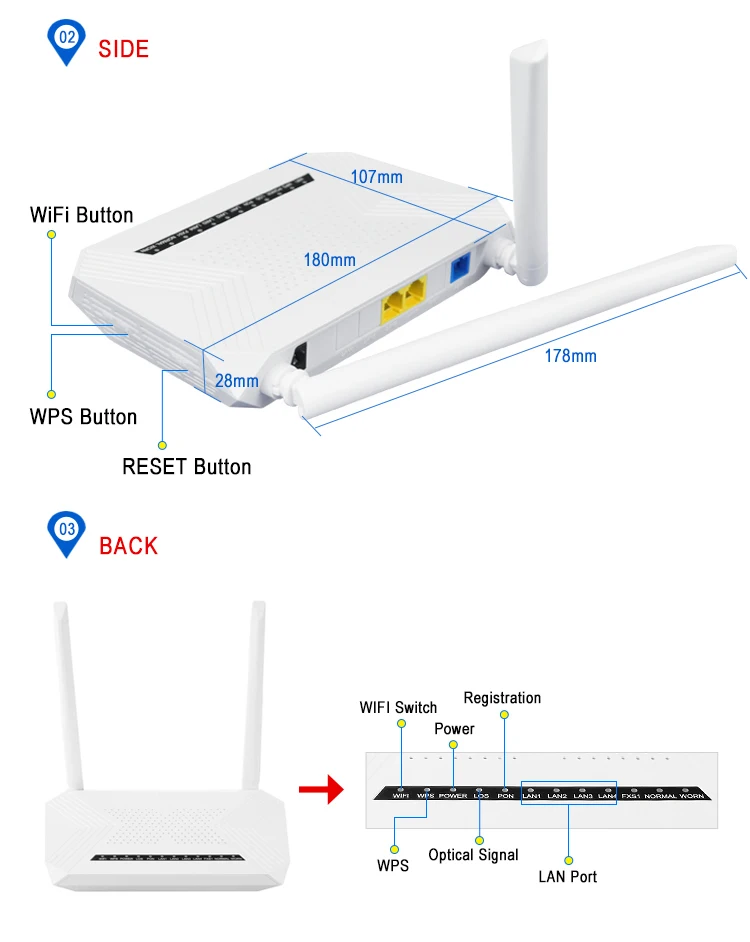

9603C-1G1F+WIFI_02


9603C-1G1F+WIFI_03









Power adapter


.jpg




1. Overview


* HUR3108XRis designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier-class FTTH application provides different services access.
* HUR3108XRis based on mature and stable, cost-effective XPON technology.
* HUR3108XRadopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X



2. Functional Feature

* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/IPoE/Static IP and Bridge mode
* Support IPv4and IPv6 Dual mode
* Support 2.4G WIFIand 2*2 MIMO
* Support LAN IP and DHCP Server configuration
* Support Port Mappingand Loop-Detect
* Support Firewall function andACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system










3. Hardware Specification





















































































































Technical item


Details







PON Interface


1 GPON BOB (Class B+/Class C+)


Receiving sensitivity: ≤-27dBm/≤-29dBm


Transmitting optical power: +0.5~+5dBm/+2~+7dBm


Transmission distance: 20KM


Wavelength


TX: 1310nm, RX: 1490nm


Optical Interface


SC/UPC Connector


Design Scheme


RTL9603C+RTL8192FR BOB(i7525BN)


Chip Spec


CPU 950MHz,DDR2 128MB


Flash


SPI Nor Flash 16MB


LAN Interface


1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector











Wireless


Compliant with IEEE802.11b/g/n,


Operating frequency: 2.400-2.4835GHz


support MIMO, rate up to 300Mbps,


2T2R,2 external antenna 5dBi,


Support: Multiple SSID


Channel: Auto


Modulation type: DSSS, CCK and OFDM


Encoding scheme: BPSK, QPSK, 16QAM and 64QAM


LED


7 LED, For Status of WIFI,WPS,PWR,LOS,PON,LAN1~LAN2


Push-Button


3,For Function of Reset, WLAN, WPS


Operating Condition


Temperature: 0℃~+50℃


Humidity: 10%~90%(non-condensing)


Storing Condition


Temperature: -30℃~+60℃


Humidity: 10%~90%(non-condensing)


Power Supply


DC 12V/1A


Power Consumption


≤6W


Dimension


180mm×107mm×28mm(L×W×H)


Net Weight


0.2Kg

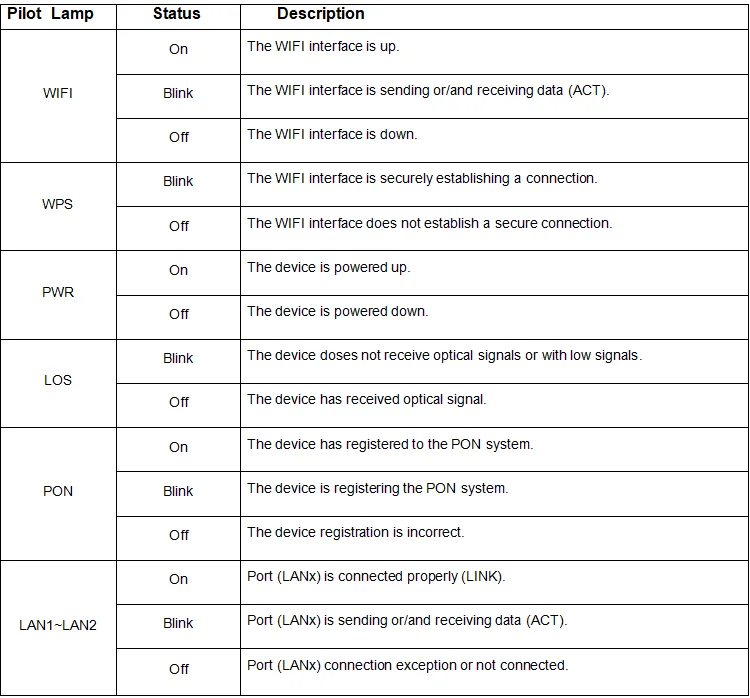

4. Panel lights Introduction

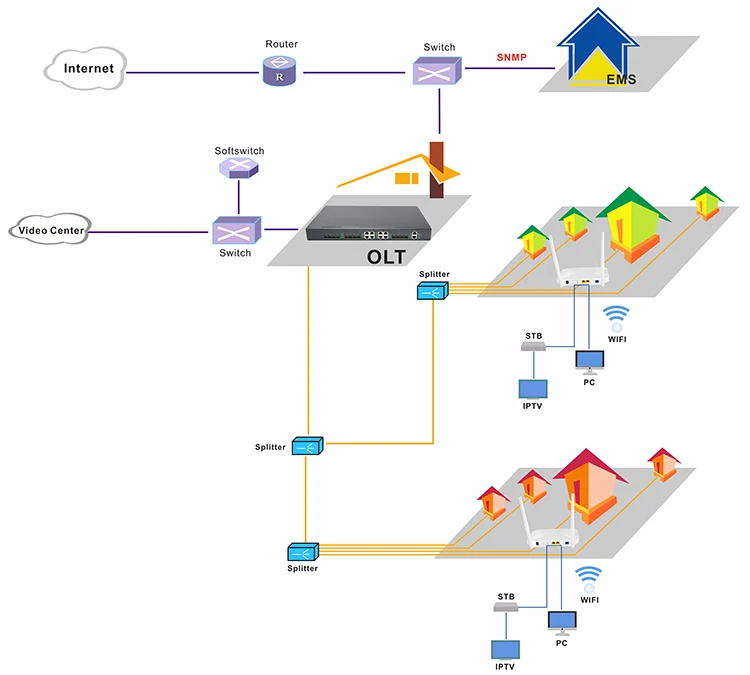

5.Application
* Typical Solution:FTTH(Fiber To The Home)
* Typical Business:INTERNET,IPTV,WIFI etc




 9603C XPON 1G1F+2W Ap
