VFFS packing vertical bag making filling sealing packaging machine
- Category: >>>
- Supplier: Top Y Machinery Co. Ltd.
Share on (62275989964):
Product Overview
Description
Products Description

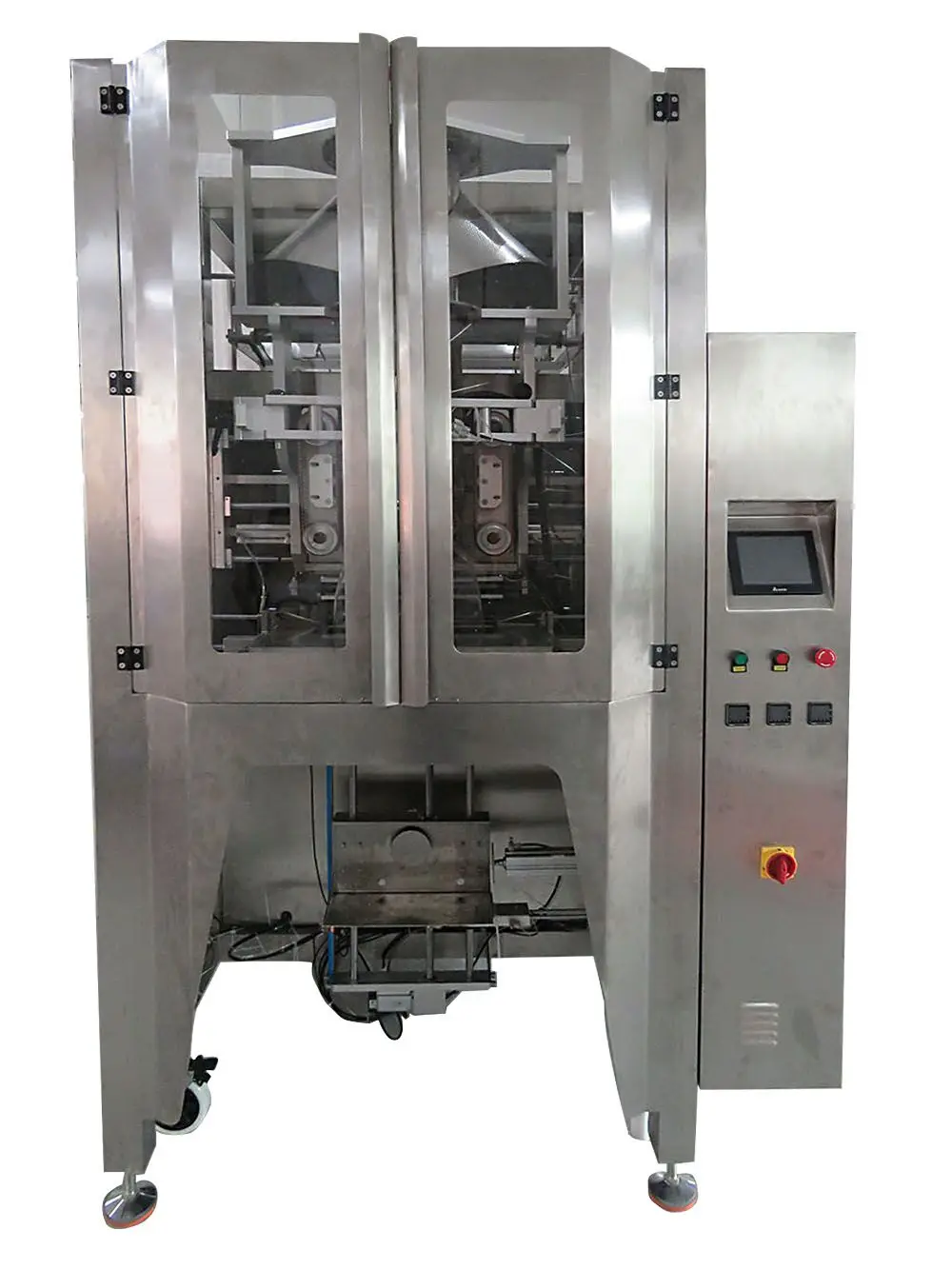

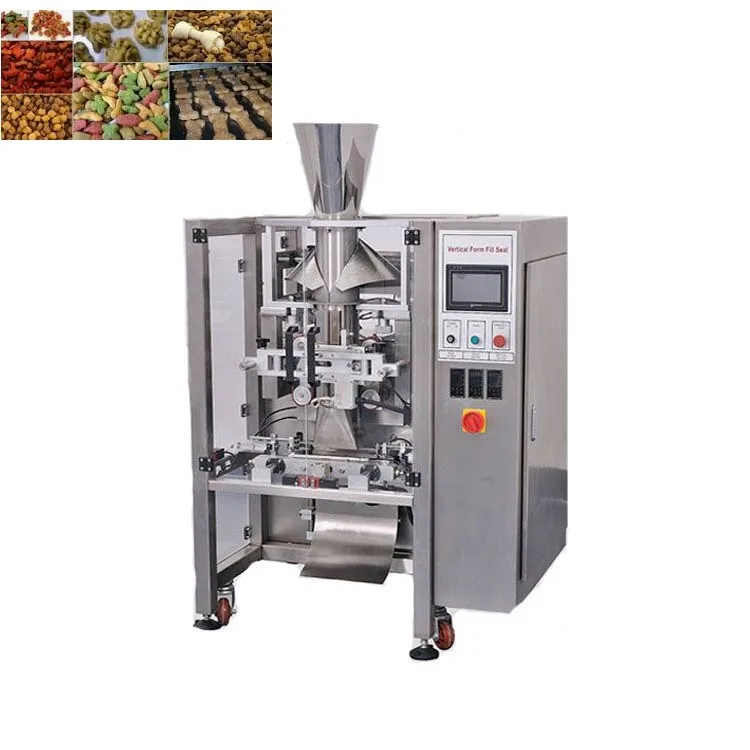

VFFS packing vertical bag making filling sealing packaging machine
It is suitable for packing a range of granular, powder and liquid products, and particularly suited to products that require high standards of package: aesthetically perfect, without any wrinkles, the flush seams are highly resistant and all four sides can be printed on.
Features:
* Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use.
To be used on Top Y High quality machine, it makes your packing work easily and efficiently.
* Use famous brand electric and pneumatic components, stable and long life circle.
* Use superior mechanical components, reduce the wear out loss.
* Easy to install film, auto correcting the excursion of the film.
* Apply advanced operating system, easy to use.
To be used on Top Y High quality machine, it makes your packing work easily and efficiently.
Machine Paramenters
Specification of TOPY-VP Series Packaging Machine
Model No. | TOPY-VP420 | TOPY-VP520 | TOPY-VP620 | TOPY-VP730 | TOPY-VP800 |
Bag Width | 60-200 mm | 100-250 mm | 100-300 mm | 140-350 mm | 150-400 mm |
Bag Length | 70-300mm | 80-350 mm | 80-350 mm | 200-400 mm | 250*400 mm |
Bag Speed (Single motor) | 10-70 bags/min | 15-60 bags/min | 15-60 bags/min | 10-50 bags/min | 5-30 bags/min |
Film width | 120-420 mm | 220-520 mm | 220-620 mm | 300-720 mm | 340-800 mm |
Air Consumption | 0.7 Mps 0.5m3/ min | 0.8 Mps 0.4m3/ min | 0.8 Mps 0.4 m3/ min | 0.8 Mps 0.5 m3/ min | 0.6 Mps 0.7 m3/ min |
Film thickness | 0.03-0.1 mm | 0.04-0.1 mm | 0.04-0.1 mm | 0.05-0.12 mm | 0.06-0.15 mm |

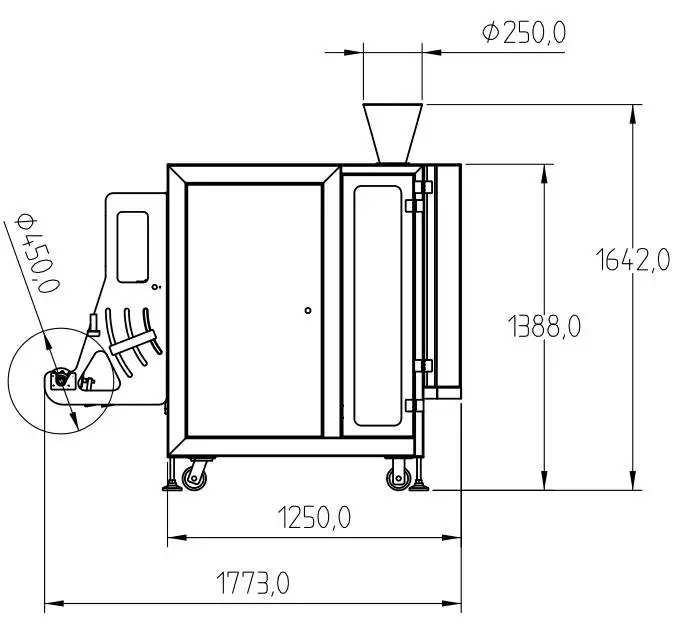

Dimension (mm) | 1530*970*1600 | 1430*1200*1700 | 1430*1200*1800 | 1340*1580*1950 | 1500*1680*2100 |
Weight (KG) | 450 | 680 | 700 | 800 | 1000 |
Power Supply | 2.2 kw | 2.5 kw | 2.5 kw | 2.5 kw | 3.0 kw |
Advantage of TOPY-VP Series Packing Machine
1.PLC controller with touch screen interface.
2.Servo-driven film transport.
3.Pneumatic-driven and sealing jaws.
4.Hot printer and film feeding system synchronous.
5.Quickly changing one-piece bag former.
6.Eye mark sensor for film tracking.
7.Stainless steel frame.
2.Servo-driven film transport.
3.Pneumatic-driven and sealing jaws.
4.Hot printer and film feeding system synchronous.
5.Quickly changing one-piece bag former.
6.Eye mark sensor for film tracking.
7.Stainless steel frame.

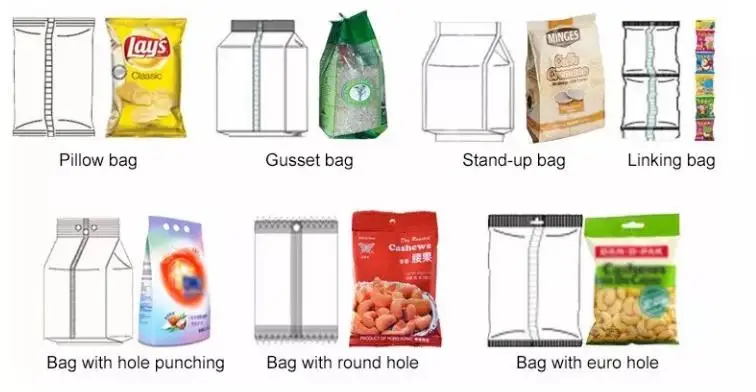

Bag types for vertical form fill seal packing machine:
Packing Solution
The packing system showed here is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.
Solid Packing SolutionCombination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.
Granule Packing Solution
Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.
Liquid Packing Solution
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.
Powder Packing Solution
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.
Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.

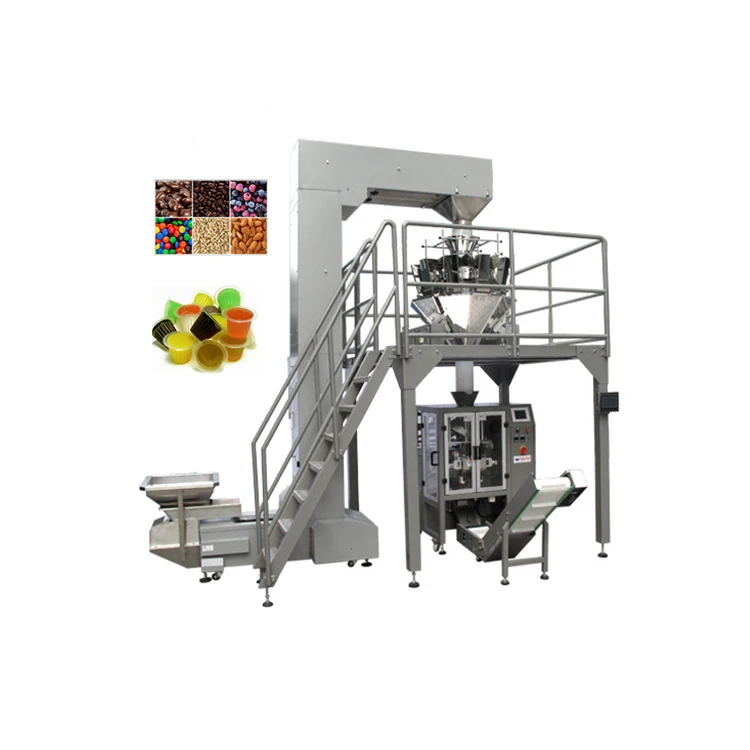

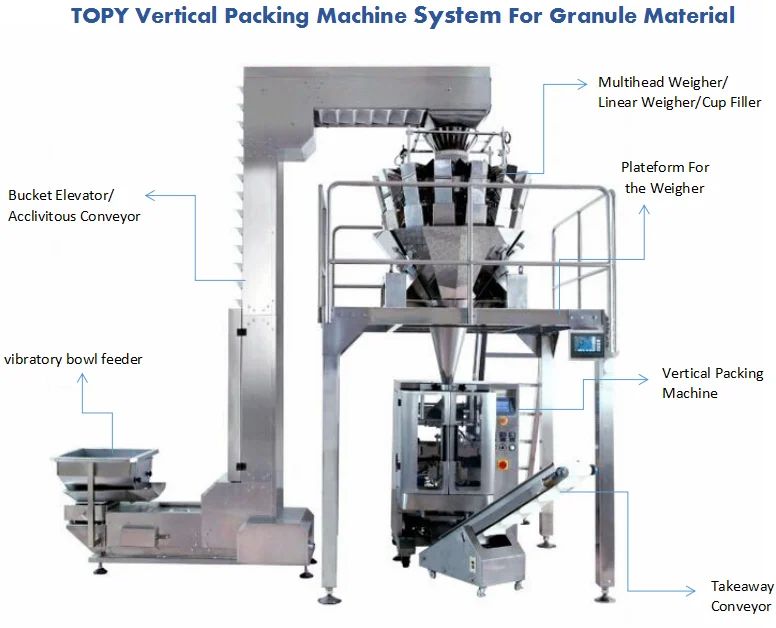

Combined with multihead weigher
Combined with auger filler
Combined with liquid pump
Company Profile

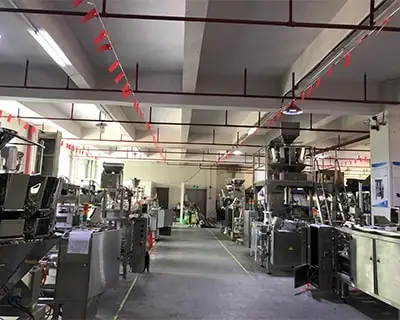

TOP Y MACHINERY Co., LTD was founded in October 2011 in Lunjiao Town, Foshan City, and then we moved to Qide Industrial Park, Beijiao Town. We are integrated company with R&D, building, marketing and providing after-sale services backup. We are dedicated in producing all packing machines:
1. MDP bag given mini doypack machine for preformed pouches.
2. VP vertical forming filling sealing machine for roll of film.
3. VW linear weigher for granules weighing and filling.
4. Powder packaging systems.
5. Granule packaging systems.
6. Liquid packaging systems.
7. Auxiliary conveyors.
and turnkey material handling, weighing, packaging and inspecting solutions for granule, powder and liquid. These products are widely used in foods, medicines, chemicals, toys and ironware industries.
TOP Y MACHINERY Co. believes in machine innovation and design. We gather up persistent efforts and technology to aim at customers’ satisfaction quality. We are keen to better detailed design and engineers work on every working stage in the drafts. In the working shop the workers assemble the whole machine by batches to make sure each batch works well first. “Customers First” to ensure customers get good quality machines and also let us win good reputation in customers. We are ready to provide quality machines and sincerely hope to have chances to cooperate with you.
Certifications
FAQ
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Tell us about your product details and packing requirements.
1. What kind of product you would like to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after placking the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process?
1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
