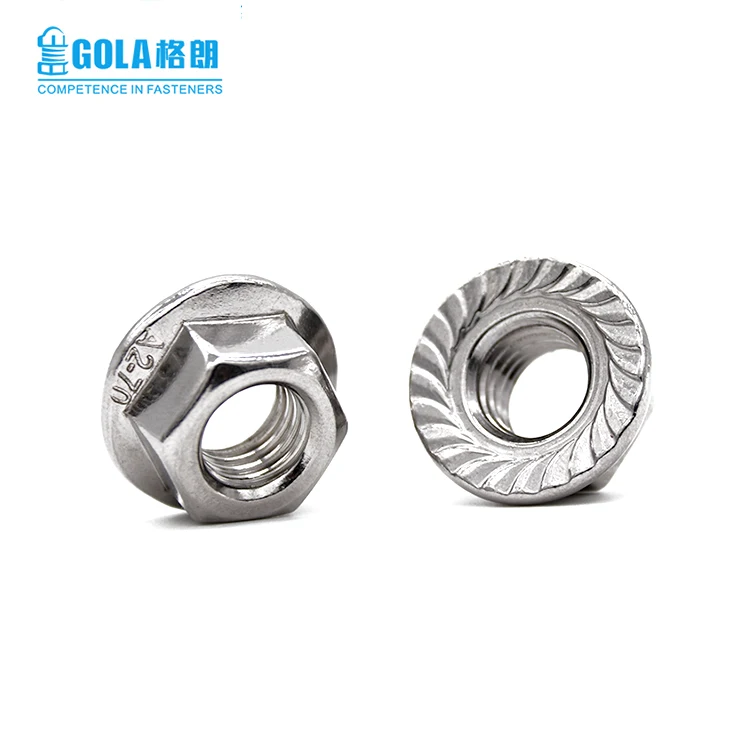

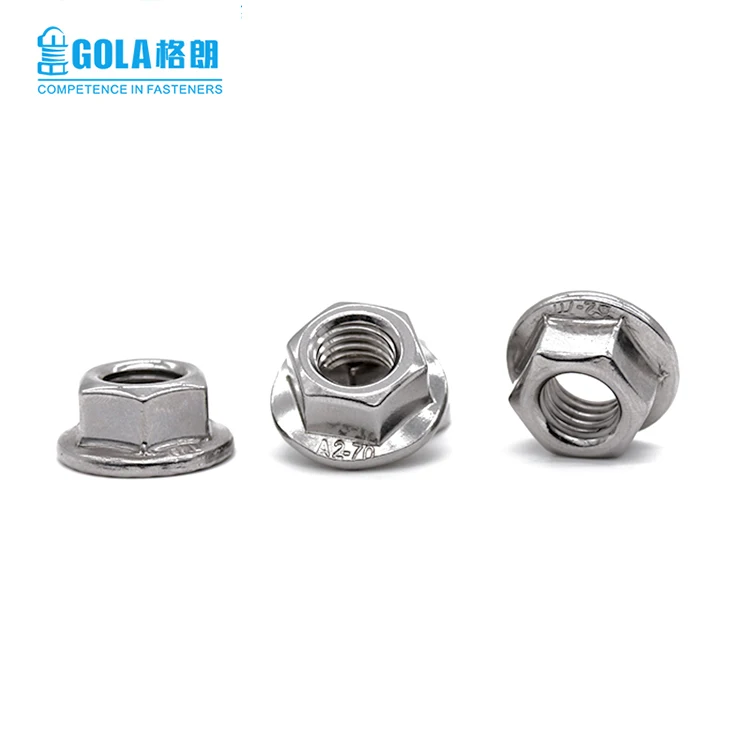

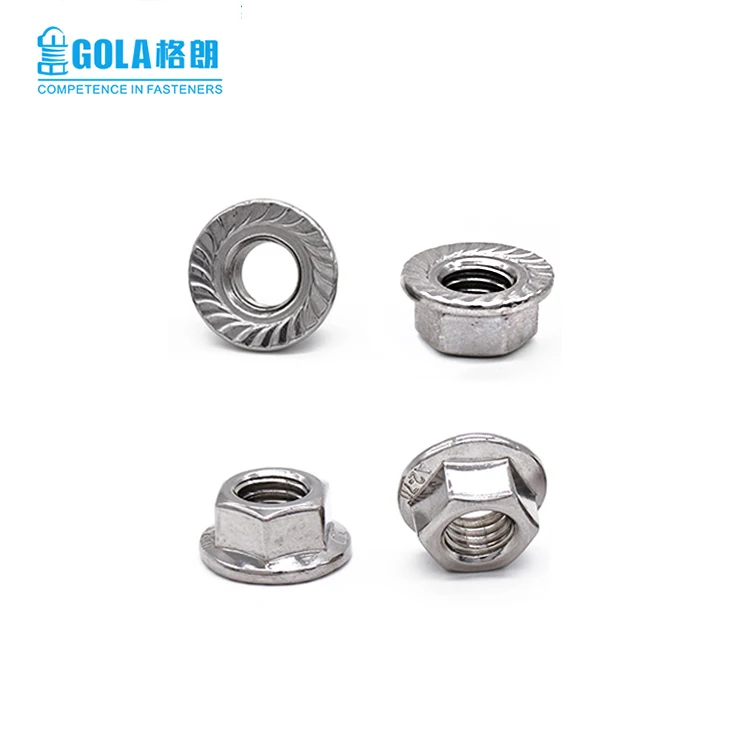

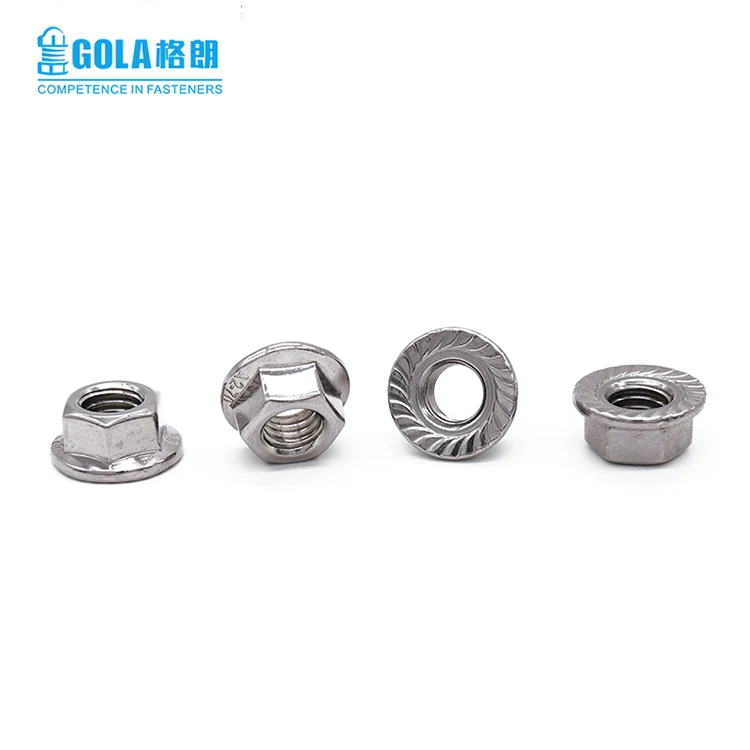

Product | Hexagon Nut with Flange |
Material | SS304, SS316 |
Standard | DIN, GB/T, ANSI |
Size | M3 M4 M5 M6 M8 M10 M12 M16 |
Finish | Nature |
Package | Carton( 6 packs in one carton, and weight is around 22-25kg) |
Lead time | 5 to 15 working days |
Customize | Available |
MOQ | No MOQ for standard item, negotiable for customized item. |

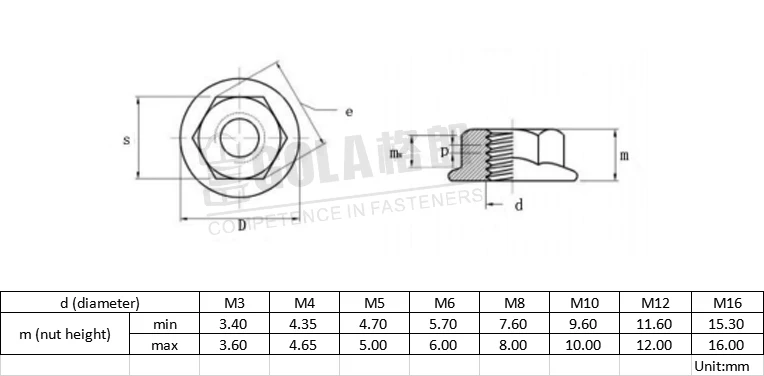

d (diameter) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | ||
m (nut height) | min | 3.40 | 4.35 | 4.70 | 5.70 | 7.60 | 9.60 | 11.60 | 15.30 | |
max | 3.60 | 4.65 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 16.00 | ||





ITEM | CHEMICAL ELEMENTS COMPOSITION | ||||||||||||||
C(%) | Si(%) | Mn(%) | P(%) | S(%) | Ni(%) | Cr(%) | Mo(%) | ||||||||
SS304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 8.0-11.0 | 18-20 | ||||||||
SS316 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.03 | 10.0-14.0 | 16-18 | 2.0-3.0 | |||||||
