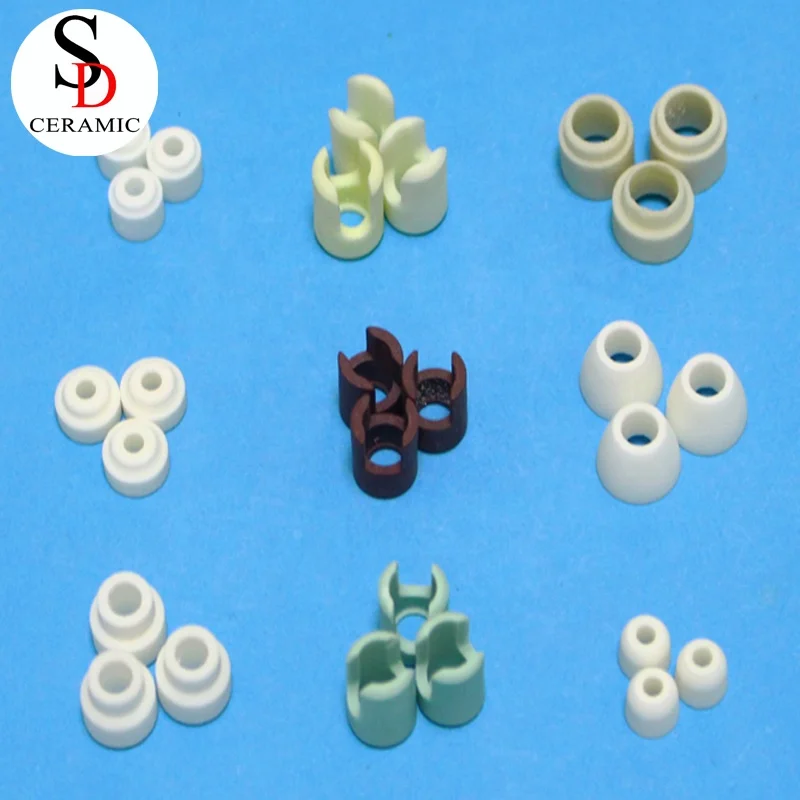

Manufacturer insulating terminal block steatite ceramic wire connector
- Category: Terminals >>>
- Supplier: Yixing,Shengda,Refractory,Ceramic,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Application: Electrical industry, Electric heating industry, Electronics Industry, auto industry,Petroleum industry, Textile industry, Lighting industry, Metallurgical industry.
Technical Parameters
Table of Ceramic Materials Performance | Name | Steatite Ceramic | Cordierite Ceramic | Mullite Ceramic | 95% Alumina Ceramic | 99% Alumina Ceramic | ||||
Properties | Symbol | Units | C221 | C520 | C610 | C795 | C799 | |||
Open (apparent) porosity, maximum | ρa | Vol% | 0 | 20 | 0 | 0 | 0 | |||
Bulk density, minimum | ρa | Mg m-3 | 2.7 | 1.9 | 2.6 | 3.5 | 3.7 | |||
Flexural strength, minimum | Unglazed | Ϭft | MPa | 140 | 30 | 120 | 280 | 300 | ||
Glazed | Ϭfg | MPa | — | — | — | — | — | |||
Modulus of elasticity, minimum | E | GPa | 110 | 40 | 100 | 280 | 300 | |||
Mean coefficient of linear thermal expansion | α30–100(30 ℃ to 100℃) | 10–6 K–1 | 6 to 8 | 1.5~3.5 | 5~6 | 5~7 | 5~7 | |||
α30–300(30 ℃ to 300℃) | 10–6 K–1 | 7 to 9 | 1.5~3.5 | 5~6 | 6.5~7.5 | 6~8 | ||||
α30–600(30 ℃ to 600℃) | 10–6 K–1 | 7 to 9 | 2~4 | 5~7 | 6~8 | 7~8 | ||||
α30–1000(30 ℃ to 1000℃) | 10–6 K–1 | 8 to 10 | 2.5~5 | 5~7 | 7~9 | 7~9 | ||||
Resistance to thermal shock, minimum | △T | K | 100 | 300 | 150 | 140 | 150 | |||
Electric strength, minimum* | Ed | kV mm-1 | 20 | — | 17 | 15 | 17 | |||
Withstand voltage, minimum | U | kV | 30 | — | 25 | 18 | 20 | |||

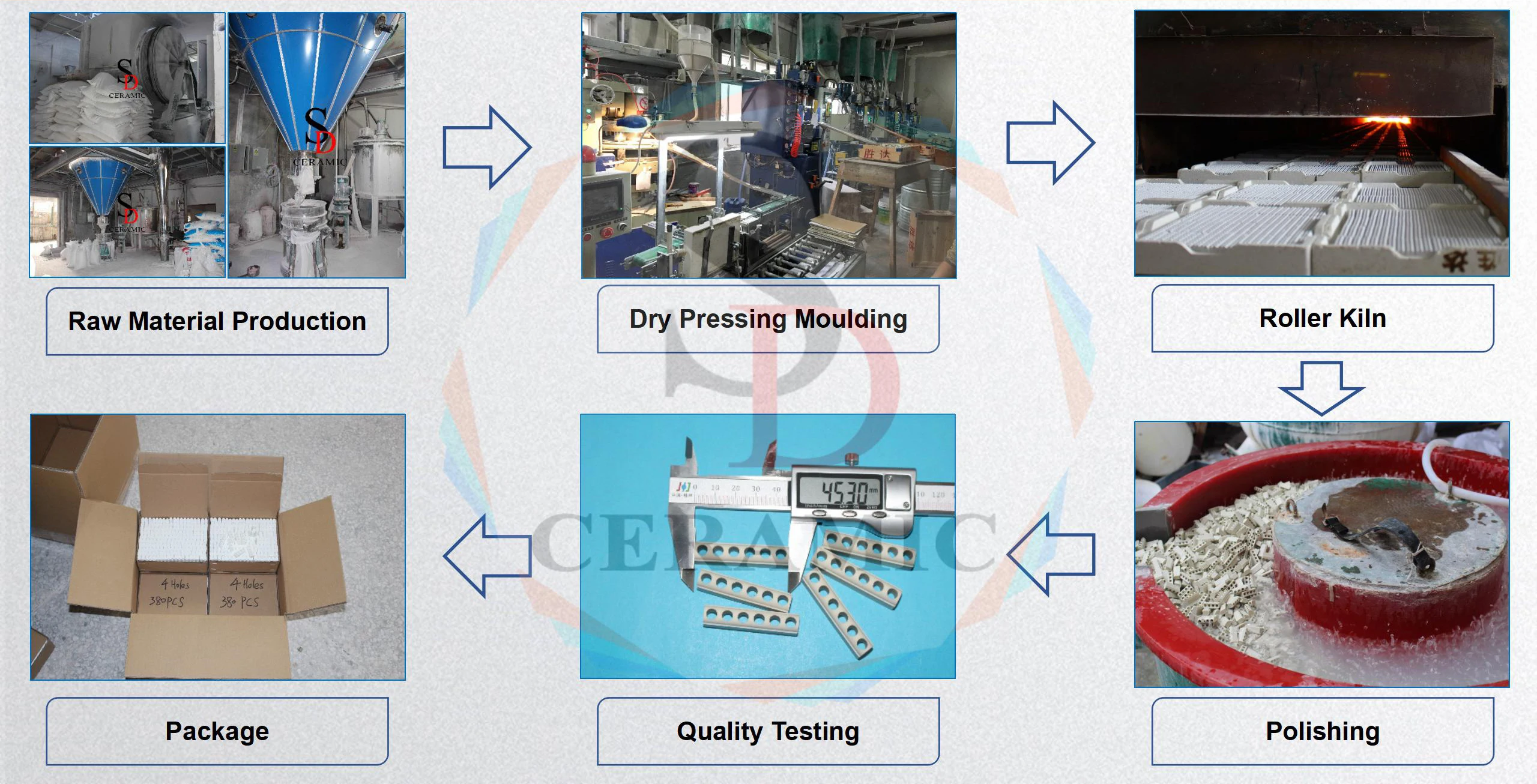

Production&Package
Use export carton which is secure against breakage on the MDF pallet
Our customers have a wide range of processing choices for transportation mode.
By Express (FedEx, UPS, DHL, TNT, EMS, etc...)
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Our customers have a wide range of processing choices for transportation mode.
By Express (FedEx, UPS, DHL, TNT, EMS, etc...)
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Company Profie

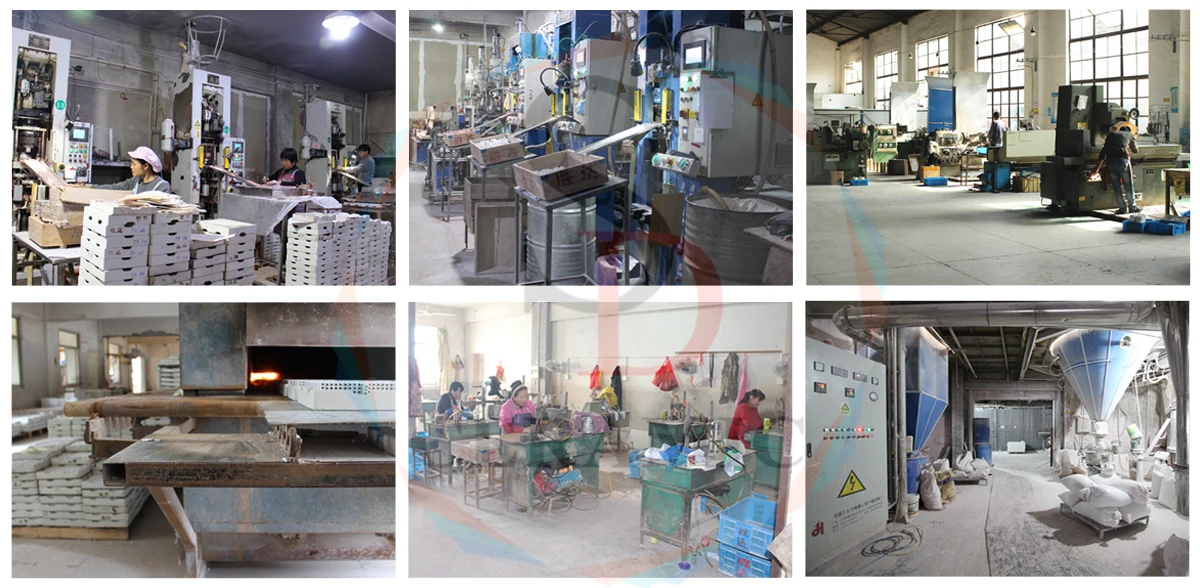

Yixing Shengda Refractory Ceramic Co., Ltd, as one of the modern enterprise, she is engaged in researching and developing from1995, manufacturing the ceramic products and also supplying the technical services for the local ceramic factories. There’re more than 80 professional technicians. She has the ceramic and refractory testing center with national certification. And has a new production base for industrial ceramics..
Now, we are the leading manufacturer and exporter in China. The products scope from industrial ceramics (Industry ceramics, engineering ceramics including High Temperature Electrical Bobbin Insulator Cordierite Ceramic ), compound porous ceramics, foamed ceramics, art ceramics and glazing. Most of these products are exported to USA, Europe and Japan. We also provide the counseling service off ceramic technology.
Our Main products is Ceramic Band Heater Insulator；Industrial Ceramics；Textile Ceramics；Ceramic Blocks；Ceramic Connectors；Alumina Ceramics；Laser
Ceramics；Thermostat Ceramics；Steatite Ceramics；Cordierite Ceramics；Customize Ceramics；MgO Tubes；
Ceramics；Thermostat Ceramics；Steatite Ceramics；Cordierite Ceramics；Customize Ceramics；MgO Tubes；
Now, we are the leading manufacturer and exporter in China. The products scope from industrial ceramics (Industry ceramics, engineering ceramics including High Temperature Electrical Bobbin Insulator Cordierite Ceramic ), compound porous ceramics, foamed ceramics, art ceramics and glazing. Most of these products are exported to USA, Europe and Japan. We also provide the counseling service off ceramic technology.
Our Advantages
FAQ
Q: How is your goods quality?
A: We cooperated with seveal famous companies, like Mitsubishi; Media; Toshiba; Philips; Flyco;etc.
Q: Do you provide customized service?
A: Yes, we have a professional team which has rich experience in industrial ceramics,so we'll try to satisfy your requirement.
Q: Can you supply customize service?
A: Yes, we are a professional manufacturer of Steatite and Alumina Ceramics and are customized smoke according to your needs.
Q: What is your main product?
A: Our Main Products include Ceramic Band Heater Insuator；Industrial Ceramics；Textile Ceramics；Ceramic Blocks；Ceramic Connectors；Alumina Ceramics；Laser Ceramics；Thermostat Ceramics；Steatite Ceramics；Cordierite Ceramics；Customize Ceramics；MgO Tubes；
Q: How does your facility implement quality control?
A: Quality is the most important We always attach great importance to quality control, from beginning to end. We have QC
department to carry out the inspection before shipping.
A: Quality is the most important We always attach great importance to quality control, from beginning to end. We have QC
department to carry out the inspection before shipping.
Q:Can the products be customized as our need, such as the special design or putting on our logo?
A:Surely, our ceramic parts can be customized as your need or drawings. Putting on your logo is also available.
