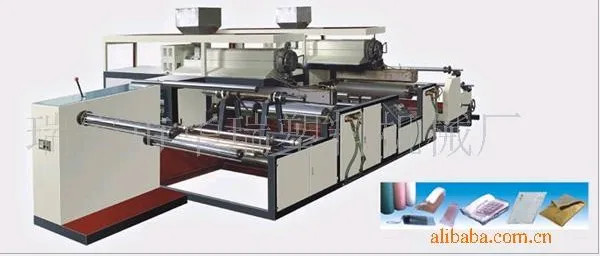

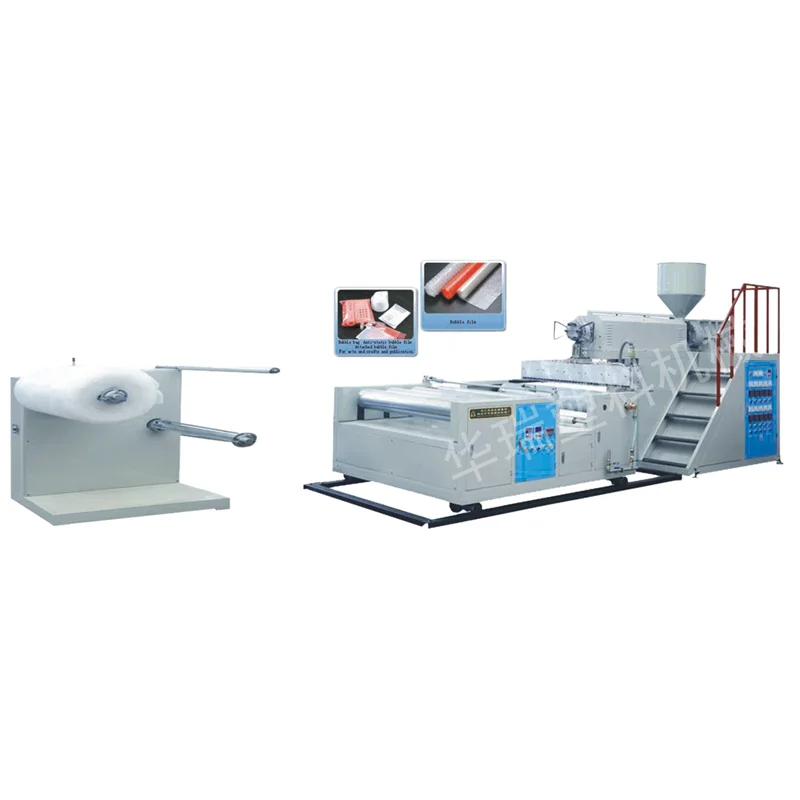

2019 newest Huarui ruian polyethylene air bubble film extrusion
- Category: >>>
- Supplier: Ruian Huarui Plastic Machinery Co. Ltd.
Share on (62276290213):
Product Overview
Description
Our Company

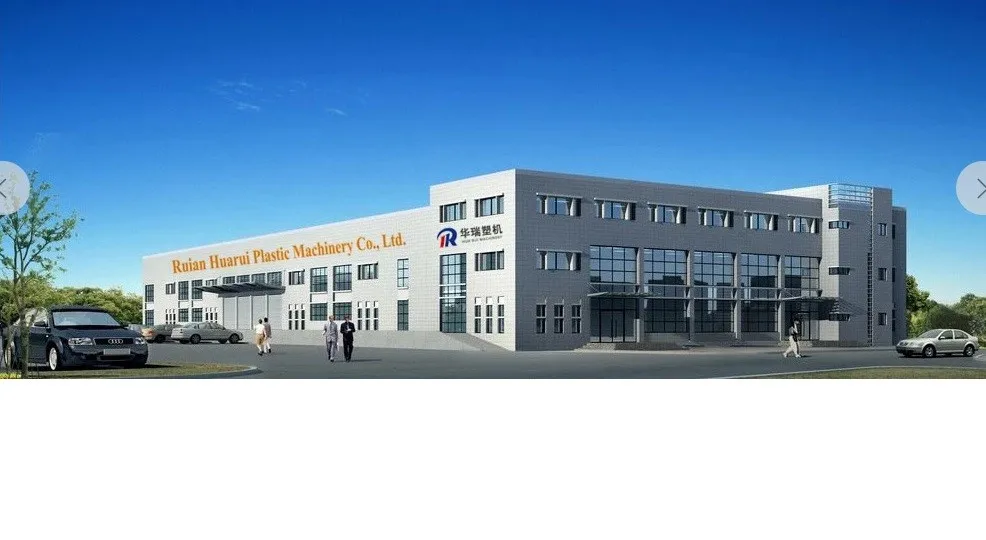

Factory
Our Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
Product Description
1.Main motorand take-up motor are controlled by frequency inverter adjust.
2.Material of screw and barrel :38Crmoai polish with Nitride treatment hardness of heatment.
3.Hardness of heat treatment: Screw HV>=740,barrelHV>=900
4.Depth of hardening:0.6-0.7mm
5.Britleness grade:<=2grade
6.Gear box : 250 involutes cylinder Bevel wheel,cast alloy steel piston, fine grinding hard gear surface
7.Die material:Steek 45#surface treatment of flow channel:hard chrome-plating
Detailed Images
model | QPE-600 | QPE-1200 | QPE-1500 | QPE-1800 | ||||
main and subsidiary screw diameter | Φ55,mm | Φ65 | Φ75 | Φ90 | ||||
ratio L/D | 28:1 | 28:1 | 28:1 | 28:1 | ||||
main and subsidiary extruder power | 11kw | 15kw | 22kw | 37kw | ||||
Width of qir bubble film | 600mm | 1200mm | 1500mm | 1800mm | ||||
Bubble specification | Φ6*3.2mm | Φ10*3.4mm | Φ25*10mm | Φ30*10mm | ||||
Output | 20-40kg/h | 30-60kg/h | 50-80kg/h | 60-100kg/h | ||||
Total power | 40kw | 55kw | 65kw | 75kw | ||||
Overall diamension | 7000*2000*2500mm | 7500*2500*2500mm | 7500*2800*2500mm | 7500*3100*2500mm | ||||
Gross weight | 2.8T | 3.8T | 5.0T | 6.0T | ||||
Note: The design of the machine and the specification of the bubbles can be made according to the customers’ requirment. If you have any doubt, please feel free to contact me. Your inquiry would be highly appreciated. | ||||||||

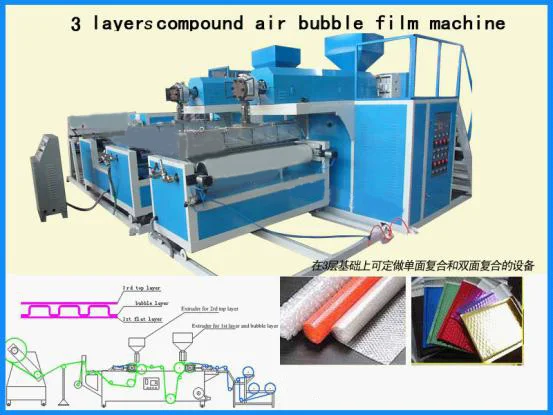

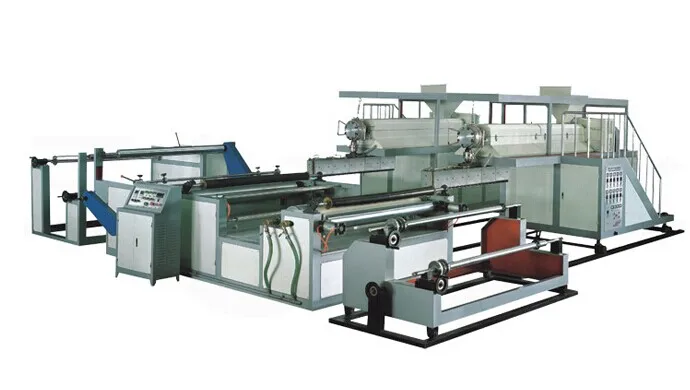

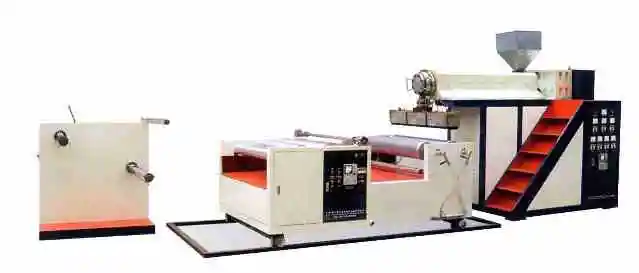

Products Show
Our Service
With care
You use this machine,we use our heart.
High-appreciated
When you come across some problems,you can contact us anytiime.
High quality
Passed the ISO9001:2008 quality system authentication and ROHS authentication.
Packing & Delivery
1. Plastic wrapping
2. Cartons
6. Complete package
Our Certifications
Best stainless
Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,Best stainless steel wing nut anchor bolt for construction fastener bags+cartons+pallets according to customer ' s requirement,
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A:No.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
