EN12966 TRAFFIC LED SIGNS OT20 FOR TRAFFIC ROADS , HIGHWAY AND TRAFFIC TRAILER
Products Description
YAHAM TRAFFIC

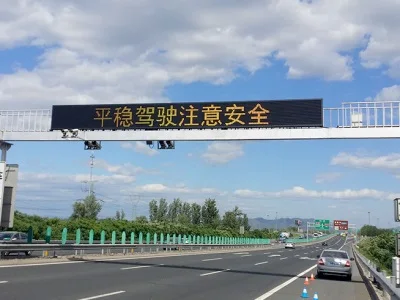

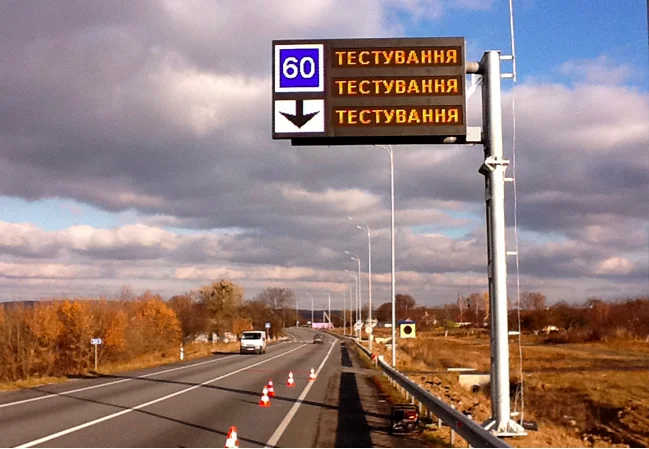

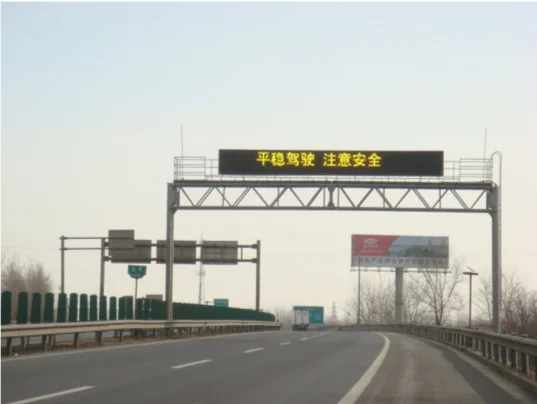

Traffic signs are commonly used for the traffic warning information of Road & bridge construction. The high brightness and strong eye-catching Led technology deliver the traffic information to the driver, remind them To focus on driving speed and pay attention to the weather, road situation, And so on. It can reduce the traffic accident by developing the road traffic Management.

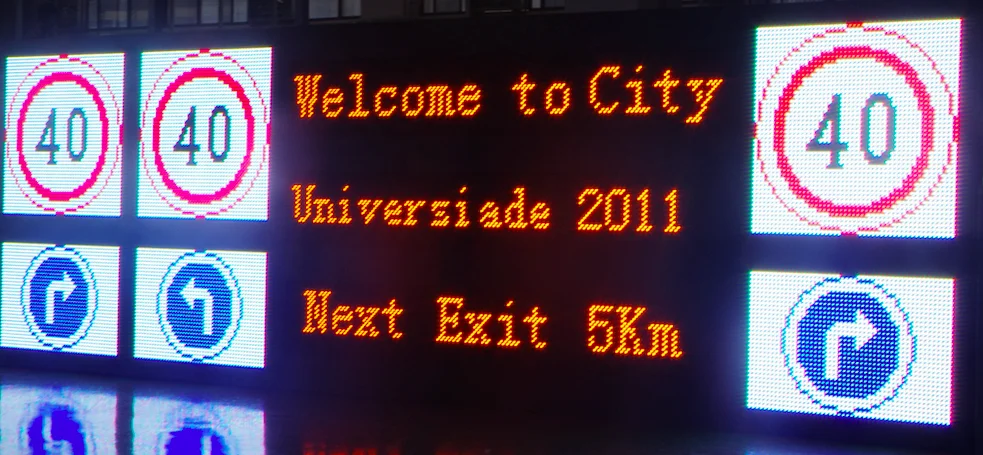

•\tVariable message Sign | •\tLance control sign |
•\tVehicle arrow board | •\tTrailer message board |
•\tSpeed limit sign | •\tVehicle arrow board |
YAHAM OT20
NEW INTERGRATED OPTICAL LEN
High color consistency
With a much-improved flatness, diode spectrum and brightness are able to remain the same, making the color more consistent and content more readable
Improved flatness
Instead of manually implanting optical
len one by one, new module comes
all the len is modeled in one piece,
resulting in perfect module flatness
Thinner cabinet
New OT16 and OT20 modules measure
only 40mm and 35mm thick respective
ly,50% thinner than the previous generation, facilitating installation.
Product Paramenters
ITEM | OT20 |
PIXEL | 20 mm |
LED TYPE | SMD+LENS |
PIXEL DENSITY | 2500 pixel/m2 |

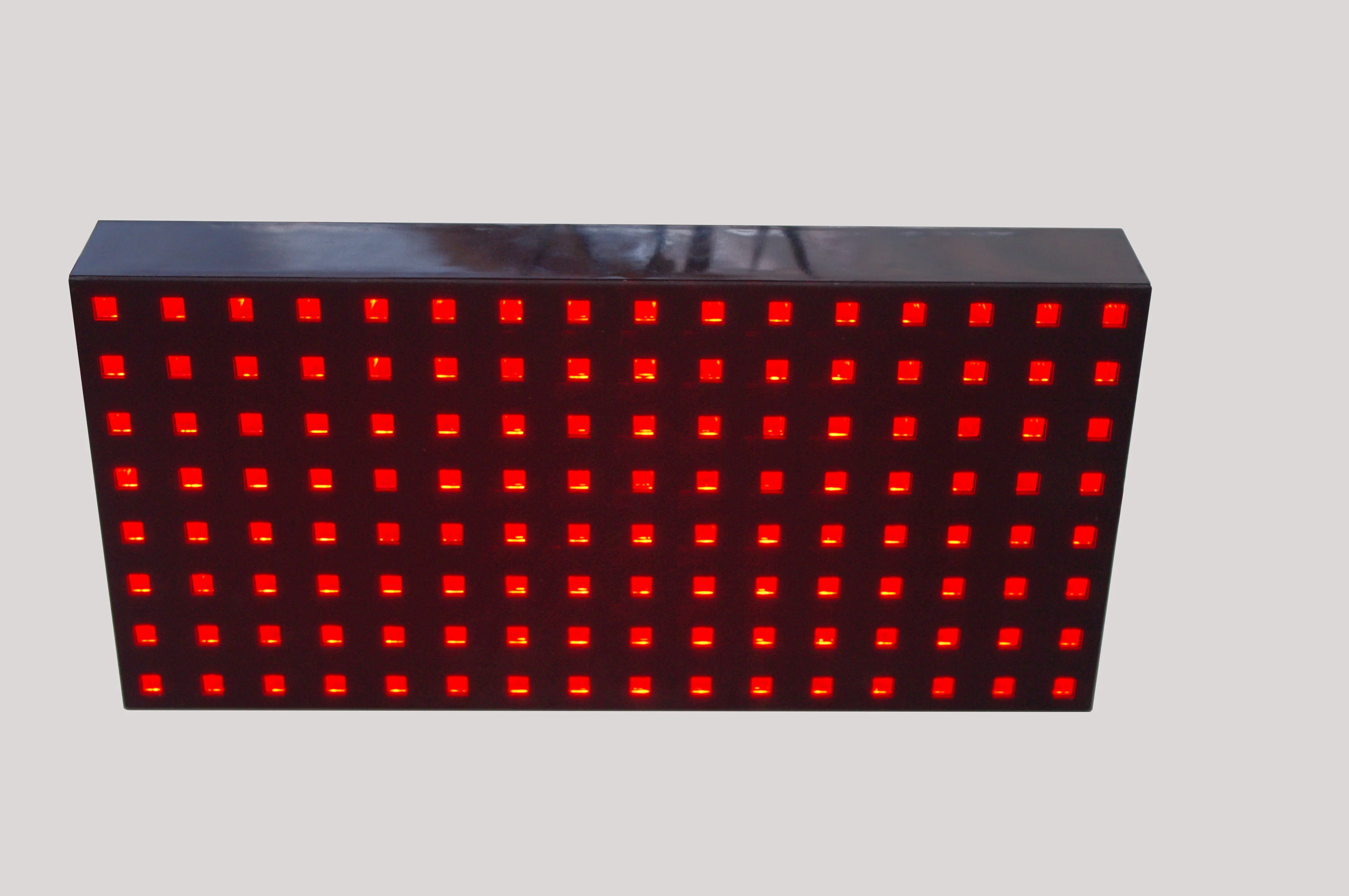

MODULE DIMENSION | 320X160 mm |
MODULE RESOLUTION | 16*8 pixels |
CABINET DIMENSION | 960*960mm |
CABINET WEIGHT | 65kg |
ACCESS | FRONT /BACK |
INGRESS PROTECTION | IP65 |
BRIGHTNESS | 12400 NITS |
VIEWING ANGLE | H15/-15 V8/-10 |
MAX.POWER CONSUMPTION | 220W |
AVE.POWER CONSUMPTION | 70W |
DRIVIG METHOD | STATIC |
DISPLAY CONTROL | Asynchronous control |
LED LIFESPAN | 100,000 |
Our Advantages
POWER SAVING
Whole-pack lens design brightness can be increased by 5 times with integrated optical lens. Therefore, to achieve a certain brightness, 12400nits (L3) for example, the current required would be much lower. Theoretically, power consumption can be reduced around 38%.
Viewing Angles
Different from common len-by-len design, integrated optical lens significantly improves display uniformity and performance, we well as stability of electronic components.

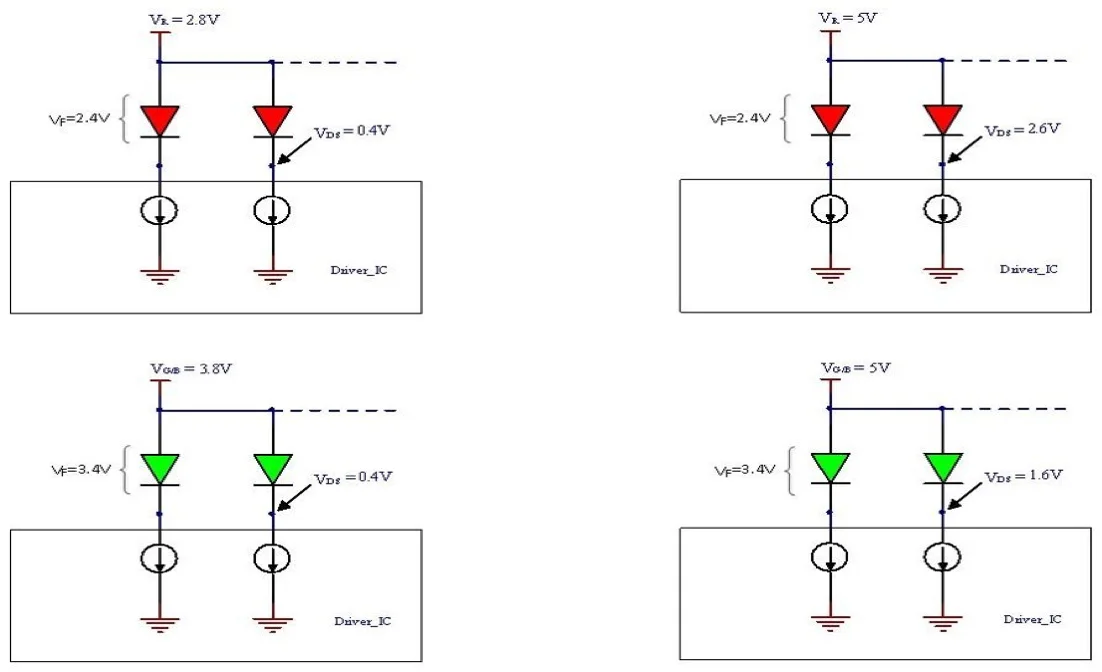

Separate Voltage Driving Method
LED properties:
Red and yellow lamps: a total voltage of 3.8V with 1.8-2.2V as break-over ratings.
Green and blue lamps: a total voltage of 5v with 2.8-3.6V as break-over ratings
Traditionally, a uniform 5V input voltage is applied for all LED lamps. To save power consumption, Yaham adopts dual-voltage input, i.e. using 2.8V for red lamps and 3.8V for green and blue lamps.
Sleeping mode
YAHAM YHT-VMS:
Detect the black area and turn it into sleeping mode.0 power consumption in all black area.
without sleep mode, 8mA current flow
with sleep mode, 10uA current flow
800 times difference for the blank areas.
Dust proof

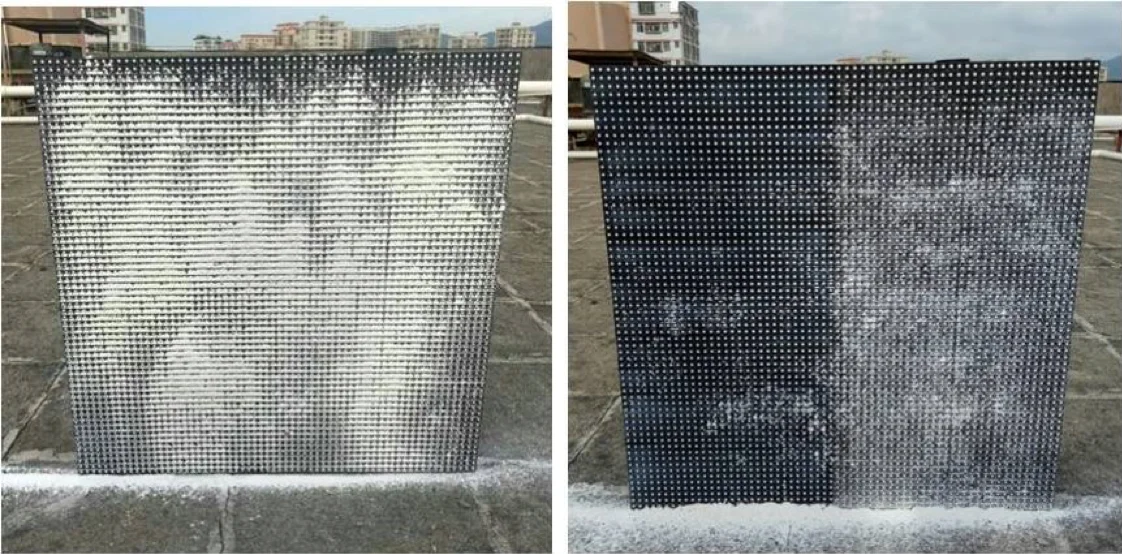

A protection layer shall be formed on the surface of the VMS by applying a patented nano technology, to avoid detain or accumulation of dust or other large particles from air. Hereafter is a comparison of test results within 24h after spraying of talc powder on the surface of LED matrix with (right) and without (left) nano material.

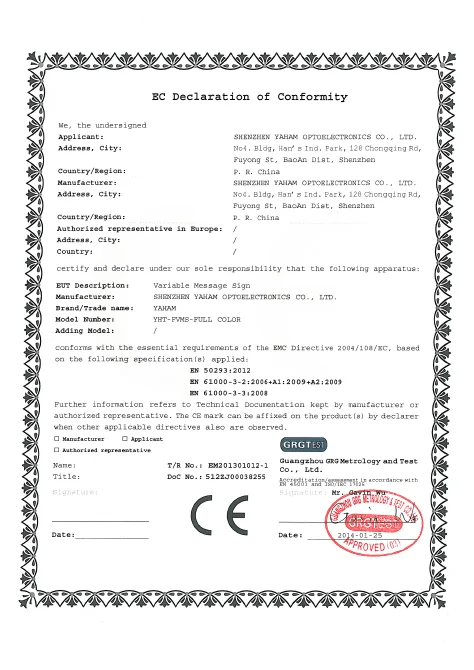

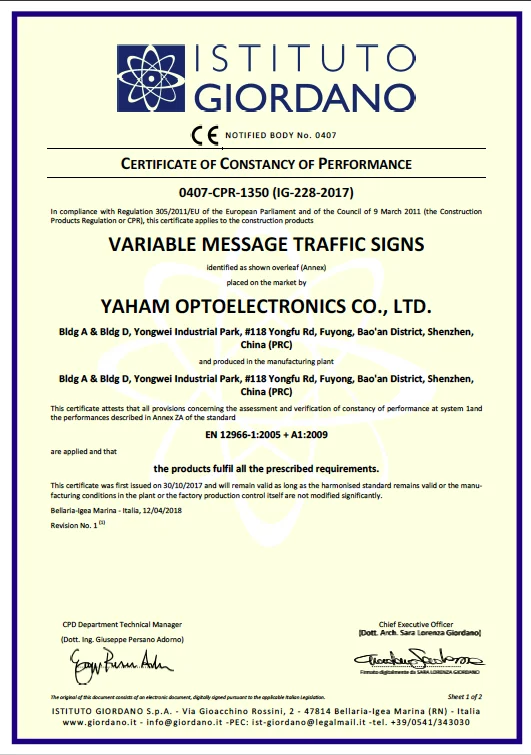

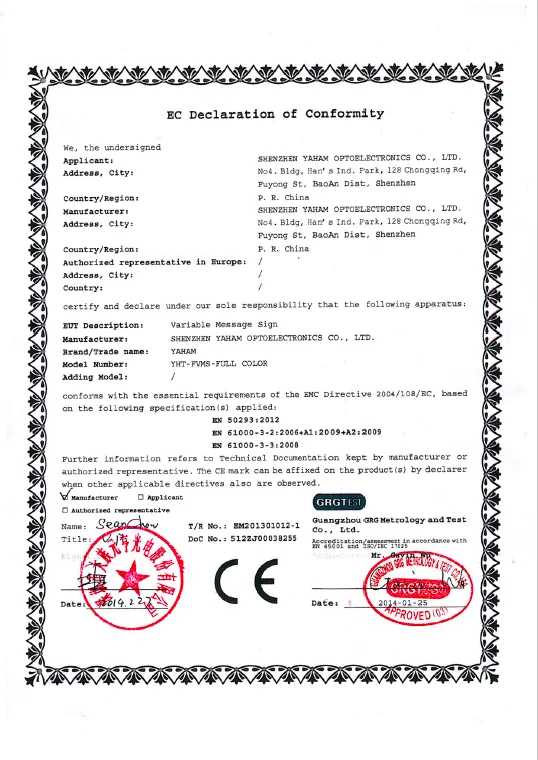

Certifications

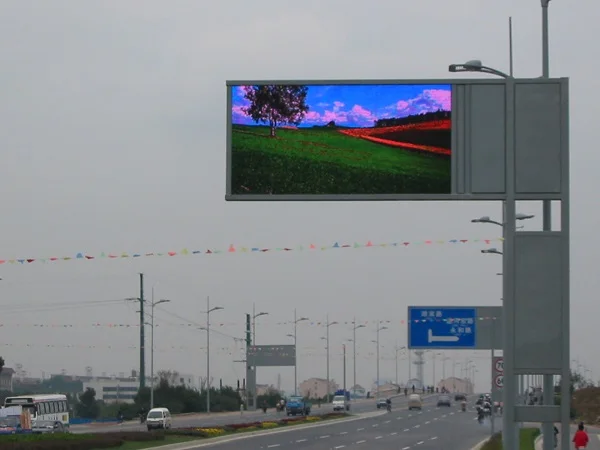

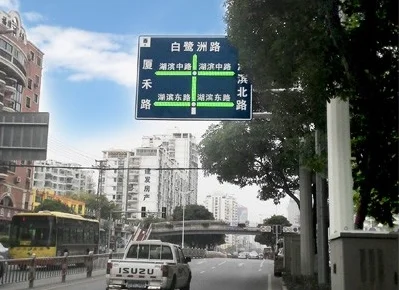

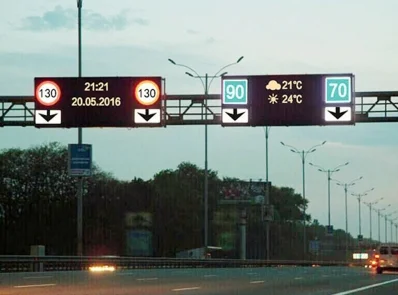

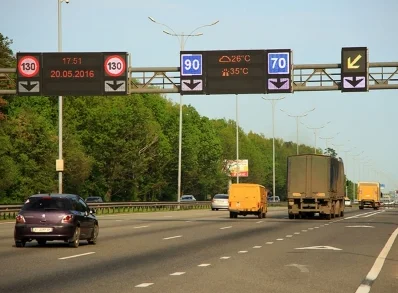

Application

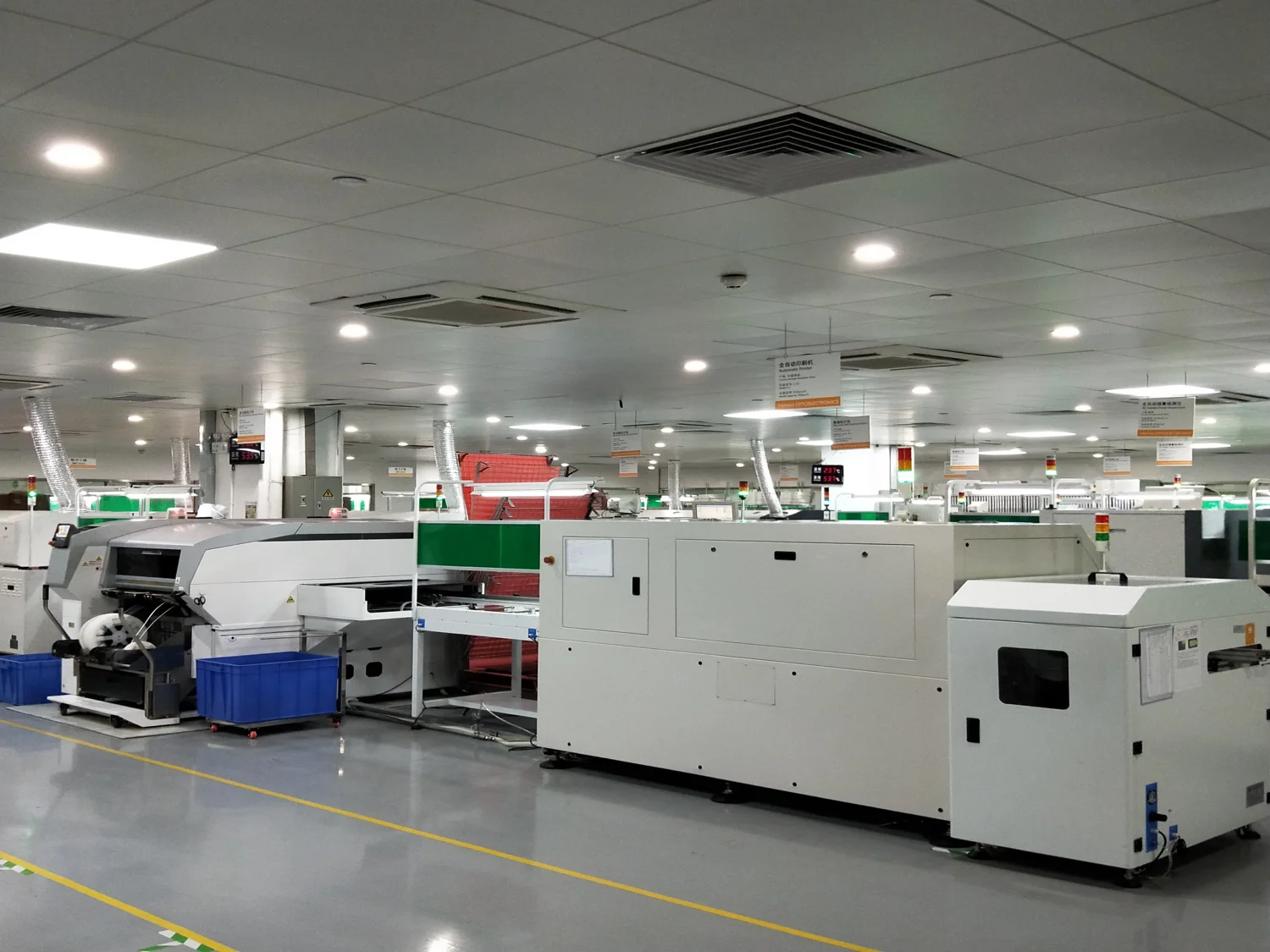

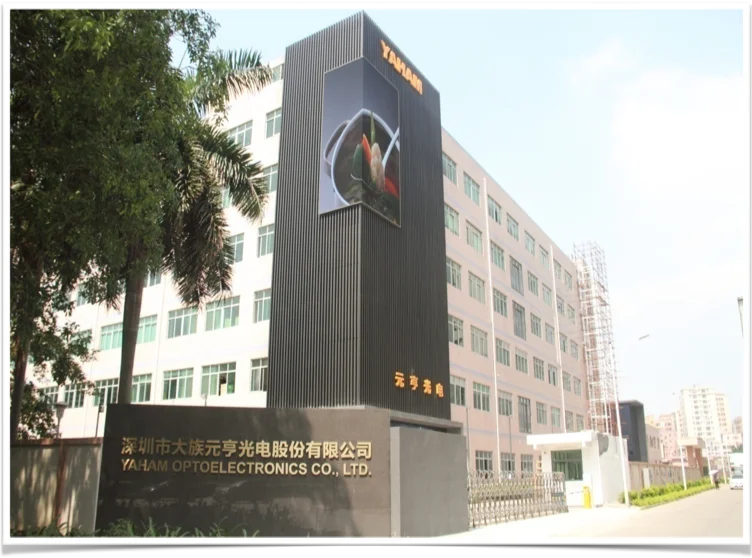

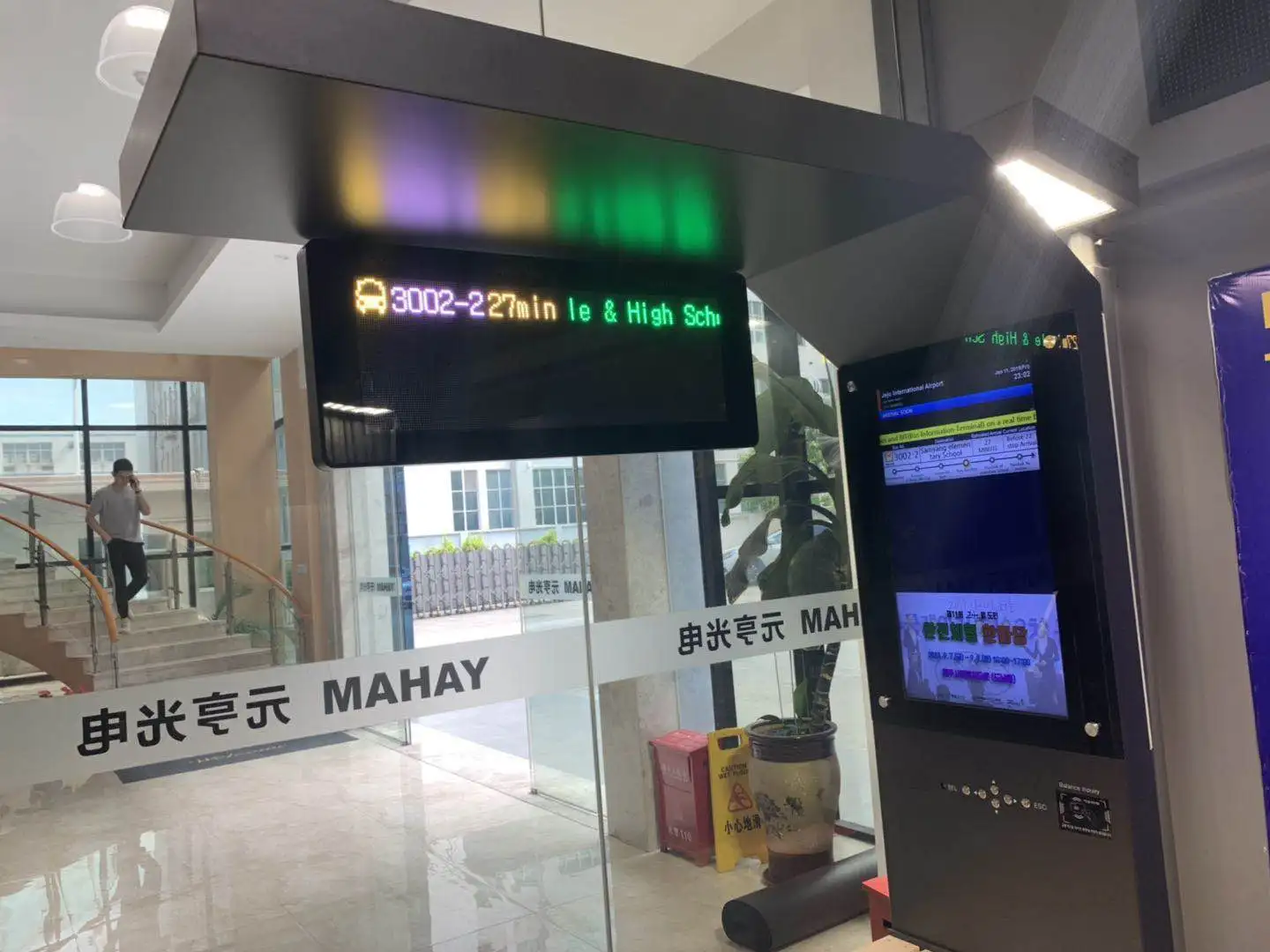

Company profile
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: 1. let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8.How to deal with the faulty?
1.Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
2. we will send the extra parts along with the goods for you
About the defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation
For further information, feel free to contact Sara.
