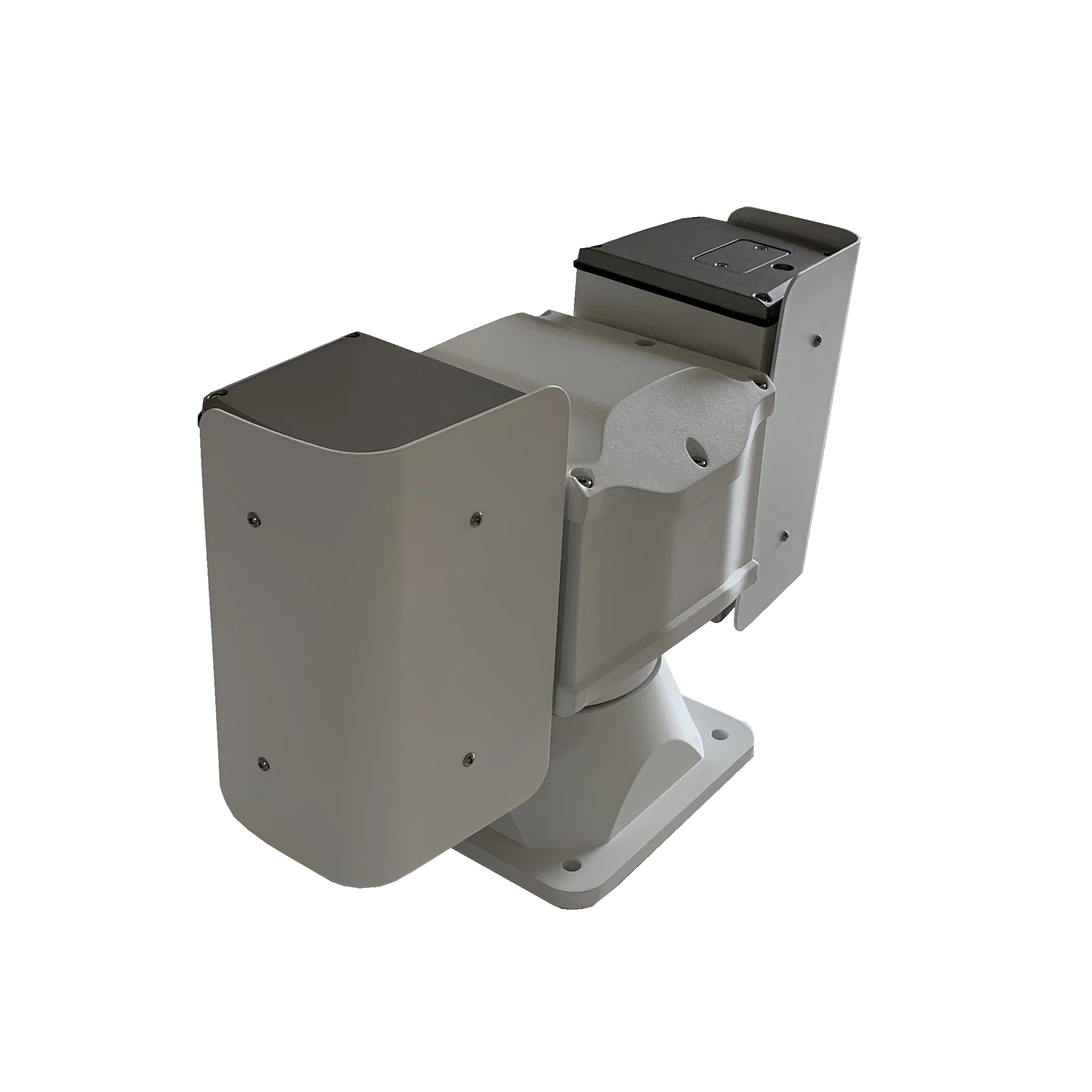

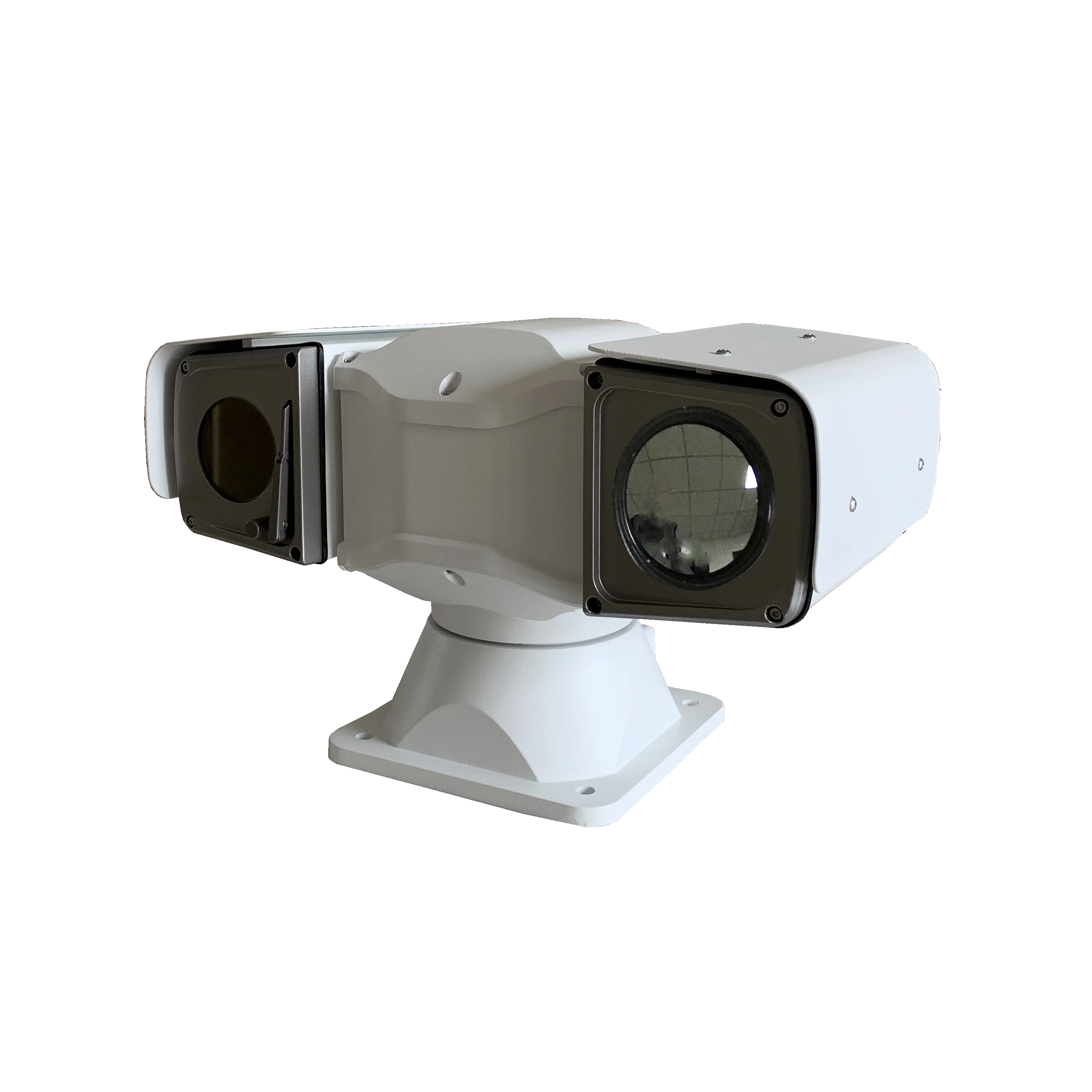

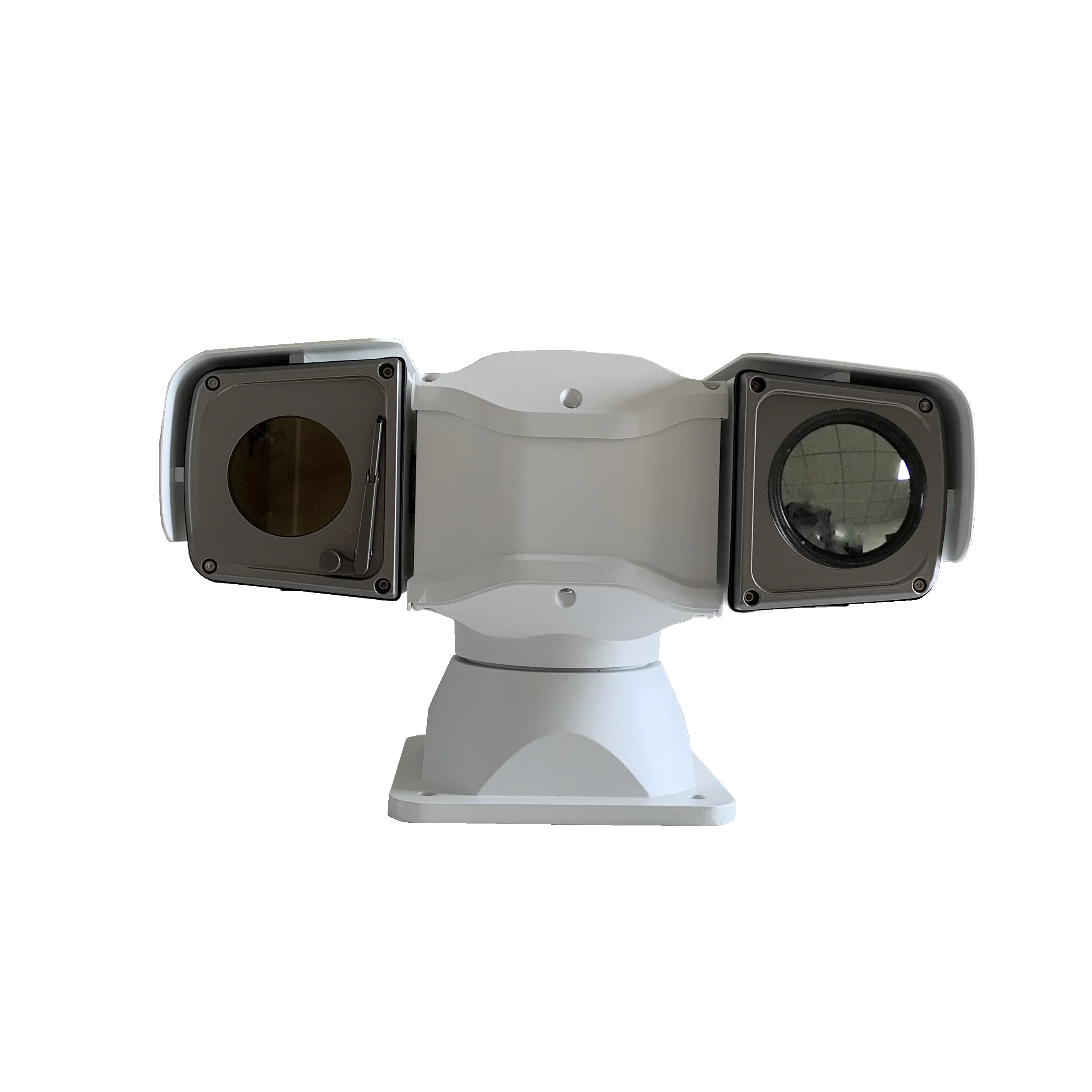

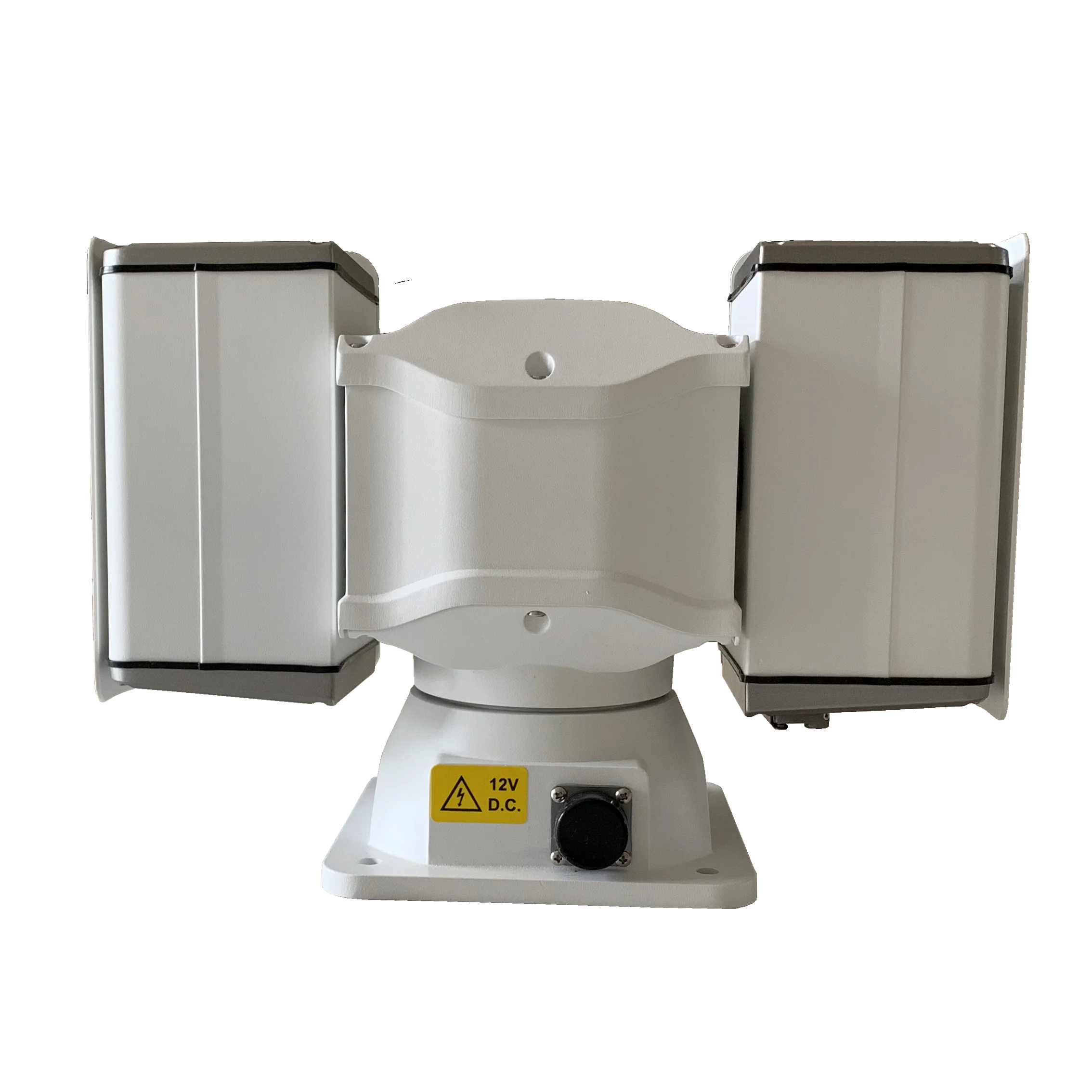

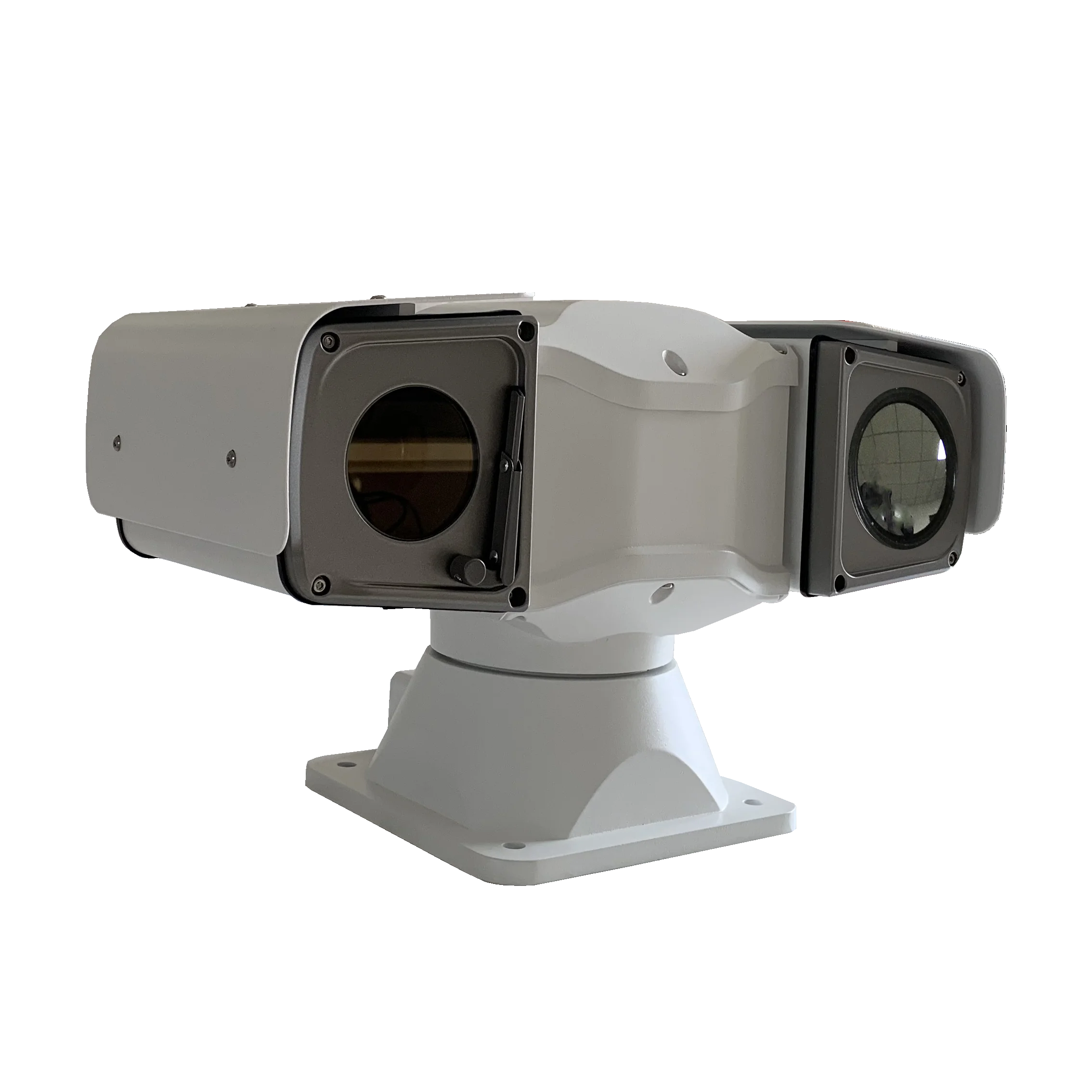

50mm Dual sensor dome ptz military thermal camera
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (62276424327):
Product Overview
Description
Product Description
The camera integrated infrared thermal imaging, visible light camera and pan/tilt control system, realizes day night 7/24 continuous video surveillance. Also, by adopting thermal imaging technology, the camera is not limited by light source and has clear imaging both day and night.
On the visible camera part, the camera adopts day and night 2.0 mp low illumination camera for detailed observation. Also, the camera is highly intelligence integrated, easy to operate and maintenance.
With these features, the camera is widely used for police/military law enforcement, border, perimeter area monitoring, harbour, airport, oil field, mine camp secuirty etc...
Further more, the camera can be made according to users different needs, such as solar/wind power supply, 4G wireless transfer...
Features
- Uncooled Focal Plane Array detector, Vox, 400x300. Excellent video image, not limited by light source, suitable for all-weather applications
- 2.1 mp, 1/2.8” progressive scan CMOS with a maximum resolution of 1920x1080, 30x optical zoom, support 3D Digital noise reduction, fine image
- Penetrating fog supported, clearer image
- The PTZ is made of a fully high-strength aluminum alloy with a sun shield and a wiper
- Independent defogging and defrosting module, which truly solves the fogging of camera lens caused by temperature difference in outdoor environment
- Professional design, light, firm, anti-vibration, waterproof, can be installed on vehicles
Technical data
Thermal Module | Sensor type | Uncooled Focal Plane Array detector, Vox | |
Resolution | 400x300 | ||
Pixel | 17μm | ||
Wavelength | 8~14μm | ||
NETD | < 40mk(@25°C,f1.0) | ||
Lens | 50mm | ||
IFOV | 0.34mrad | ||
FOV | 7.8°×5.8° | ||
Digital zoom | 8x digital magnification | ||
Pseudo-color | Standard 9 pseudo colors | ||
Image processing | Adaptive dynamic range compression, intelligent image enhancement | ||
Visible Light Camera | Sensor type | 1/2.8" Progressive Scan CMOS | |
Pixel | 2.1Mp | ||
Resolution | 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080) 50HZ:25fps(1280x720) 60HZ:30fps(1280x720) | ||
Lens | 4.3-129mm, 30x optical zoom | ||
F | F1.6-F5.0 | ||
Horizontal FOV | 65.5°-2.11°(Near-Far) | ||
Min illumination | Color:0.02Lux @ (F1.6,AGC ON) Black/white:0.002Lux @ (F1.6,AGC ON) | ||
WDR | Support | ||
Day/night switch | Auto/Color/Black&white | ||
Focus | Auto/Manual/Semi-auto | ||
Image adjustment | Brightness, contrast, sharpness, saturation | ||
Backlight compensation | Support | ||
Anti-Shake DSP | Support | ||
Fog penetrating | Support | ||
PTZ | Horizontal control | 0°~60°/s | |
Vertical control | 0°~40°/s | ||
Angle | Horizontal: 360°, Vertical: -90°~90° | ||
Preset precision | ±0.1° | ||
Preset | 256 presets, 8 cruise lines | ||
RS485 | Support | ||
Wiper | Support | ||
Network | Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS | |
Video encode | H.264/H.265 | ||
General | Communication interface | 1×10Base-T/100Base-TX ,1x RS-485 | |
Power supply | DC12V(DC 10.8~18V wide range power supply) | ||
Relative humidity | <90% | ||
Protection grade | IP66 | ||
Working Temperature | -35℃ - 55℃ | ||
Power consumption | <60W | ||
Anti-impact | ≥4G | ||
Weight | 7Kg | ||
Dimension | 398x243.5x211.3mm | ||
Working Distance | Day camera vision | 1000m see human gestures clearly | |
Detection | 1400m | 4000m | |
Recognition | 350m | 1000m | |
Identification | 170m | 500m | |
Note: Human size: 1.8m×0.5m; Car size 2.3m×2.3m | |||

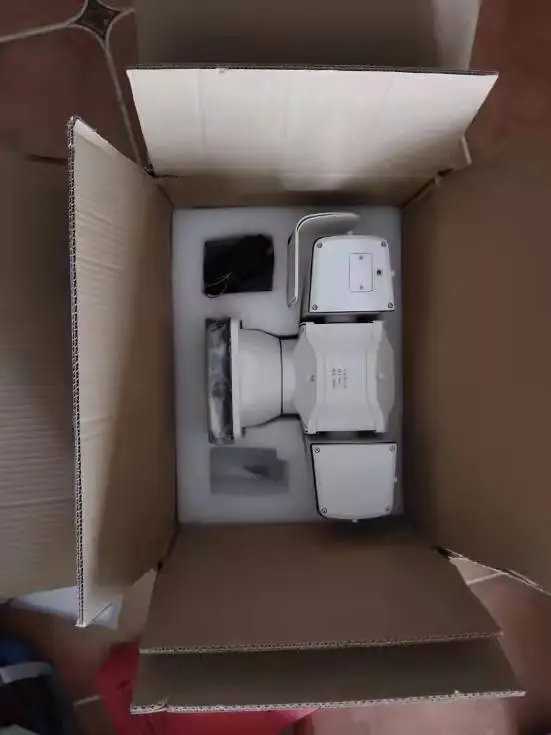

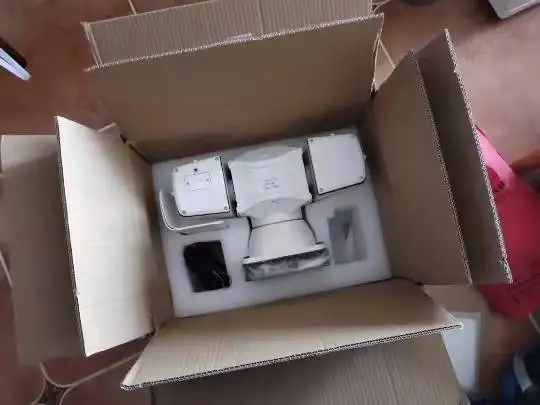

Packaging & Shipping
