cnc router 1325 3D cnc engraving machine for wood acrylic aluminum

Product Overview

Description

Introduction of cnc router 1325 3D cnc engraving machine for wood acrylic aluminum

Woodworking engraving machine is one of the most widely used engraving machine models for woodworking enterprises.

Applications: Solid wood doors, MDF, hard plastic, antique furniture, solid wood art murals, three-dimensional curved surface of musical instruments. Shape cutting, etc.

For example :

Stair railing, floor heating module, advertising patrol, coffin embossing, acrylic engraving, blister door slot, aluminum plate engraving, electric wood engraving, luminous word engraving, handicraft engraving, background wall soft bag, sheet embossing,etc.



We also provide stone engraving machines, jade carving machines, panel furniture cutting machines, etc.

Parameter of 3d cnc router Engraving machine made in china



Product Model	1325
X, Y, Z machining dimensions	1300*2500*200mm
External dimensions	length 3100mm*Width 1850mm * height 1600mm
control system	Weihong control system
Number of sculpted spindle	1 post
Fuselage structure	Overall steel structure welding of bed body
Maximum carving speed	8800mm/min
Repeated positioning accuracy	0.0254mm
Transmission mode	High precision grinding of teeth
XYZ rail	20 Large rail rails
Tool diameter	3.175/4/6/8/12.7mm
Engraving Directive	G code
Applicable software	Wentai sculpture, fine sculpture, TYP3, Artcam, JDpoint, MasterCAM, Pro-E, UG, etc..
Software operating environment	Desktop, motherboard with PCI slot
Operating voltage	220V 50HZ
Spindle power	Professional carpentry 3KW Lengjiesite brand spindle motor
Spindle speed	0-24000rpm
Drive system	860H + 450B bidirectional hybrid moto

Feature of 3d cnc router Engraving machine made in china

1. The gantry type moves, the work surface is fixed, and the material on the work surface can be arbitrarily processed.

2. The table top adopts vacuum adsorption table top. The material is electric wood board, which is resistant to high temperature and corrosion.

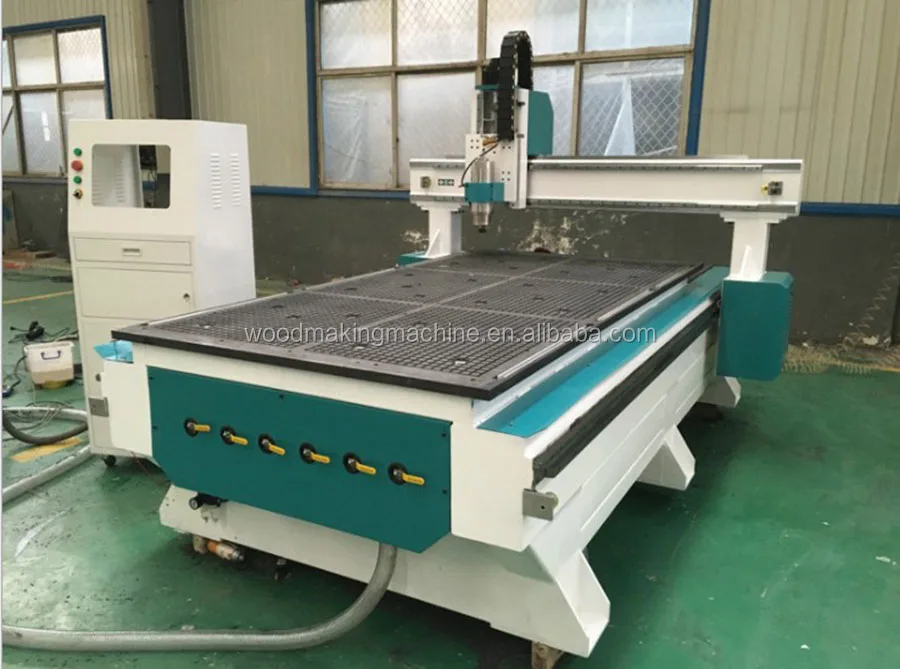

3. It can strongly adsorb non-metallic materials of different areas, and the six-zone vacuum adsorption table. It can effectively adsorb materials of different sizes.

4. Standard 3.2kw air-cooled power electric spindle, original high-precision bearing, greatly extending the service life.

5. The square linear guide adopts the high precision and high speed of the ball screw. The Y axis adopts the rack double drive, which has high speed, high efficiency and large bearing capacity, and can be used for heavy cutting.

6. High-power dust removal device, clean, longer machine

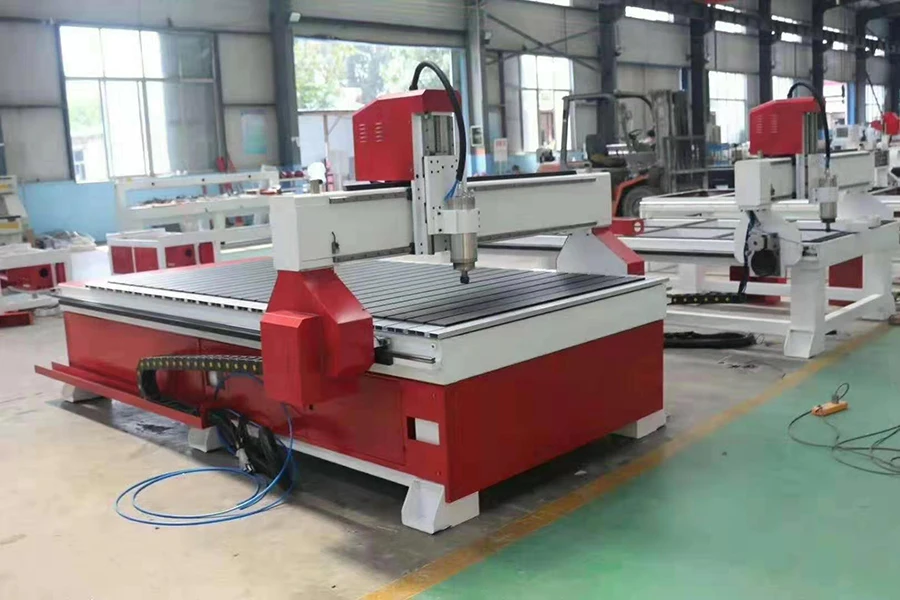

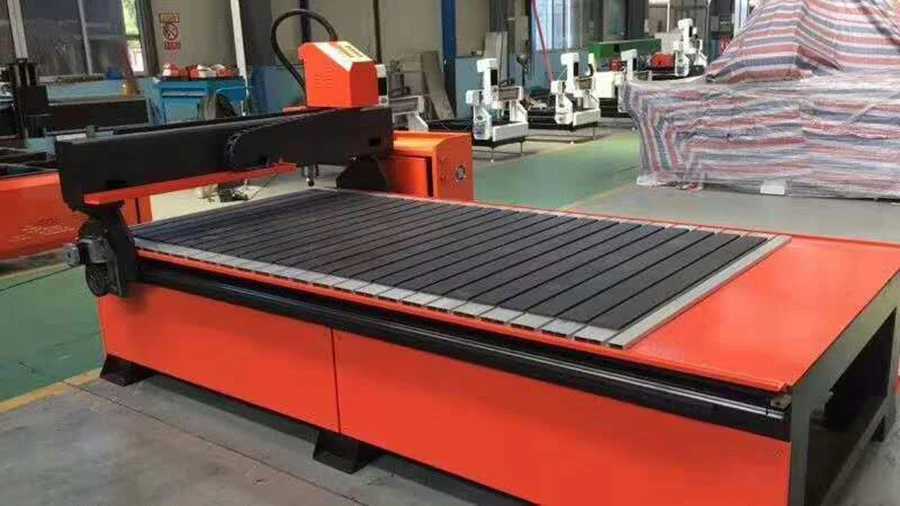

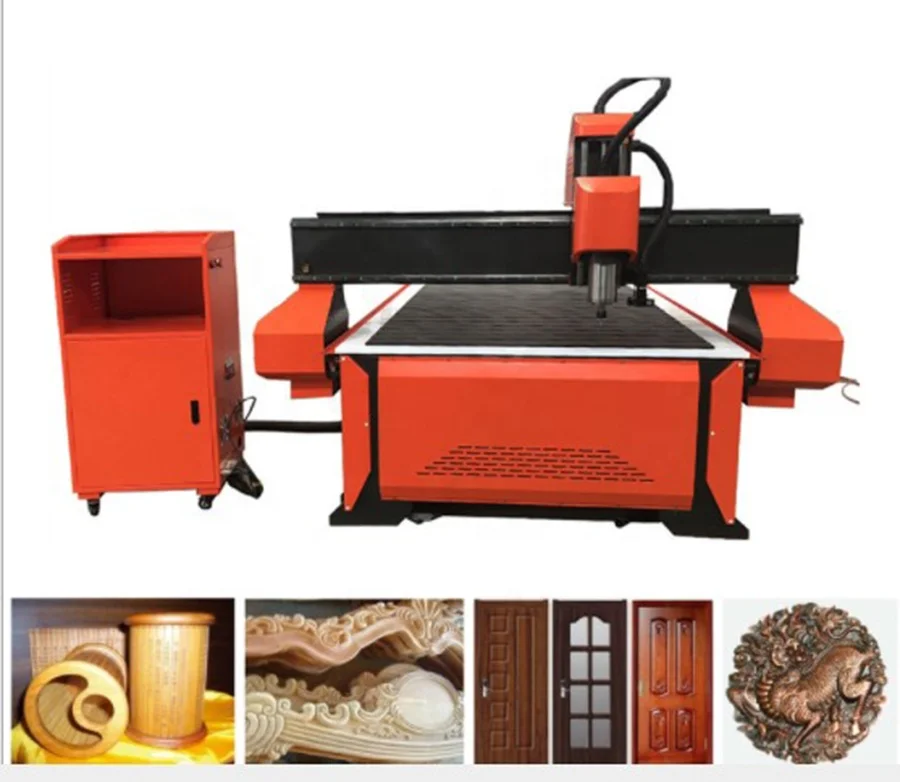

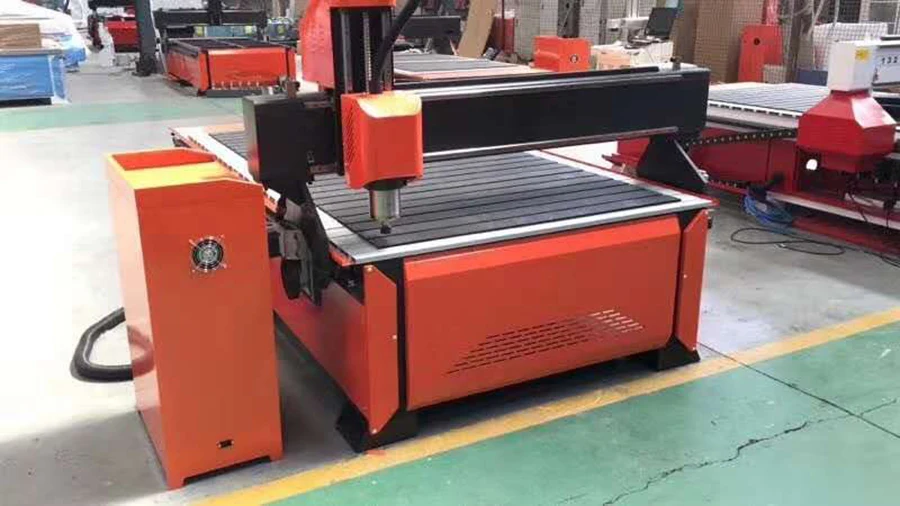

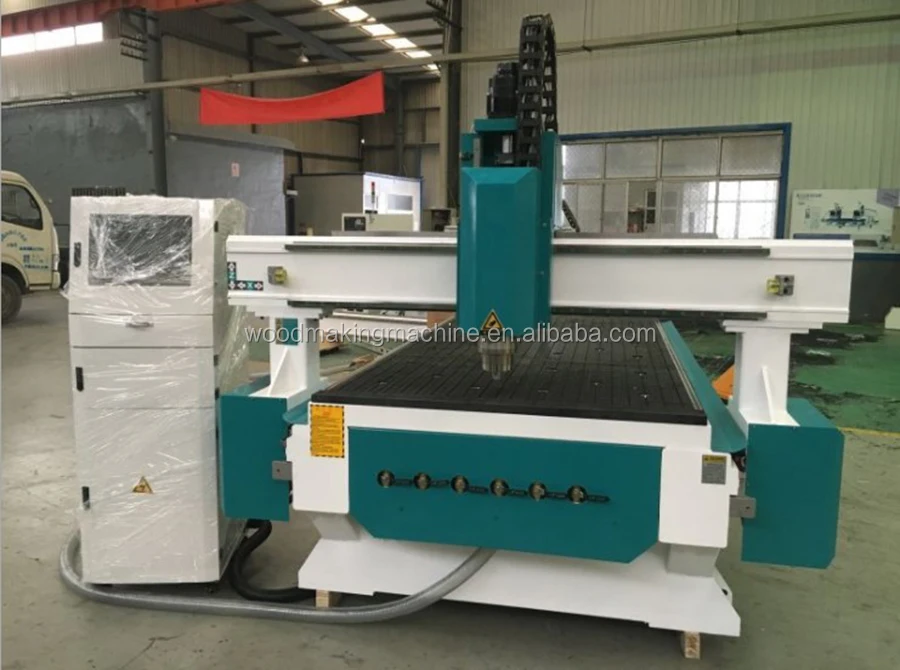

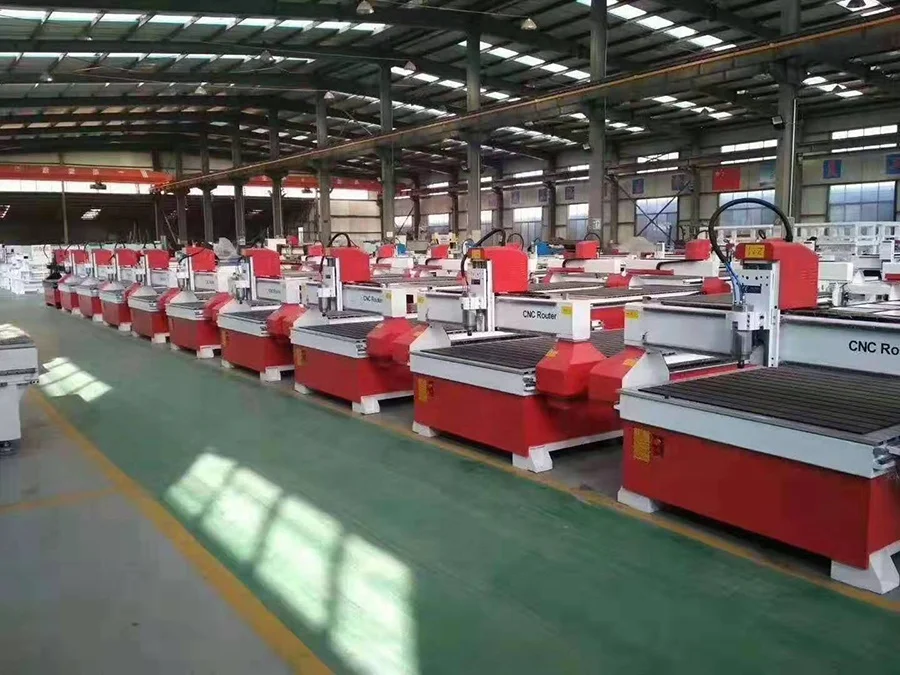

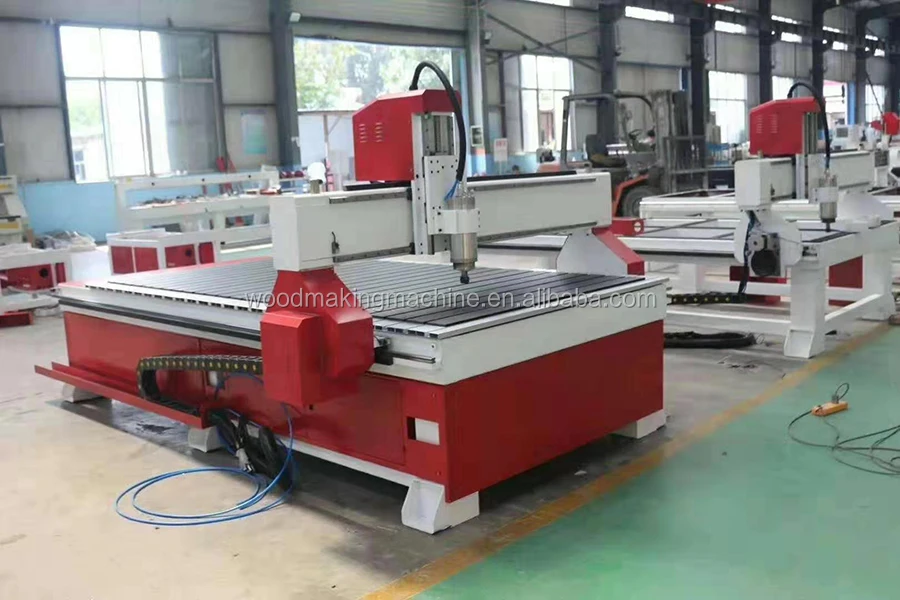

Photo of 3d cnc router Engraving machine made in china

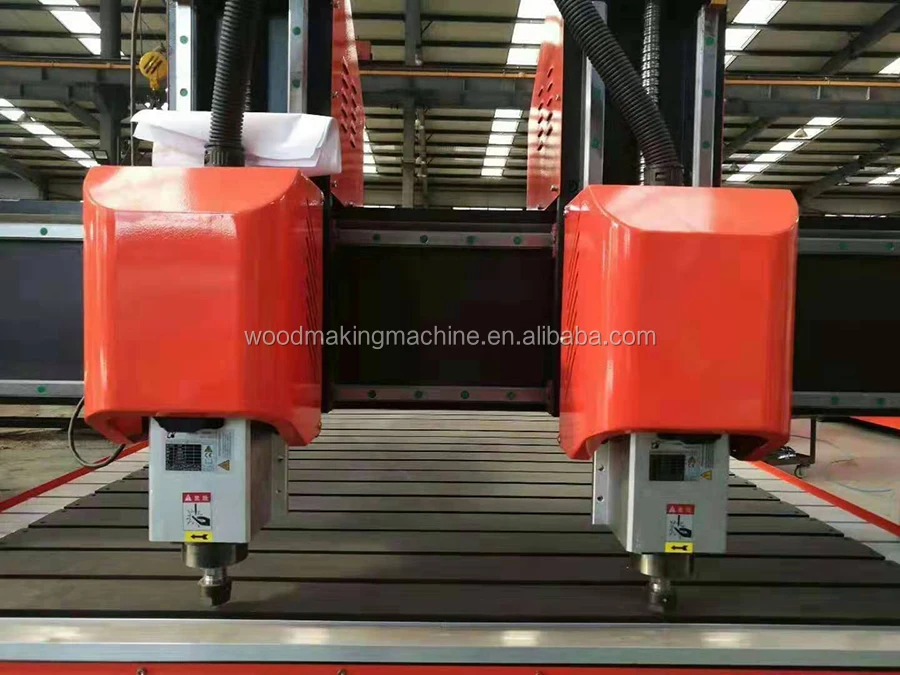

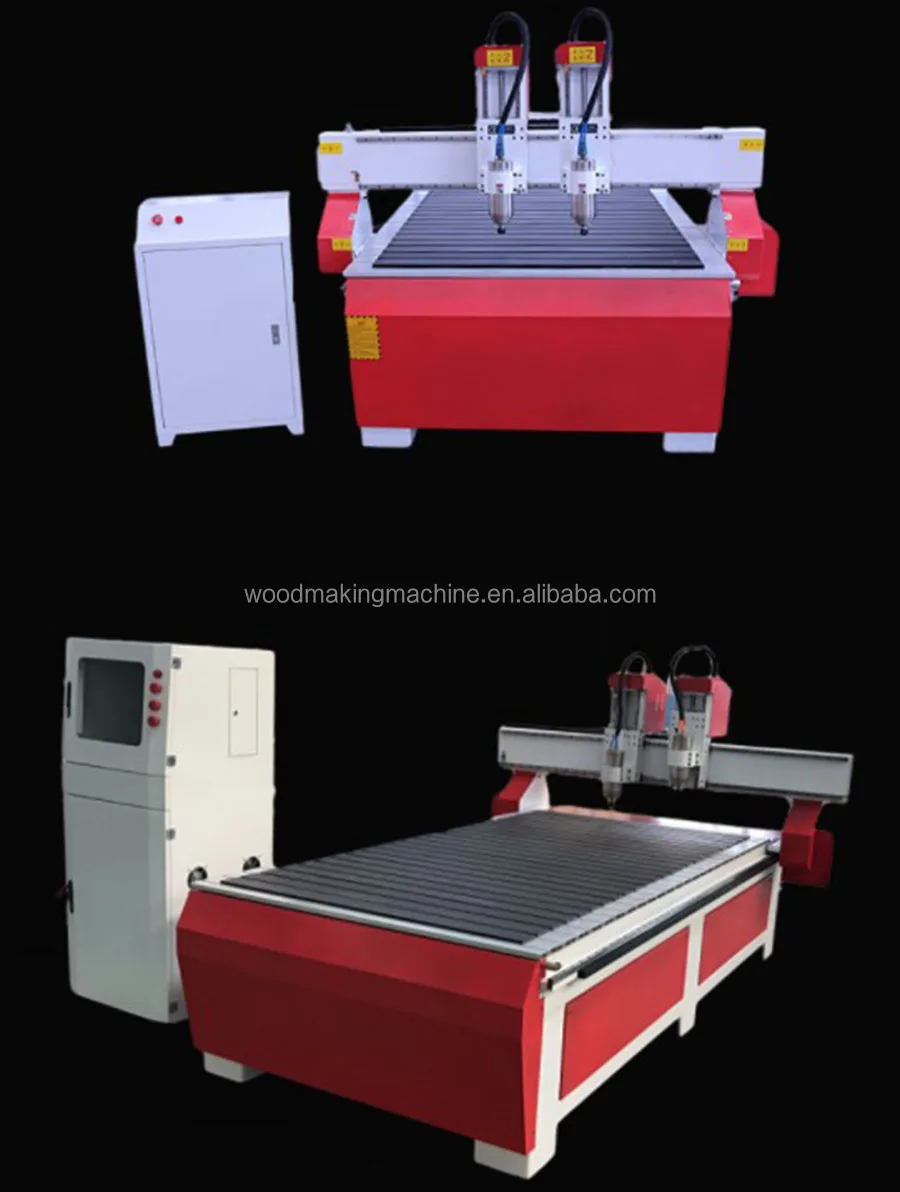

TWO culpted spindle, double working efficiency
