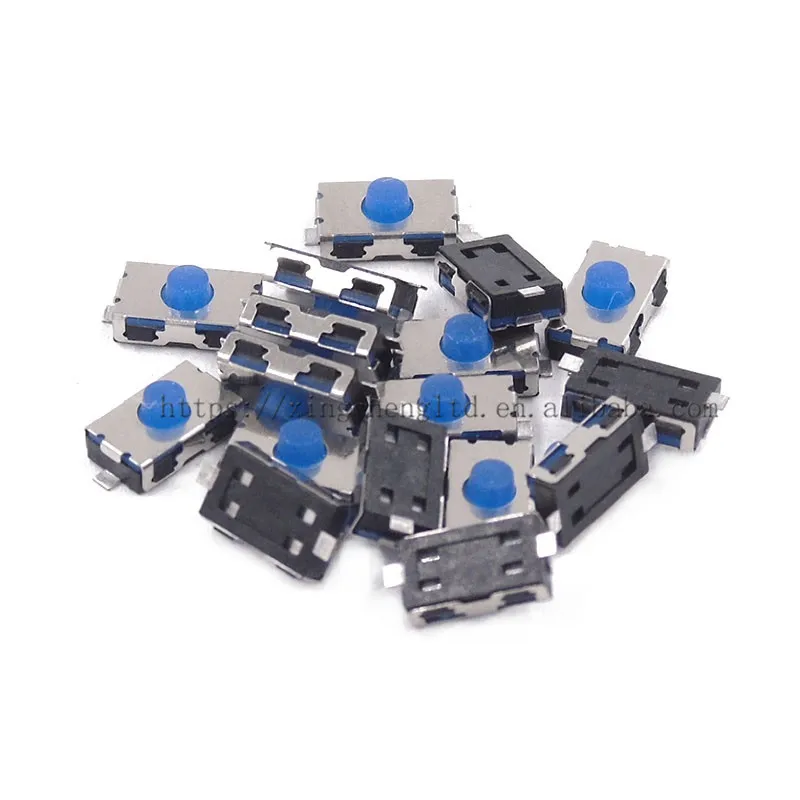

Normally close switch 3*6*2.5mm Blue SMD Tact Switch Blue 3x6x2.5mm Micro Switch

Share on (62276529800):


Price:$0.17 - $0.20

Quantity:


Product Overview

Description


Product Description

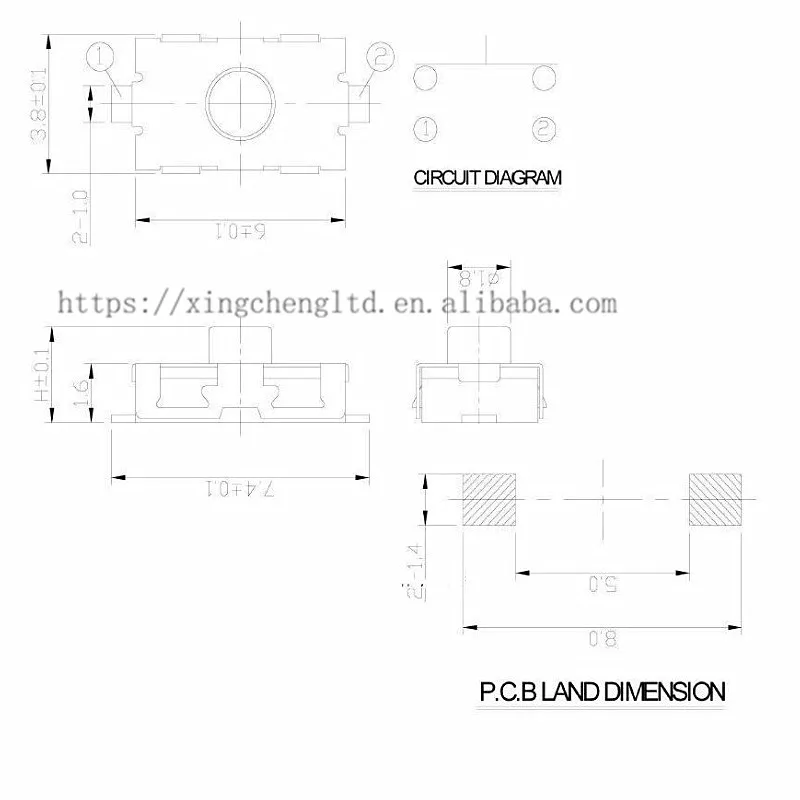

Product Size3x6x2.5mm
Contact statusNormally closed
Press260±50gf
Stroke0.5±0.2mm
Dielectric strength100V 50Hz 1Min
RatingDC 12V 50mA
Contact Resistance100mΩ Max
General Tolerance±0.2
MaterialInsulation flame retardant material
ShellMetal
FeaturesHigh key sensitivity and strong shock resistance
LifeAbout 100,000 Times


Manufacturing Specifcation Would Be Accordance With WT0158
