wireless data transmitter and receiver rtl8822cs ble5.0 module
- Category: >>>
- Supplier: Shenzhen Ofeixin Technology Limited
Share on (62276589613):
Product Overview
Description
Product Description
Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors' 802.11a/b/g/n/ac 2x2Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve upto a speed of 867Mbps with dual stream in 802.11nto connect thewireless LAN. The integrated module provides SDIO interface for WiFi, UART / PCM interface for Bluetooth.
This compact module is a total solution for a combination of WiFi and Bluetooth V4.2 technologies.The module is specifically developed for all portable devices.
Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
Dual-stream spatial multiplexing upto 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance datarate.
Supports WLAN-Bluetooth coexistence andISM-LTEcoexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BThost digital interface:
- HCI UART(up to 4 Mbps)
- PCM for au
Dual-stream spatial multiplexing upto 867 Mbps data rate.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance datarate.
Supports WLAN-Bluetooth coexistence andISM-LTEcoexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BThost digital interface:
- HCI UART(up to 4 Mbps)
- PCM for au
Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products
Detailed Parameters

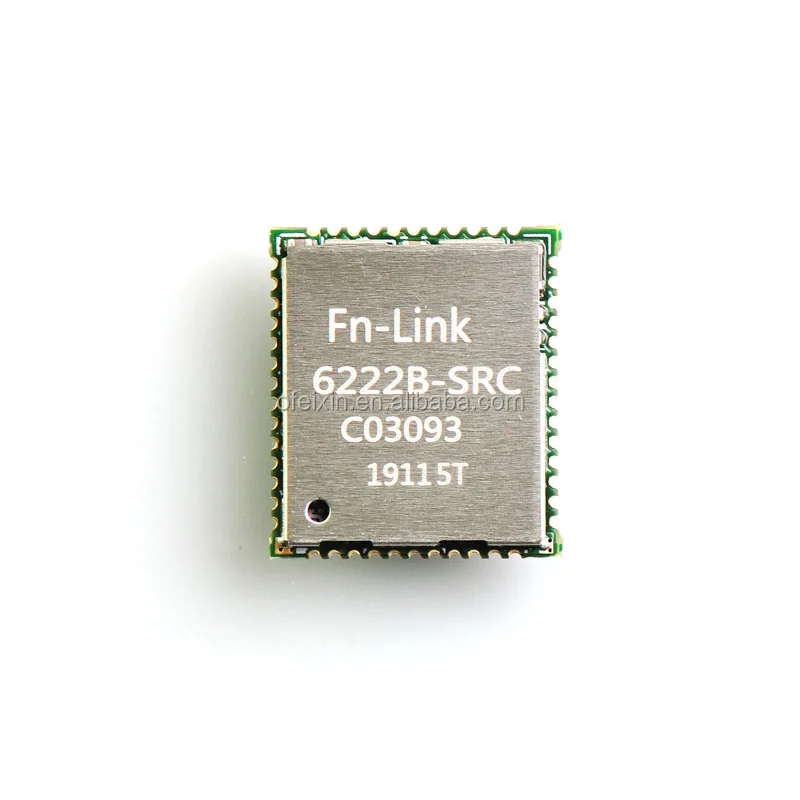

Model No | 6222B-SRC-03 | Main Chipset | RTL8822CS |
WIFI/BT Interface | SDIO/Uart/PCM | WIFI Standards | IEEE802.11 a/b/g/n/ac+ble5.0 |
Date Rates | 867Mbps | Certification | RoHS,REACH |
RF Antenna | External Antenna | OS Supported | Android /Linux/ Windows |
Operating Frequency | 2.4-5.8GHz | Operating Voltage | 3.3V |
Dimensions | L x W : 15x 13 mm | RF Chains | 2T2R |
Operating Temperature | 0°C to 70°C | Storage Temperature | -40°C to 125°C |

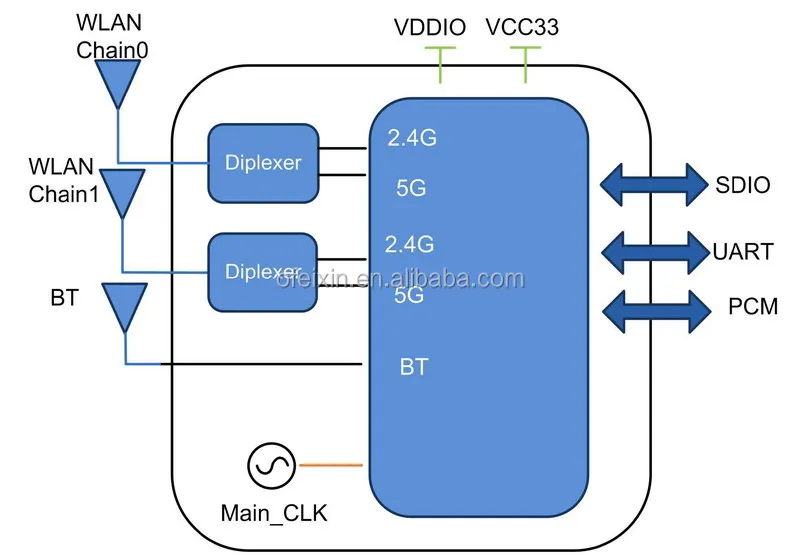

Reference Design
Note
Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
