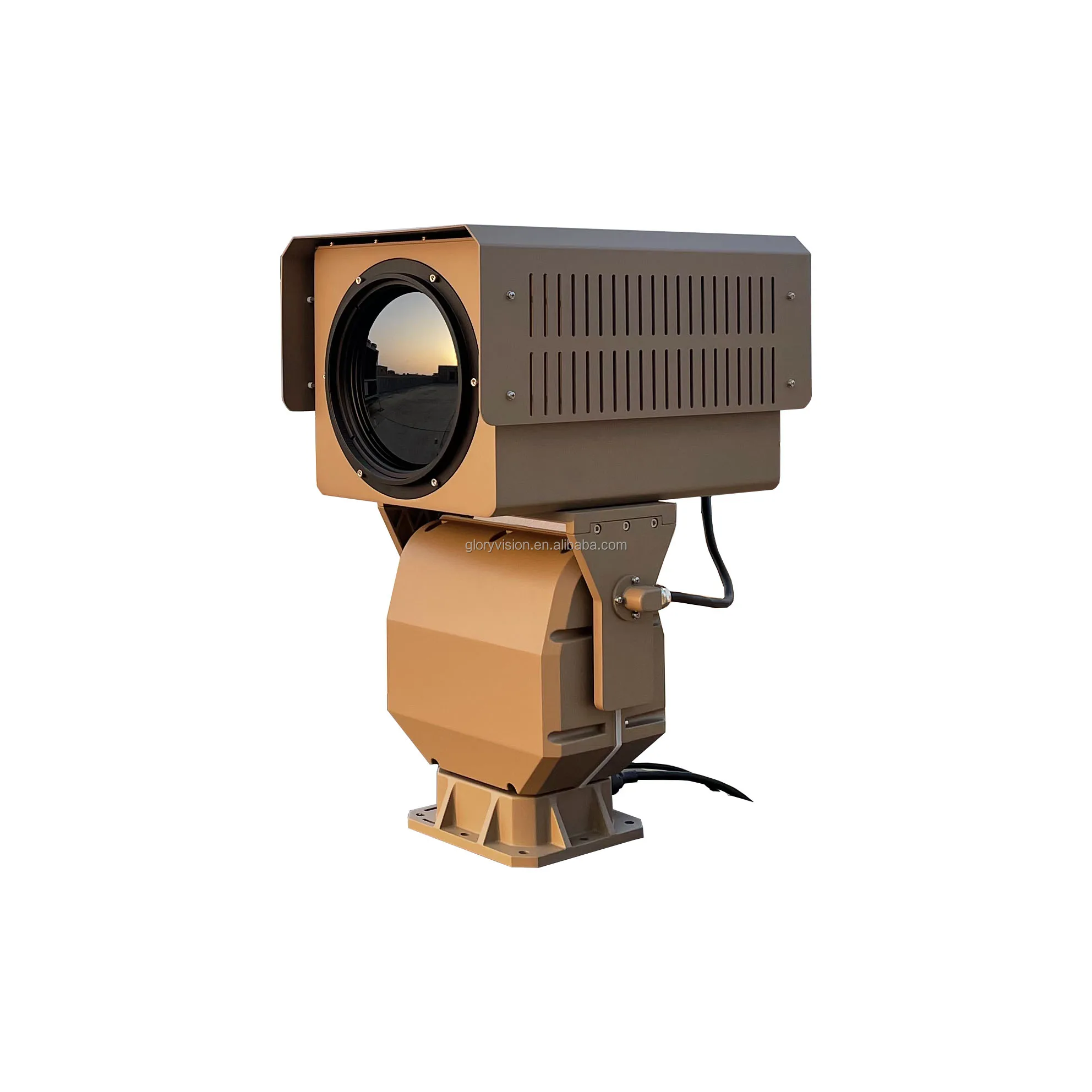

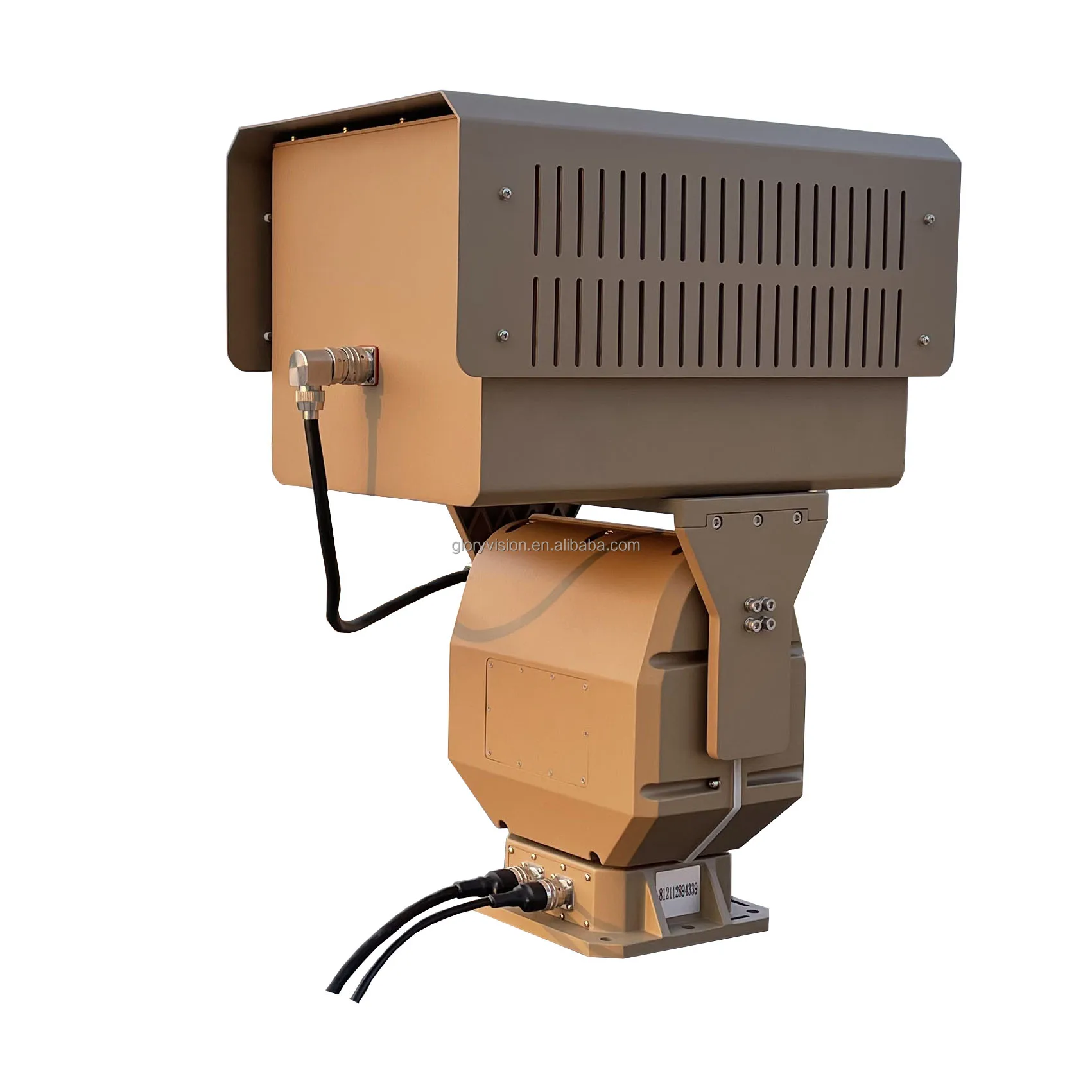

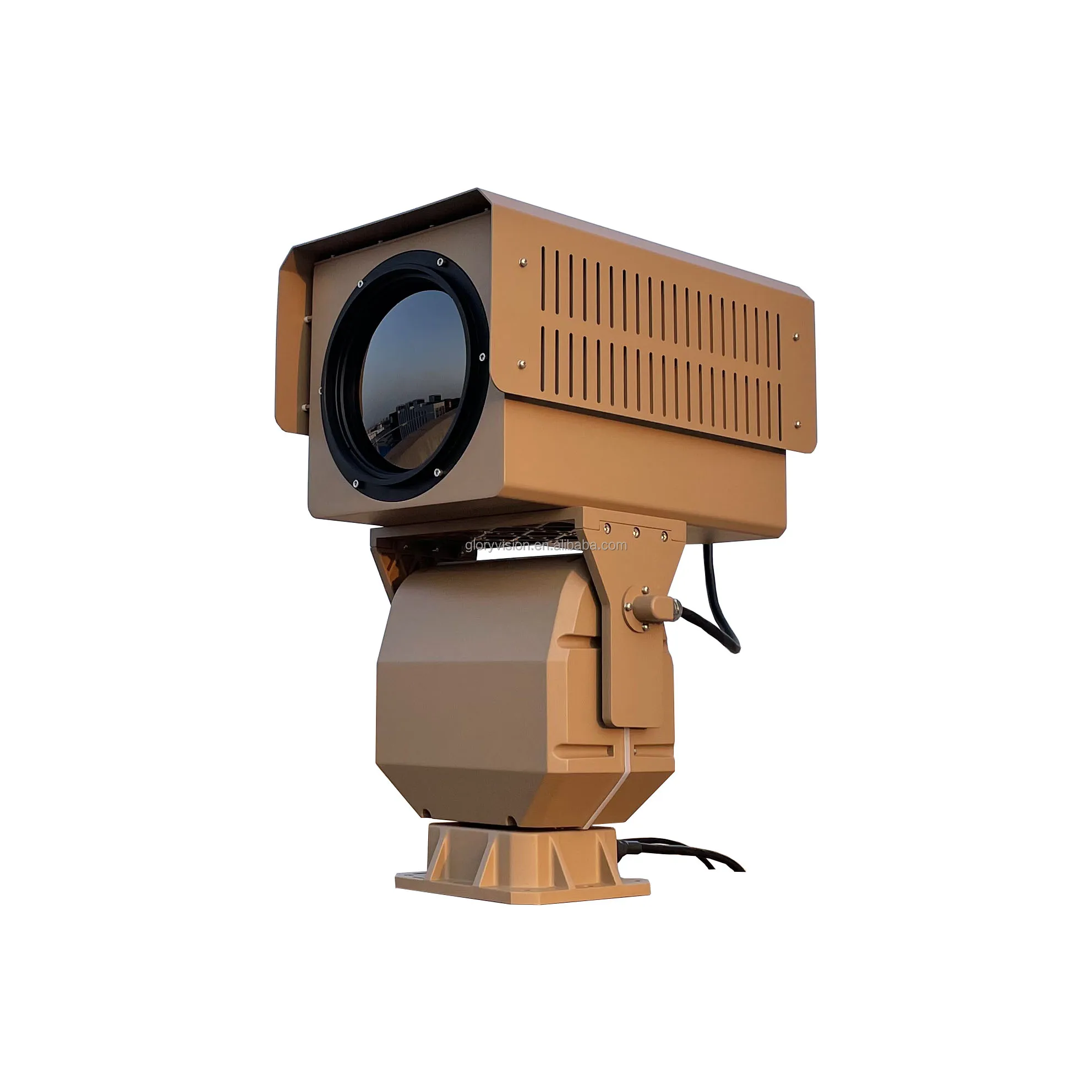

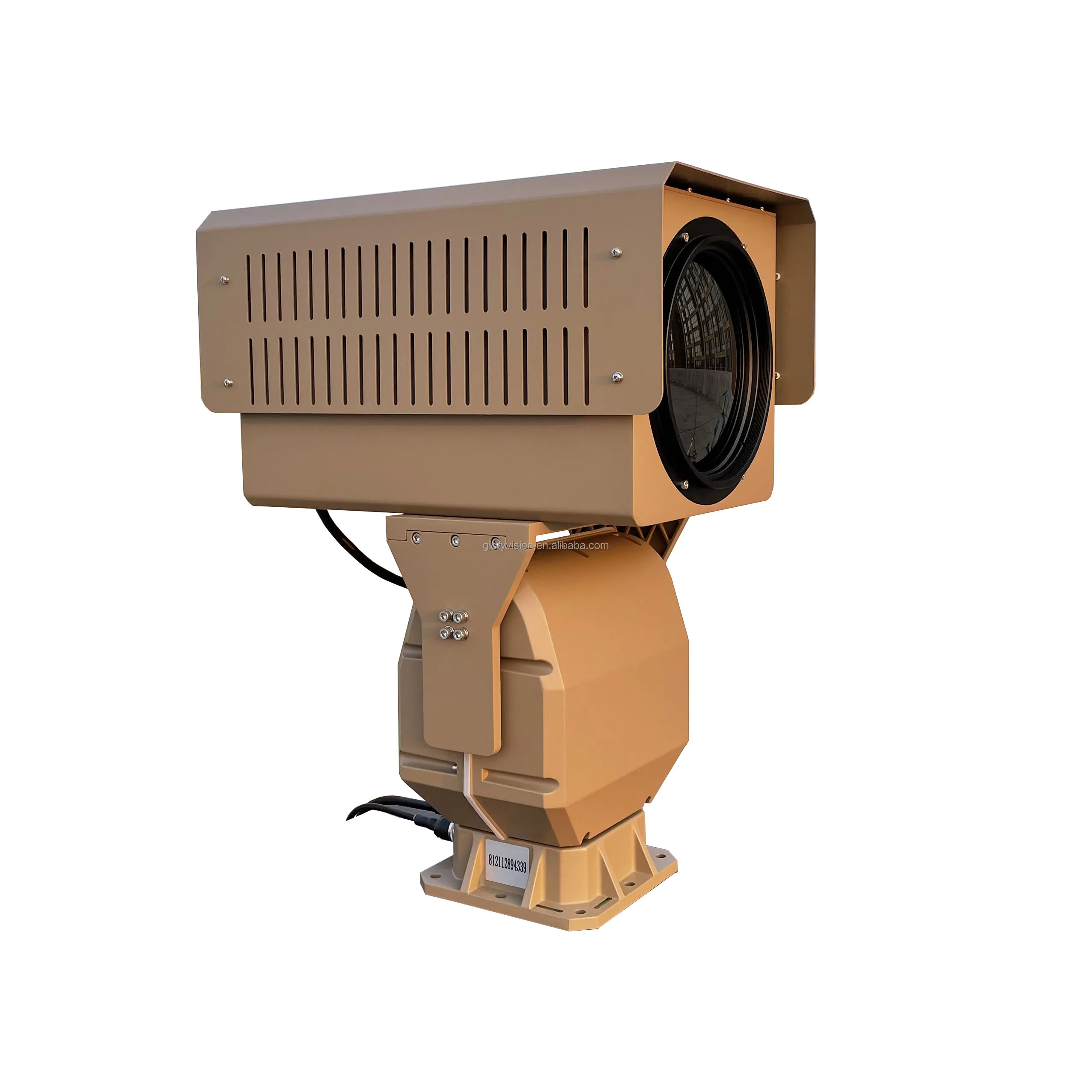

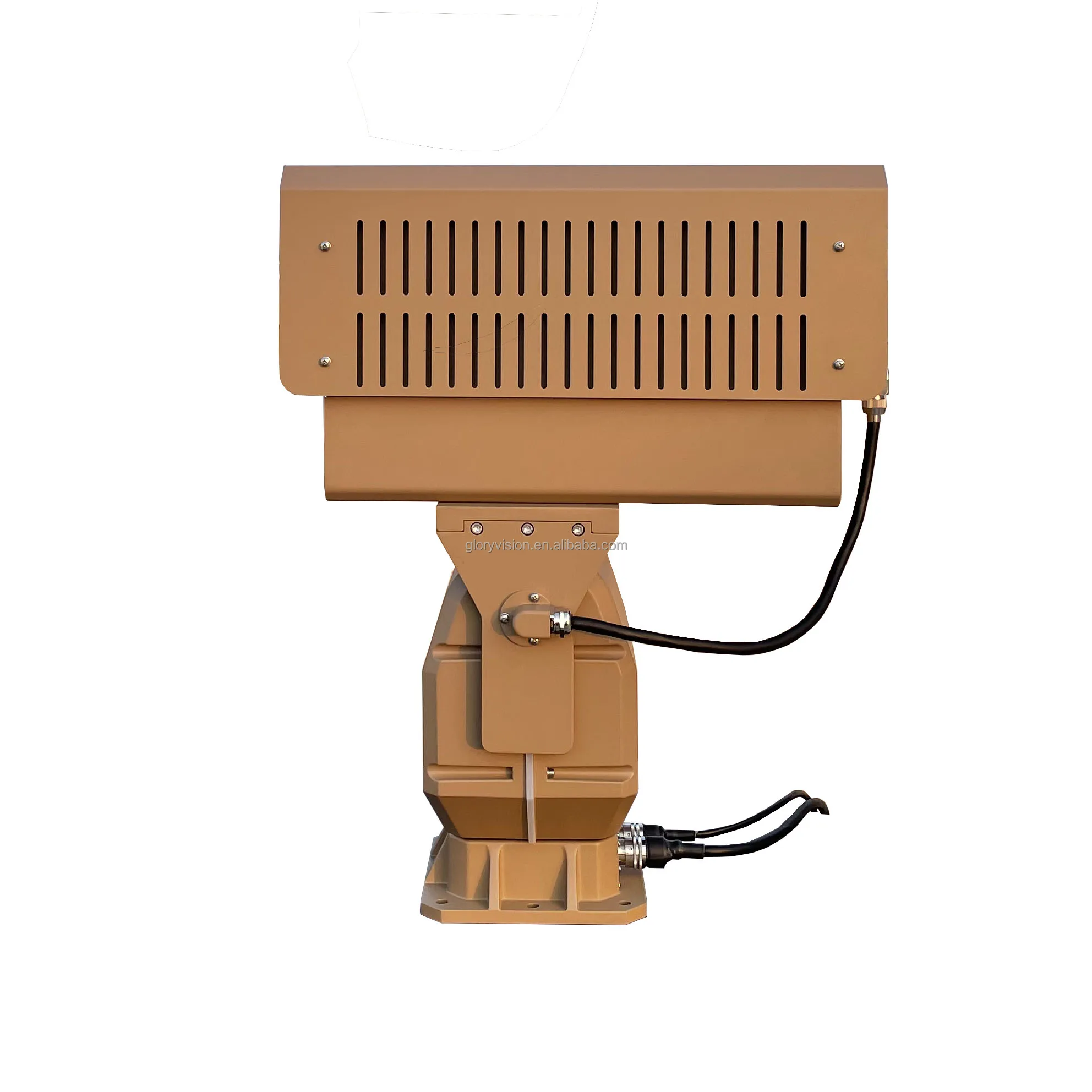

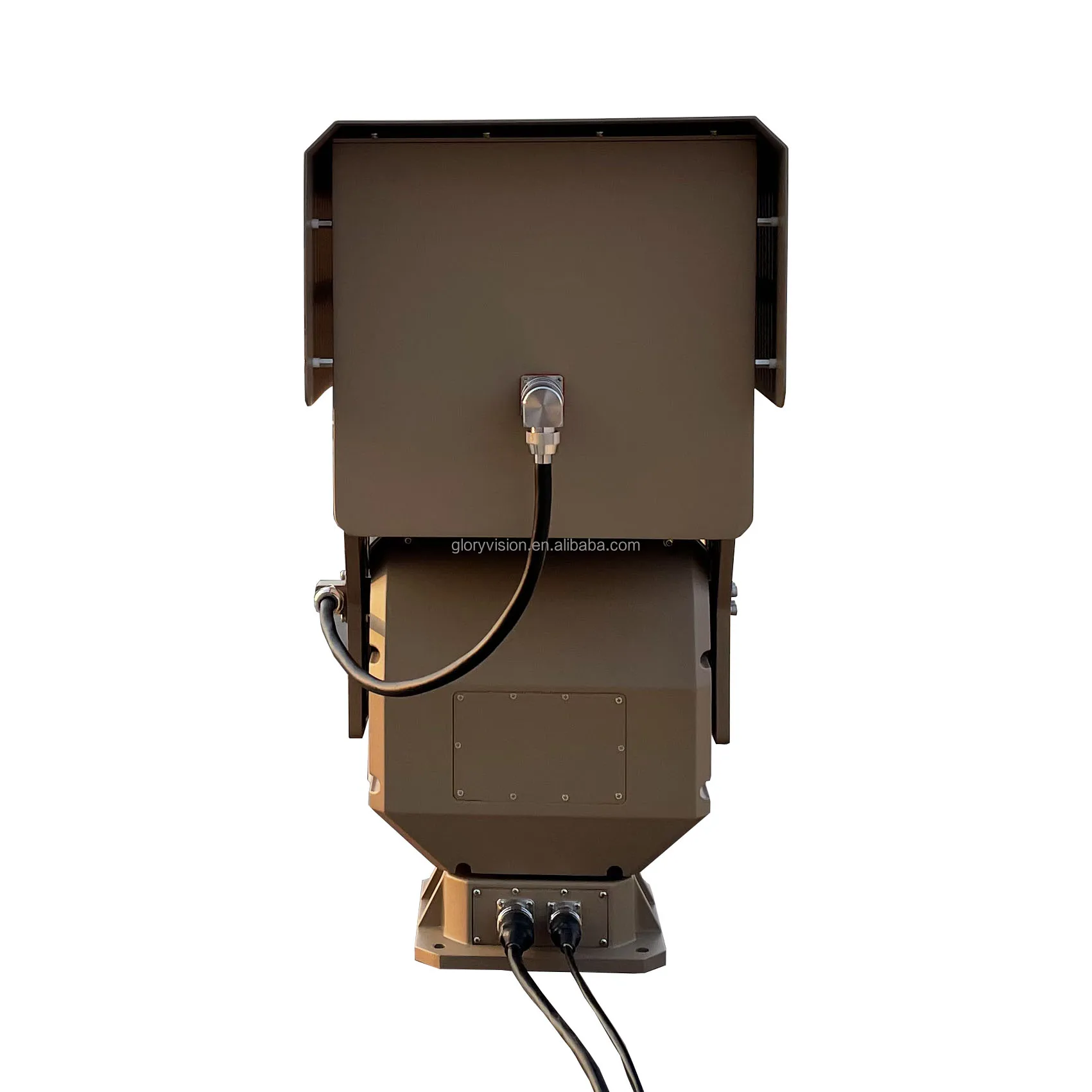

300mm LWIR Ultra Long Rang Range Uncooled Thermal Camera
- Category: >>>
- Supplier: Shandong Gloryvision Intelligence Equipment Co. Ltd.
Share on (62276803697):
Product Overview
Description
Overview
Infrared thermal imaging technology has been applied in both military and civilian applications. It originated from military use and gradually turned into civilian use. It is generally called a thermal imager in civilian use. It is mainly used in research and development or industrial inspection and equipment maintenance. It is also widely used in fire prevention, night vision and security. In general, a thermal imager converts invisible infrared energy emitted by an object into a visible thermal image. The different colors above the thermal image represent the different temperatures of the object being measured.
Product Description
Name | HD thermal imaging PTZ camera |
Model | HSH-YLWIR300H |
Working range | 8km human detection; 20km vehicle detection |
HD Thermal imaging camera
Sensor Type：Uncooled FPA Vox Detector
Resolution：1280x1024
Resolution：1280x1024
Pixel size: 12μm
Spectrum range: 8~14μm
NETD: < 60mk
Focal length: 25~300mm
FOV: 2.9°×2.3°~34.2°×27.6°
F Value: F1.0~1.2
Lens control: Electrical zoom, Electrical focus
Spectrum range: 8~14μm
NETD: < 60mk
Focal length: 25~300mm
FOV: 2.9°×2.3°~34.2°×27.6°
F Value: F1.0~1.2
Lens control: Electrical zoom, Electrical focus
Name | PTZ |
Horizontal angle | 0°~360° continuously |
Horizontal speed | 0.1°~8°/s |
Vertical angle | -45°~﹢45° |
Vertical speed | 0.1°~12°/s |
Speed varying while zoom | Supported |
Preset | 200 |
Cruise scan | 1 line |
Auto scan | 1 line |
HD Thermal Camera Core and Lens | ||||
Type | Uncooled focal plane detector, VOX | |||
Resolution | 1280x1024 | |||
Pixel size | 12μm | |||
Spectrum range | 8~14μm | |||
NETD | < 60mk | |||

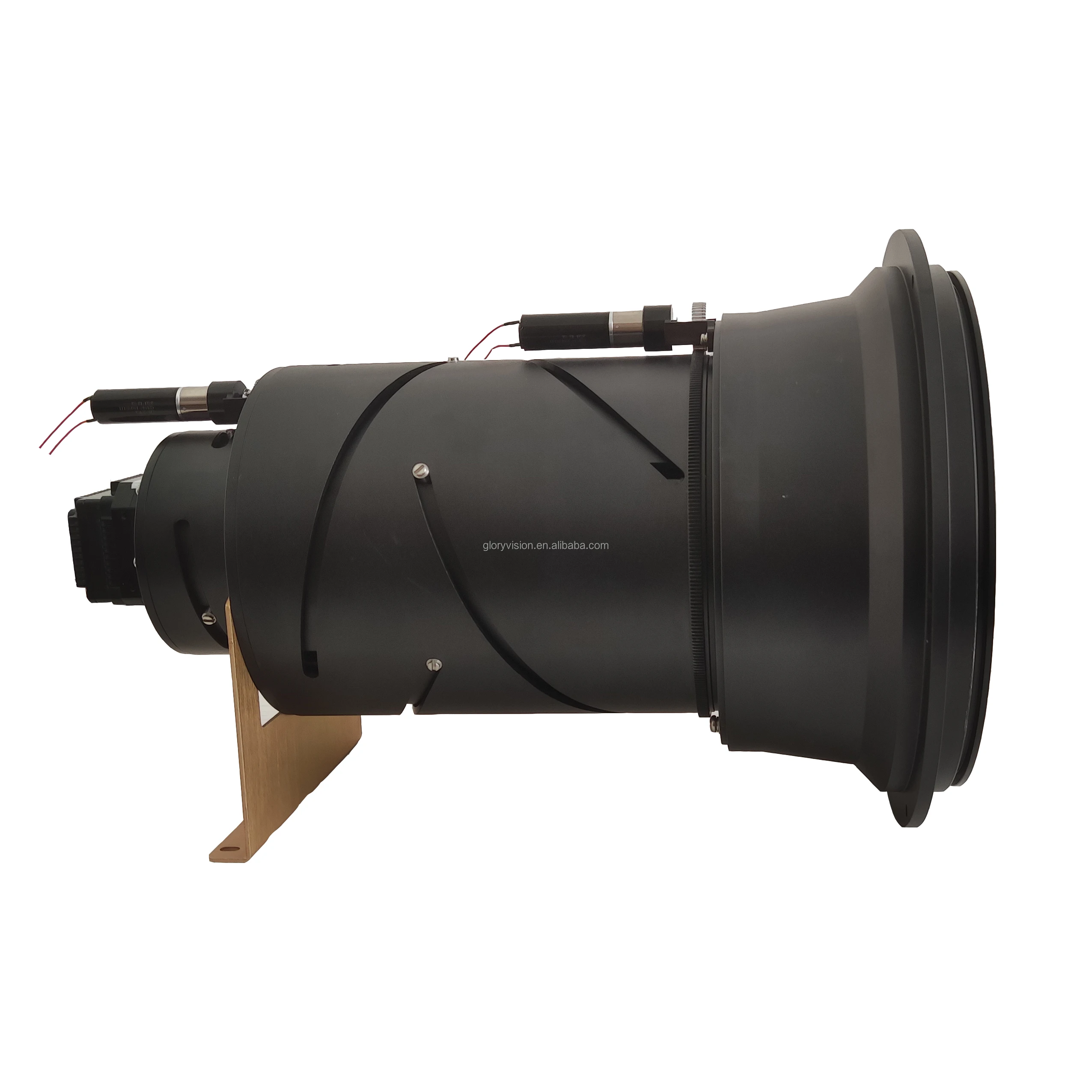

Focal length | 25~300mm | |||
F Value | F1.0-F1.2 | |||
Lens control | Electrical zoom, Electrical focus | |||
Color palette | Black hot/white hot/iron red/rainbow and other pseudo color | |||
Encode | H.264/H.265 | |||
PTZ | ||||
Pan angle | 0°~360° continuously | |||
Panl speed | 0.01°~12°/s | |||
Tilt angle | -45°~ +45° | |||
Tilt speed | 0.01°~9°/s | |||
Speed varying while zoom | Supported | |||
Preset | 200 | |||
Cruise | 8 lines | |||
Auto scan | 8 lines | |||
Image | ||||
Max image size | 1280x1024 | |||
Video format | PAL/NTSC | |||
System integration | ||||
Communication interface | 1 x RJ45 10M / 100M adaptive Ethernet port 1 x RS422/485 | |||
Video output | PAL or NTSC, 1 x BNC interface: 1 x RJ45 10M / 100M adaptive Ethernet port | |||
General | ||||
Working temp & humidity | -40℃-65℃,Humidity < 90% | |||
Protection grade | IP66, TVS 6000V anti-lightning, Anti-surge | |||
Power supply | DC30±10% | |||
Power consumption | ≤100W | |||
Weight | <50Kg(Depending on its specification) | |||
Note: The working distance varies depending on the settings of the camera, environmental conditions, operational experience, monitor or display. The above-mentioned working distance is data when the target temperature difference is 2 ° C, the atmospheric attenuation coefficient is 0.85/km, and the probability is 50%. | ||||
Product packaging
FAQ
How to get the latest price?
You can contact sales online to get latest price; Or you can leave message to us. Our sales will contact you as soon as possible. And the price we provide is normally FOB price.
What is MOQ?
Our minimum order quantity is 1 pc.
What is the lead time?
Please contact sales to confirm if we still have goods in stock. If yes, we will ship goods to you in one week time after we receive your payment. If not, please confirm with sales.
How to ship goods to customer?
Usually we ship goods to customer via express, such as DHL, FedEx, UPS, TNT or airway transportation. You can also ask us to send goods to your forwarder in China. And we will pay domestic freight.
Do you provide customization service?
Yes, we provide OEM/ODM service. Lead time of customized products need to be confirmed with sales. Usually we will ship products after 2 months time after we receive customer's payment.
Our Advantages
Various configurations are optional and customizable
1. Cameras can be configured according to the specific requirements of the project;
2. Different modules can be selected according to the project budget;
3. OEM and ODM are available;
4. New products can also be jointly developed
Modular design, easy maintenance
1. Device firmware can be upgraded remotely, and engineers can remotely solve device program failures
2. Hardware modular assembly, people with basic electrical knowledge can realize the replacement of faulty modules. Greatly saves the time and cost of maintenance.
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
3.In normal use, cleaning and maintenance are simple, and there is almost no additional cost
Multiple Shipping Methods
Express, air, sea, land and other methods are optional. You can choose the best way you prefer.
Third Party Guarantee
Alibaba online credit insurance orders to protect your rights to the greatest extent
After-sale service
Our service
1. We offer 1 years warranty to the devices.
2. Engineers remotely diagnose problems online.
3. Spare modular hardware can be dispatched just in time.
4. Update remotely to solve most firmware problems
5. Modulized design of each part, client can replace modules under instruction.
