3.5mm digital camera cable 3.5 Male to 3RCA Male Audio Video Jack Connectors for DVD Player

Product Overview

Description

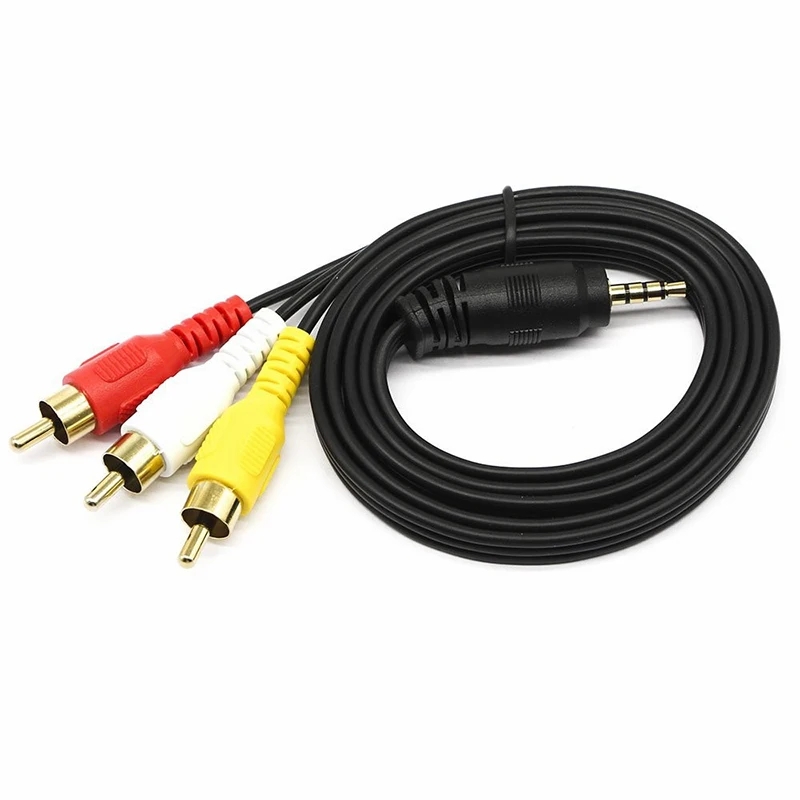

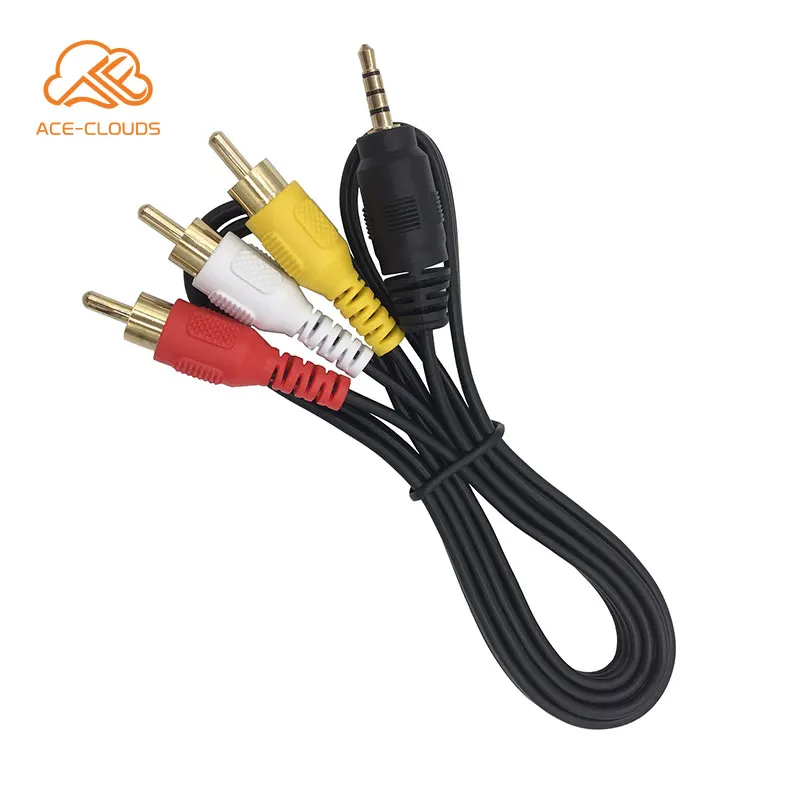

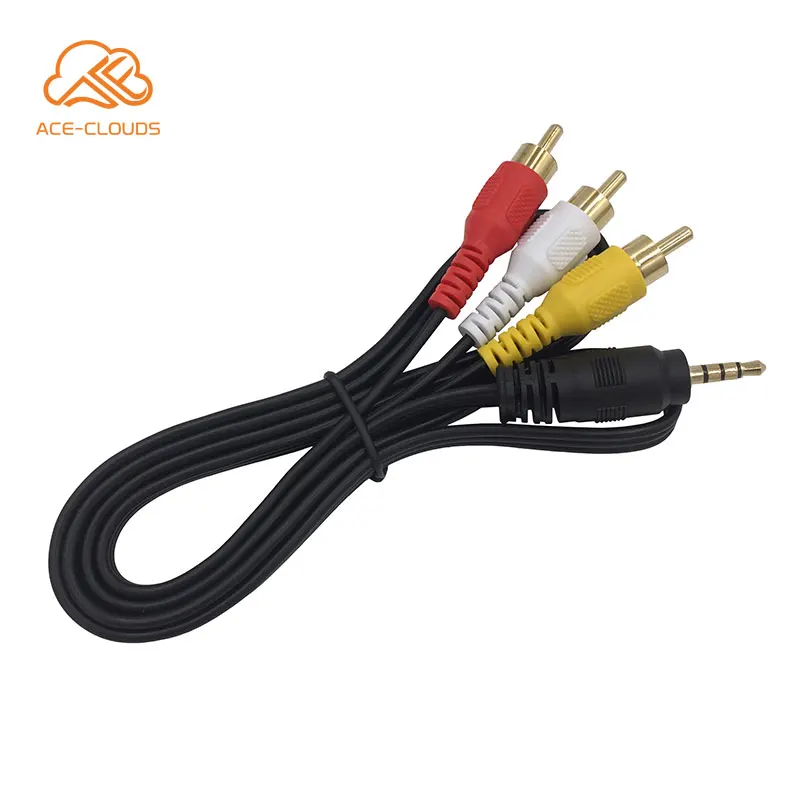

3.5mm 4 Pole straight to 3rca male audio video cable

• Perfect for connecting your personal video player or camcorder to your TV. It will connect to the 3.5mm connection on your camcorder and then break out into 3 RCAs, Red(Right channel); White(Left channel);  and Yellow(Video);


• Easily attaches from your camcorder's mini AV port to your television's composite video port

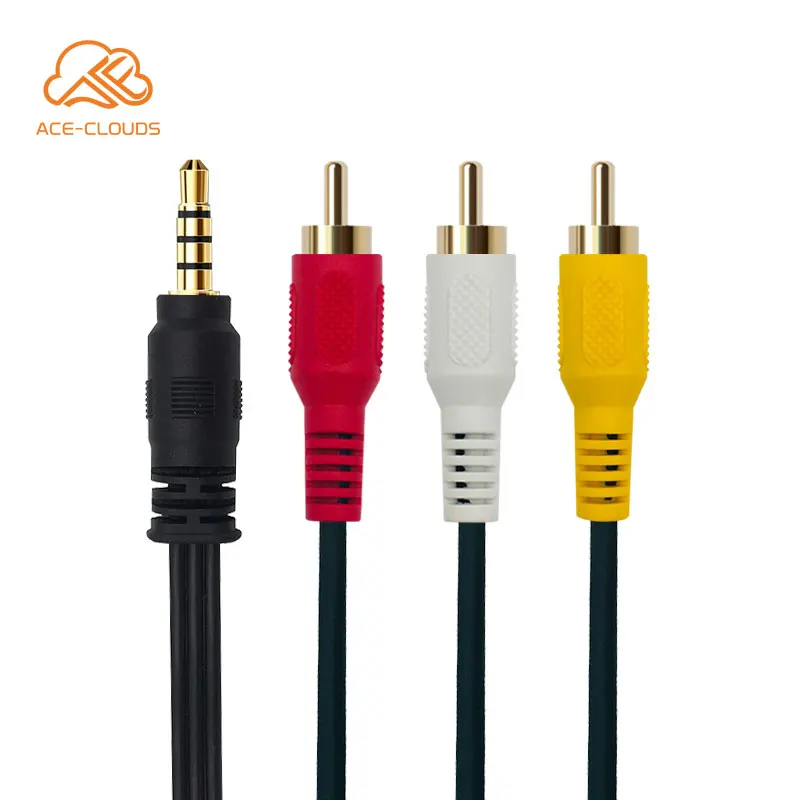

• 3.5mm AV Mini-Plug to Three Color-Coded RCA Plugs


• Suitable for High-Performance Video and Audio Playback.

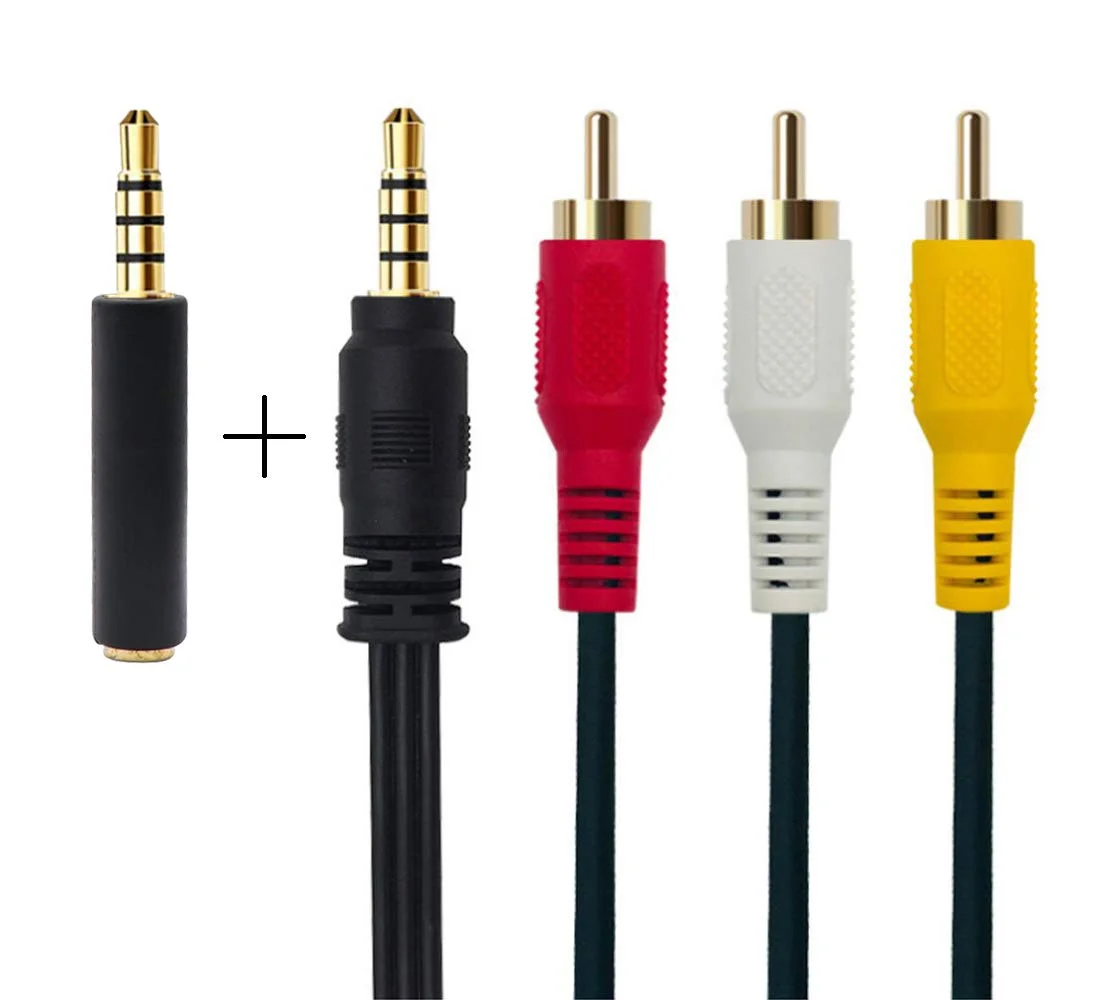

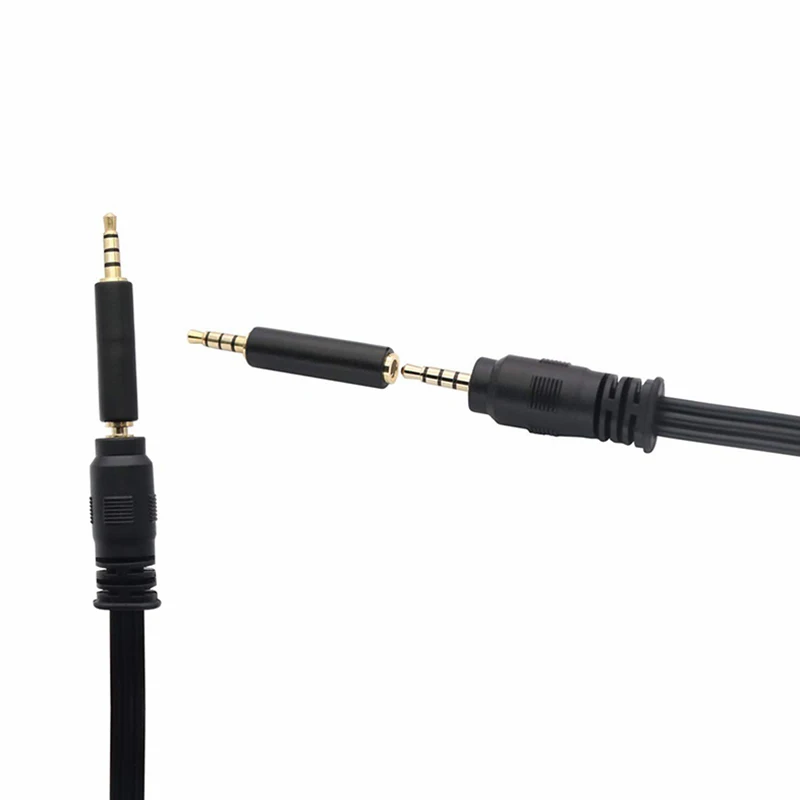

• The CTIA-OMTP adapter has been added to the product. The audio cable 3.5 plug of this product is connected using the OMTP interface. If your device's headphone jack is a CTIA connection, you will need to use the CTIA-OMTP adapter. There will be no noise after using the adapter. If your device's headphone jack is an OMTP connection, you do not need to use the CTIA-OMTP adapter when using an audio cable.



• High-quality corrosion-resistant gold-plated connectors provide superior stereo audio transmission without signal loss and noise.

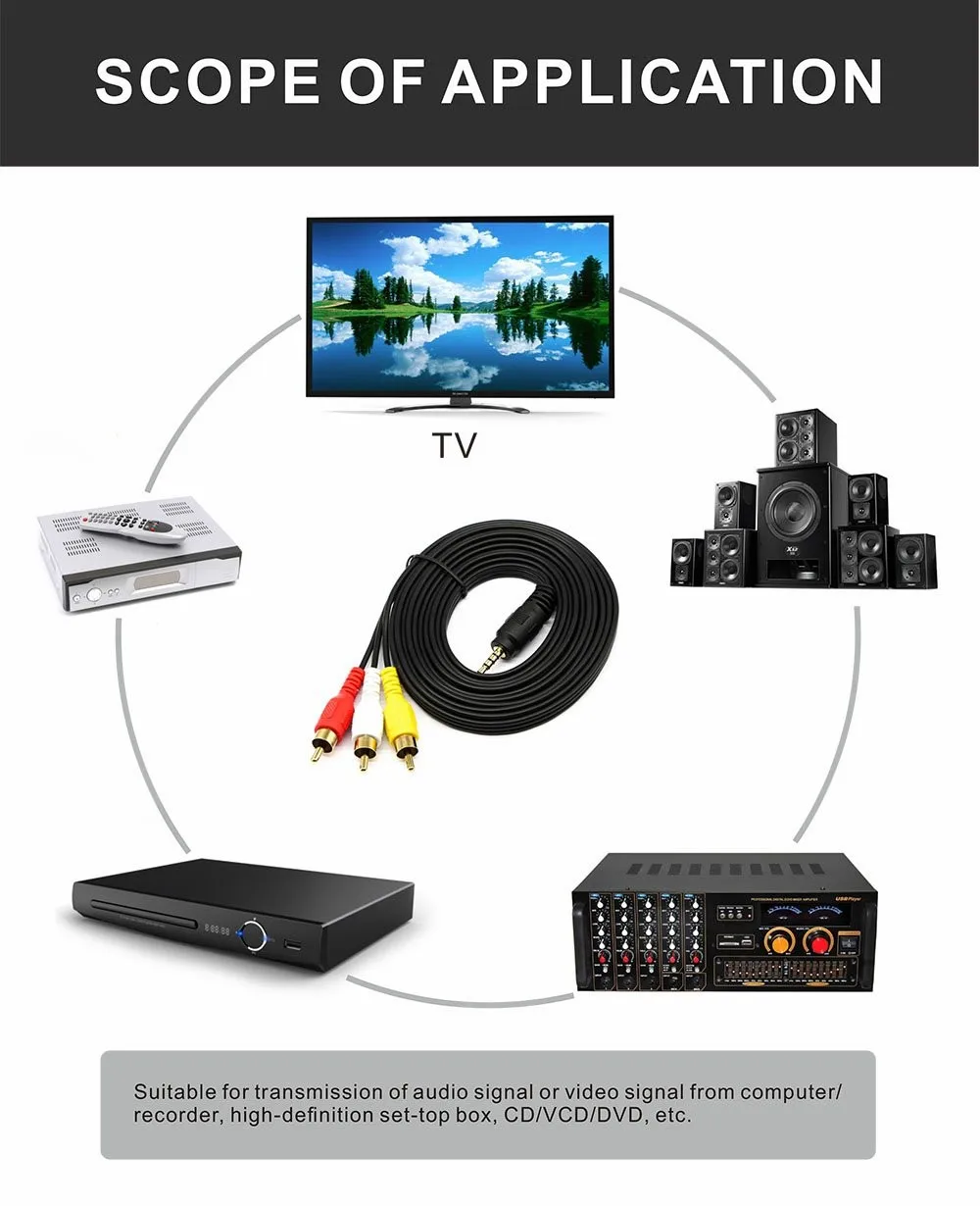

• 3.5mm aux to 3 RCA stereo audio cable allows you to connect portable audio devices with home audio systems, such as a Smartphone (not support iPhone), MP3 player or tablet to a TV, AV receiver, amplifier, projector or another RCA-enabled device.



• The bi-directional function allows you to connect a DVD player, TV, Wii box, video camera, VCR, or other equipment with legacy RCA connectors to speakers or AV receivers with a 3.5mm stereo mini-jack for audio-only.



• Audio and video line length: 1m / 3ft; red, white plug then left and right channels, yellow plugs connected video signal. Designed to connect 3.5mm male plug to 3RCA Audio Video female.

Tips:

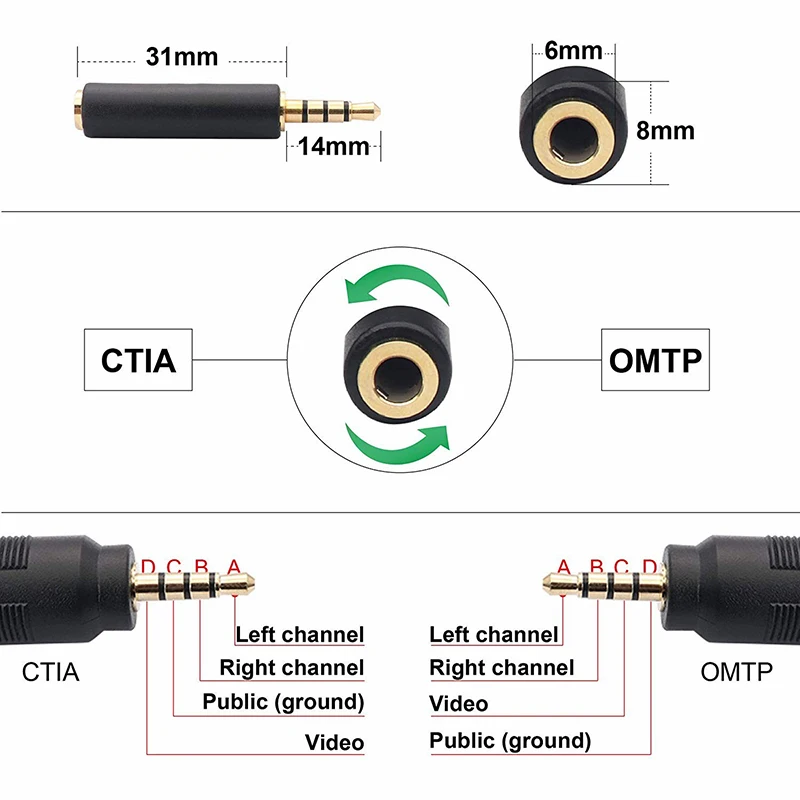

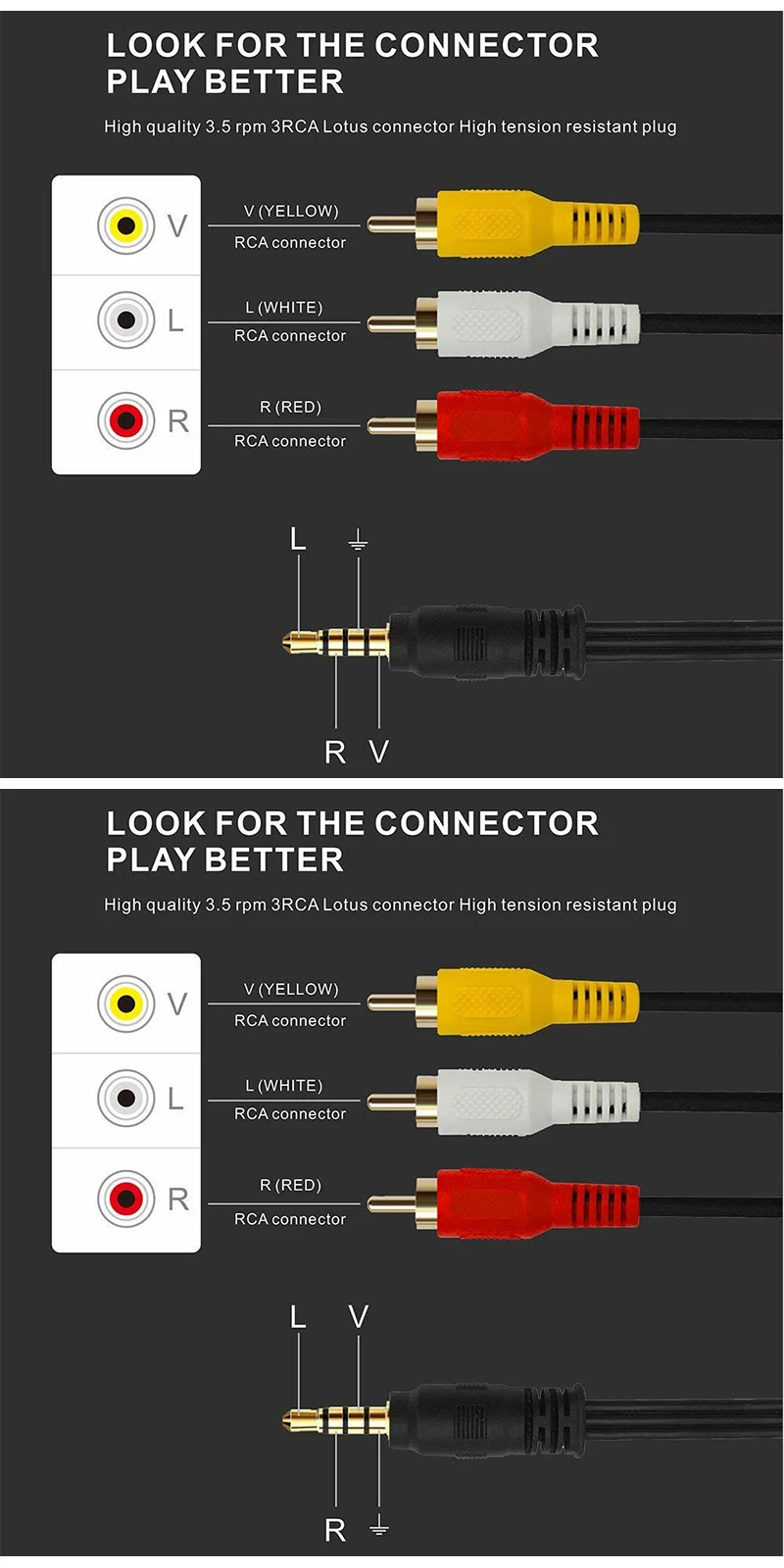

• The wiring method of the product is divided into international and non-international connection methods, as detailed in the following figure. But no matter how your requirements are, we can customize them for you.



• If you are an e-commerce company or wholesaler, it is strongly recommended to use it with our adapters. An adapter can solve the compatibility of these two wiring methods. This is also the real use of the conversion head we have developed And designed ourselves.


• Our company supplies a variety of interface RCA audio adapter cables with enough stocks, RCA audio extension cable, male to the female extension cable.



• The product is divided into two contact methods, and the different functions of the contacts are also different. In order to avoid unnecessary troubles. When purchasing, please confirm which product is suited for you.



• The products are divided into a right angle and 90-degree angle, gold-plated hardware head and nickel-plated hardware head for selection, can also be customized according to requirements and can communicate with us online in time.

 PRODUCT SPECIFICATION

Length	1m or Customized
Environmental rating	RoHS, REACH, CP65, NP

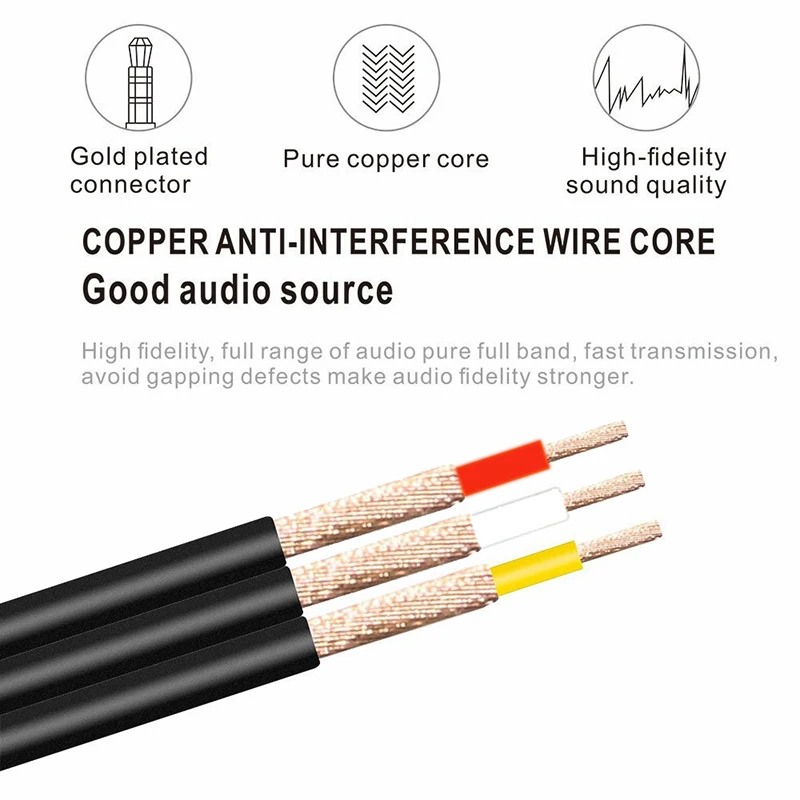

Conductor	28AWG(10/0.10MM) Pure Oxygen-free Copper
Wire Color	Black
Core	(1C+Sprial shielded:30/0.10MM Bare Copper)*3F
Jacket	PVC
Outer Diameter	2.6MM*3F
Connector A	3.5MM 4-Pole
Connector B	RCA Female
Certificate	RoHS/REACH/CP65/NP/CE/FCC
