Operate with a smart phone
When the controller is powered on, the lights will stay with the previous program. The lights will
also keep the previous status of On / Off. You can always turn on the lights by pressing the
button on the controller and holding for 5 seconds.
Turn on the WiFi on your mobile phone, search and connect the device named “POOL LIGHT”
(password: 12345678). After connected, open the Web Browser on your phone and input the
URL //1.1.1.1/tool.html. On that page you can configure the controller. You can input a
SSID and password for the controller when it works as an AP. You can also input the SSID and
password of the WiFi router which the controller will connect to.

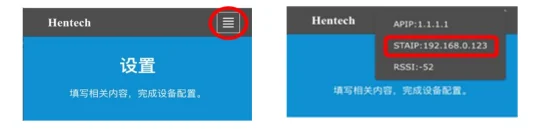

Once you configure the SSID and password for the WiFi router, you can see the IP address of
the controller assigned by the router, by clicking the menu.
The STAIP is the IP address assigned by the router.
You can input //1.1.1.1 in the web browser to reach the controlling page at any time. If the
controller is connected to a WiFi router, you can also input the STAIP (for example
//192.168.0.123 ) in the web browser to reach the controlling page.

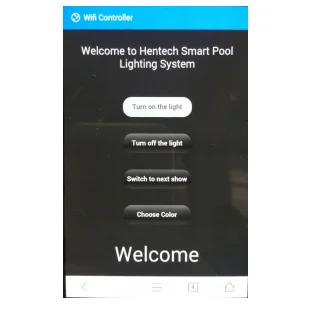

On the controlling page, you can press “Turn off the light” to turn off the lights, and press “Turn
on the light” to turn on the lights. Press “Switch to next show” to switch to next program of the
lights. Press “Choose Color” to select a program you want, and wait for some seconds before
the lights switch to that program.
II. Operate with remote emitter
Button operation:
Button 1: switch to the next color program
Button 2: turns the lamps ON/OFF.
Button 3: turns ON/OFF switch A.
Button 4: turns ON/OFF switch B.
Maintenance
FUSE: In case the lamps suddenly stop working, check incoming and outgoing voltage. If there
is 220V going into the transformer and no 12V coming out, check the fuse and replace if
necessary. This is an indication that there was a spike in voltage that damaged the fuse.
SPARKING: In case of sparking and/or blackness around the connection terminals, scrape off
all soot, reconnect cables and tighten as much as possible.
REMOTE: In case the remote control stops working or is replaced, there is a small button on
the remote module inside the transformer, press this button for 1 second, and then
immediately press one of the 4 buttons on the remote to pair both devices.
The battery inside the remote may require replacement.
Safety warmings
The persons who are in charge of installation should have the required qualifications for this
type of work.
Avoid making contact with the electric voltage.
Comply with the current standards regarding accident prevention.
IEC 364-7-702 standards must be observed: WIRING IN BUILDINGS, SPECIAL WIRING,
SWIMMING POOLS.
Any maintenance works must be performed with the 220V incoming wire disconnected or
switched off at the main supply.
Do not handle any electrical components with wet feet.
Company Profile
Established in 1998, Hentech Technology Development Co., Ltd specializes in developing, manufacturing and selling LED products with international standard. Our products include LED Underwater Light, LED Street Lamps, LED Bulbs, LED Tubes, LED Downlight, LED Ceiling Light, etc. At the same time, Hentech undertakes electronic and software design as well as other OEM service. Hentech has its own factory located in Foshan City, south of China. Hentech products are granted with CE and other certificate, and we provide enthusiastic and prompt services to our customers. This ensures users the high quality in designing development production and after-sales service. The technical experts definitely provide advanced technological supports to assure the products to meet the international standard. Therefore, Hentech has strong ability to design and produce many kinds of products in the intelligent security industry.
Today, Hentech will, as it did in the past, hold the slogan as its aim: Quality First, Client Uppermost. Known for its efficient and excellent service, Hentech does its best to establish cooperation relations with many companies on the basis of mutual benefit.
FAQ
.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-15 days, mass production time needs 2-3 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-15 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
