YDZ 50 50L Cryogenic Tank Companies Liquid Nitrogen Tank For Dragon Breath Ice Cream

50L Liquid Nitrogen cylinder for dragon breath ice cream

Product Features

*All stainless steel, high container strength

*Unique tank bracket, tank stability

*High-strength casters, mobile more convenient

*KF sealing neck

*Double safety valve structure, to ensure product safety

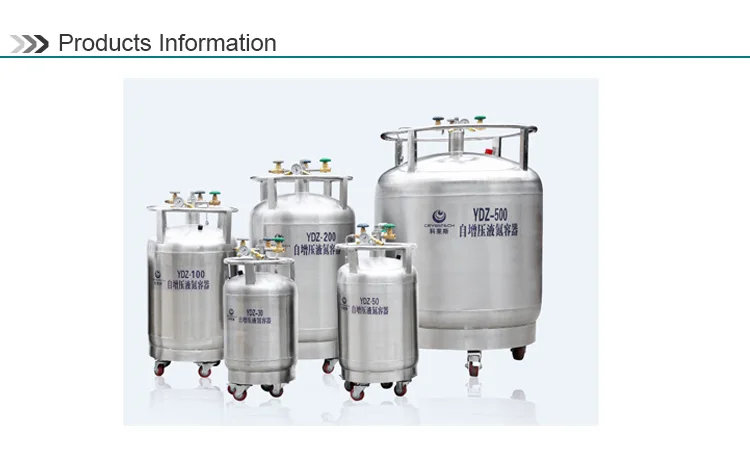

Inox 304 Liquid Nitrogen Dewars Series

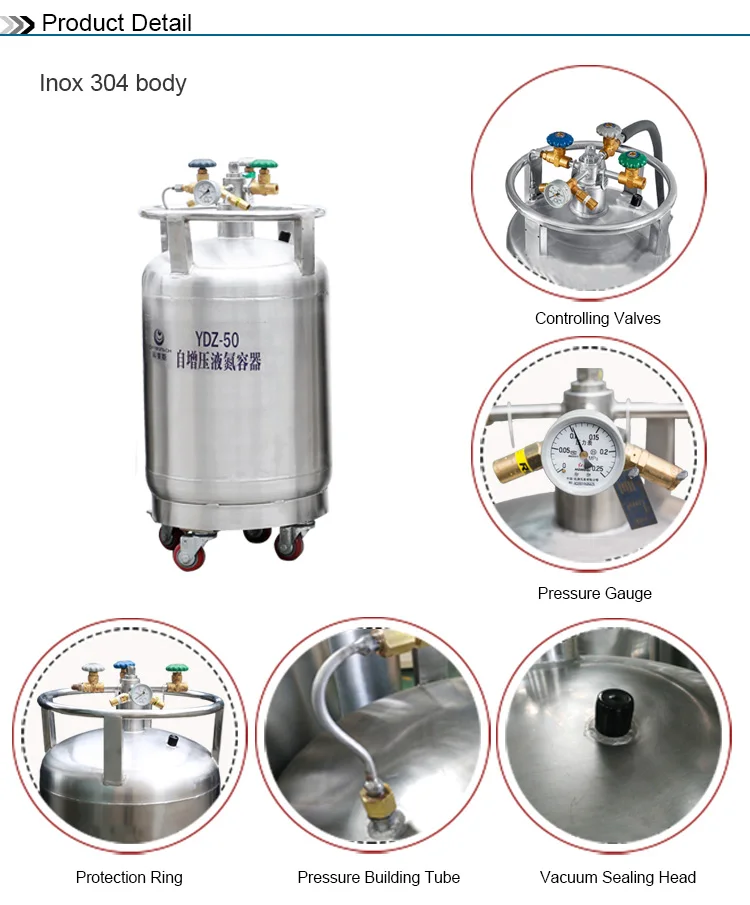

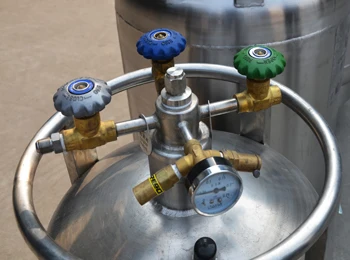

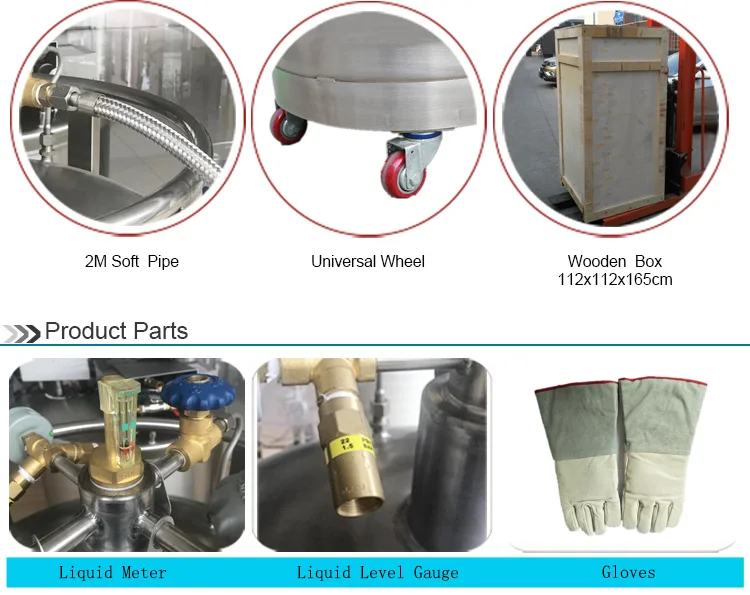

*The filling tank includes control structure and tank.The control structures mainly include In(out) liquid valve, release valve, pressure building valve, satety valve. level gauge, pressure gauge and castor,It is mainlv used to transport and store liquid nitrogen and also the cold source of other refrigeration devices.

*When the inner tank is charged with liquid nitrogen, emptying valve, liquid draining valve,pressure valve closed, liquid nitrogen injection port plug and tighten.

After confirming the container without leakage, due to the heat transfer from the shell of the container to the pressure pipe, a part of liquid nitrogen entering the pipe for endothermic gasification. When the pressure valve is opened, the nitrogen after gasification enter via valve immediately into the interior surface upper space at the same time, the liquid nitrogen from inner tank continuously enter into pressure tube for endothermic gasification.

*Because of the volume of the nitrogen after gasification is more than 6oo times of liquid nitrogen, a large amount of nitrogen gas transferred from a small amount of liquid nitrogen.After gasification continuously enter into the inner tank. through the opened booster valve. With the increasing amount of nitrogen gas, gathered in the inner level of the upper space gradually began to exert pressure on the inner wall and the surface, when the pressure displayed on pressure,gauge reaches a value o.02 MPa, open the drain valve, the liquid nitrogen will be discharged through a discharge pipe.

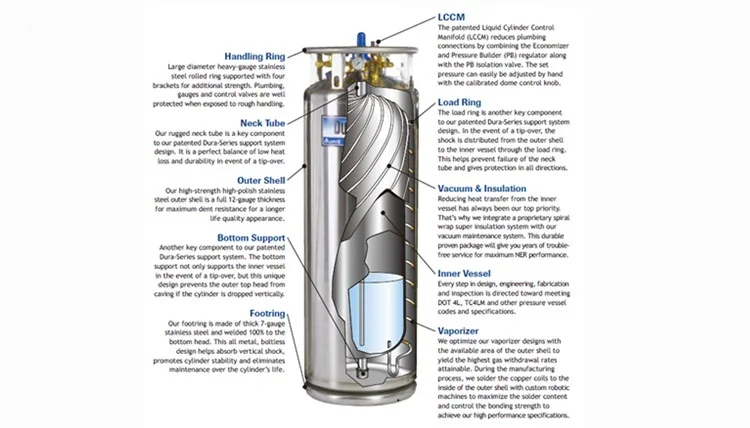

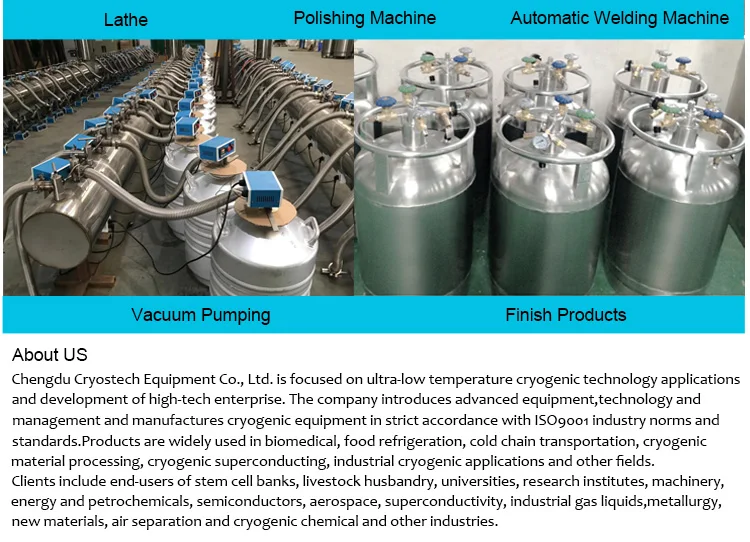

*Strict enforcement of GB/T16774-2o12 ,the products control every aspect of production strictly in accordance with the high quality requirements with vacuum-pumping technology and multiple layers insulation technology. The adsorbent is processed by the regeneration to ensure the high quality vacuum layer,All the weld is checked by the helium mass spectrometer; The product is 1oo% tested by the liquid nitrogen; The unique polishing technology ensure the beautiful appearance.

1)Could your company modify the standard product depends on my request?

Yes. All various of cryogenic tanks can be researched and designed depend on your idea.

2)How about the after-sale service?

Our professional technology term can teacher you how to install and maintain the products.

If Any question ,it can be feedbacked at the first time.

3)How about the delivery term?

Usually it is FOB or EXW.  CIF are also acceptable which decided by the clients.
