Customized heating
US $2.38-$3.99
Eco friendly Cooking Appliances Heating Element Coil Oven Parts for bbq
- Category: Kitchen Appliance Parts >>>
- Supplier: Cixi Xianrui Electrical Heating Appliances Co. Ltd.
Share on (62277442121):
Product Overview
Description
More Products
Product Description

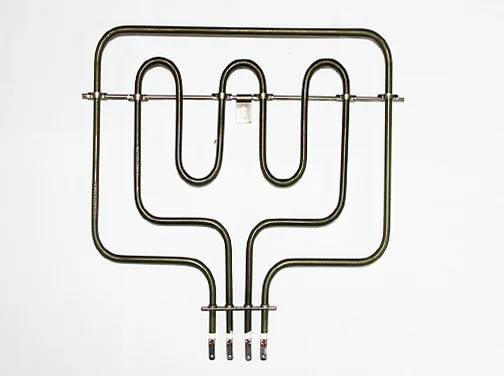

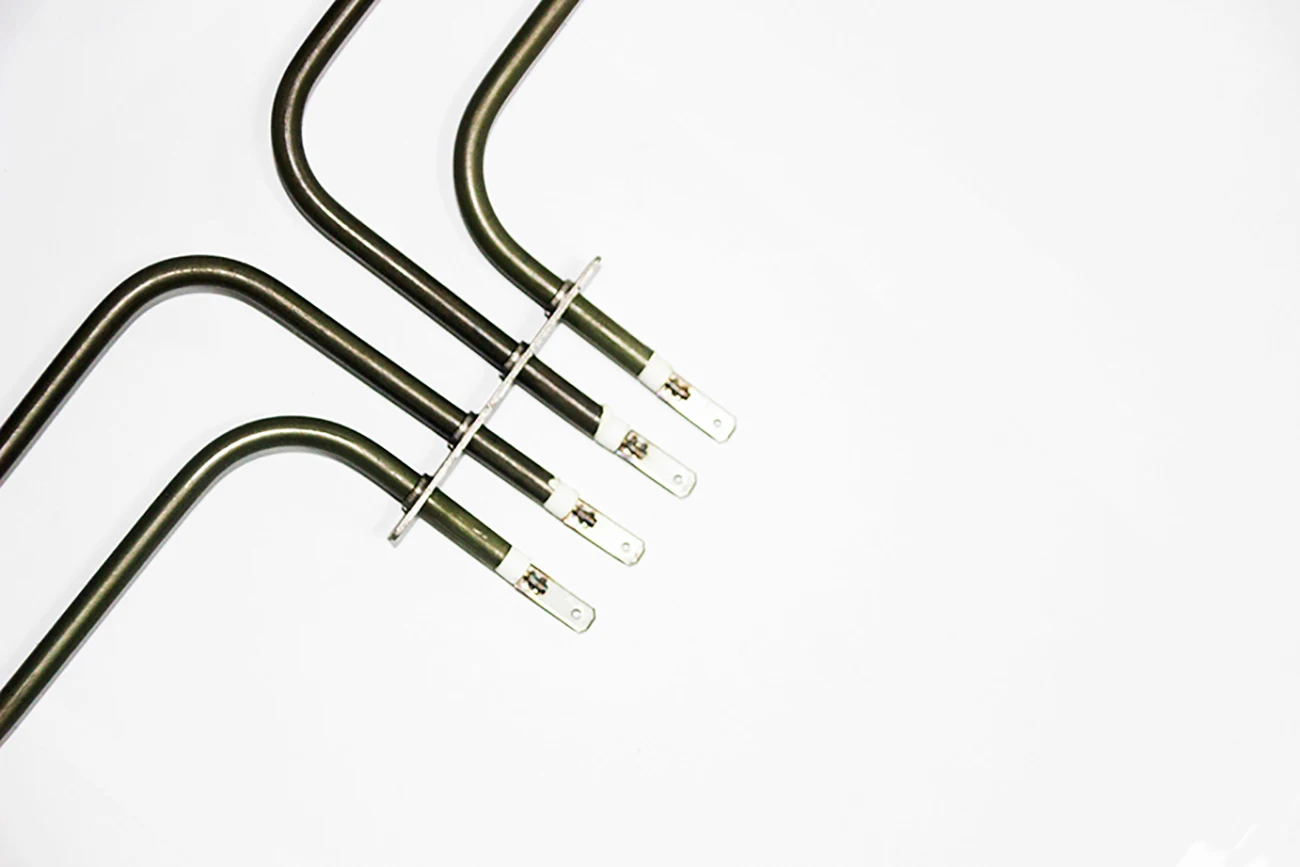

Eco-friendly Cooking Appliances Heating Element Coil Oven Parts for bbq
Electrical heating tube for oven specifications
Specification | Detail | Remark |
Product Name | Oven electrical heating element | |
Size | Product length: 28.5cm Height:27.8cm | |
Insulation resistance | ≥50MΩ |
|
Leak current | ≤0.05mA(cold condition) ≤0.75 mA (hot condition) | |
Tube Material | SUS304 /840/310S | Tube material can be customized |
Voltage/wattage | 220V-240V/IN 800W,OU 600W | Voltage/Wattage can be customized as required,and Wattage tolerance(our best):+4%-8% |
Tube Diameter | 6.5mm,6.6mm,8mm | Tube diameter can be changed to 6.5mm,6.6mm,8mm or others as requested |
Resistance powder | Magnesium oxide | We can use other powder if requested |
Wire Spec. | 0.3,0.32,0.4,0.48… | Heating wire specification can be customized according to the requirement |
Thermal fuse | Iron chromium | Material of thermal fuse can be nickel chromium wire if requested |
Feature | 1. Superior internal electrical insulation and heat conductivity 2. Durable and low cost 3. Easy to replace thus eliminating long shut-down periods 4. Configurable to virtually any shape 5. Excellent corrosion resistance 6. Easy installation | |
Application | Embedded Oven |
|
Customized Service
· Please show us following important points when you need custom service:
· Used voltage(V), wattage(W) and frequency(Hz) .
· Quantity , shape and size(tube diameter, length,thread,etc)
· Heating tube material( Copper/Stainless steel).
· Do you need the flange and thermostat, what's the size.
· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.
· Used voltage(V), wattage(W) and frequency(Hz) .
· Quantity , shape and size(tube diameter, length,thread,etc)
· Heating tube material( Copper/Stainless steel).
· Do you need the flange and thermostat, what's the size.
· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.
FAQ
Q: Are you a manufacturer or a trade company?
A: We are a manufacturer of heating element since 2008.
Q: What's your MOQ?
A: Normally we accept order with 100 pcs each model.
Q: What's your delivery time?
A: Below 3000 pcs, about 15-20 days after deposit.
Q:Where is your factory located? How can I visit there?
A: Our factory is located in Cixi city,Zhejiang Province,China,about 2-3 hours from Shanghai and about 1 hour from Ningbo .All our clients,from home or abroad, are warmly welcome to visit us!
Q: How long will it take to arrive?
A: 20-25 days by sea,about 5-7 days by air,3-5 days by express after deposit paid.
Q: Can I get sample before order?
A: Yes. The sample fee and freight should be paid at your side. We will return the sample fee if order.
Q: Is it possible to print my logo on the product?
A: Yes. We offer OEM&ODM services. We can print your own logo on product.
Q: How do you guarantee quality?
A: For certificate, we have ISO9001, CQC, CE, ROHS, TUV. For practical, we will do 100% inspection during production and before shipment.
Q: What if there is any defective goods in my order?
A: We will take the responsibility of products with quality problems if they are caused by us.
