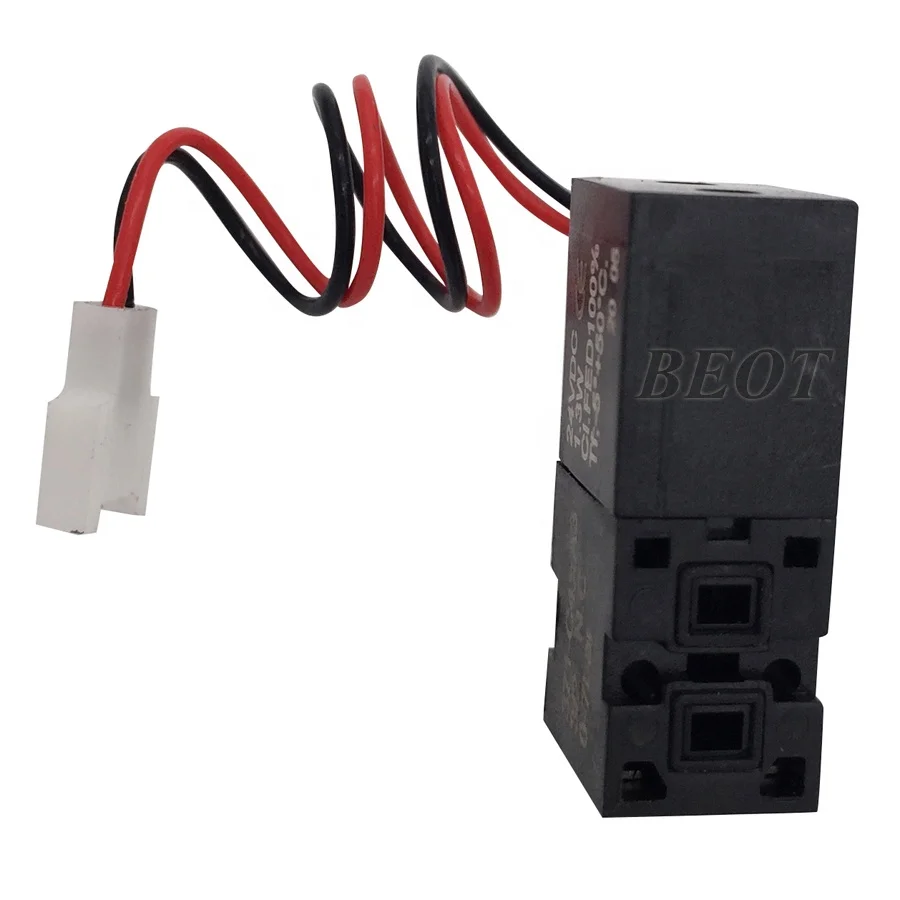

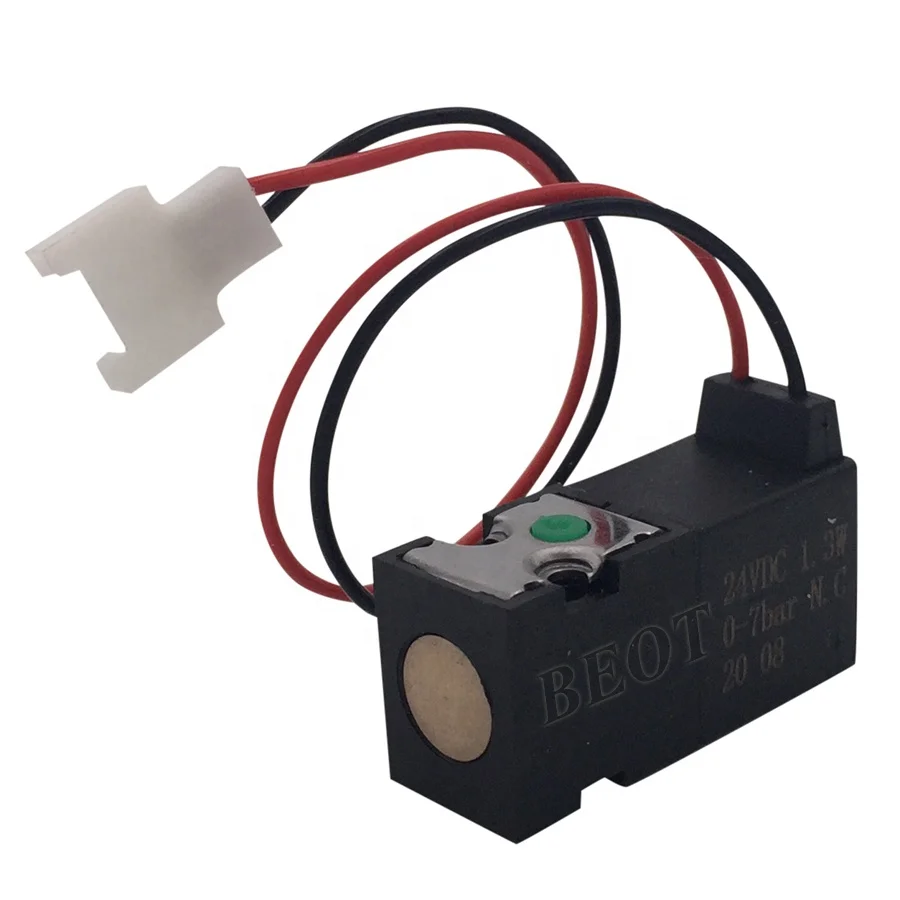

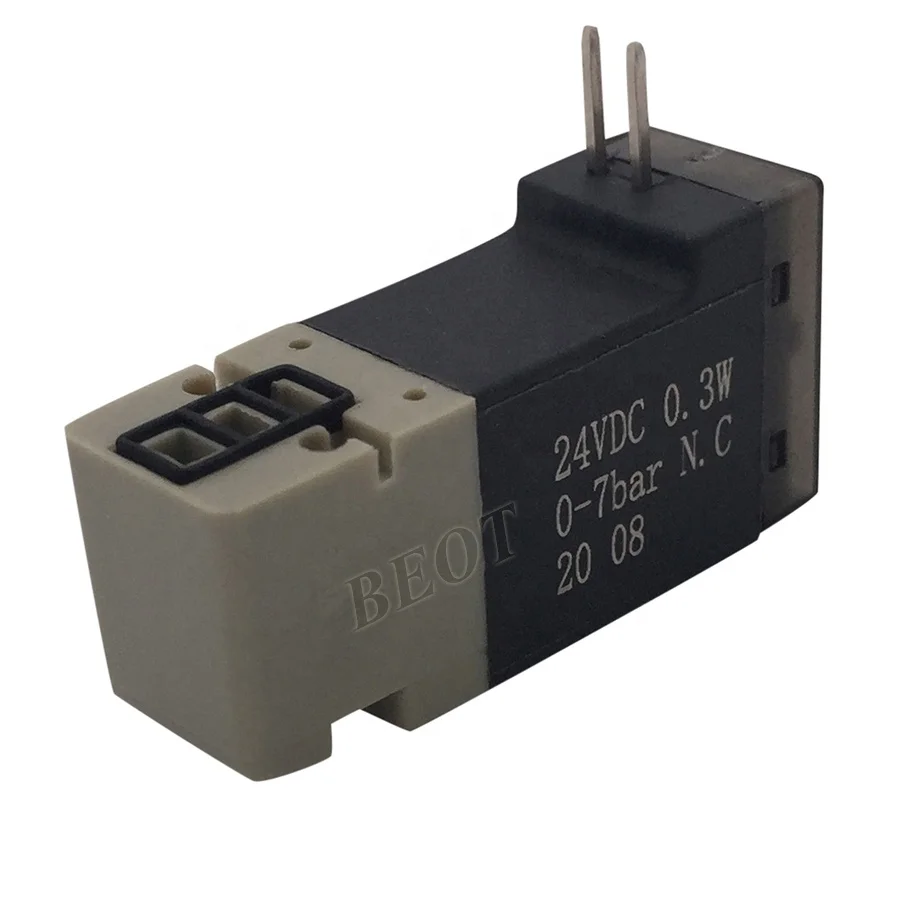

10mm mini solenoid valve

BT10 series 10mm mini solenoid valve, It is 10mm width, nice replacement for Italy Lonati mini valve.
it is 3/2way , & can be with different wiring form. They are very popular in textile industry, socks knitting machine, respiratory machine, oxygenerator, medical industry & electronic industry and so on.
Low power, small size, high frequency & long working life time & can work more than 50 million times.


Technical Data
Type
BT1023-1
BT1023-2
BT1023-3
Working pressure
1.5~7bar or 0~3bar
Medium
Clear air
Orifice size
0.7mm
ambient temperature
for -5~50°C
Max. flow rate at 6bar
19L / Min
Max. frequency
2700 / Min
Working life time
50 millions times
Volate
12VDC / 24VDC
Power
1.3W
Response time when energized
<6ms
Response time when power off
<8ms
Copper wire isolation class
F(155%)

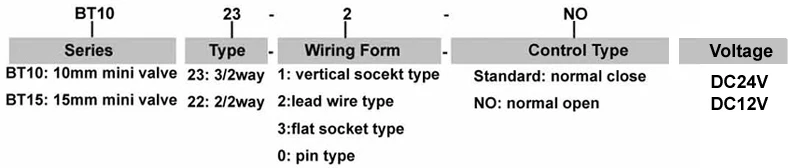

Ordering code:




Size:

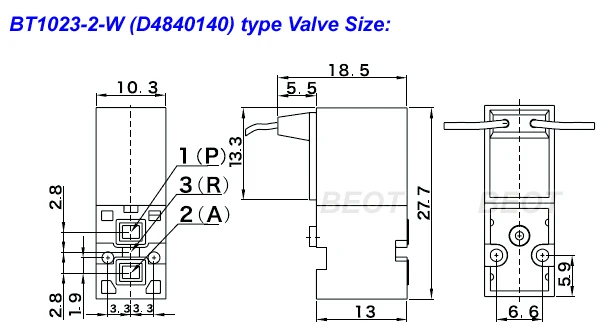

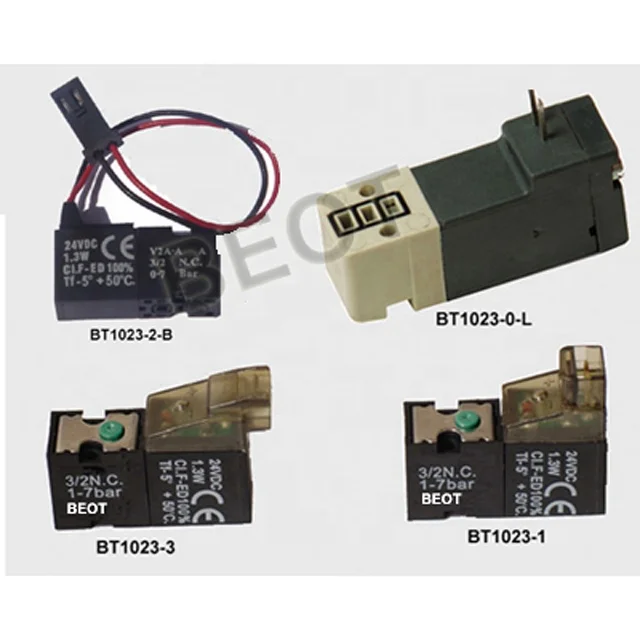

10mm / 15mm Valve Photos:
