hot sales ac mppt 7.5kw 10hp solar water pump inverter ip 65 3 phase
- Category: >>>
- Supplier: Shenzhen Hober Technology Electronics Ltd.
Share on (62277674886):
Product Overview
Description
The Solar Comes, The Water Comes
Solar Water Pump Systems Manufactured by Hober, Whether your need is to create a lower unit cost of water pumped, reduce operational costs, or achieve lowest project risk, HSPH provides the righ solution
Solar Pump Inverter Description
Hober Solar Pump Inverter Designed to Solar Pumping System
HSPH is the latest generation of solar water pump inverter, It covers a wide power range from 0.75kW to 100kW with a wide range of pumps for submersible, surface applications.
HSPH can be designed into an advanced solar pumping system, it can provide a ture hybrid pumping system which automatically can blend grid power and generator power with the core solar power supply,
The system use the power of the sun to move water, so replacing the need for grid power or diesel. Whether your need is to reduce the cost of water pumped, create low operational costs, or achieve the lowest project risk, HSPH provides the right solution for you.
Solar Pump Inverter Parameters
Hober Solar Pump Inverter Model | HSPH5500H | HSPH7500H | |||
Solar Panel DC Input | Max Voc Voltage | 780V | |||
Min Vmp Voltage | 400V | ||||
Recommend Vmp Voltage | >500V ( Only Solar ) >560V ( Hybrid Power ) | ||||
Max MPPT efficiency | 99% | ||||
Max Input Current | 14A | 20A | |||
Number of Strings | 2 | 2 | |||
Inside Booster | N | ||||
Note | Automatic MPPT Function to Identify the Voc and Vmp of Solar Panel, without Programming | ||||
Hybrid AC/Generator Input | Voltage | 3 Phase 380/400/440V | |||
Max Input Current | 14A | 19A | |||
Hybrid Mode | Automatic, AC supplement automatic while solar is in low power mode and AC disconnect automatic while solar power recovery | ||||
AC output ( For Pump, Aerator, Fan ) | Max Adapted AC Pump HP | 7.5HP | 10HP | ||
Max Adapted AC Pump Power | 5.5kW | 7.5kW | |||
Drive Mode | Variable Frequency Drive 3 Phase | ||||
Max Output Voltage | 380/400/440V | ||||
Max Output Frequency | 50~60Hz ( Support program range 15-60Hz) | ||||
Max Output Current | 13A | 18A | |||
Max Efficiency | 97% | ||||
Water Level Sensor (Well / Tank) | Yes | ||||
GPRS SMS Monitor & Controller | Optional | ||||
Display | LCD display | ||||
Waterproof | IP65 | ||||
Noise | <50dB | ||||
Cooling Method | Force Cooling by Fan ( IP68 ) | ||||
Protection | Solar DC Input Low/Over Voltage; Solar DC input Reverse Polarity; AC output Short-circuit; Over Temperature; Over Flow of Tank; AgainstLightning; AC Input & Output Phase Lose; Dry-Run (detecting by Sensor or Software); AC output Unbalance | ||||
Operating Environment | Operating Evironment Temperature | -10 to 60℃, Above 60℃ need to derate load | |||
Max Humudity | 95%RH | ||||
Using Altitude | <3000m, Above 300m need to derate load | ||||
Others | Prohibiting the installation location: direct sunlight, thick dust, corrosive gas or oil mist, flammable gas, liquid. etc | ||||
Package | Size | 550*350*285MM | |||
Weight | 15Kg | 16Kg | |||

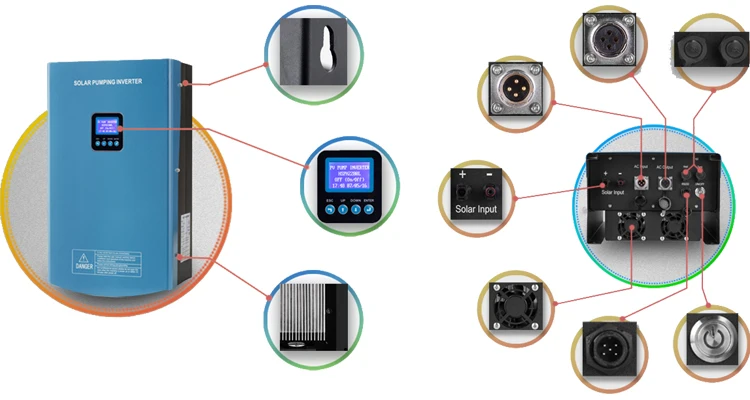

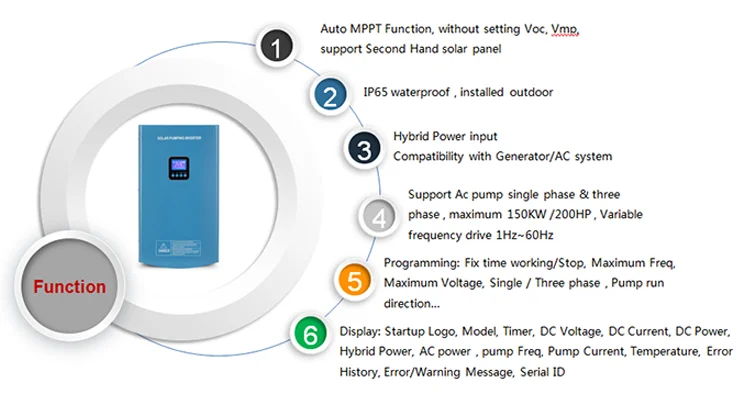

Hober Solar Pump Inverter Features
