HB505A Five Phase Hybrid Stepping Driver 86 90 110BYG Series 5-Phase Hybrid Stepper Motors Driver
Products Description
Model No.
HB505A
Output peak current
5A
Work voltage
AC40～110V
Driver type
86, 90, 110BYG Series 5-Phase hybrid stepper motors
100% Originally factory products, technical guidance available, complete driving parts including microputer controller, stepper motor, and step motor driver can be supplied.


HB505A 5-Phase Hybrid Stepping Driver

Features:

  • AC40～110V Power Supply
  • Max 5A Phase Current Output
  • H-Bridge PWM Modulation
  • Full/Half step Switch
  • Disable control signal (Free)
  • Holding Position when repowered
  • Static Half Current Lock
  • Isolated Input (Photo-coupler)

Adapter Motors:

86, 90, 110BYG Series 5-Phase hybrid stepper motors

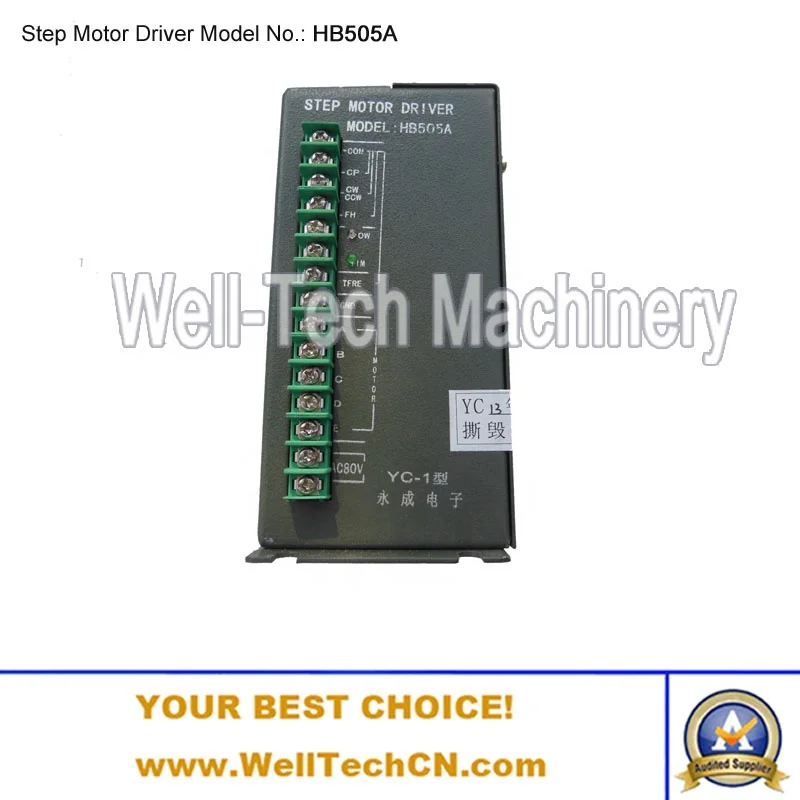

Inputs & Outputs:

Label

Function

Note

CP

Pulse signal +

Optocoupler Input resistance 390 Ω, Rated 10mA, 10us minimum pulse width

CW/CCW

Direction signal +

Optocoupler Input resistance 390 Ω, Rated 10mA,
ON: CW direction; OFF: CCW direction

F.H

Full/Half Step Control+

ON: Half Step; OFF: Full Step

FRE

Disable Control +

OFF: enable; ON: disable

POW

Power Indicator OC Output

Max 50V/20mA, when being normal,Optocoupler is ON

TIM

Phase Origin Output

Max 50V/20mA, when being Origin, Optocoupler is ON

COM

Common Ground

Common Ground of CP、CW/CCW、F.H、FRE、POW、TIM

POWER

Power Indicator Led

Red

TIMING

Phase Indicator Led

Green

A

A Phase Output

B

B Phase Output

C

C Phase Output

D

D Phase Output

E

E Phase Output

　

AC80V

Power Supply

Rated AC80V（AC40～110V）

Note: non 5V signal request corresponding increase in external resistor(about 10mA Current)

Connection:

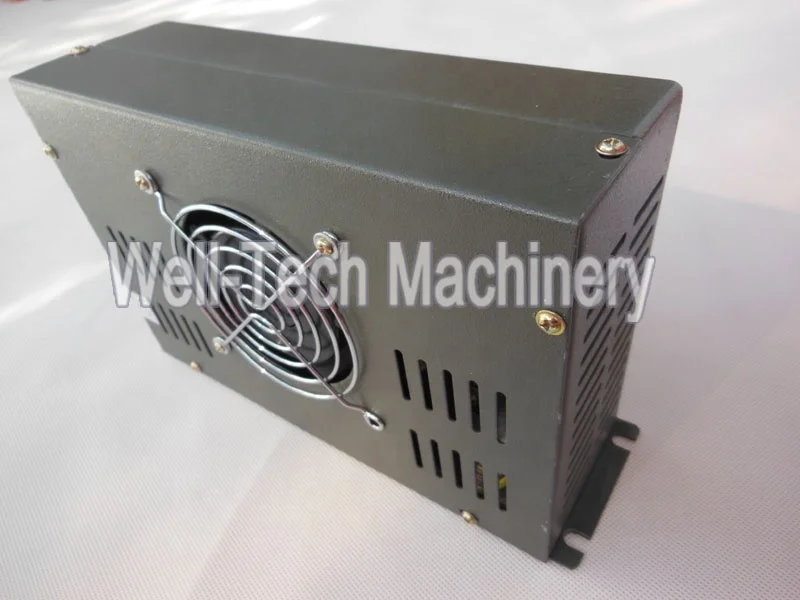

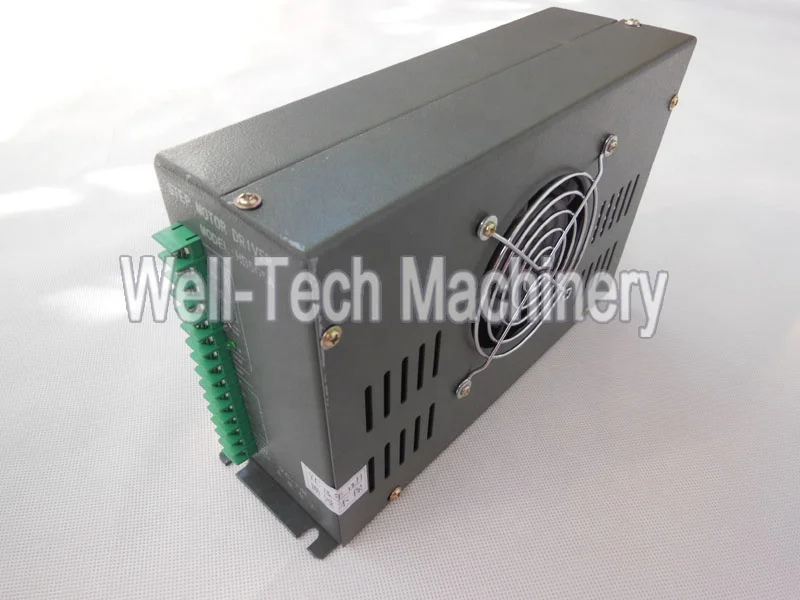

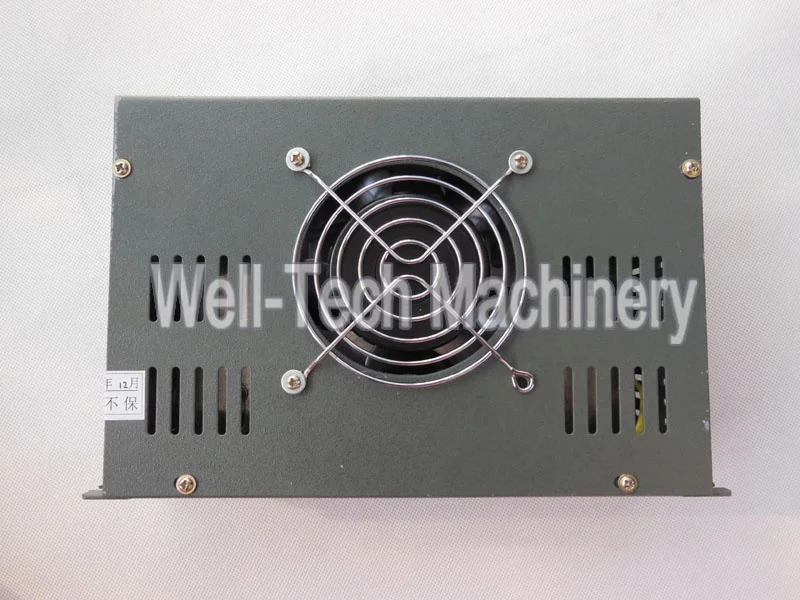

Details Images
