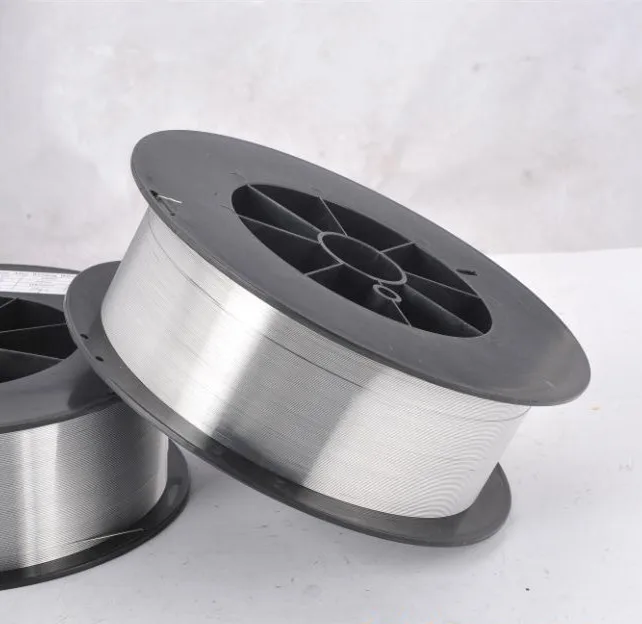

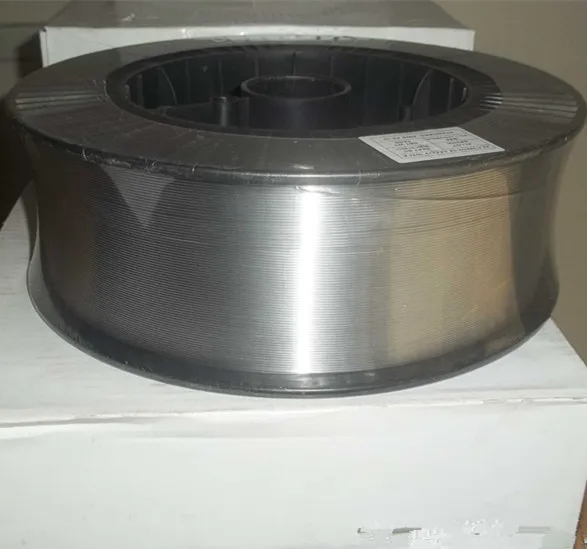

5356 is the aluminum magnesium alloy wire with a small amount of titanium. It has a good corrosion resistance, heat resistance, good crack resistance, high strength, good ductility. Weld anodizing is white, which can provide a good color match. It is a universal type welding widely.
Standard: GB10858-2008;
ASTM/AWS A5.10;
ISO 18273:2004;
EN 573.3
B. Welding wire chemical composition (%)
Chemical Composition(%)
Elements
Si
Fe
Cu
Mn
Mg
Cr
Zn
Ti
Al
Requirements
0.25
0.4
0.1
0.05-0.2
4.5-5.5
0.05-0.20
0.1
0.06-0.2
Balance
C. Packing information
Form
Package Size
Weight
Size
Mig

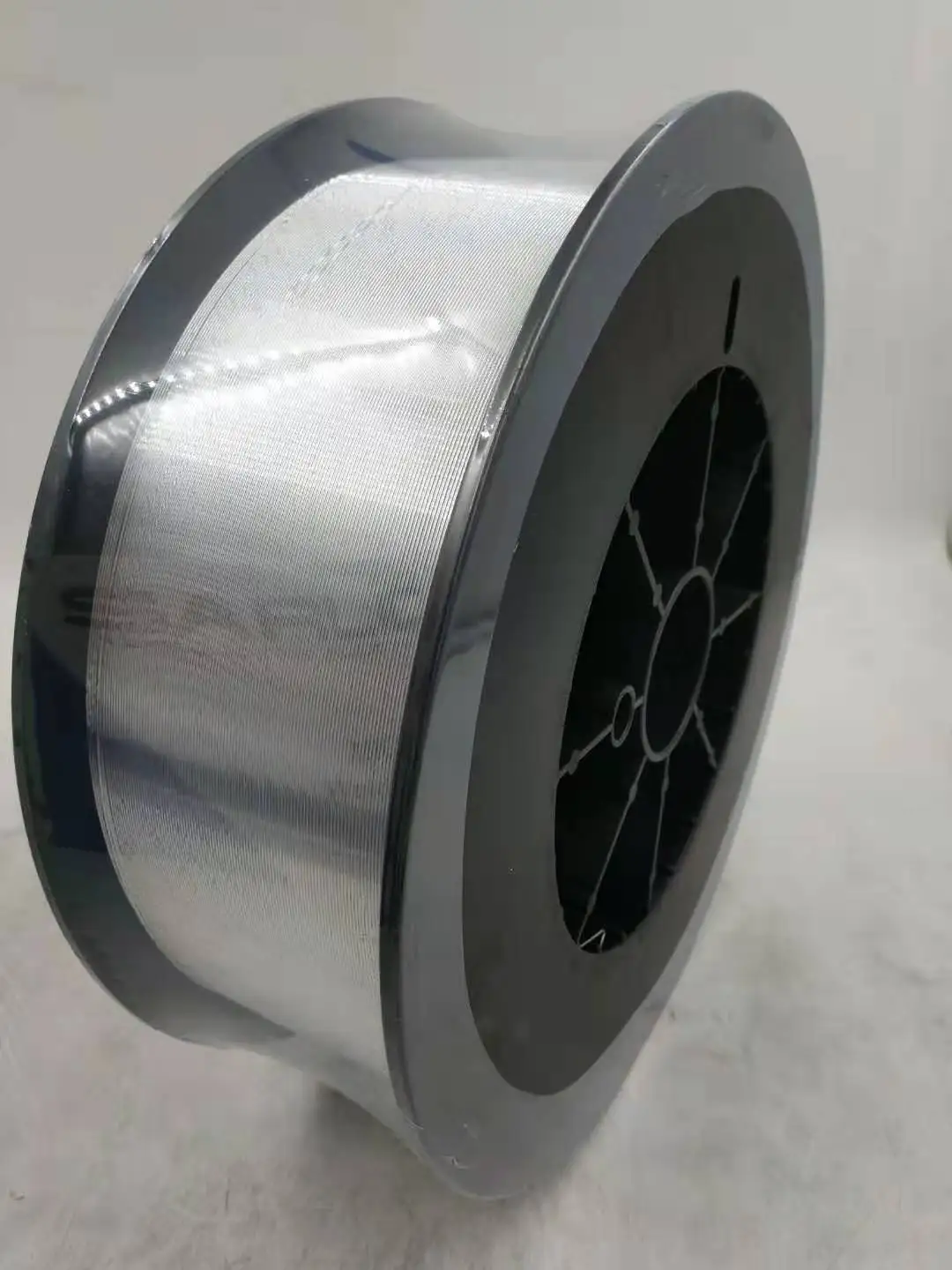

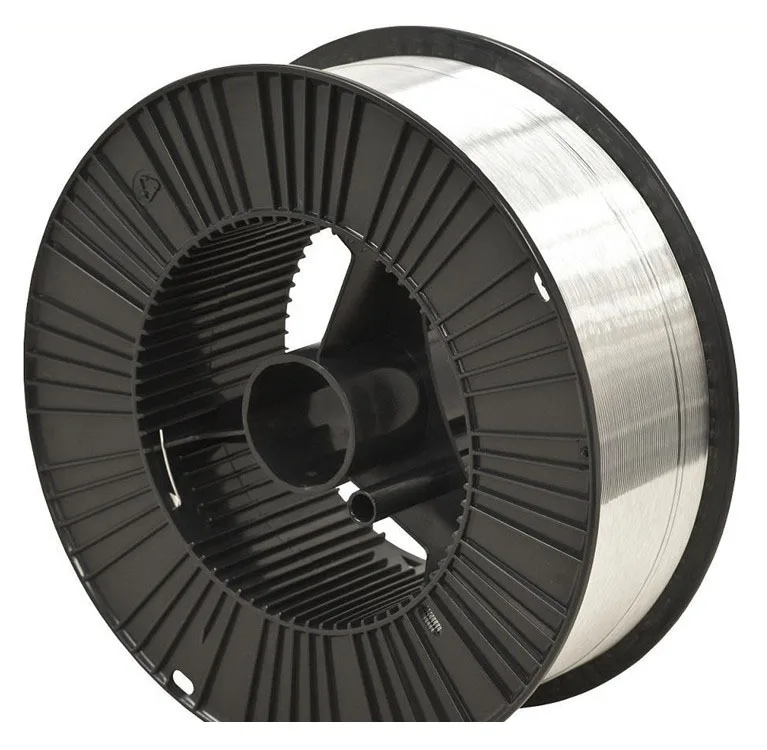

D300 Plastic Spool
9kg
0.8mm,0.9mm,1.0mm,1.2mm,1.6mm,2.0mm
BS300 Metal Spool
7kg
0.8mm,0.9mm,1.0mm,1.2mm,1.6mm,2.0mm
D270 Plastic Spool
7kg
0.8mm,0.9mm,1.0mm,1.2mm,1.6mm,2.0mm
D200 Plastic Spool
2kg
0.8mm,0.9mm,1.0mm,1.2mm
Tig
1000mm Carton
10kg
1.6mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm,5.0m,6.0mm
1000mm Carton
5kg
1.6mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm,5.0m,6.0mm
1000mm Plastic tube
2.5kg
1.6mm,2.0mm,2.4mm,3.0mm,3.2mm,4.0mm,5.0m,6.0mm

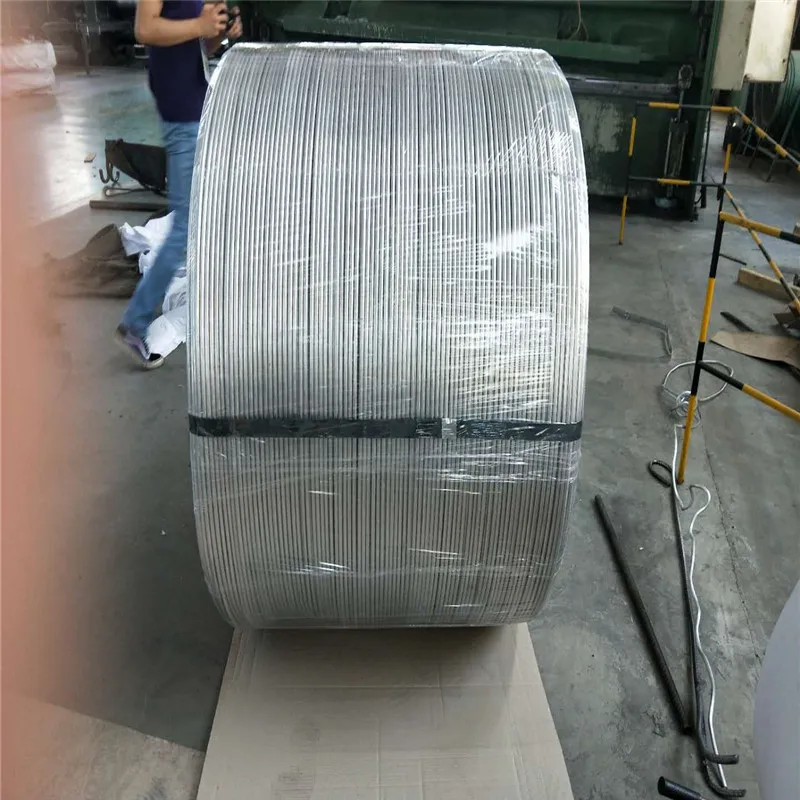

Coil
D450mm
20kg
2.4mm,3.0mm,3.2mm 4.0mm,5.0mm
D600mm
20kg
2.4mm,3.0mm,3.2mm 4.0mm,5.0mm
Products Show
Ralated products
Aluminum plate
Passed the ISO9001:2008 quality system authentication and ROHS authentication.

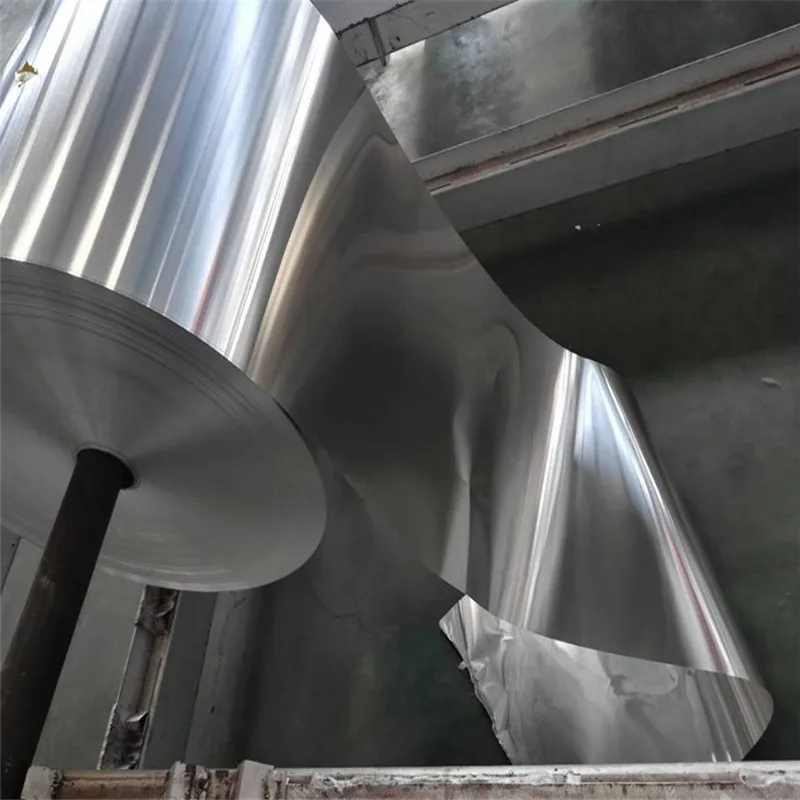

Aluminum coil
Passed the ISO9001:2008 quality system authentication and ROHS authentication.

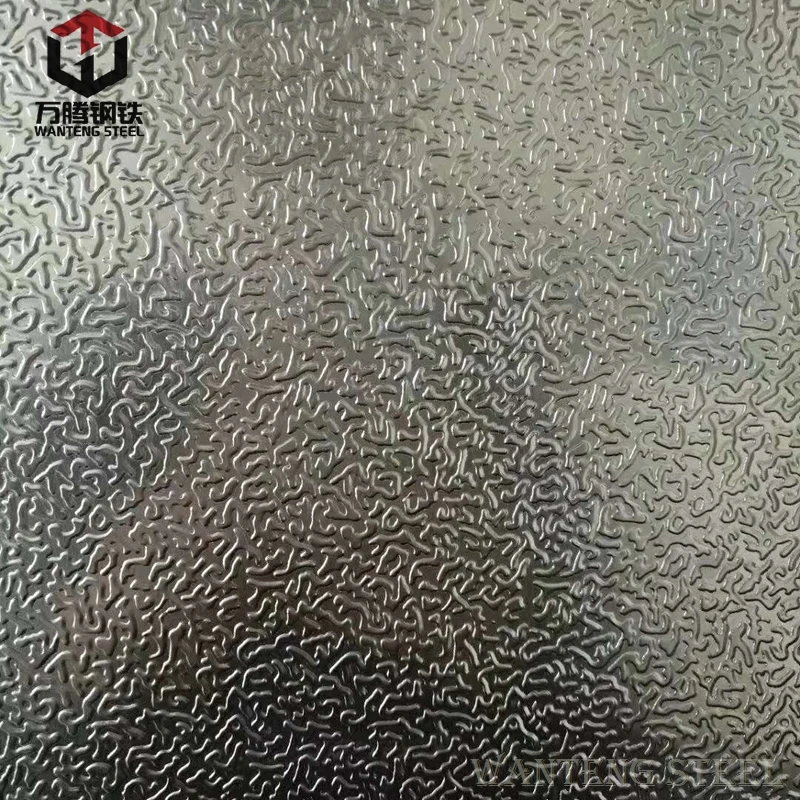

Embossed aluminum plate
