K4000 / M1182 type Nitrile NBR membrane diaphragm kits for CA40T RCA40T pulse jet valves
- Category: >>>
- Supplier: Ningbo Beot Automation Machinery Co. Ltd.
Share on (62277852476):
Product Overview
Description
Products Description
Diaphragm kits --The main raw material Nitrile & FKM imported from Japan
K4000 M1182 type Nitrile NBR membrane diaphragm kits
Ordering Code:K4000 / M1182
Material: Nitrile-Nylon
Material: Nitrile-Nylon
Nitrile is for -20~80°C working temperature
K4000 type used for CA40T, RCA40T, CA40MM, RCA40MM type pulse valve
K4000 type used for CA40T, RCA40T, CA40MM, RCA40MM type pulse valve
FKM is also available, FKM material diaphragm can stand up high temperature: 230°C
Advantage:
For all diaphragm, the main raw material Nitrile(NBR) & FKM import from Japan, the glue import from USA. & Using fabric-reinforced in rubber diaphragms , & CNC machining all metal parts & metal plate is stainless steel material.

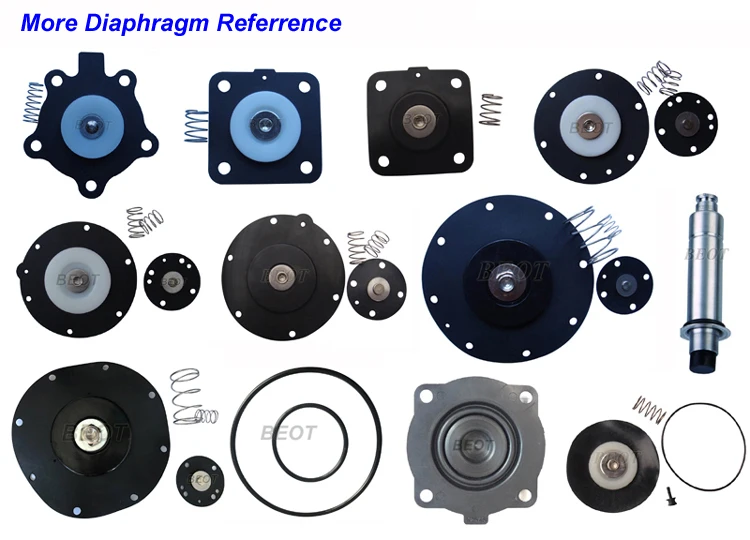

We produced series rubber diaphragm membrane kits for CA/RCA, CAC/RCAC T, DD, MM, FS, T3,DD3,FS3, T4, DD4, FS4 series pulse jet valve.

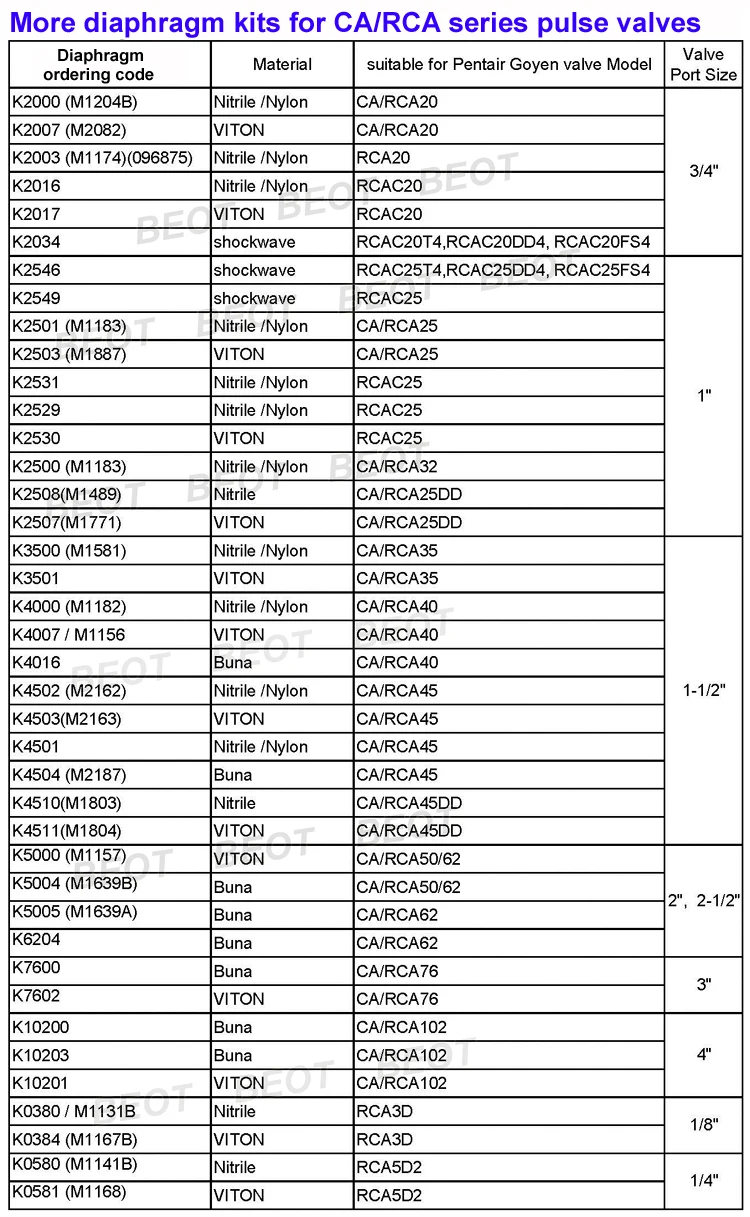

Ordering Code: K2003, K2000 , K2007 , K2016, K2034, K2501, K2503 , K2546, K2529, K3500, K3501, K4000, K4007, K4502 , K4503 , K5004 , K5000 , K7600 , K7601
Technical Data | ||
Working pressure | 0.2~0.8Mpa | |
Relatively humidity | <85% | |
Working medium | Clear Air | |
Ambient Temperature | for -5~50°C | |
Diaphragm material | NBR(Nitrile) or FKM (NBR for -20~80°C; FKM for -20~200°C) | |
Diaphragm life cycles | can work more than 1 million times | |

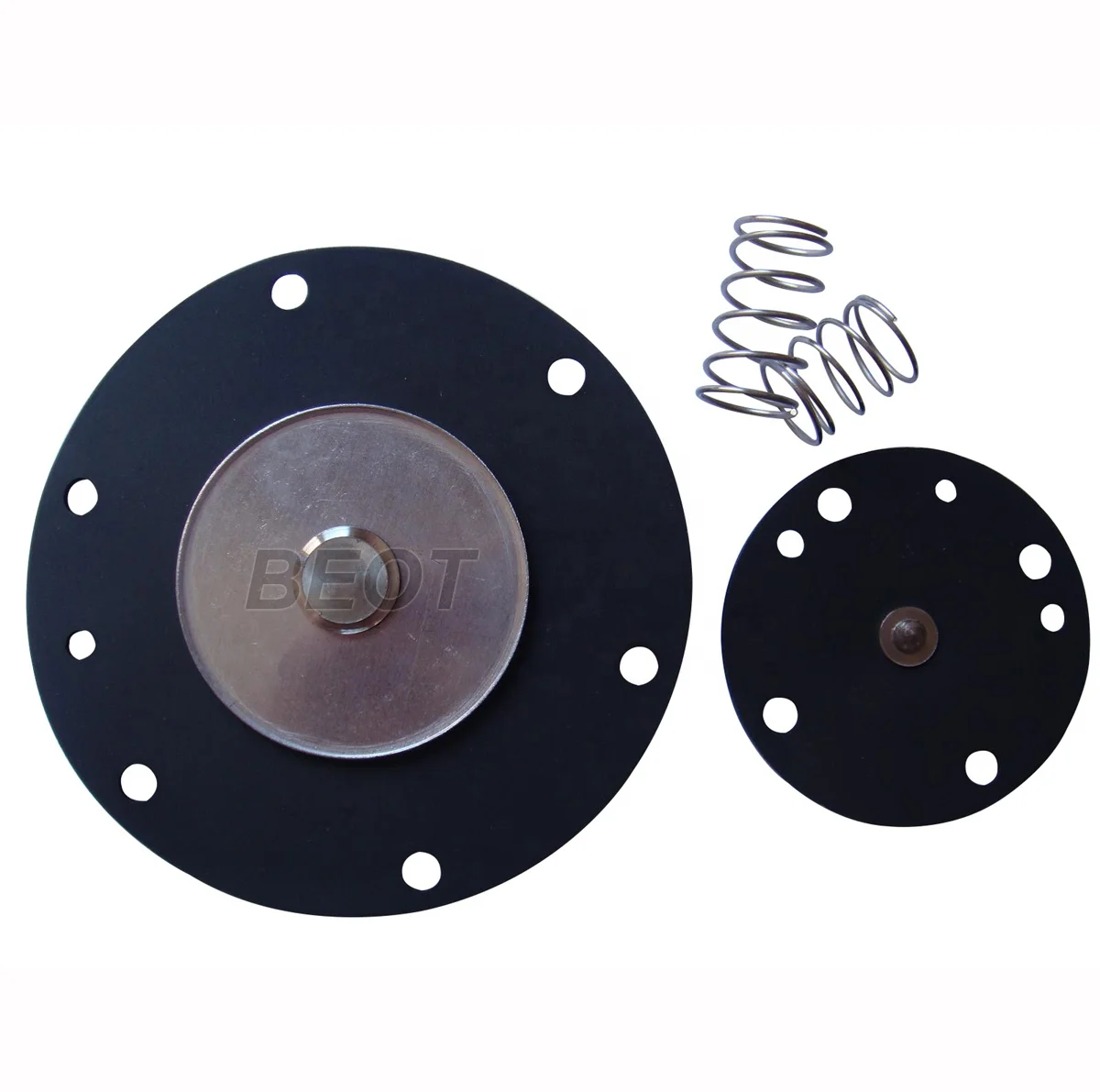

K4000 / M1182 diaphragm photo -
the main raw material Nitrile(NBR) import from Japan, the glue import from USA
