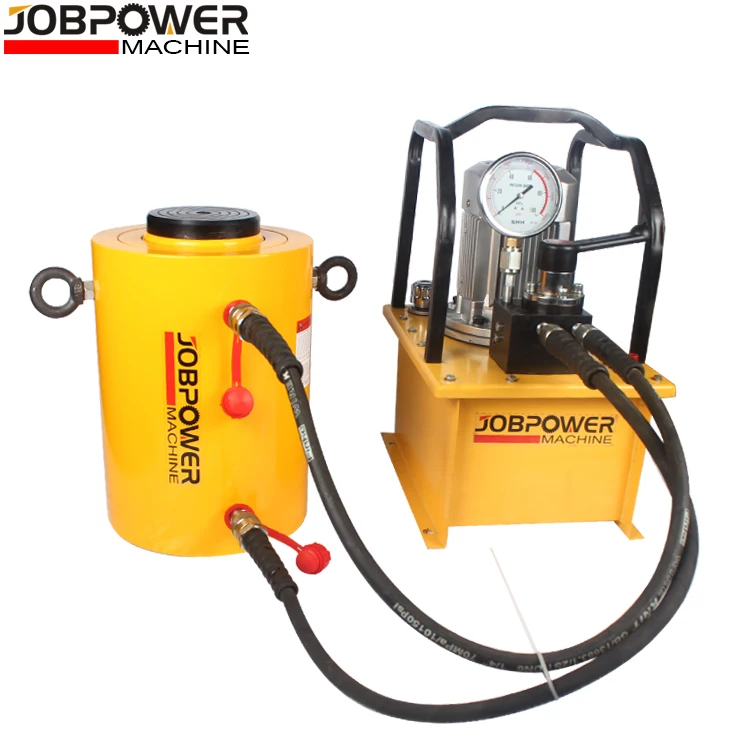

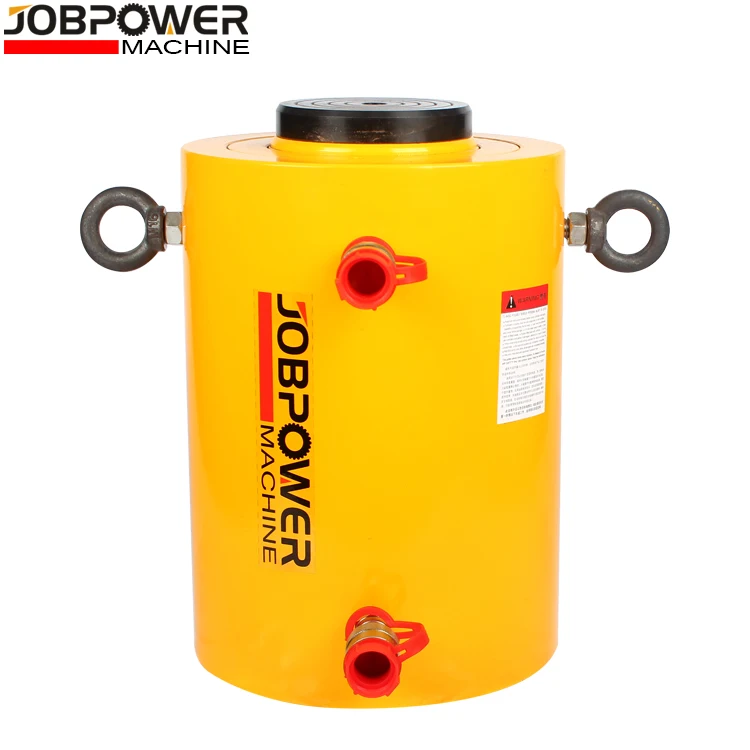

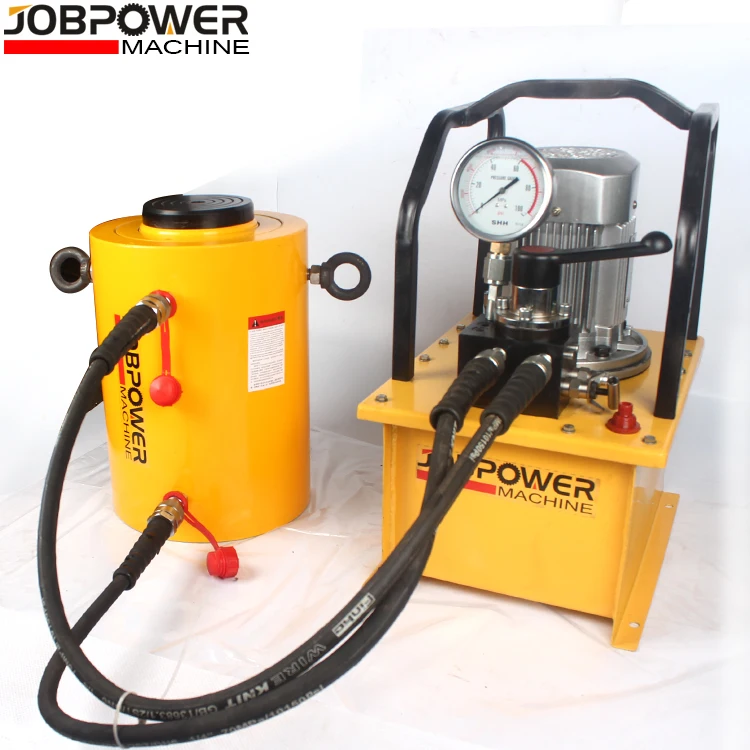

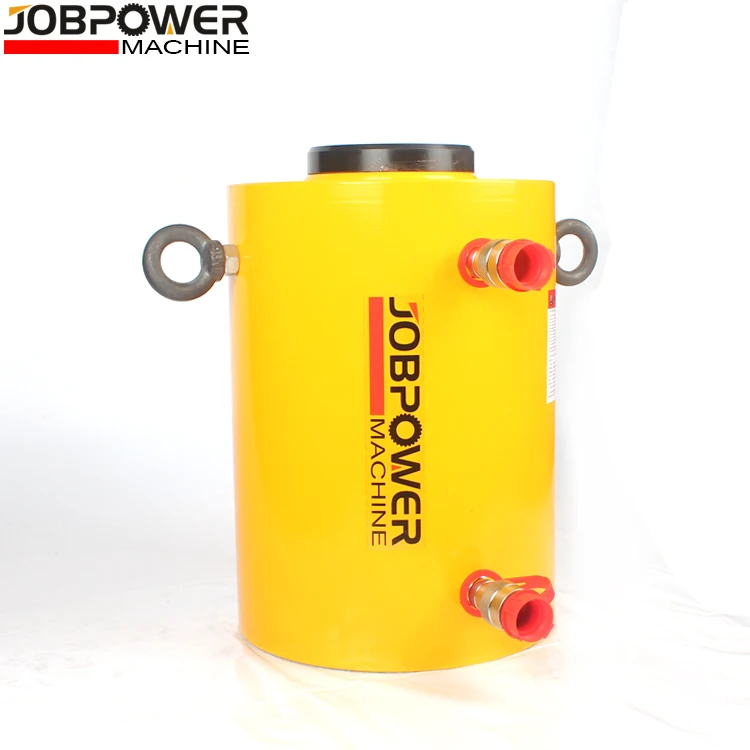

Manufactory Wholesale goldhorn electro hydraulic jacks electric 20t hydraulic jack
- Category: Jacks >>>
- Supplier: Jiangsu JOBA Mechanical Manufacture Co. Ltd.
Share on (62277904842):
Product Overview
Description
| Product name | Hydrualic jack |
| Model | JRR-100Ton |
| Stroke | 168mm |
| Height | 357mm |
| MOQ | 1Set |
| Weight | 61kg |
| Model Number | Cylinder Capacity (T) | Stroke (mm) | Body Height (mm) | Cylinder Out Dia (mm) | Hydraulic Tank Capacity | Piston Diameter (mm) | Weight (kg) |
| JRR-1006 | 95 | 168 | 357 | 177 | 2238 | 100 | 61 |
| JRR-1502 | 150 | 57 | 196 | 245 | 1129 | 125 | 49 |
| JRR-2006 | 200 | 152 | 430 | 273 | 4332 | 145 | 147 |
| JRR-3006 | 325 | 153 | 485 | 325 | 6997 | 175 | 200 |
| JRR-4006 | 440 | 152 | 538 | 358 | 9319 | 190 | 303 |
| JRR-40024 | 440 | 610 | 995 | 358 | 37400 | 190 | 597 |
| JRR-40036 | 440 | 914 | 1300 | 358 | 56037 | 190 | 792 |
| JRR-5006 | 520 | 153 | 577 | 426 | 11164 | 220 | 432 |
| JRR-50018 | 520 | 457 | 882 | 426 | 33347 | 220 | 680 |
| JRR-50024 | 520 | 609 | 1035 | 426 | 44440 | 220 | 816 |
| JRR-50036 | 520 | 915 | 1339 | 426 | 66768 | 220 | 1002 |
| JRR-50048 | 520 | 1219 | 1644 | 426 | 88951 | 220 | 1224 |

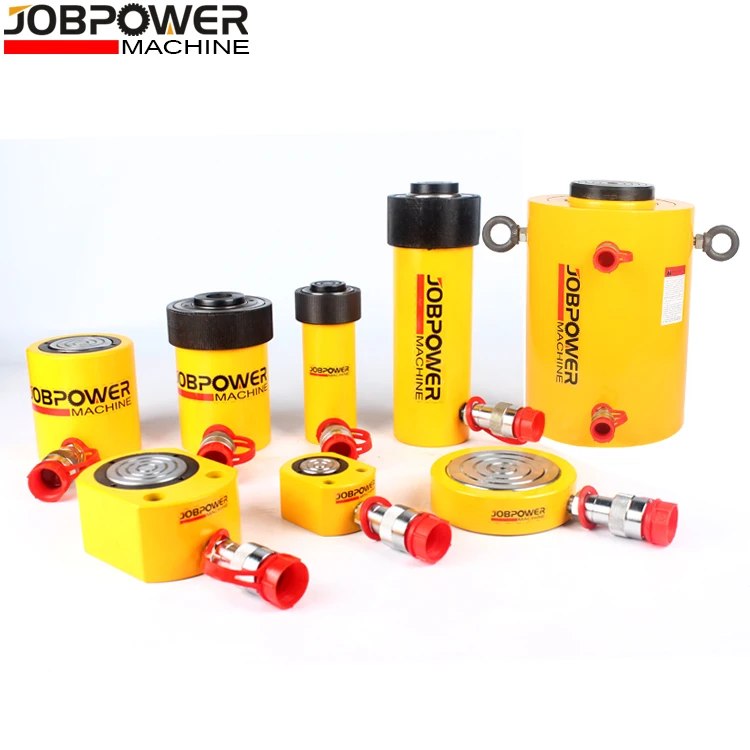

Other hydraulic jack
How to select hydraulic jack:
1. Thin hydraulic jacks are available in low space.
2. Select synchronous hydraulic jack when several jacks are used at the same time.
3. Self-locking hydraulic jack is selected for long time use.
4. Hollow hydraulic jack is available for tension and tension.
5. When the weight of 500t needs to be lifted, the uhp large-tonnage jack can be used.
6. Synchronous jacking system is optional for high progress synchronous jacking.
