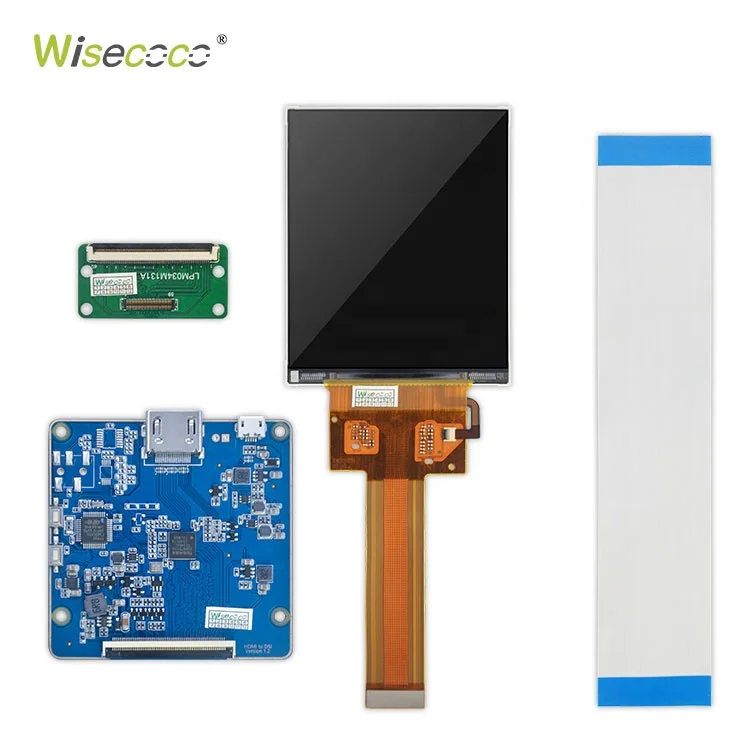

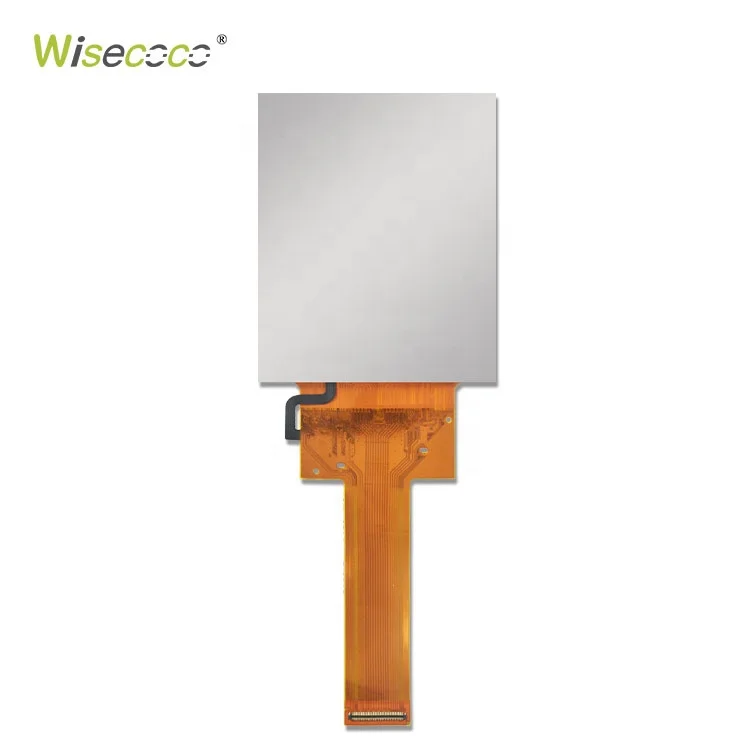

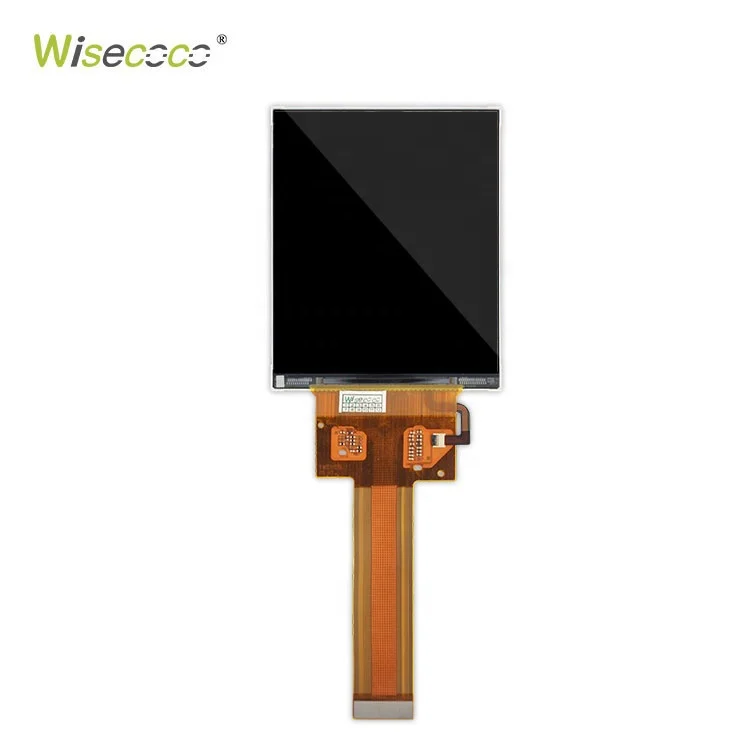

3.4 Inch 651 PPI 1440*1700 High Resolution TFT LCD Display Module Panel Screen For Vr Glass VR Headset

General Features

Diagonal Size

3.4 inch

Type

a-Si TFT-LCD, LCM

Pixel Format

1440(RGB)*1700

Configuration

RGB Vertical Stripe

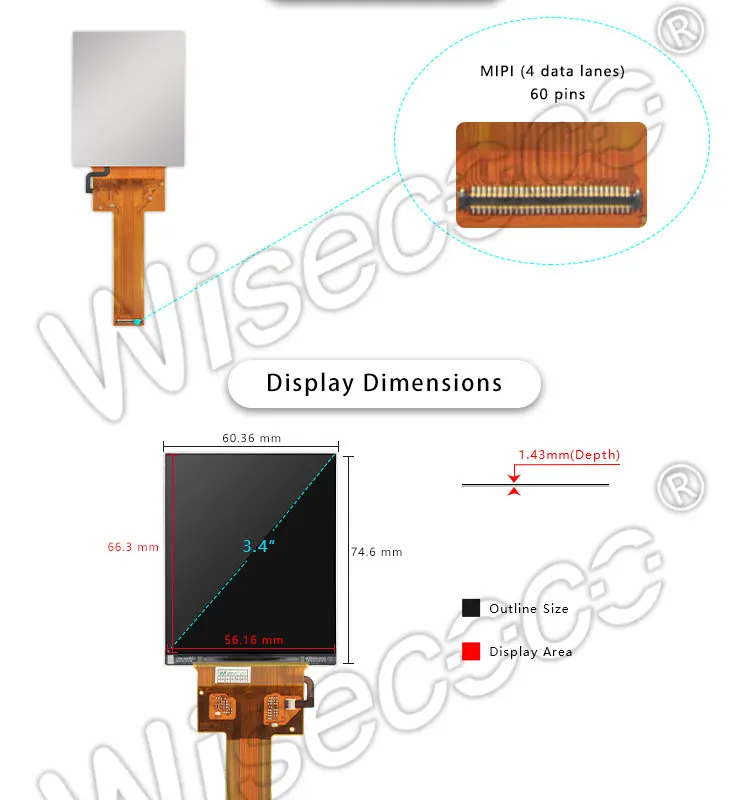

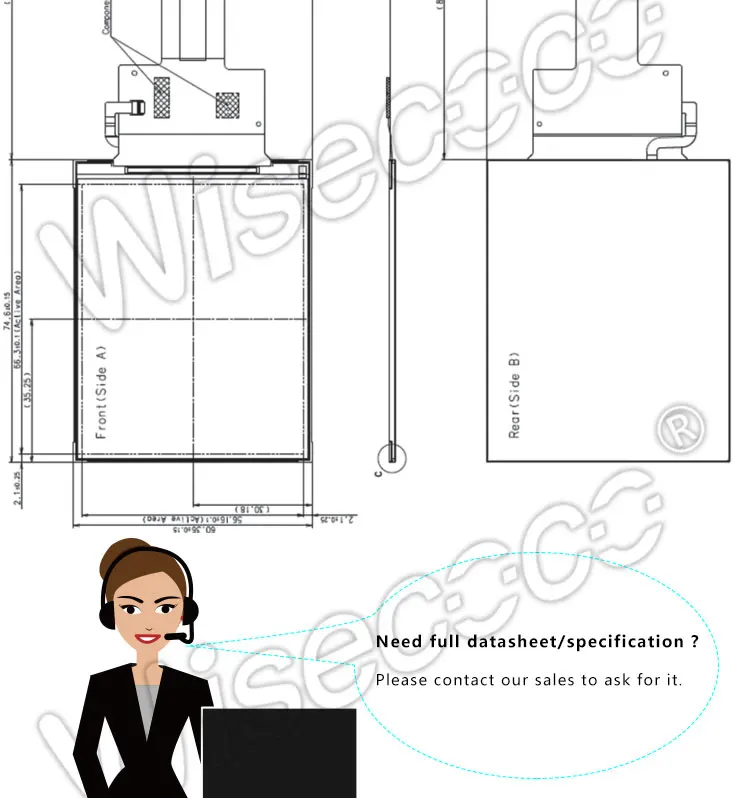

Active Area

56.16*66.3(H*V)mm

Outline Dim.

60.36*74.6(H*V*D)mm

Bezel Area

 -

Treatment

Hard coating

Luminance

150 Cd/m² (Typ.)

Contrast Ratio

800:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

6/2 (Typ.)(Tr+Td) ms

Viewing Angle

Operating Mode

IPS, Normally Black, Transmissive

Support Color

16.7M 71%NTSC

Light Source

5S2P WLED , No Driver

Weight

17.0g (Typ.)

Designed For

Frame Rate

90Hz

Touch Panel

Interface Type

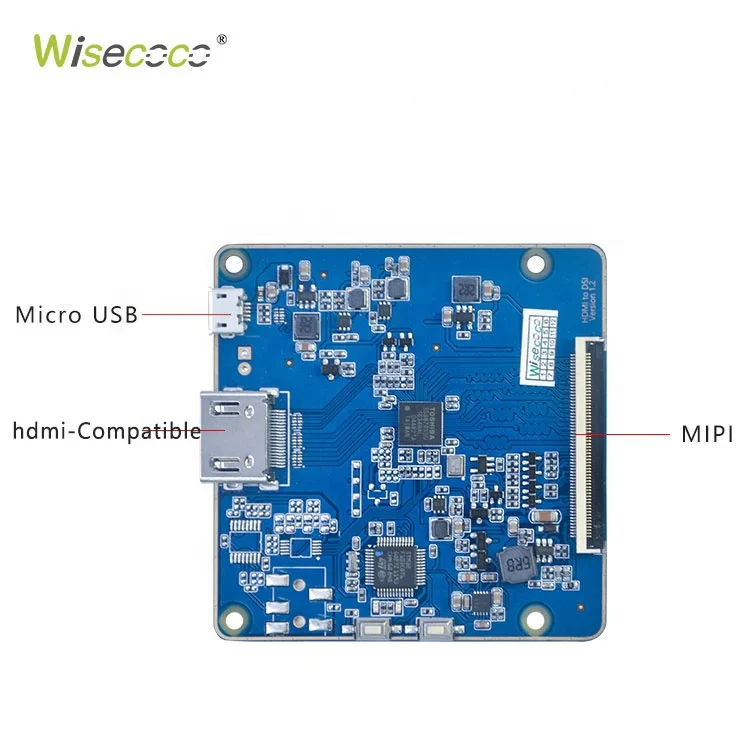

MIPI (4 data lanes) , Connector , 60 pins

Power Supply

1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE)

Environment

Storage Temp.: -30 ~ 60 °C    Operating Temp.: -10 ~ 50 °C
