FRC type frl
- Category: >>>
- Supplier: Ningbo Beot Automation Machinery Co. Ltd.
Share on (62278111855):
Product Overview
Description
Products Description
Nice replacement for FESTO FRC type FR.L / FRL
FRC type FRL pneumatics components.
It includes 2 parts: filter & regulator and lubricator.
But still have 3 function: filtration, decompression and lubricating.
Auto Drain can be selected. All size have overflow function.
Specification: | ||||||||||||||||||
Sizes | MINI | MIDI | MAXI | |||||||||||||||
Port size | M5 | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 3/4" | 1" | |||||||||
Working media | Compressed air | |||||||||||||||||
Mounting type | Pipe mounting or foot mounting | |||||||||||||||||
Assembly position | Vertical ±5° | |||||||||||||||||
Working pressure | 0.5~12bar / 0.5~7bar | |||||||||||||||||
Grade of filtration | 40μm or 5μm | |||||||||||||||||
Temperature range | 0-60ºC | |||||||||||||||||
Materials information | Housing:Zinc alloy or aluminium die-casting; Filter bowl and oil bowl:PC; Metal bowl guard:Aluminium alloy; Sealing:NBR; Adjusting knob:POM | |||||||||||||||||

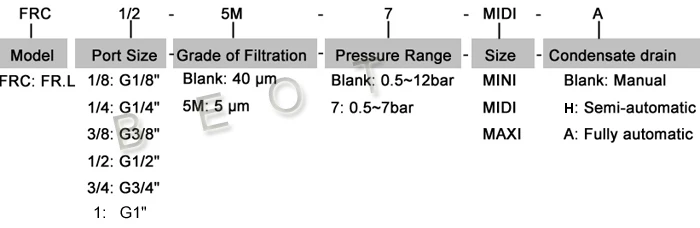

Ordering code:

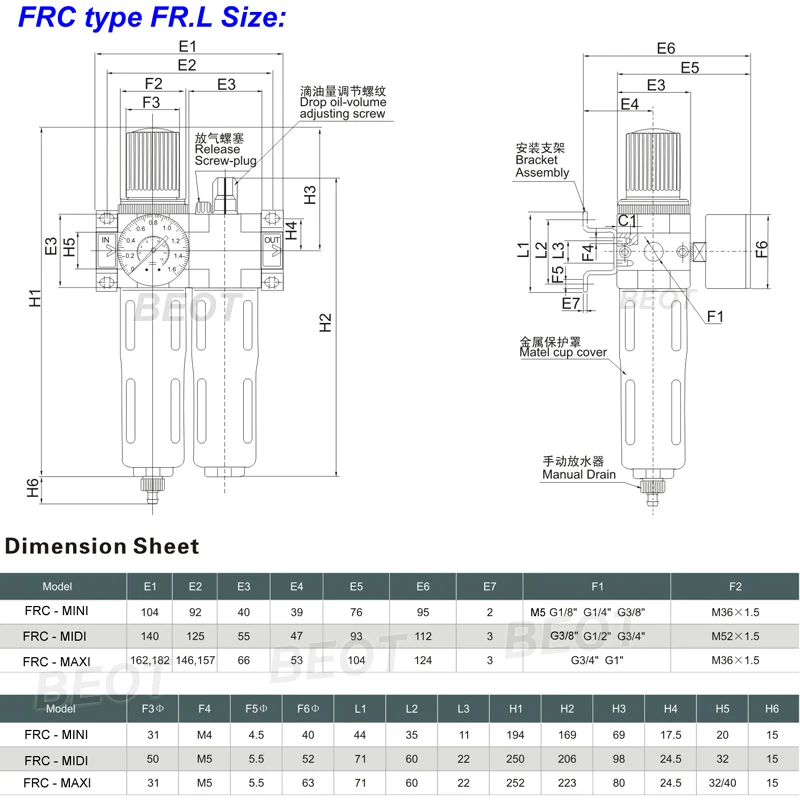

Size:

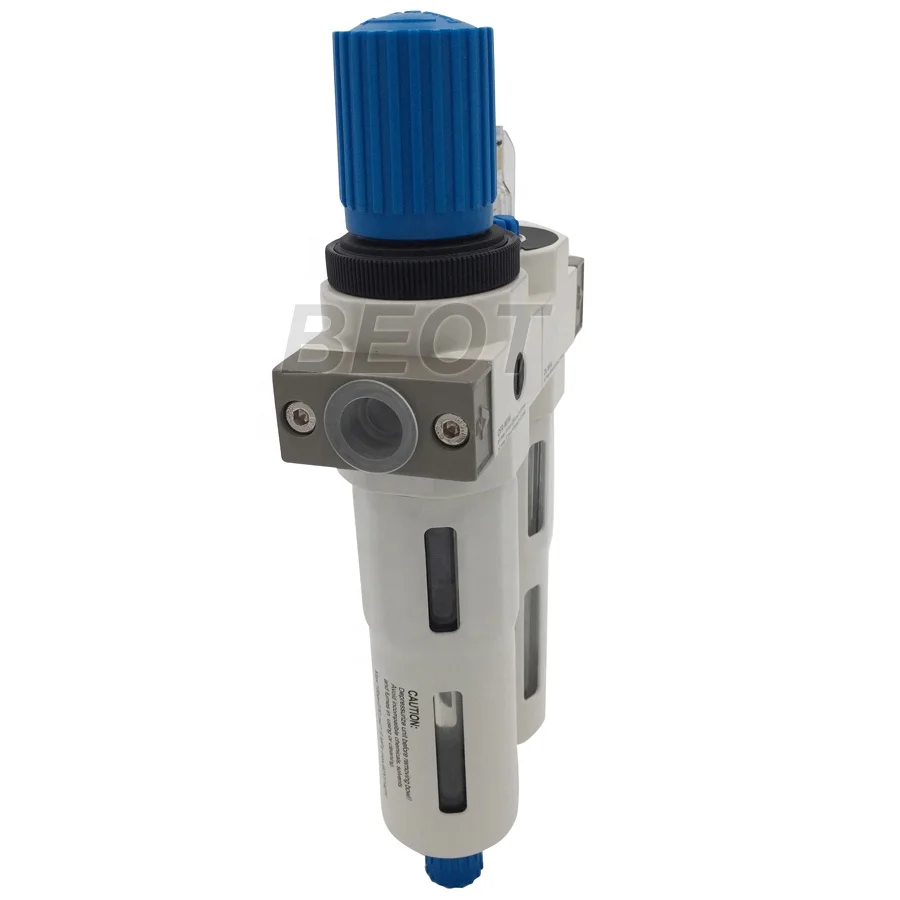

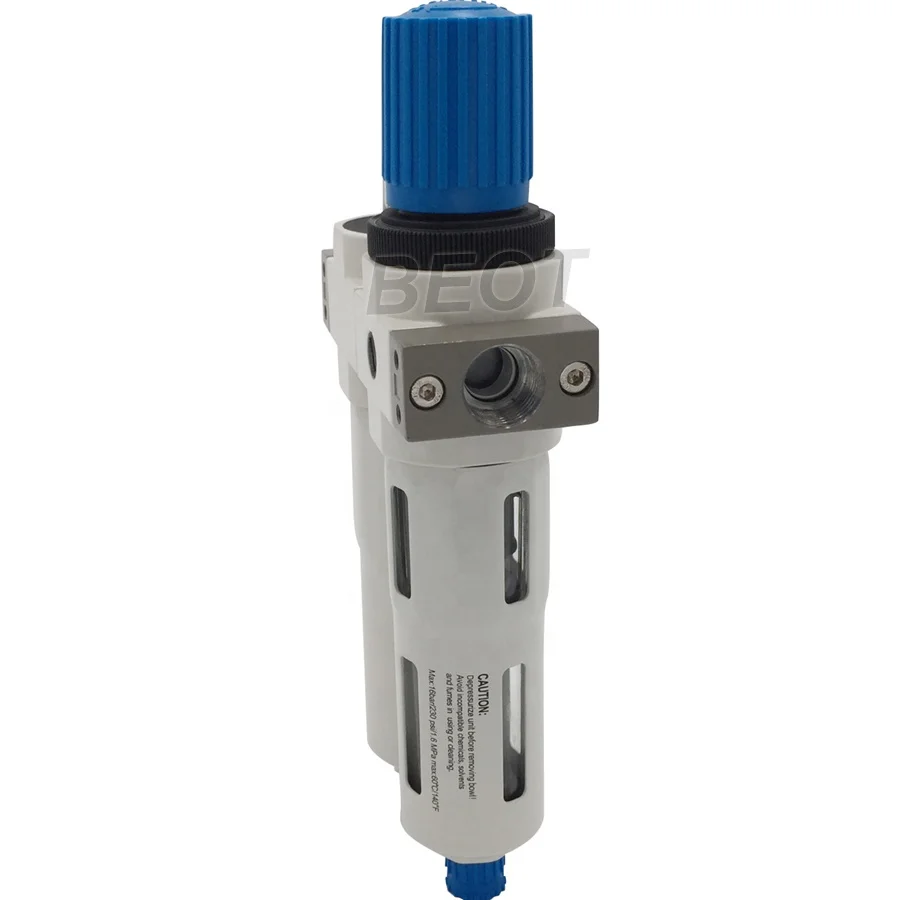

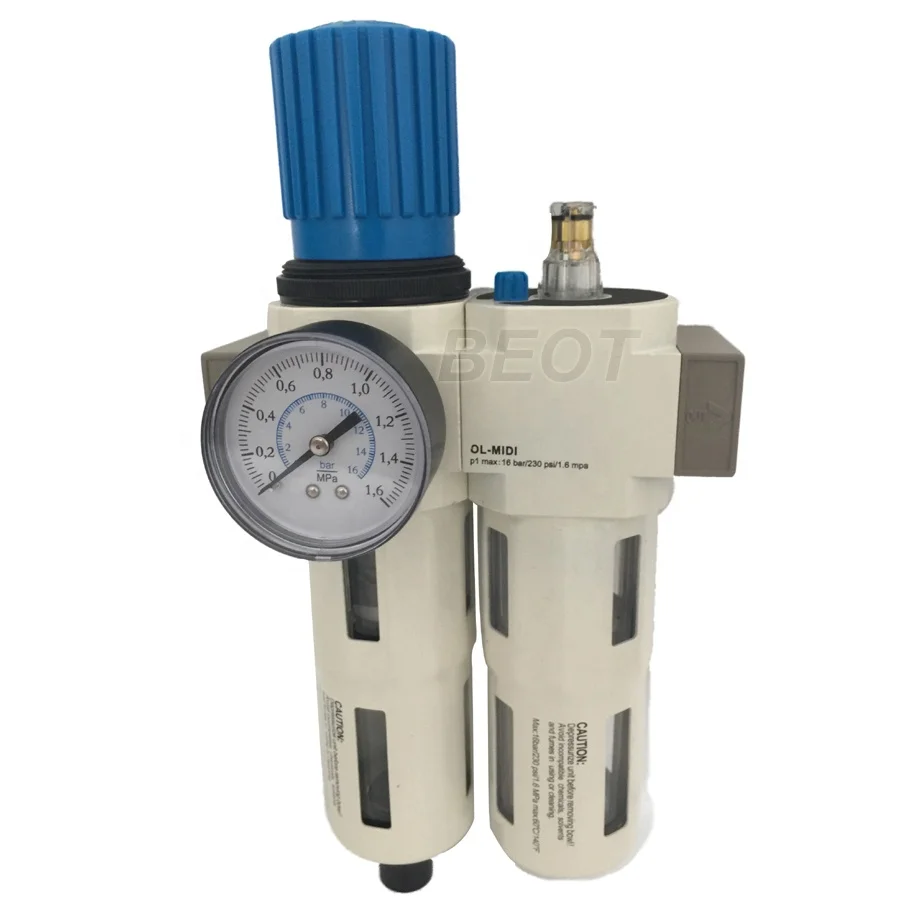

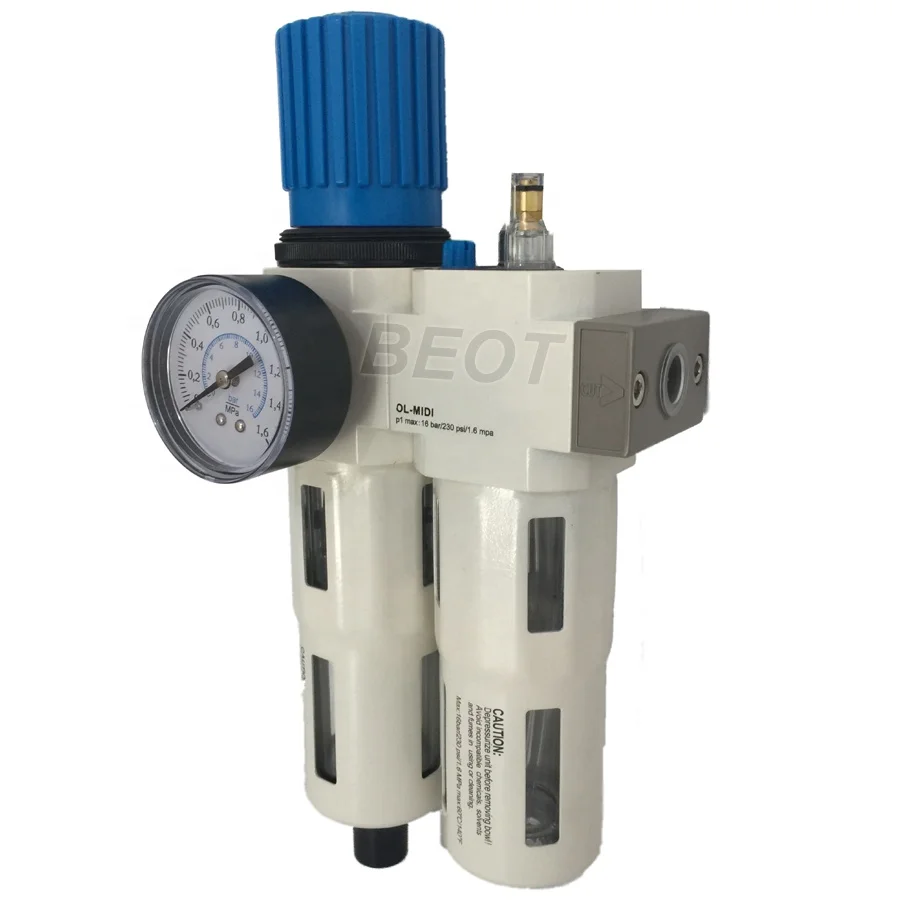

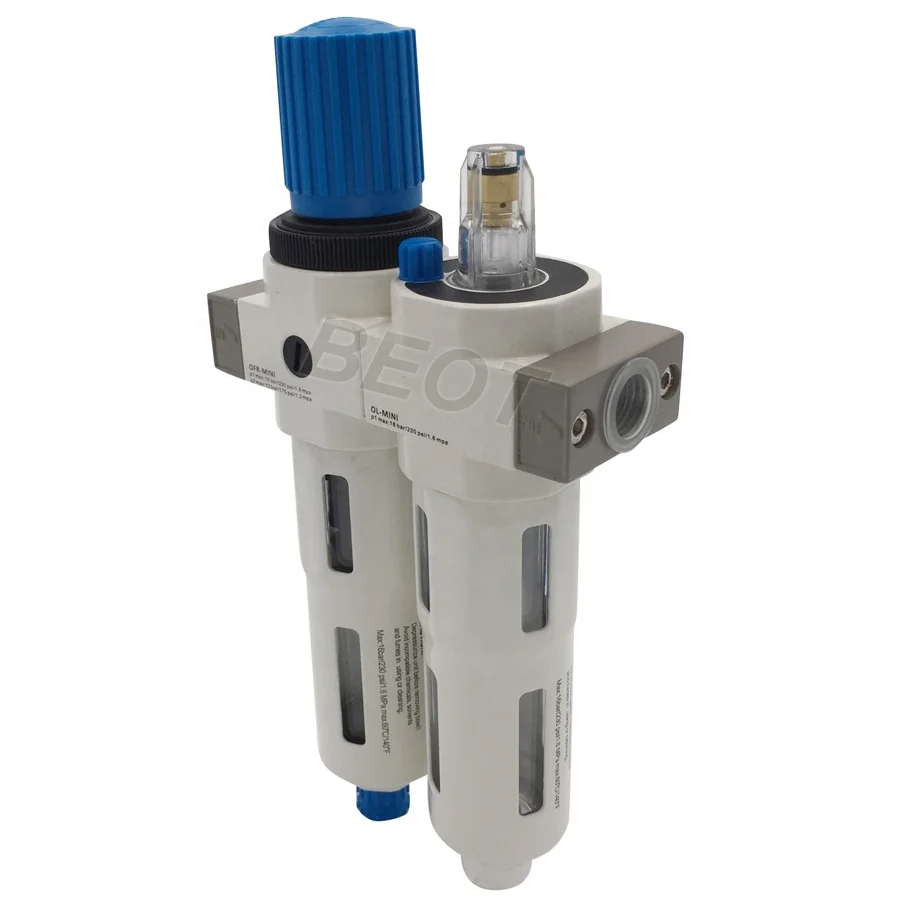

FRC type FR.L Photos:
