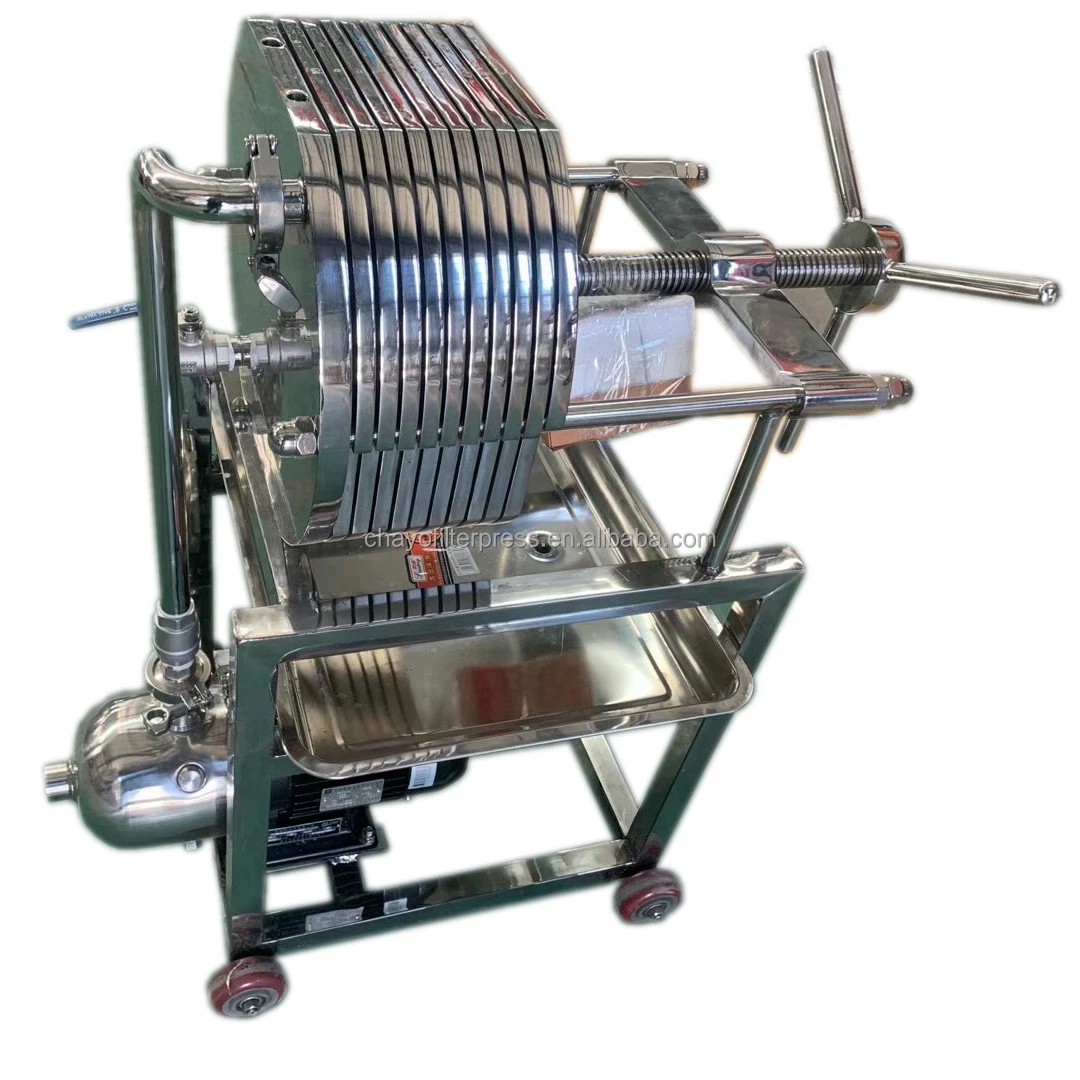

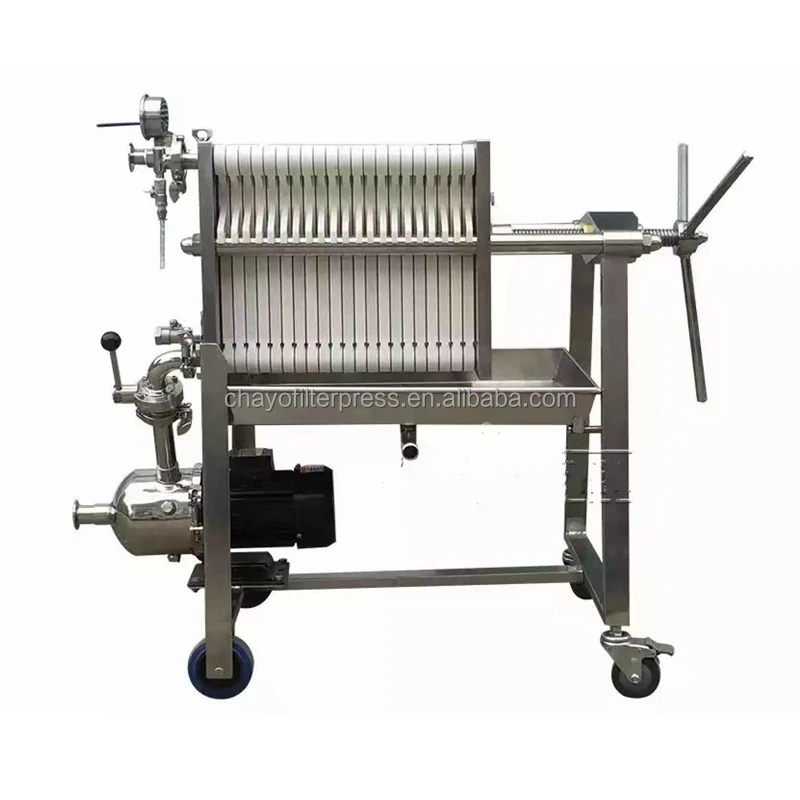

0.5 to 14m3/h stainless plate and frame filter press from China
- Category: >>>
- Supplier: Hangzhou Chayo Environmental&Technology Co. Ltd.
Share on (62278169486):
Product Overview
Description
Product Description

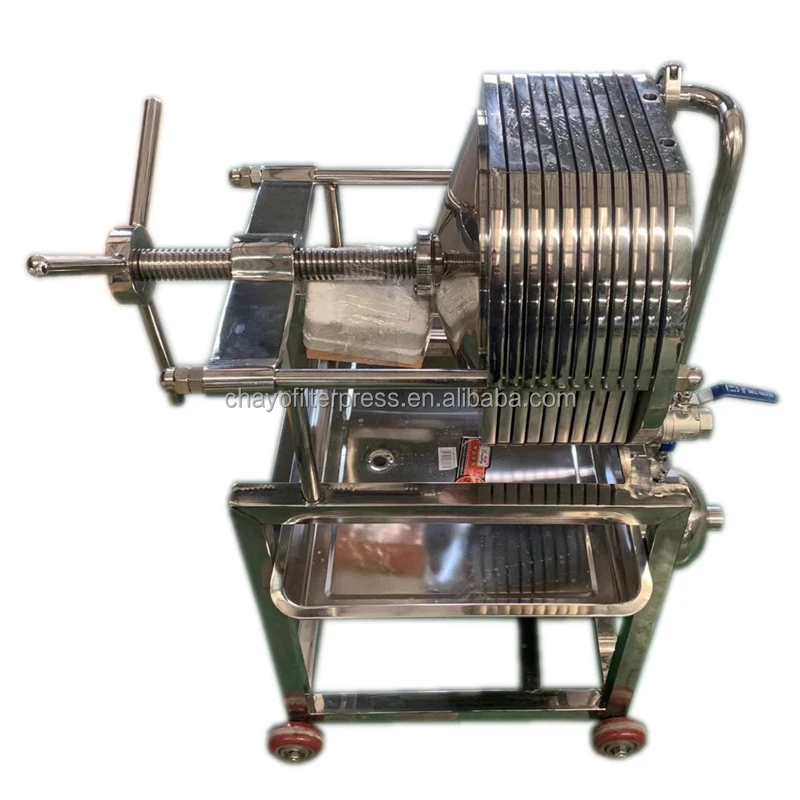

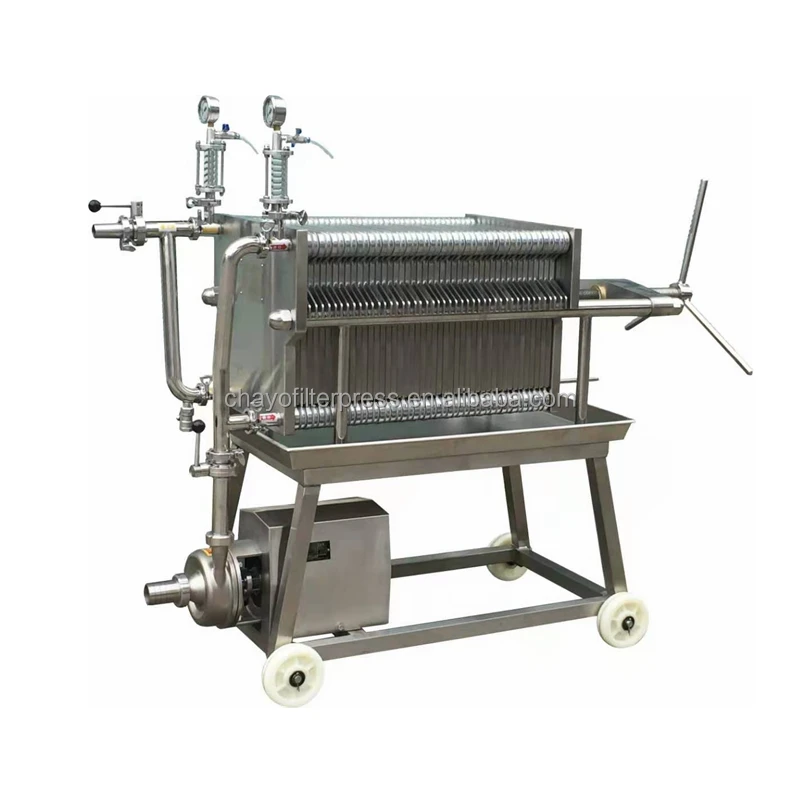

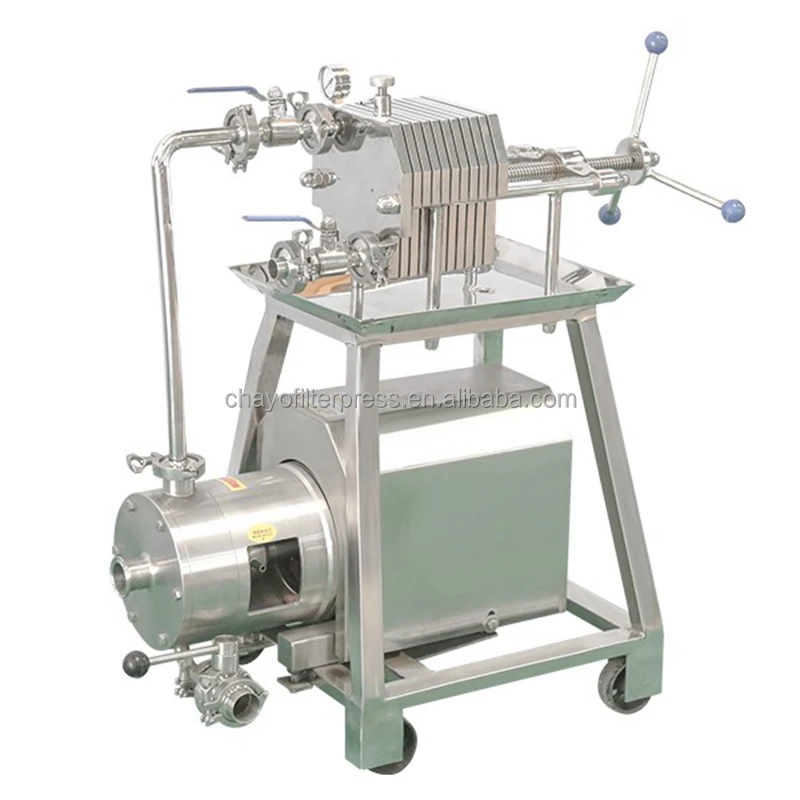

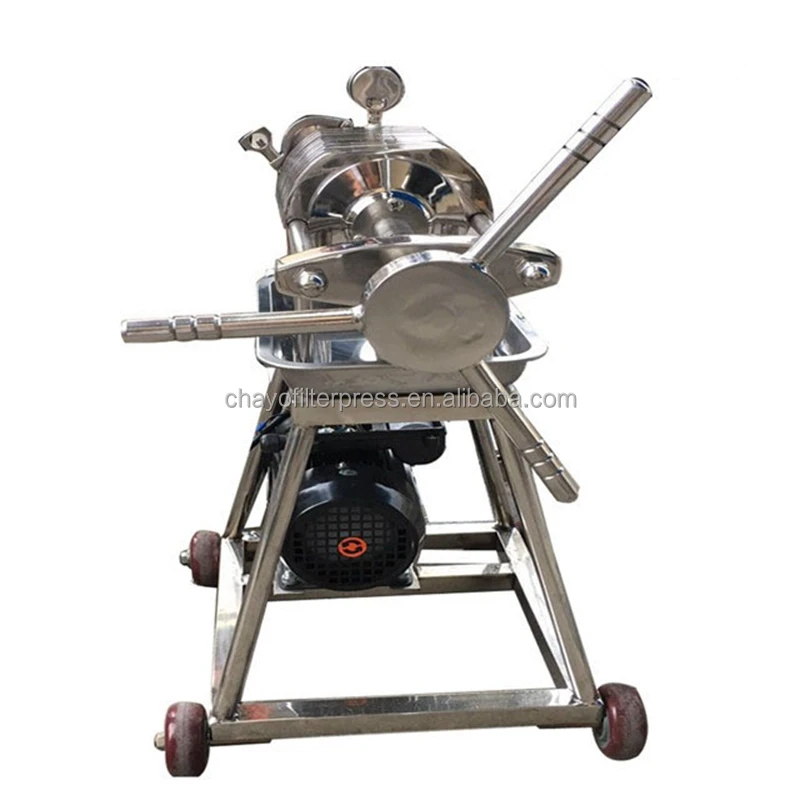

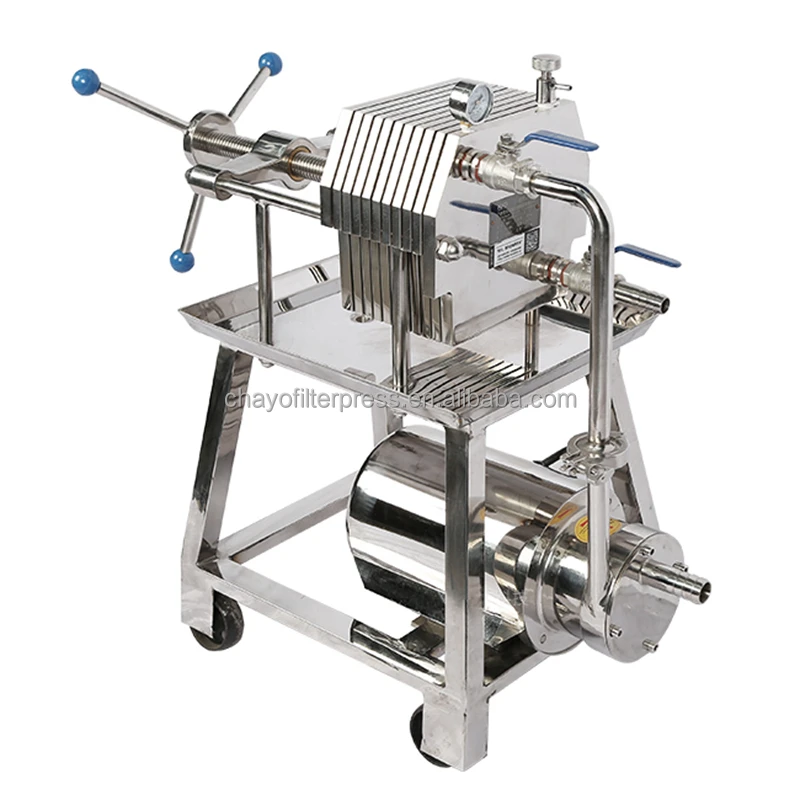

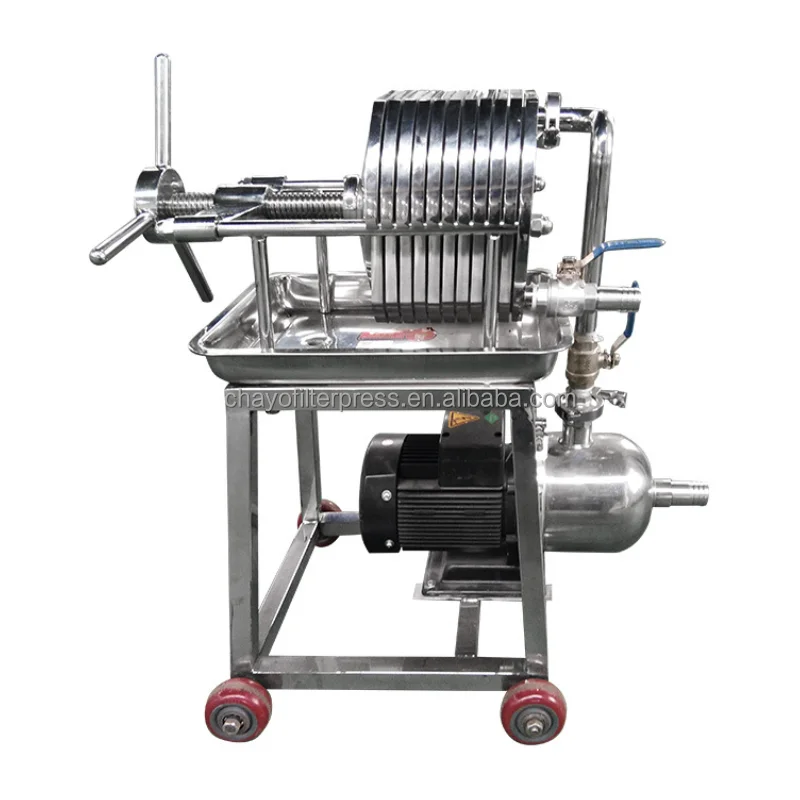

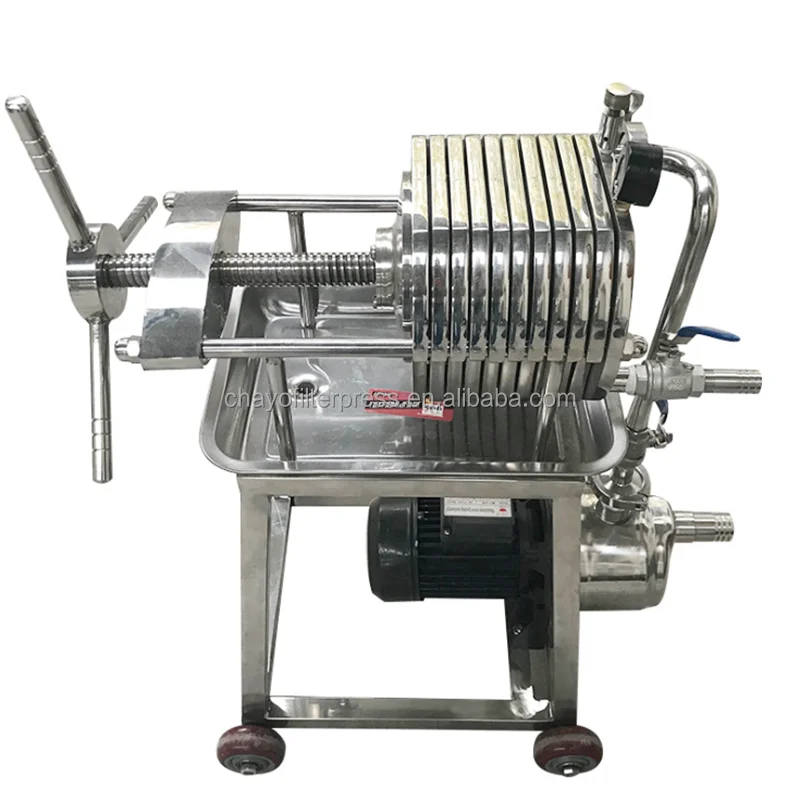

0.5 to 14m3/h stainless plate and frame filter press from China
Applications
1.Pharmaceutical industry:
Antibiotics, Vitamins, API, traditional Chinese medicine, preparation, oral liquid, pharmaceutical intermediate, etc.
Antibiotics, Vitamins, API, traditional Chinese medicine, preparation, oral liquid, pharmaceutical intermediate, etc.
2.Wine industry
Beer ,wine,liquor,Liqueur,yellow wine, sake, fruit wine, medicinal liquor, etc.
3.Food and beverage industry
Fruit juice, dairy products, tea drinks, syrup,honey, sucrose, vinegar, soy sauce, olive oil, tea oil and other edible oil, medicinal oil, etc.
4.Biological industry
Oral liquid, gelatin, seaweed glue, synthetic plasma, plant extract, food additive, enzyme preparation, etc.
5.Petrochemical Industry
Paraffin, resin, Inorganic acid, organic acids, alcohol, benzene, aldehyde, industrial oil, electroplating solution, paint, ink and electroplating wastewater treatment, etc.
Material
Plate material: SUS304, SUS316, PP
Frame material: SUS304, SUS316
Seal ring material: Silastic, EPDM, PTEF, etc.
Adaptable filter material

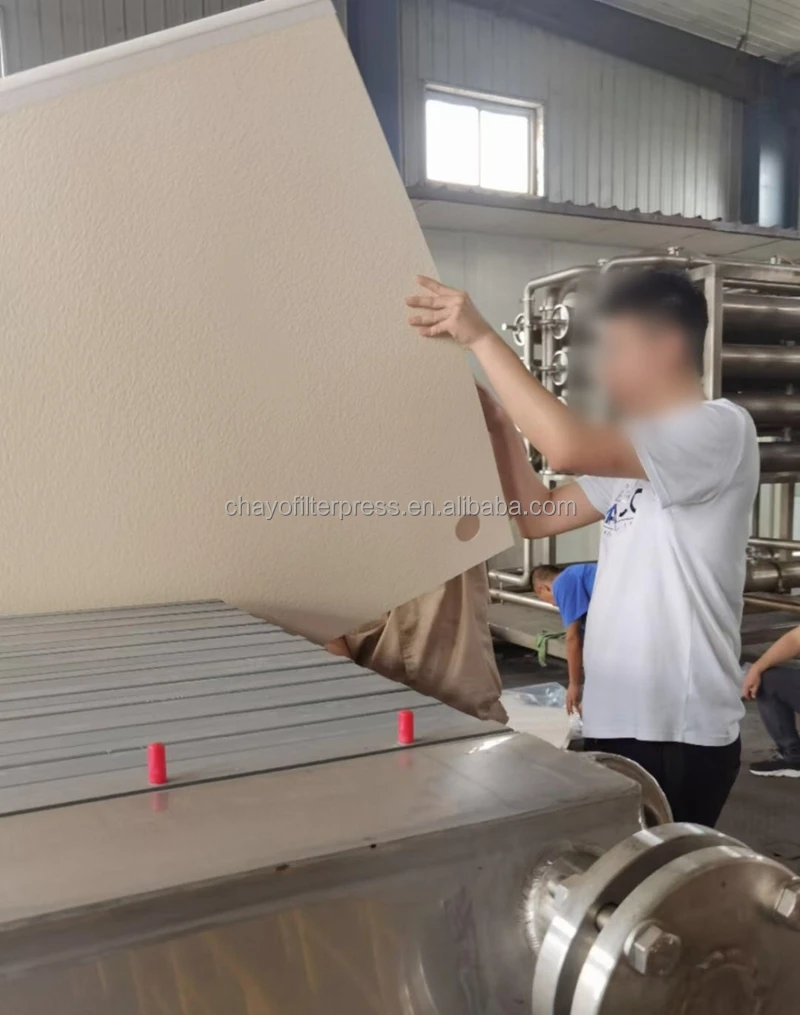

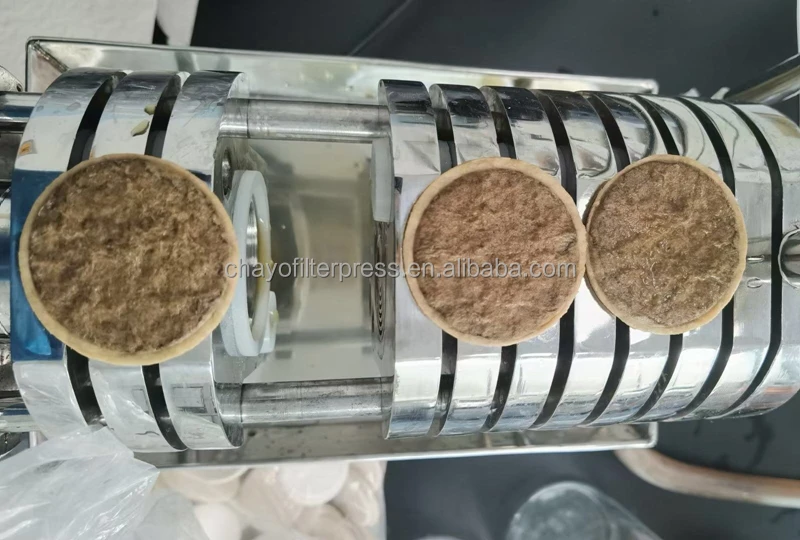

Filter paper, filter membrane, filter cloths, etc.
Filter precision: 0.2 to 150 micron
Pump motor
Single phase or three phase
220V, 380V, 415V, 480V
50Hz or 60Hz
Variable frequency motor, explosion-proof motor etc.
Variable frequency motor, explosion-proof motor etc.
Filter Technical Parameters
Filter capacity/m3/h | 0.8 | 1.5 | 2 | 4 | 6 | 9 | 10 | 12 | 14 |
Filter filtration area/m2 | 0.078 | 0.17 | 0.314 | 0.7 | 1.25 | 2 | 2.5 | 3 | 4 |
Plate size/mm | Φ100 | Φ150 | Φ200 | Φ300 | Φ400 | Φ400 | Φ400 | Φ400 | Φ400 |
Plate Qty. | 10 | 10 | 10 | 10 | 10 | 16 | 20 | 24 | 32 |
Pump motor power | 0.55 | 0.55 | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
ITEM | DATA |
Max. filtration pressure | 3 bar |
Max. filtration temperature | 150 ℃ |
Filter precision | 0.2 to 150 micron |
Plate material | SS304, SS316 |
Frame material | SS304, SS316 |
Seal ring material | Silastic |
Pipes and valves material | SS304, SS316 |
Feed pump material | SS304, SS316 |
Filter pressing type | Manual operation |
Plate type | plate and frame type |
Feed pump | centrifugal pump,AODD pump, etc. |
Motor power | 50/60Hz, Single/three phase,explosion proof,etc. |

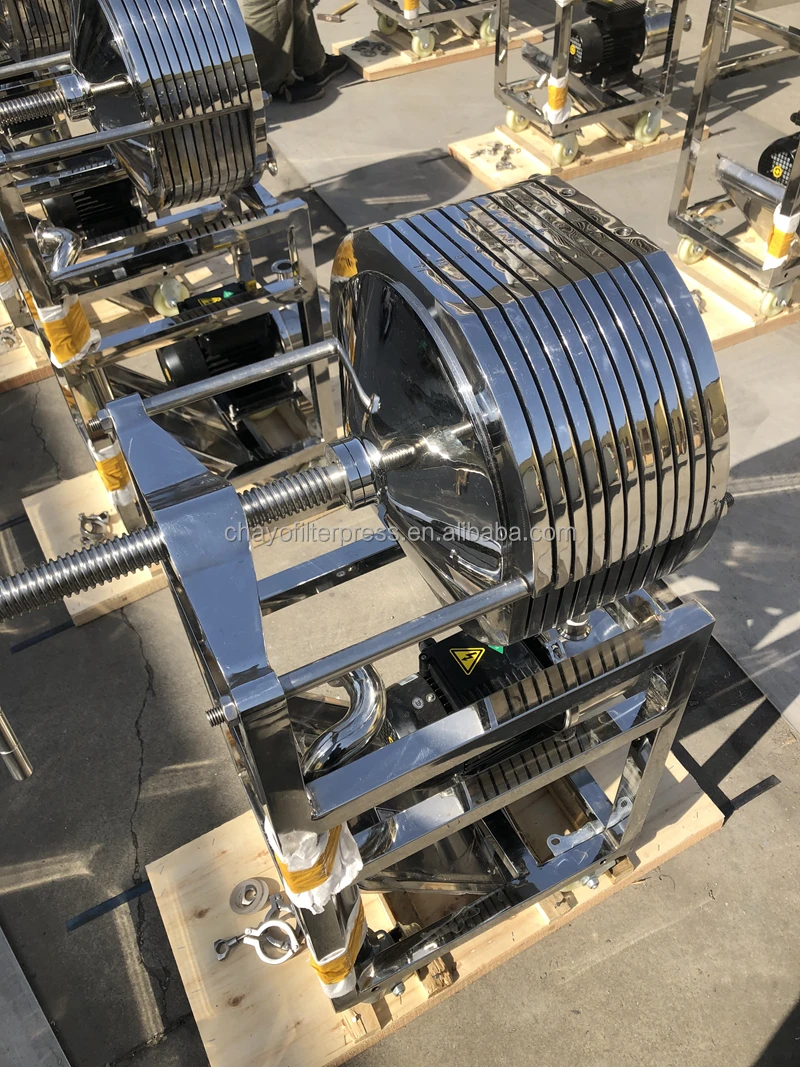

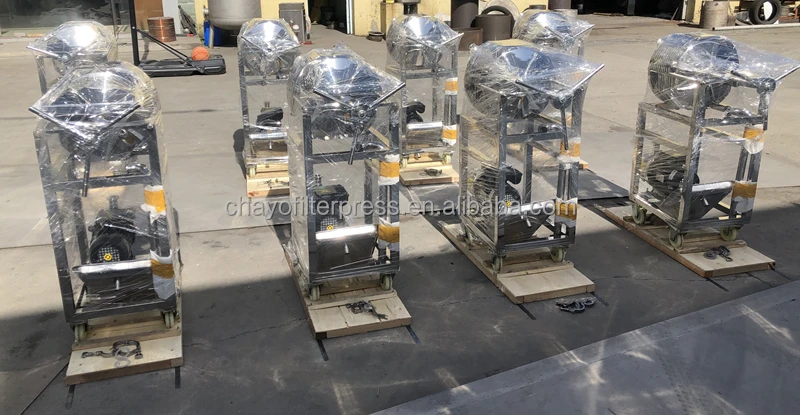

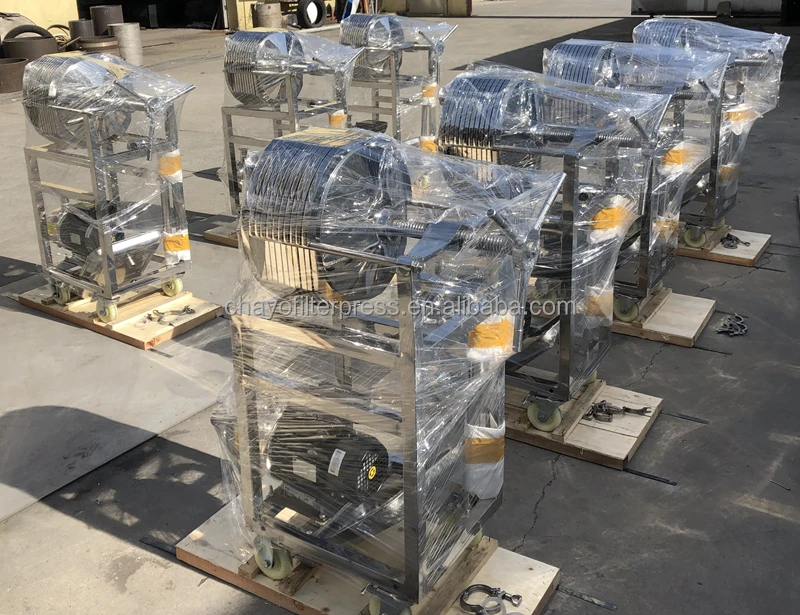

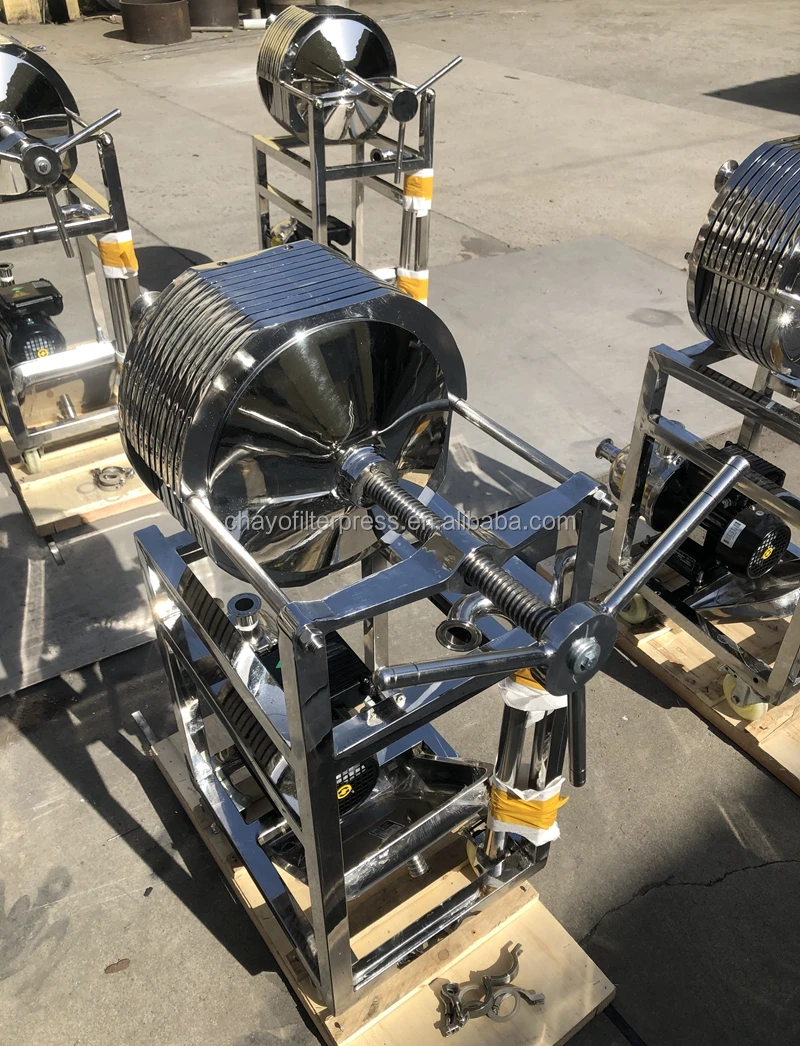

Product packaging

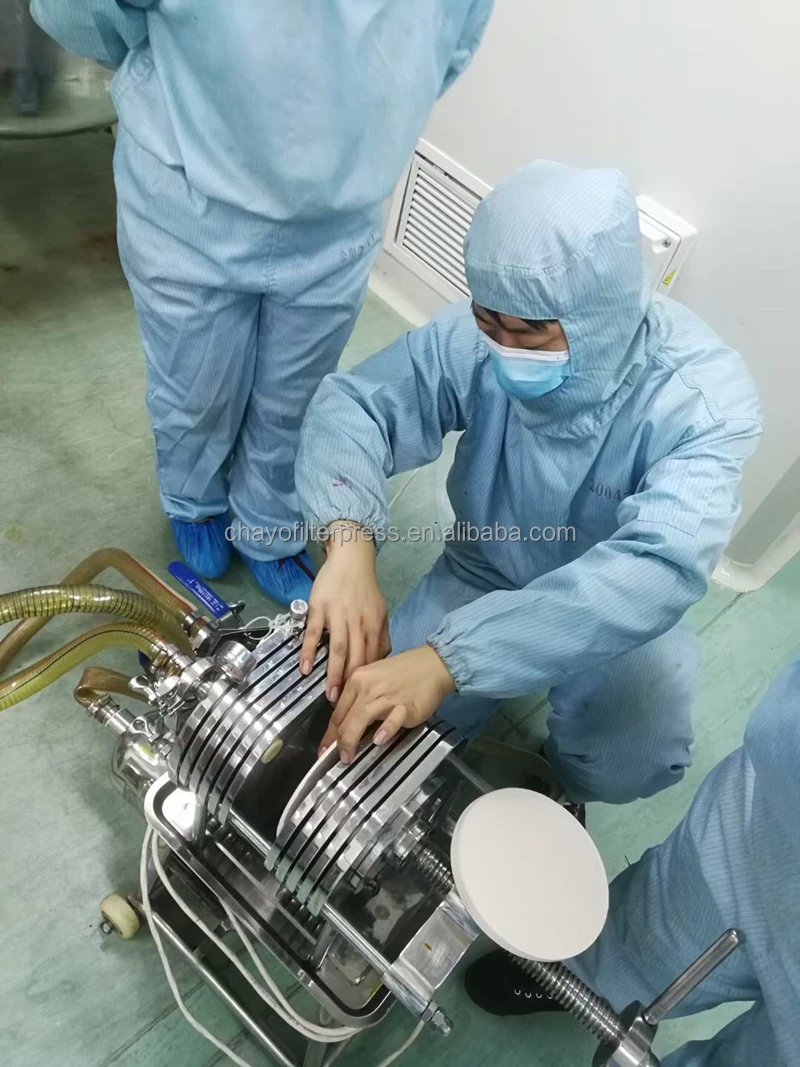

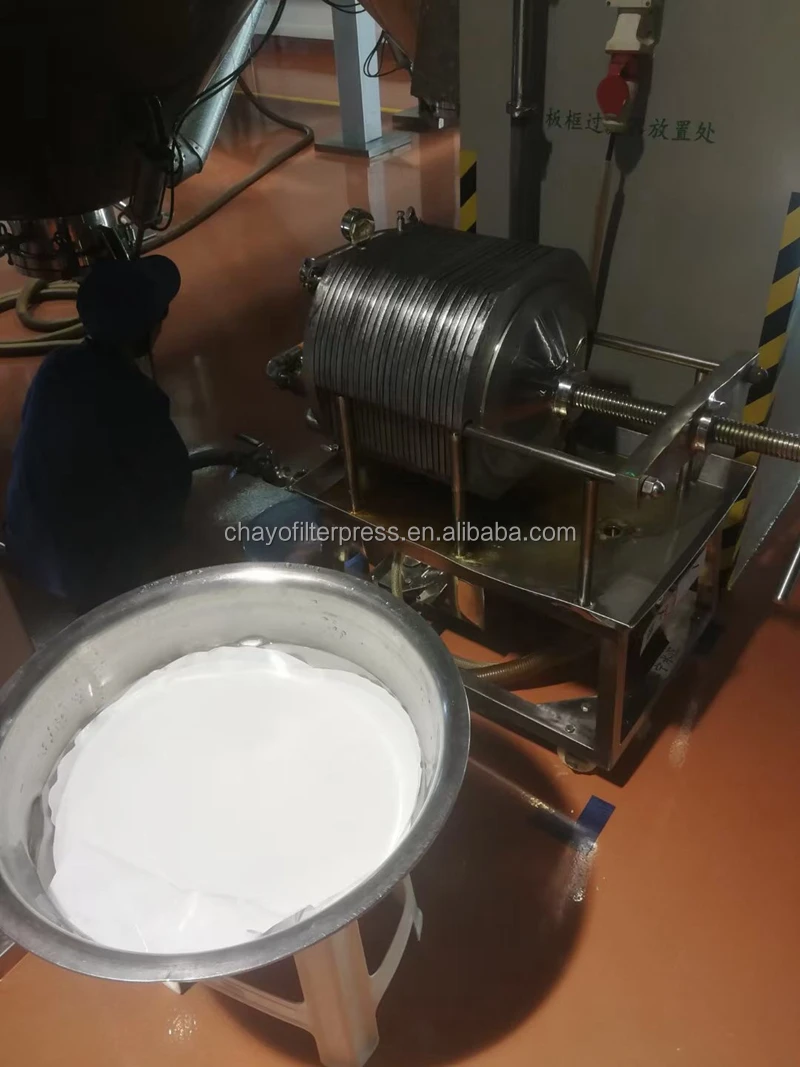

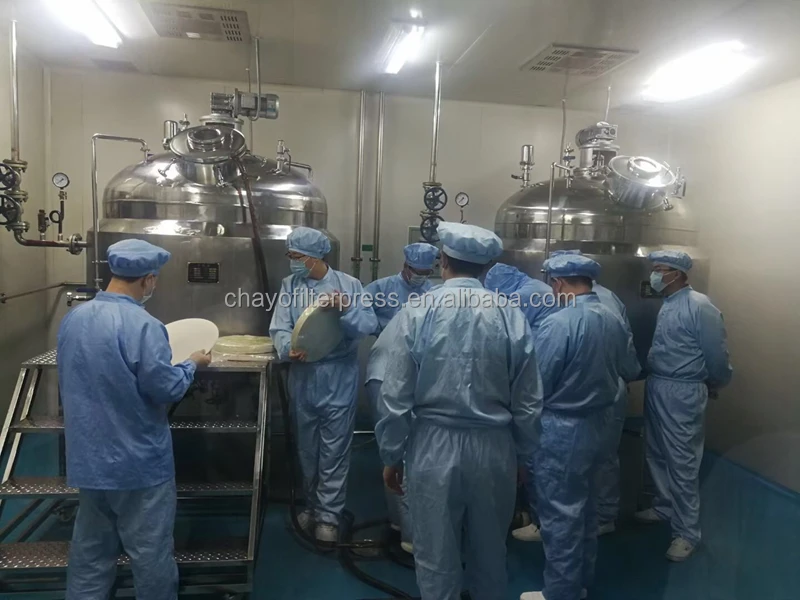

\t\t\t\t\t\t\t\t\tApplication Industry \t\t\t\t\t\t\t

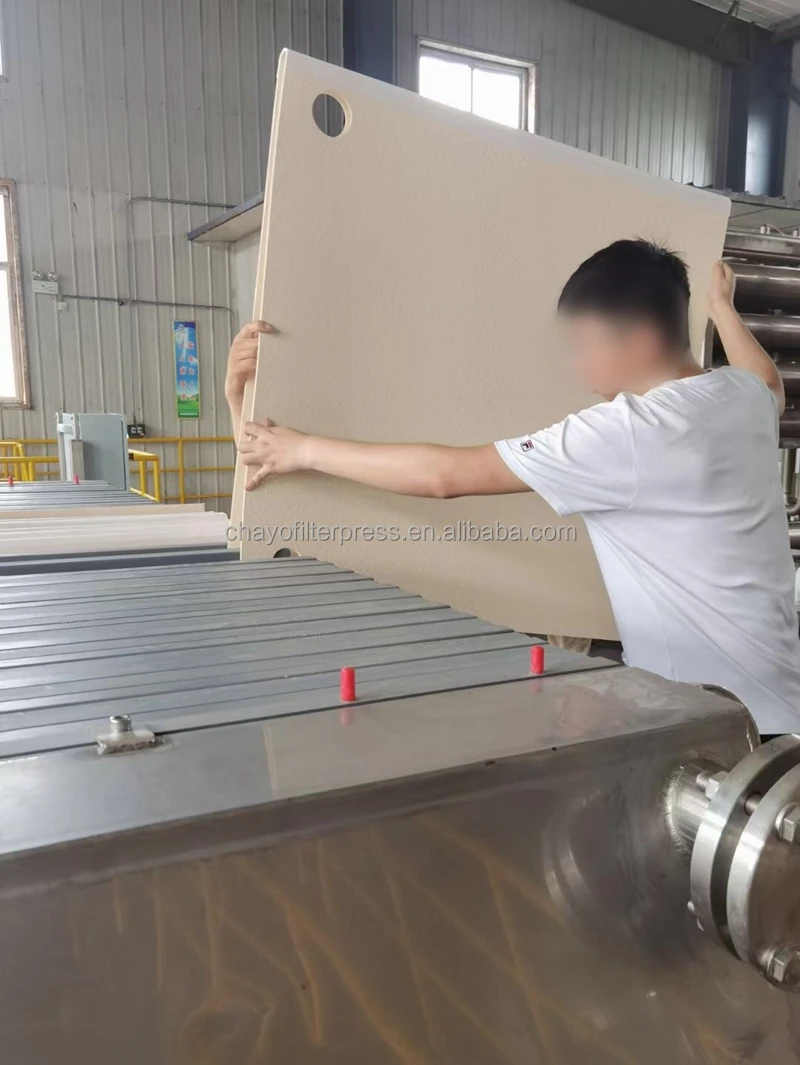

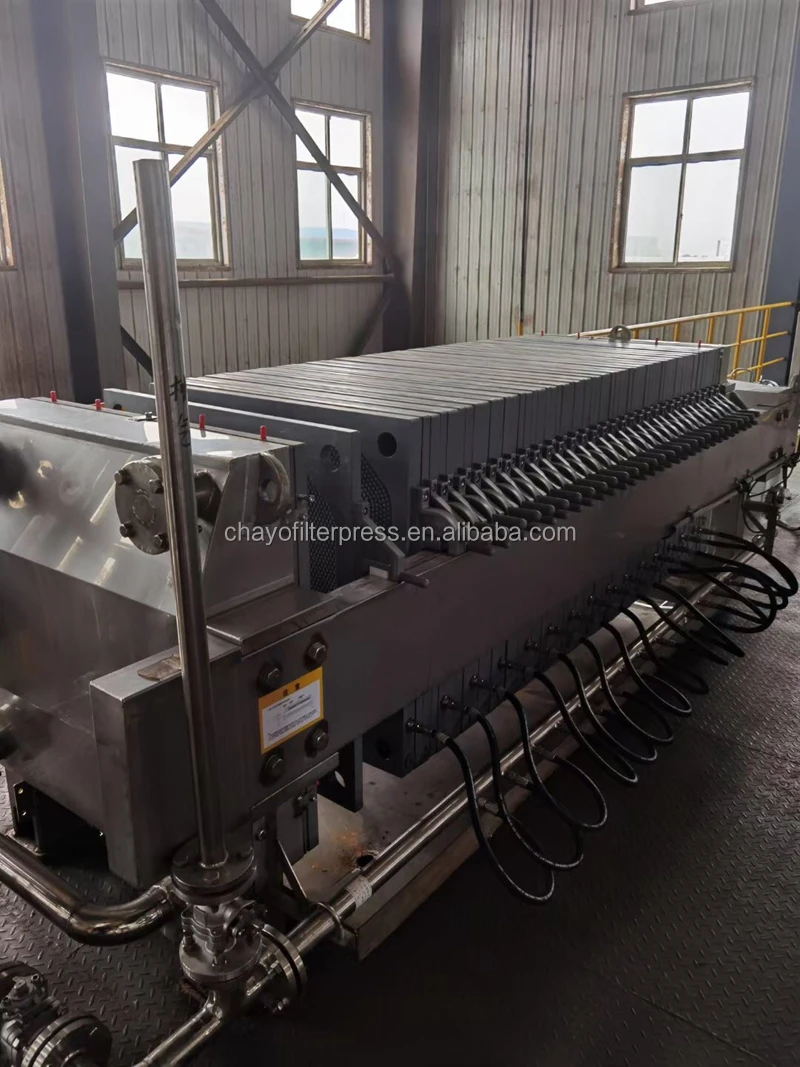

Workshop
\t\t\t\t\t\t\t\t\tCertification \t\t\t\t\t\t\t
About us
Hangzhou Chayo Environmenal Technology Co.,Ltd is a comprehensive high-tech enterprise who supply a complete set of service of press filter including, manufacture,design,install,debugging&EPC. Chayo has more than 10 year experience in field of solid and liquid separation technology,mainly engaged in design &develop of deep dewater treatment of sludge /sewage treatment process and equipment, Chayo has provided more than 1000sets of various equipment and service for numerous deomestic and foreign enterprises, and its products and service have been widely used and won a good reputation.
Chayo offers different series, such as filter press cloth, chamber filter presses, membrane filter presses, plate and frame filter presses,lime dosing device,flocculant dosing device,screw conveyor,antomatic system and sludgeand dewatering equipments and specially designed filter presses according to different filtration materials. our fully automatic palm oil membrane filter presses are for oil fractionation, our automatic carrageenan membrane filter presses have automatic filter cloth washing system, our automatic medicine filter presses comply with GMP requirements, etc. we offer special filter press design services to meet special industrial filtering requirements.
Owning to our rich experience in solid-liquid separation, we optimize the filtration of your plants to meet your special needs. If you need detailed information, please send emails to us.
Ms.Alice long
Hangzhou Chayo Environmental Technology Co.,Ltd
add: 62-2F Yangchen road,pinyao town,hangzhou.zhejiang.
Tel: 0086-0571-86306016
Mob,whats app:0086-13750800179
Email: chayofilterpress@aliyun.com
FAQ
1.Q: How to buy our filter ?
A: Please let us know your email and the following information:
1.1.Please let us know about the filtration process:
1.1.Please let us know about the filtration process:
Such as: liquid name,liquid temperature,liquid viscosity,PH value of liquid etc.
1.2.Please let us know about the capacity of the filter:
Such as: 2.5 t/h, 5m3/h, 3 m3/h and 8 h/d etc.
1.3.Other requirements for filters ?
Such as: automation level of the filter, voltage and frequency etc.
With complete information, ,we will send you quotation as soon as possible.
2.What is the delivery time?
A:15-30 days after receiving your advanced deposit.
3.Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
4.Q: How about the packing?
A: export standard pallet or as customer's requirements.
A:15-30 days after receiving your advanced deposit.
3.Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
4.Q: How about the packing?
A: export standard pallet or as customer's requirements.
