Automatic heating and defogging light curtain used for ETC AVC sensors vehicle detection sensor
- Category: >>>
- Supplier: Shenzhen ESPE Technology Co. Ltd.
Share on (62278176178):
Product Overview
Description

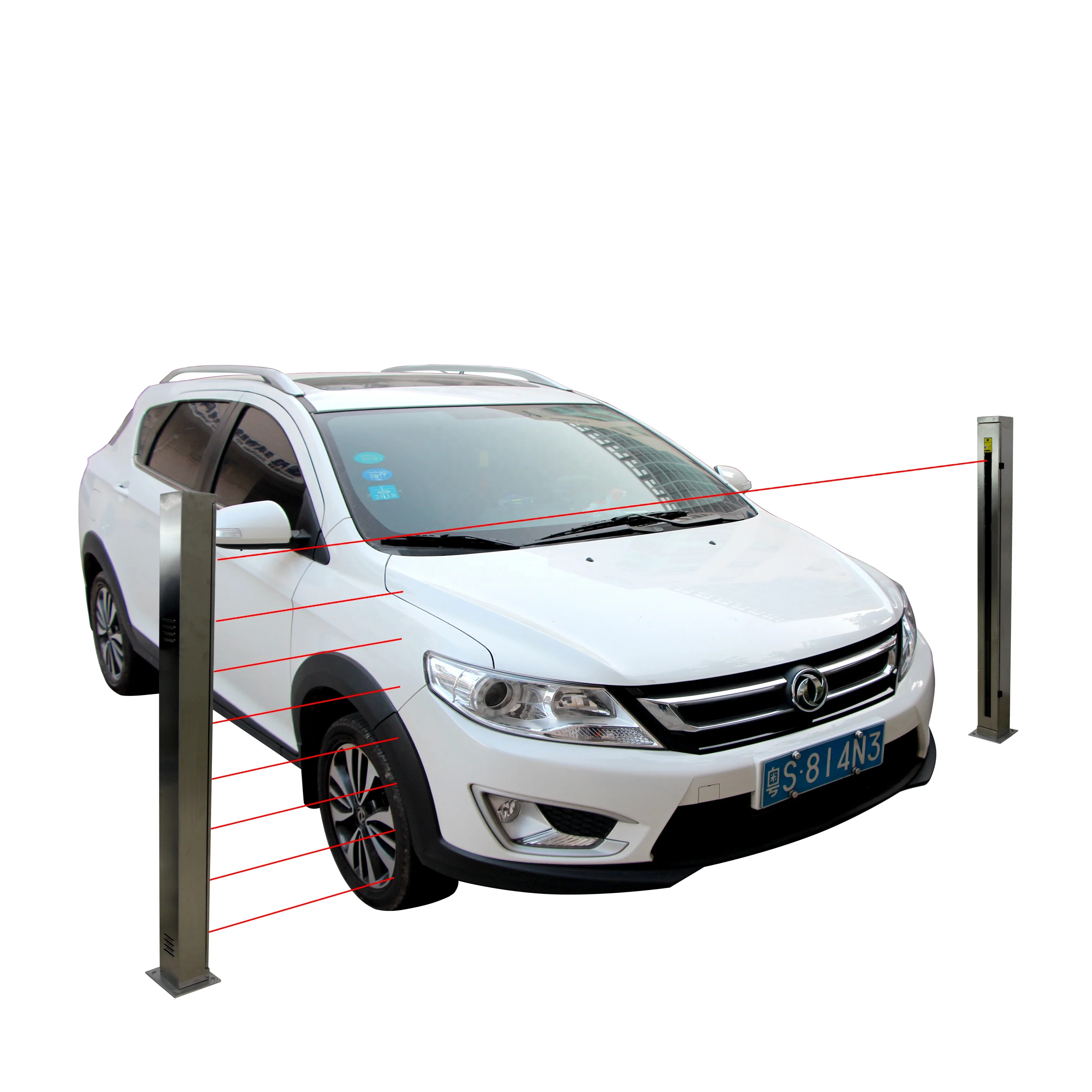

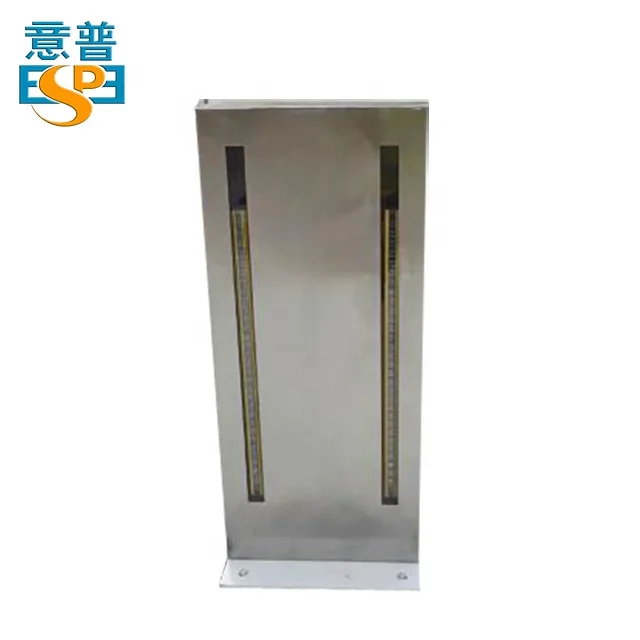

Automatic heating and defogging light curtain used for ETC AVC sensors vehicle detection sensor
Products Description
ESCC series Vehicle detection light curtain sensor
Ultra-long detection deistance,the exterior enclosure provided with automated temperature adjusting fuction ,well application to Unmanned Charging System,ETC,AVC,WIM and Custom Vehicle Management System，etc..
MOQ:1 set The shortest delivery time:1 working day
Certification:FCC and CE
Warrenty:1 year
Shipping:Support Express（DHL，Fedx，TNT etc.）, Air freight and Sea transportation
Products Advantages
Product Paramenters
Measuring Height | 1240mm | Working Tmeperature | -40℃-80℃ | ||
Beam Gap | 40mm | Resolution | 45mm | ||
Power Voltage | DC10V-24V | Waterproof | IP67 | ||
Watts of light curtain | ＜5W | Response Time | ＜20 ms | ||
Insulation Resistance | ≥100 MΩ | Deploy form of Infrared | Oppposite type | ||
Sensing Distance between emitter and receiver | 20 meters | Sectional Dimension of light curtain | 35*50mm | ||
Output Mode | (Standard)NPN NO. others can be customize,such as PNP | ||||

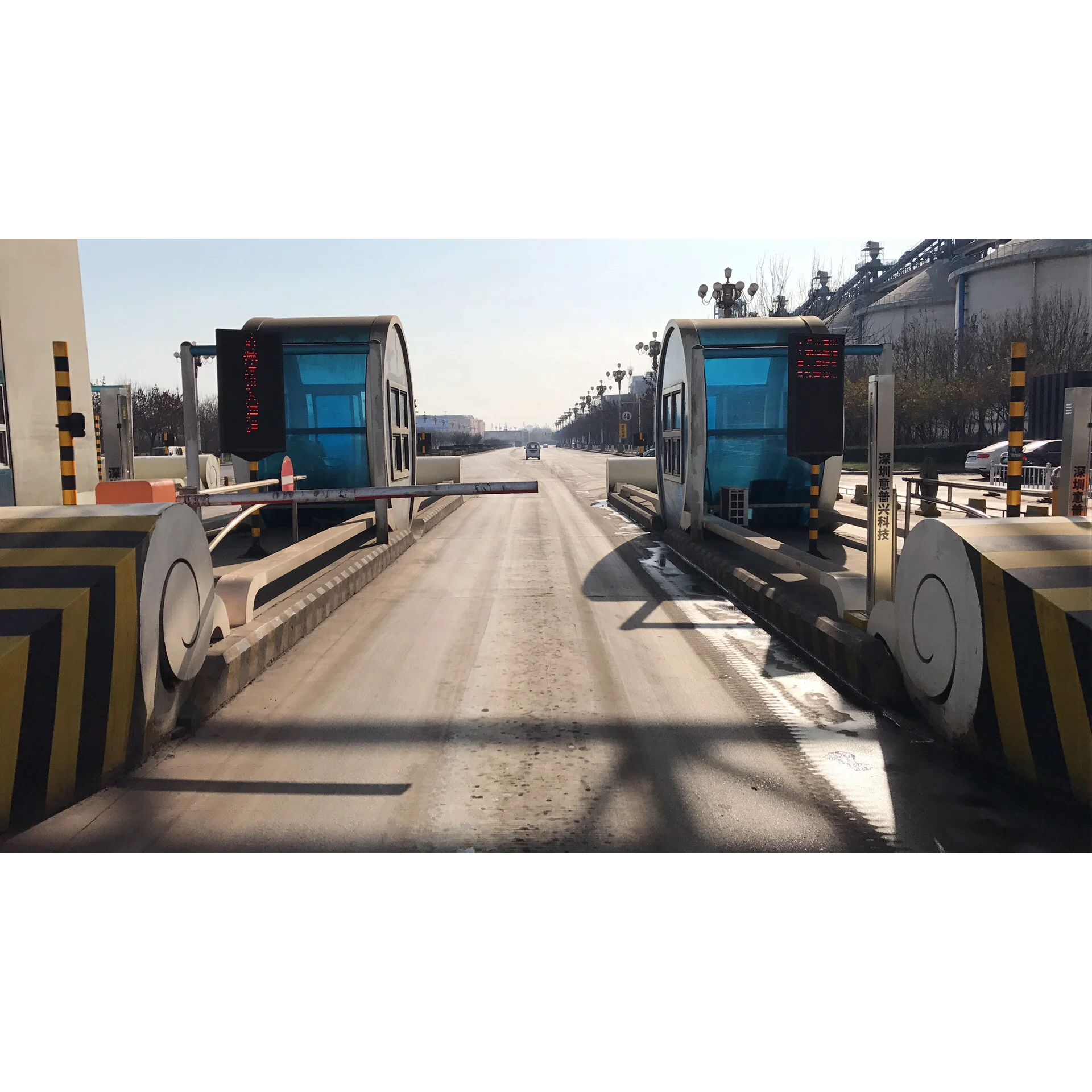

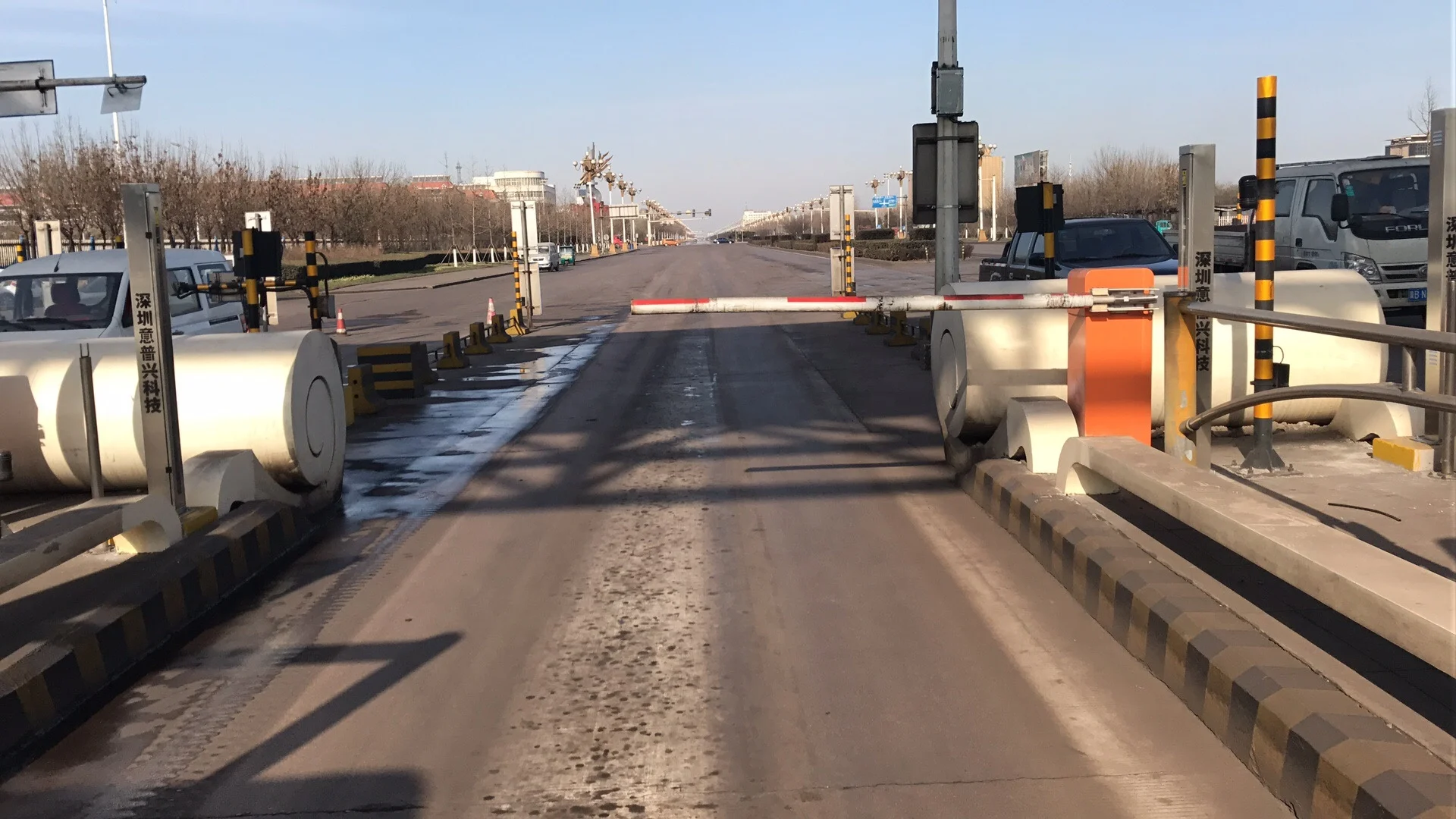

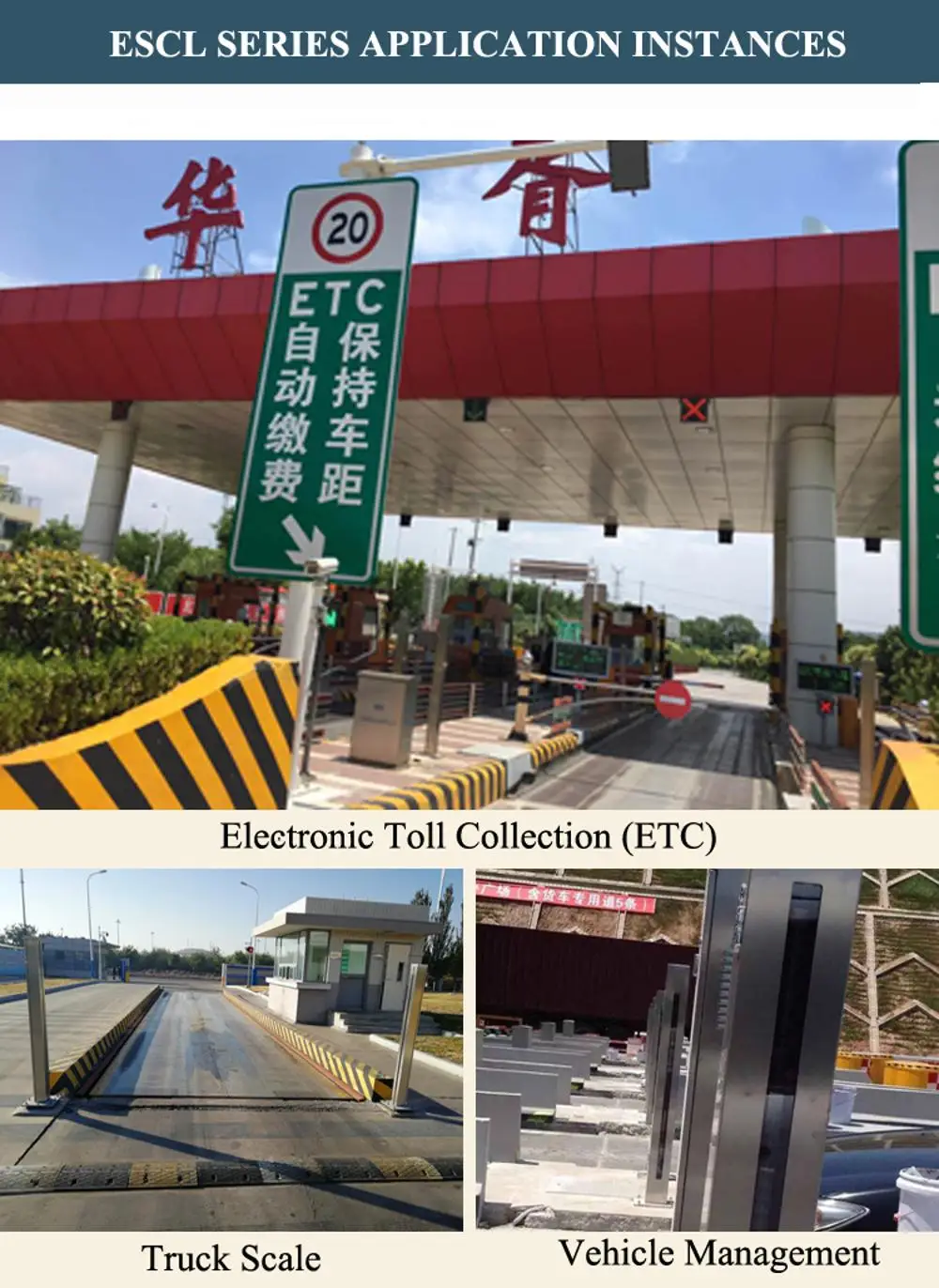

Application Instances
Recommend Products
Company Profile
Shenzhen ESPE Technology Co.,ltd is a Hitech manufacturer, which specializes in R&D and production of infrared safety&measuring&detection light curtains.
As China's pioneer since 2003,we became one of the three co-drafters of National Safety Standard of Machinery Industry,China.
Package&Freight
Support Express and Air freight and Sea transportation
Each set of safety light curtain will be paking into one carton
FAQ
FAQ
1.The products voltage
AC: working voltage is DC24V , other requirements can be customize.
2.Can it automatice heating ?
AC: Yes,the exterior enclousure privided wiht automated temperature adjusting function
3.Is the light curtain waterproof?
AC: The waterproof level of the safety sensor is IP65. If you wanna IP67 or more,you can customize the exterior enclosure.
4.How long will you take once a order placing?
AC: We are MFR of safety light curtain, having a large inventory, for the standard products,the leading time is 2-3 days.
5.Do you have the QA?
AC: We provide one year warranty.
