HSS Metric/Inch keyway broaching tool set with shim and bushing
US $69.00-$388.00
18pcs CNC Keyway Broaches Set 1/2 1 1/2 Broach Bushing Shim Set Inch Sized High Speed Steel Cutting Tool
- Category: Broach >>>
- Supplier: Zhengzhou Lanchen Electronic Technology Co. Ltd.
Share on (62278392146):
Product Overview
Description

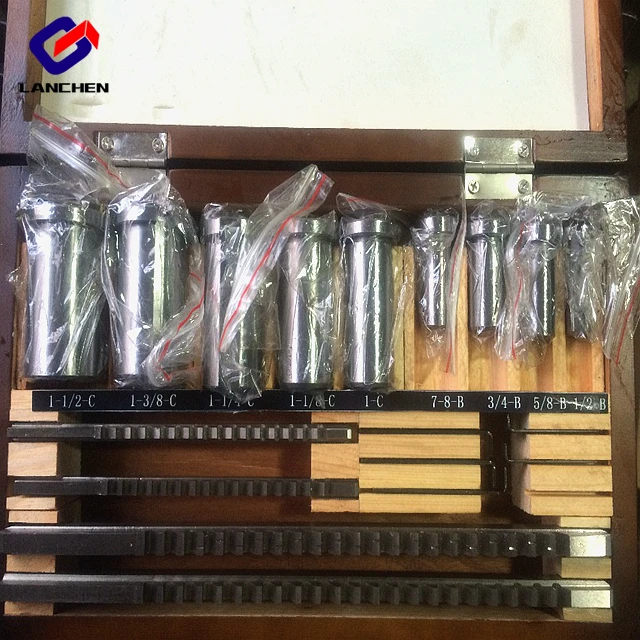

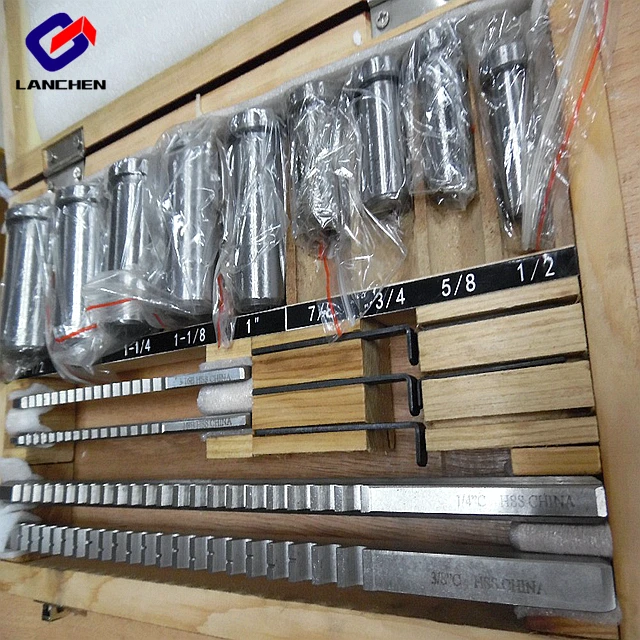

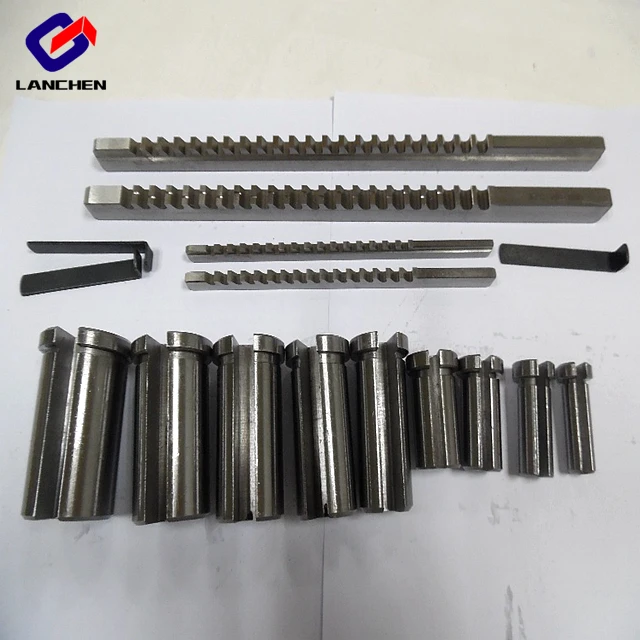

18pcs CNC Keyway Broaches Set 1/2-1-1/2 Broach Bushing Shim Set Inch Sized High Speed Steel Cutting Tool
Product Description

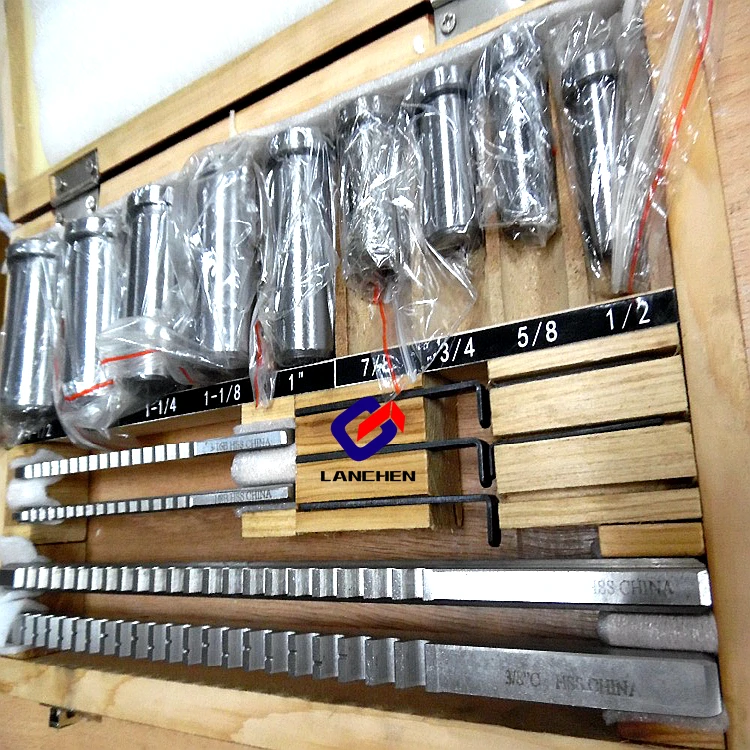

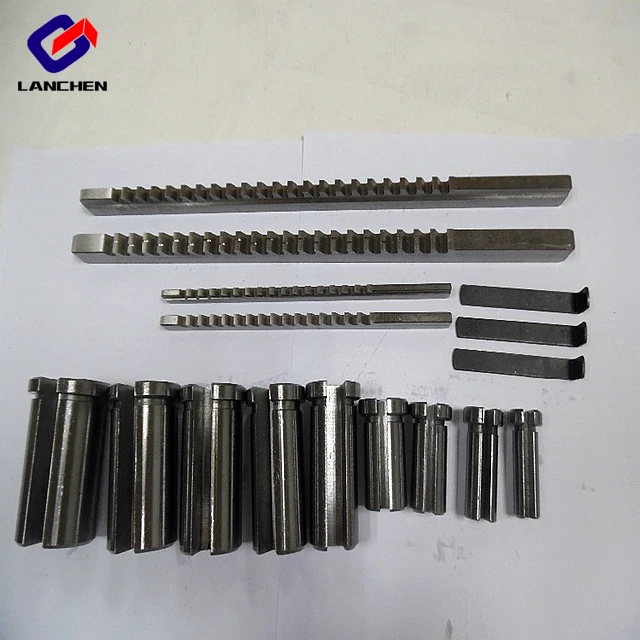

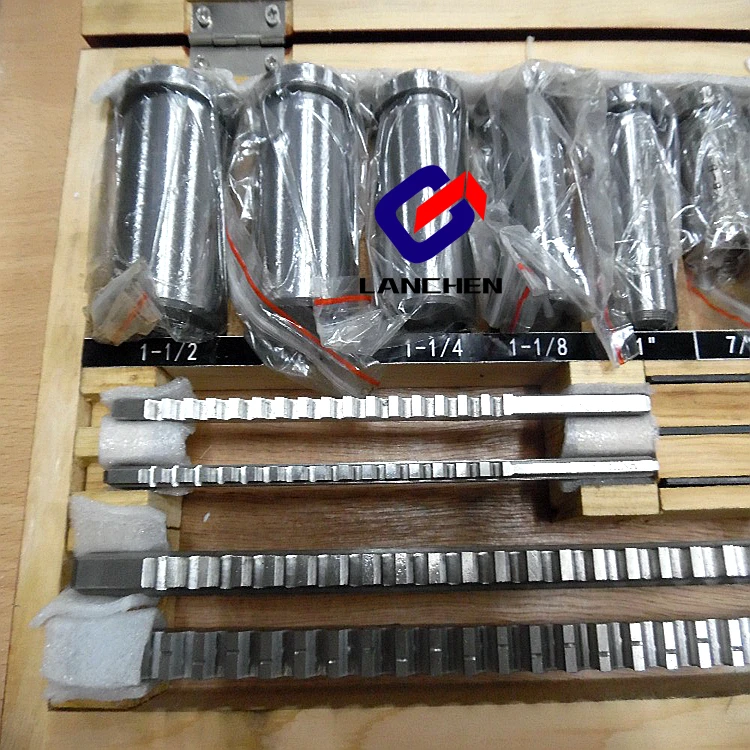

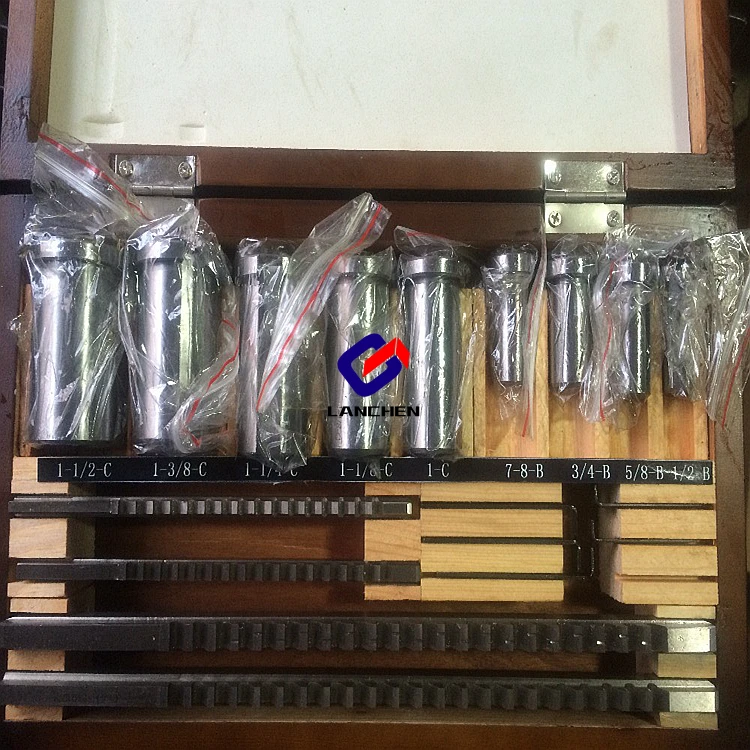

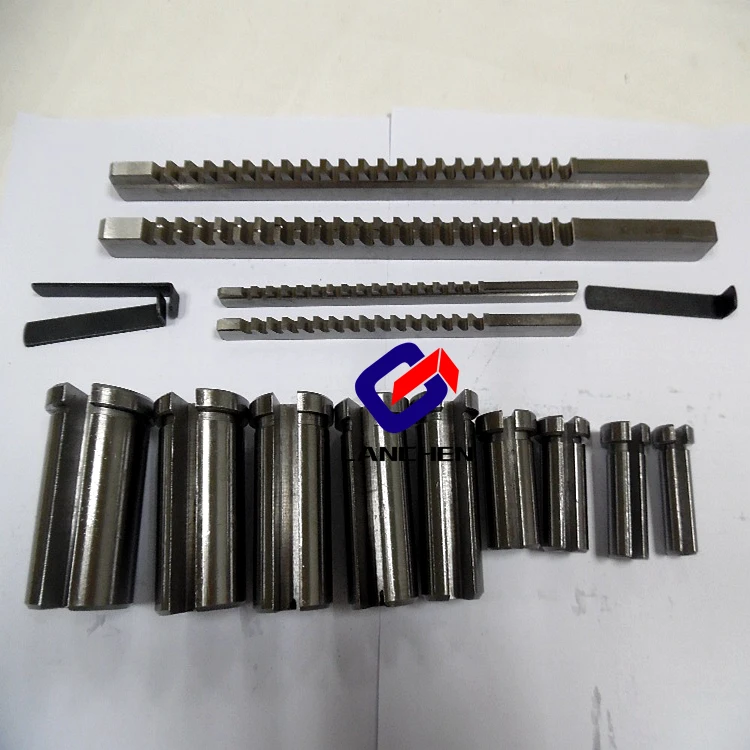

Product includes
- Broaches*4pcs
- Collared bushings*9pcs
- Shims*5pcs
Product description

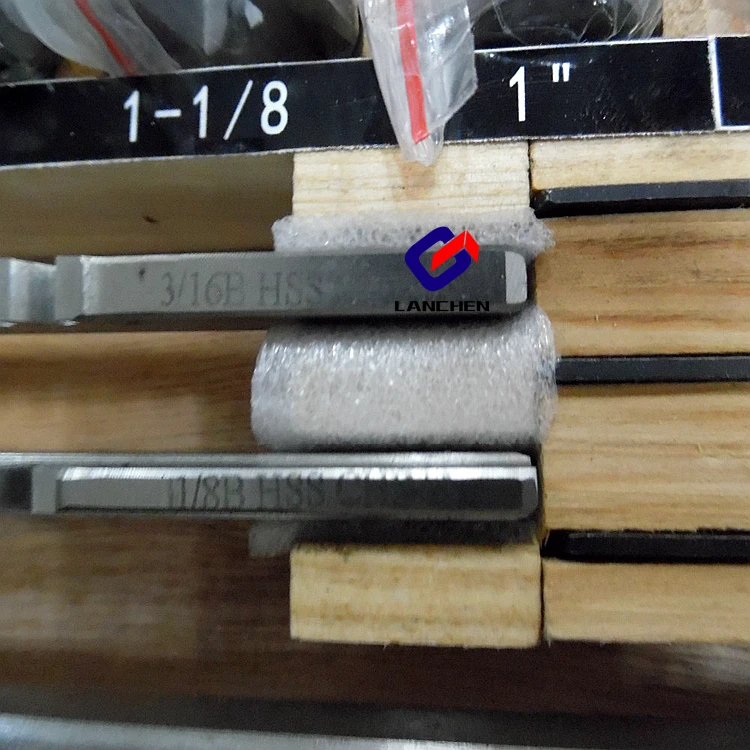

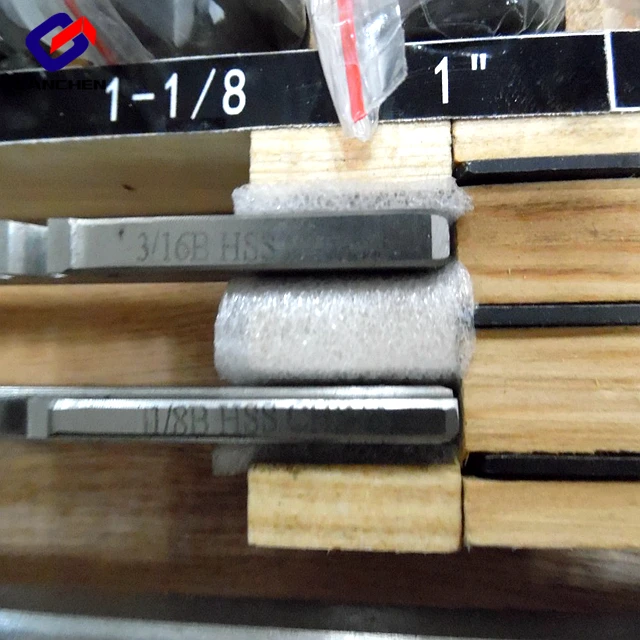

- 4 broaches B-1/8, and 3/16" C-1/4, and 3/8"
- 9 Collared bushings: B-1/2" , 5/8" ,3/4" 7/8" , C-1" , 1-1/8" , 1-1/4" ,1-3/8" ,1-1/2"
- 5 shims
Product features
- 4 broaches and 9 bushings = 18 keyway combinations
- All necessary shim
Specification
| Broach Size | Style | Correction height(mm) | Leading height(mm) | Broach Dimensions*(mm) | Keyway Width(mm) | Length of Cut * min.-max. |
| 1/8 | B | 10.6 | 9.9 | 4.86X172 | b=3.205 | 19/64 - 1 11/16 |
| 3/16 | B | 10.86 | 9.56 | 4.86X172 | b=4.79 | 19/64 - 1 11/16 |
| 1/4 | C | 16.64 | 15.02 | 9.64X298 | b=6.38 | 25/64 - 2 1/2 |
| 3/8 | C | 15.98 | 14.5 | 9.64X298 | b=9.563 | 25/64 - 2 1/2 |
| 5/16 | C | 15.95 | 14.62 | 9.64X298 | b=7.97 | 25/64 - 2 1/2 |
