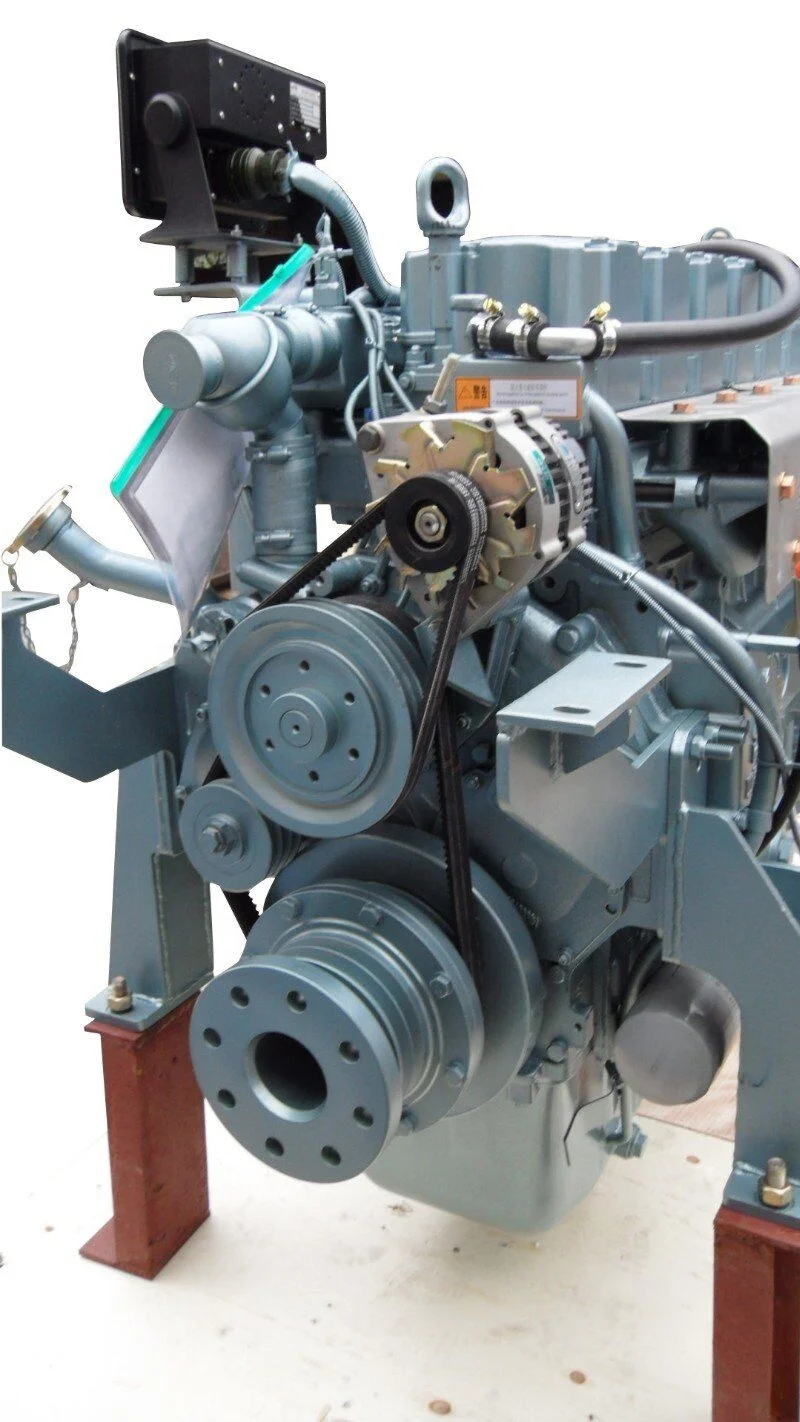

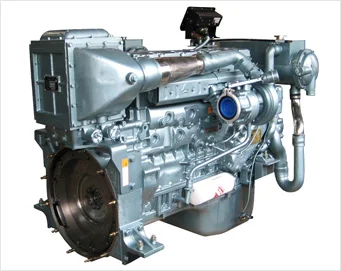

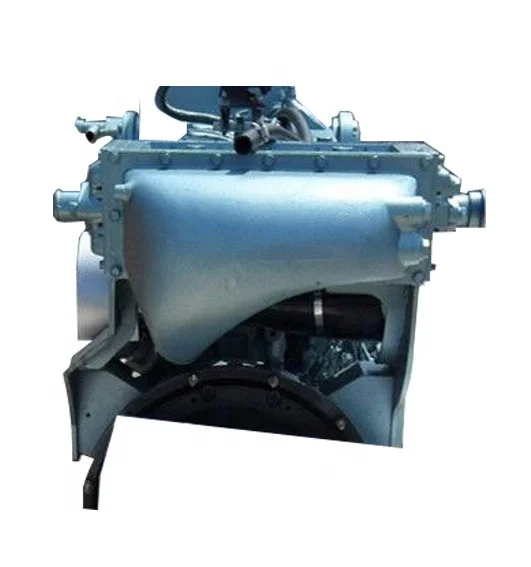

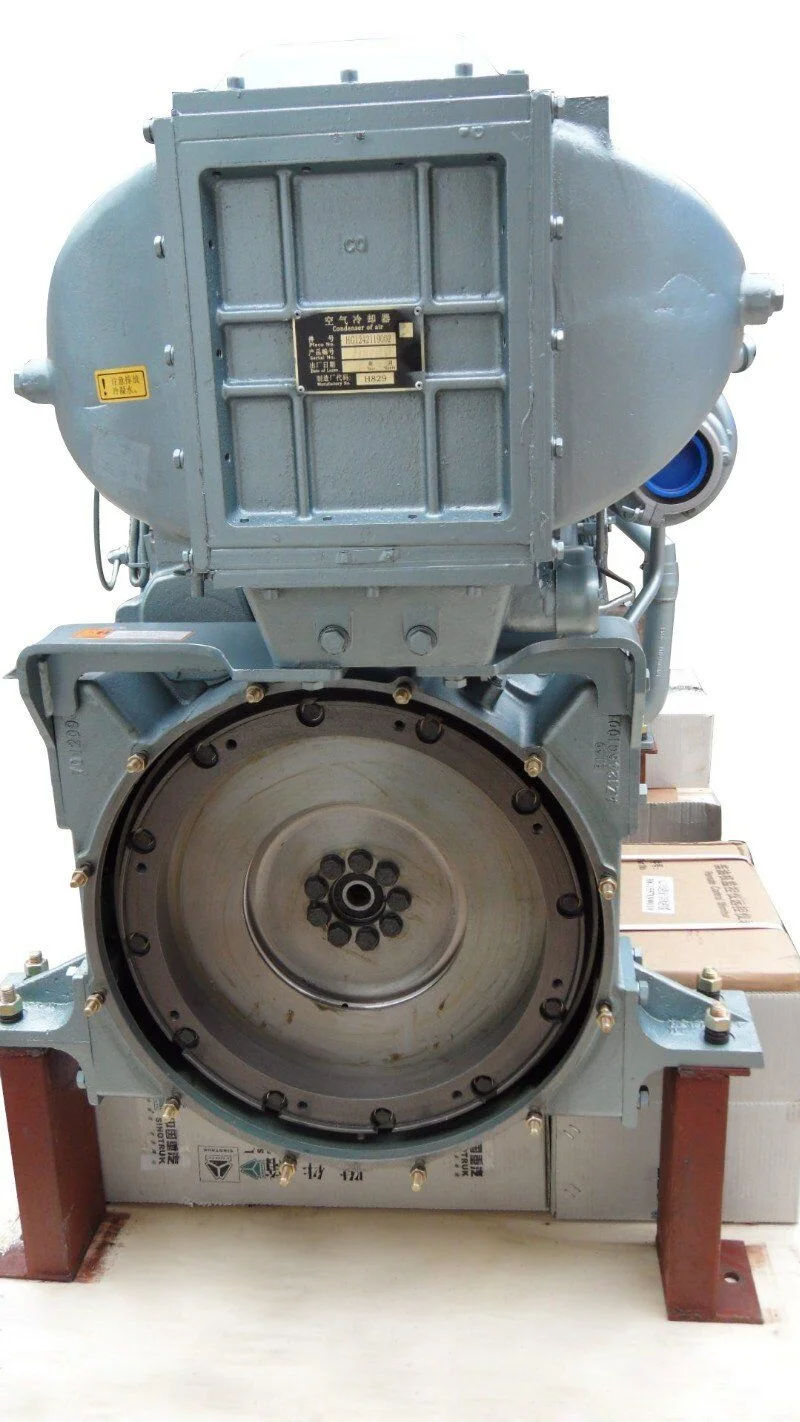

Marine Diesel Engines Sinotruk 450hp Boat Engines D1242 for fishing boat

Product Overview

Description

General Introduction



Parameters

Series	4-Stroke,water cooling, In-Line,Dry cylinder sleeve	Number of cylinder	6
Cylinder Diameter/Stroke	126×155mm	Displacement	11.596L
specific lub-oil consumption	195g/kW·h	Oil consumption	0.5g/ kW·h
Start Mode	Electric start	Idling	650±30r/min
Firing Order	1-5-3-6-2-4	Smoke intensity	≤1.0Rb
Noise	≤119dB(A)	Emission standard	IMO TIER II
Crankshaft rotation directio(towards free end)	clockwise



 Model

Model	Air intake	Air intake	Speed(r/min)
WP12C350-15	Supercharged and cold	258/350	1500/Mechanical pump
WP12C400-18	Supercharged and cold	295/400	1800/Mechanical pump
WP12C450-21	Supercharged and cold	330/450	2100/Mechanical pump
WP12C350-15	Supercharged and cold	258/350	1500/Electrically controlled high-pressure common rail
WP12C400-18	Supercharged and cold	295/400	1800/Electrically controlled high-pressure common rail
WP12C450-21	Supercharged and cold	330/450	2100/Electrically controlled high-pressure common rail
WP12C450-21	Supercharged and cold	368/500	2100/Electrically controlled high-pressure common rail
WP12C450-21	Supercharged and cold	405/550	2100/Electrically controlled high-pressure common rail





 Features

1. The main structure comes from of Landking Euro III high-pressure common rail diesel engine


2. Enhanced engine body, crankcase, cylinder head, crankshaft, and connecting rod.


3. The main components are subjected to finite element analysis and simulation calculations, resulting in a significant increase     in operational reliability and service life.


4. The turbocharger position can be subject to customer requirements.


5. The intercooler and heat exchanger are reasonably arranged at both ends of the diesel engine.


6. Reasonable matching between intake & exhaust and fuel system, with a minimum fuel consumption of 192g/kW·h. PZ8500     in-line flange pump for fully atomized fuel and stronger performance.


7. Four-valve structure with sufficient intake air for combustion and reduced fuel consumption.


8. Broadened engine operating range with good economy under various working conditions.


9. Enhanced engine structure with support and low-noise gear chamber.


10. The special oil sump makes the diesel engine noise much less.


11. Advanced emission indicators with a full load range of less than 1.0Rb.

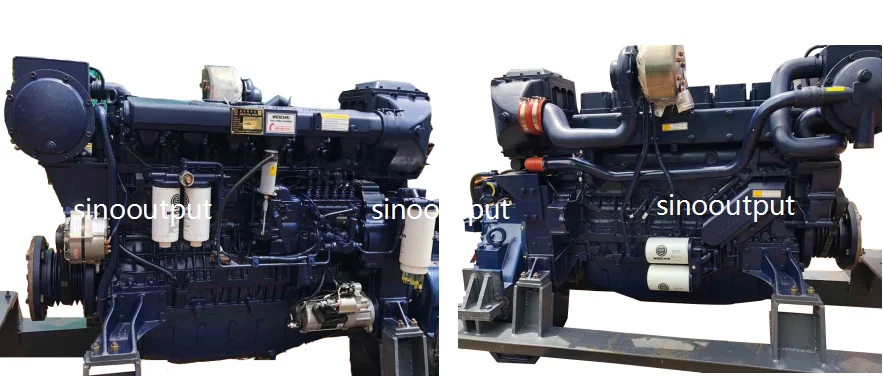

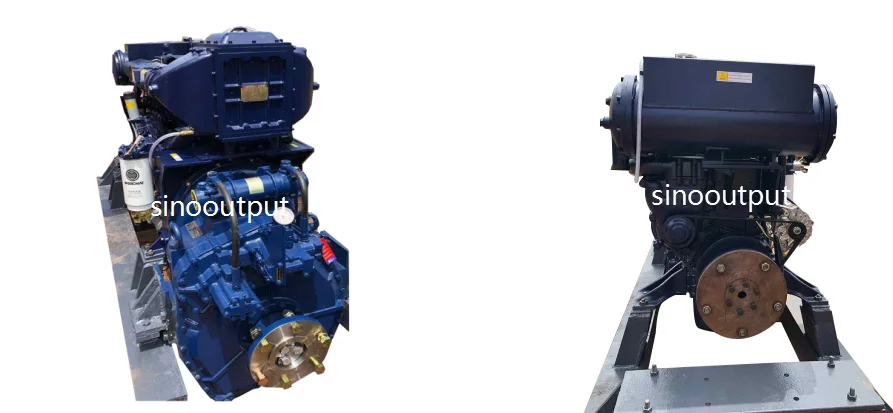

The WP12C series marine diesel engine is a variant of the WP12 Blue Engine series diesel engine. The design of the diesel engine complies with the relevant national standards and ship regulations. It has the characteristics of reliable use, excellent economic and technical indicators, low emission, quick start, simple operation and convenient maintenance. It is the ideal power for small and medium-sized ships.



No.	Project	Unit	Model
			WP12C450	WP12C400	WP12C350
1	Air inlet		Turbocharged inter-cooled
2	Number of cylinders		6
3	Bore x stroke	mm	126*155
4	Total piston capacity	L	11.596
5	Rated power	KW	330	295		256
6	Overload power	KW	363	325		282
7	Rated speed	r/min	2100	1800		1500
8	Overload speed	r/min	2167	1858		1548
9	Minimum fuel consumption rate	g/(KW.h)	·194
10	Fuel consumption rate at rated operating conditions	g/(KW.h)	≤220	≤210		≤205
11	Fuel oil consumption ratio	%	≤0.3
12	Steady rate	%	≤10
13	Idle speed	r/min	600±50
14	Minimum stable working speed	r/min	945	810		675
15	Ignition sequence		1-5-3-6-2-4
16	Cooling way		Sea, fresh water double cycle
17	Starting way		Electric starting
18	N.W.	KG	1200±50
