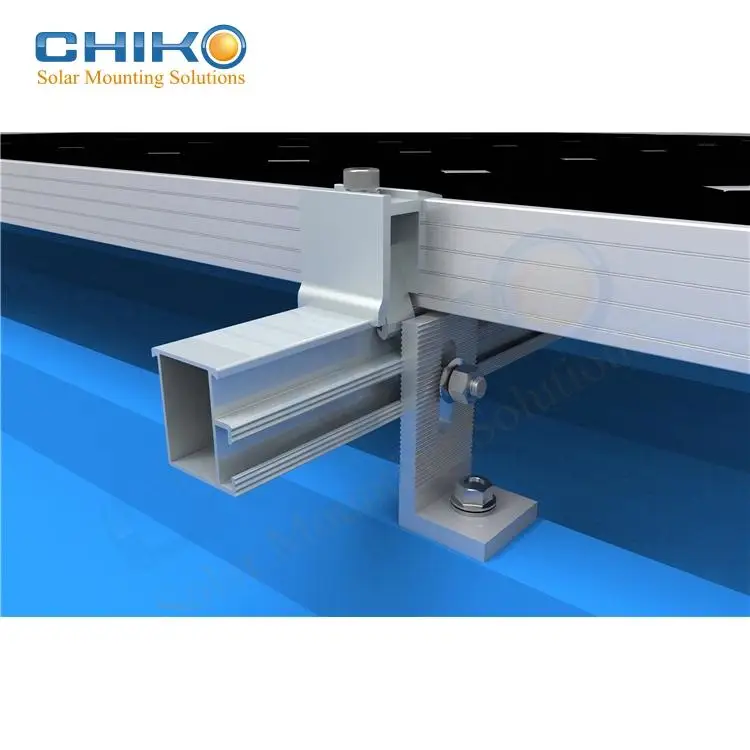

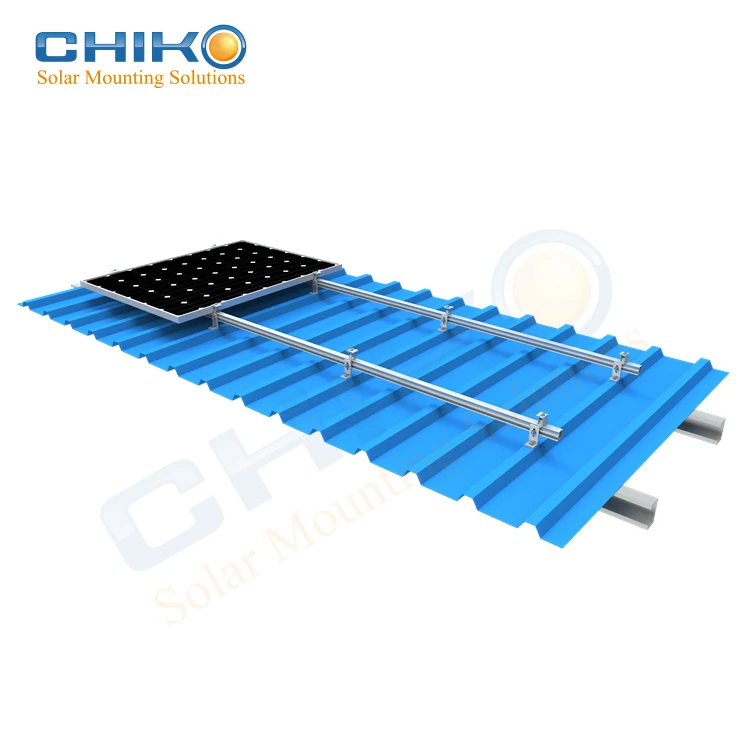

CHIKO L feet have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and CHIKO deigning roof clamps.
No
Item No.
Descriptions
Quantity (1x8=8 Panels)
1
CK-FTS-162R43-8-200-48
CHIKO Tin Roof Clamp L Feet
12
2
CK-FT-R43B1-4200
CHIKO ALU Rail No.43--4200mm
4
3
CK-154R4F-40-40
CHIKO Mid Clamp 40 mm For 43 Rail
14
4
CK-146R4F-30-40
CHIKO End Clamp 40mm for 43 Rail
4
5
CK-573-1-150
CHIKO Rail Splice Kit For 43 Rail
2
6
CK-GTC-R3H
CHIKO Grounding Clip for 043# Rail
14
7
CK-076R43-3-20
CHIKO Grounding Lug for 043Rail
2
Quantity will be adjusted upon the spacing and arrays
BENEFITS
• Universal used for Trapezoidal and corrugated roofs • Portrait or Landscape orientation • Pre-assembled • Made of high class material AL6005-T5 • Pre-Applied EPDM pad
APPLICATIONS

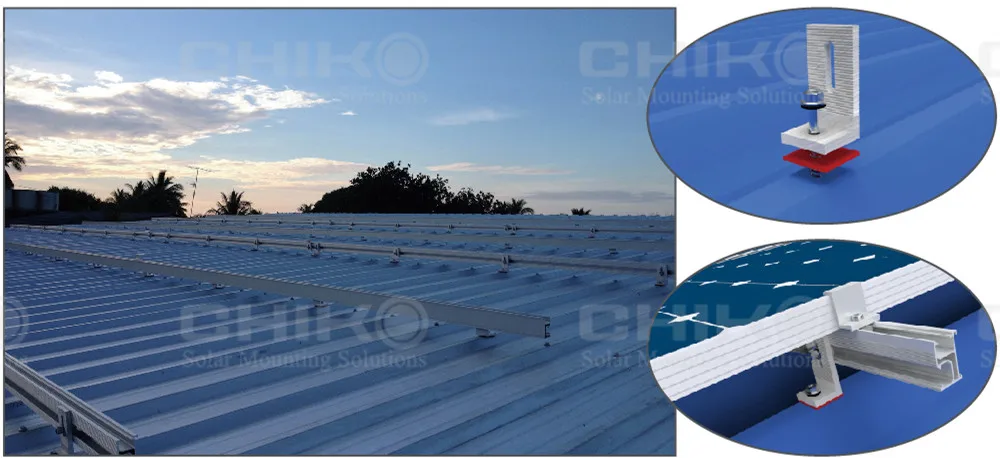

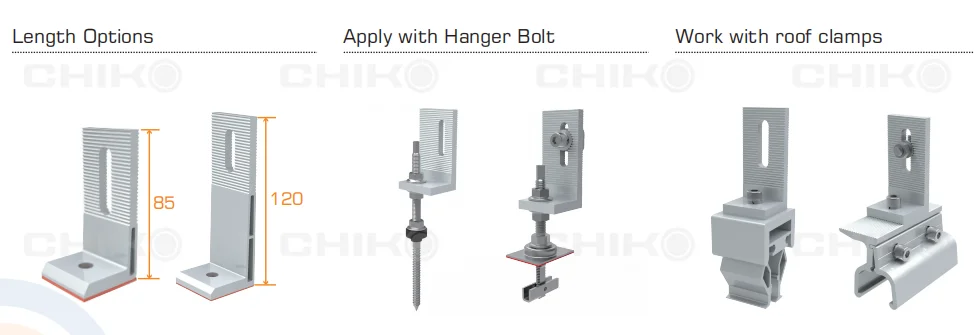

Different application methods of CHIKO L Feet Mounts
