HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer
Product Description
Features for HC-C021C Handheld portable Ultrasonic Pulmonary Function Spirometer/ incentive Spirometer :
Introduction:

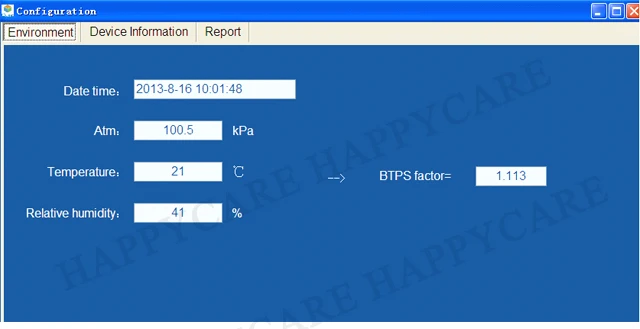

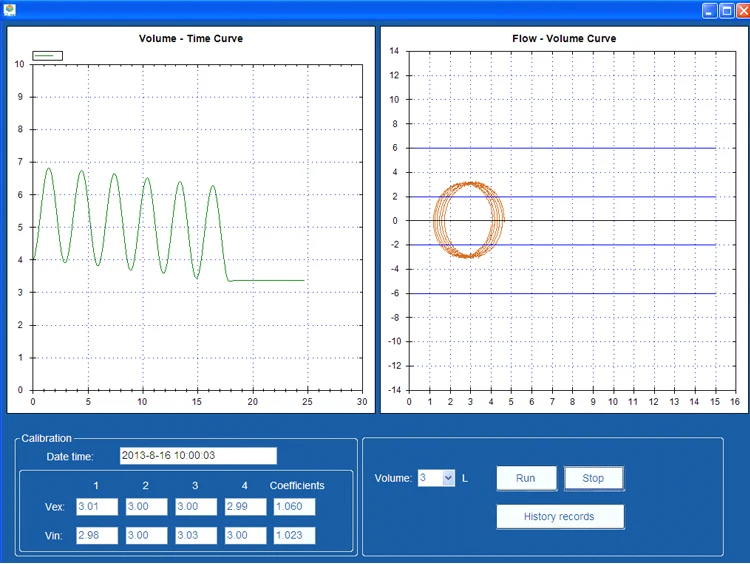

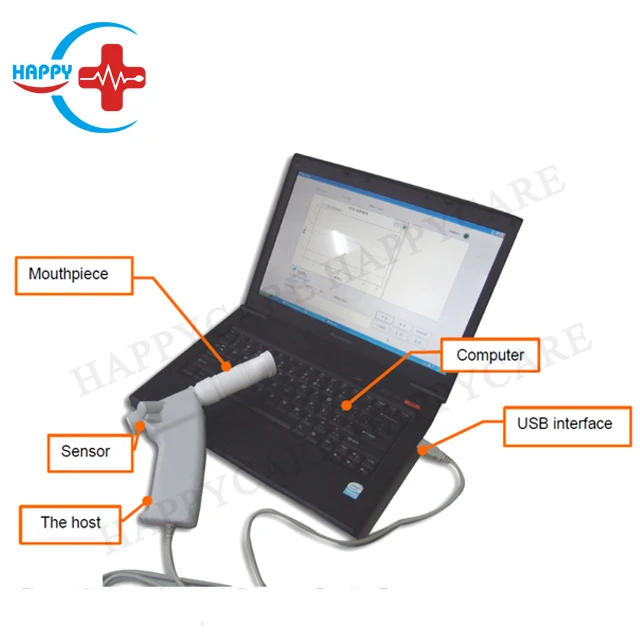

Handheld Pulmonary Function Spirometer adopts ultrasonic technology by ultrasonic gas flow sensor to measure body’s respiratory function and inspiratory function, to convert the patient breathing signal into electrical signal which is sent to corresponding signal processing circuit, to display real-time respiratory flow curve and then to calculate a variety of physiological and spirometric parameters. It can be used to monitor static vital capacity, forced vital capacity and maximum voluntary ventilation rate. The software can automatically do BTPS correction and evaluate pulmonary function.
Application:
Test instruments used in respiratory internal medicine, pulmonary medicine, tracheitis medicine, surgery etc.
Preoperative Pulmonary function tests.
With the needs of the internal medicine diagnosis and treatment.
To meet the needs of the cardiology medical work.
The physical examination of the company and the school.
To meet the needs of industrial hygiene.
Specifications:
Measure exhale and inhale function of the human body
Portable and compatible
Upgradable and expandable
No need to replace the sensor, no maintenance, simple, light-weight, easy handling
Dedicated disposable mouthpiece, suitable for children and adults
Working conditions
Ambient temperature
5℃-40℃
Relative Humidity
≤95% RH (non-condensing )
Atmosphere pressure
80kPa-106kPa
Power supply
DC 4.75V-5.25V (supplied via USB port)
Items
Ranges
Max error
VC (Vital Capacity)
(0.5-8)L
±3% or ±0.050L whichever is larger
FVC(Forced Vital Capacity)
(0.5-8)L
±3% or ±0.050L whichever is larger
MVV(Maximum Ventilatory Volume)
250L/min
±3% or ±15L/min whichever is larger
Configurations
Handheld Pulmonary Function Tester * 1 unit
Setup CD disc * 1 pc
Breather pipe * 10 pcs
USB softdog * 1 unit
nasal splint * 10 pcs
Trolley and braket * 1 set
Mouthpiece (consumable) * 10 pcs
Personal computer * 1unit (optional)
Users Manual * 1 pc
Printer * 1 unit (optional)
