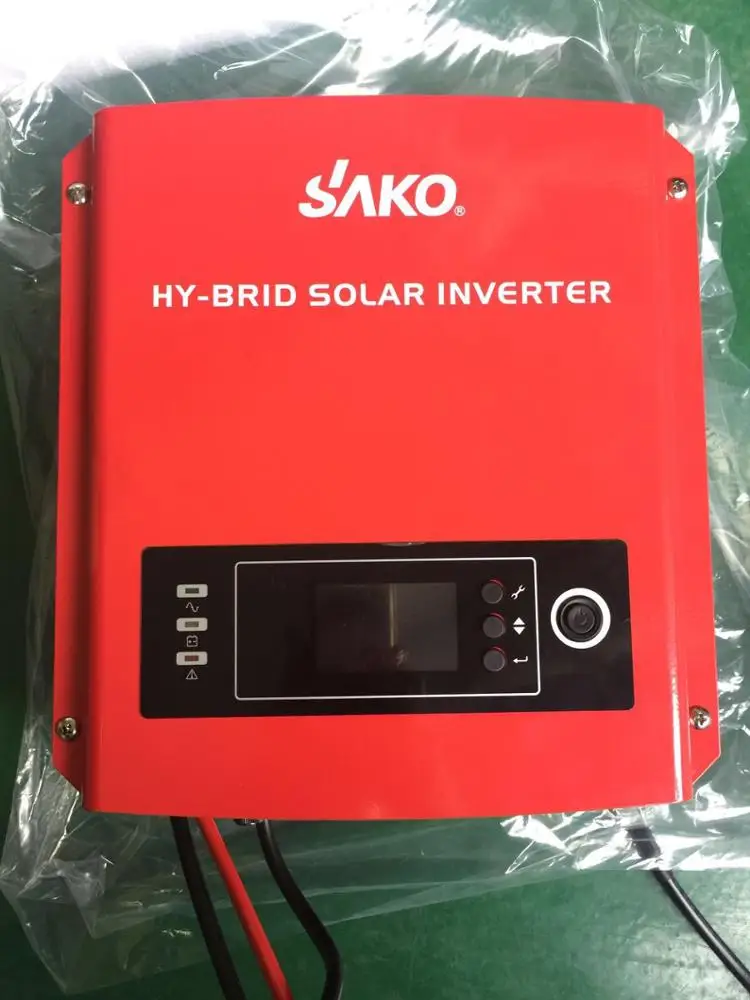

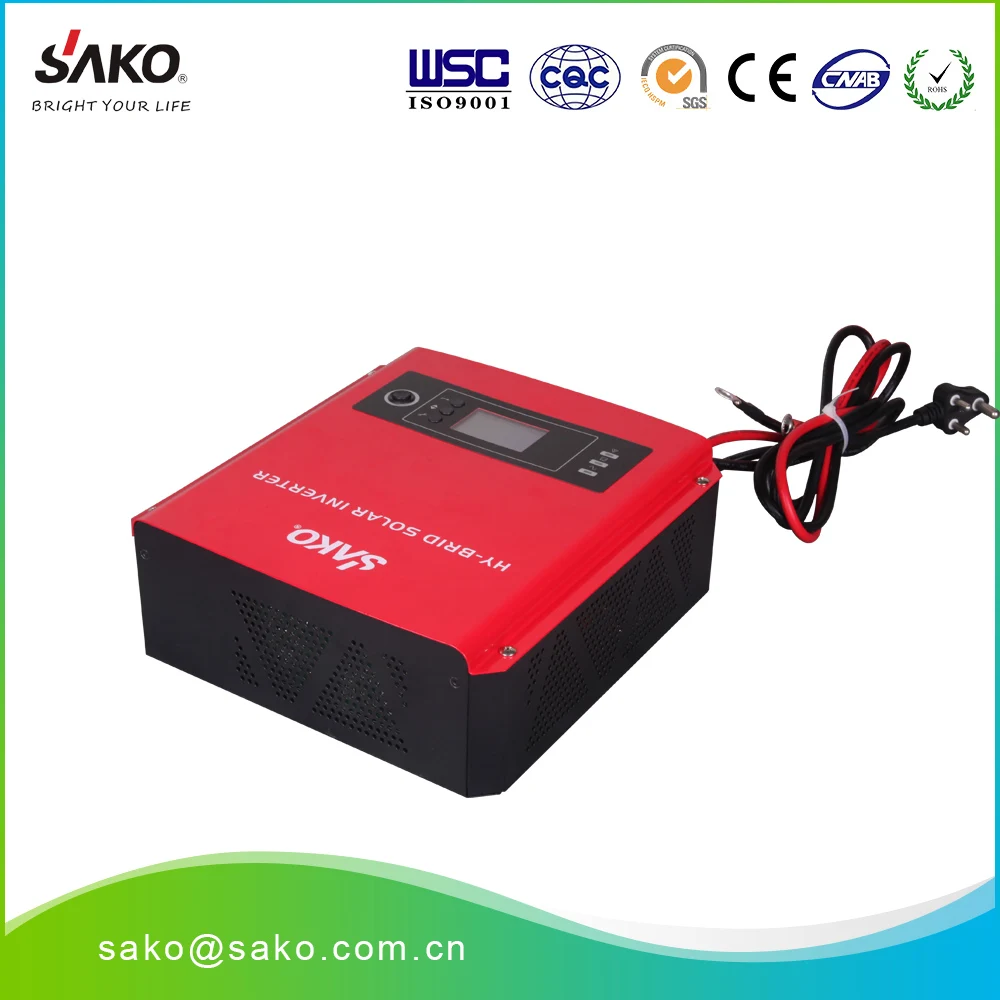

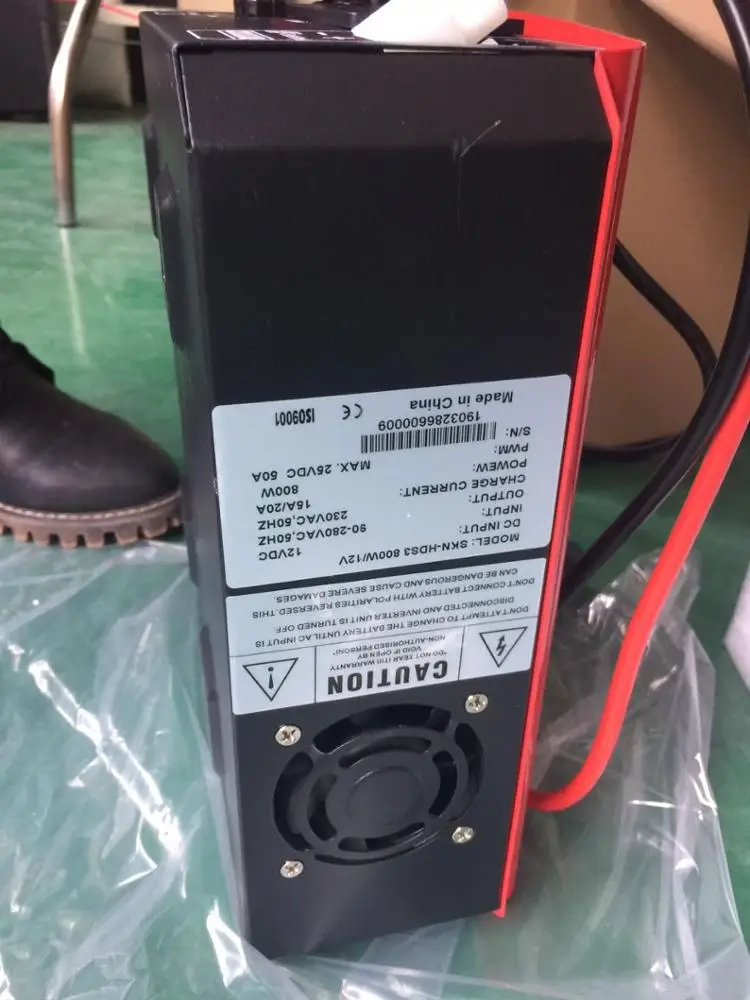

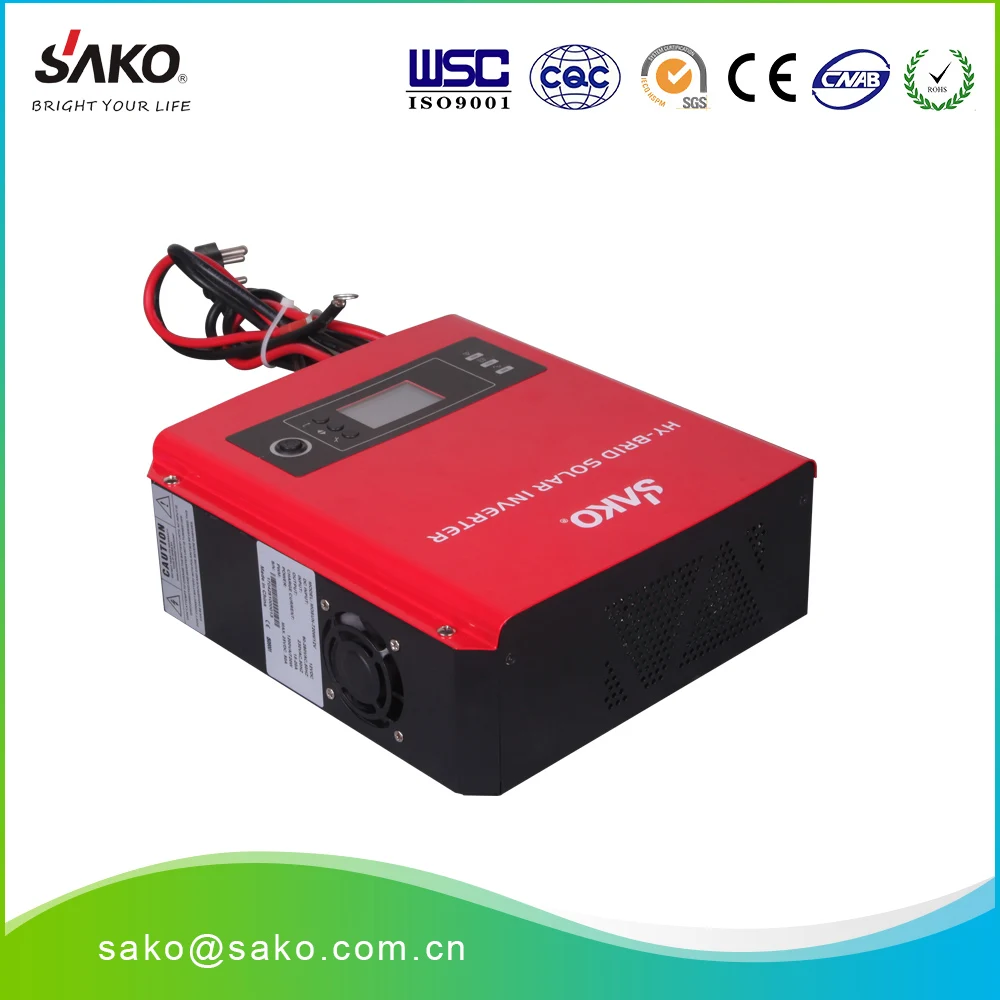

800W Modified Sine Wave Off Grid Solar Inverter, Configurable Charge Current and AC Solar input Priority via LCD Setting
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (62278872092):
Product Overview
Description
MOSUN 800W Off Grid Mppt Solar Inverter, Configurable Charge Current and AC Solar input Priority via LCD Setting, Cheap Price
Features
1. Building inside solar controller and AC charger
2. Multi-function LED&LCD Display Design and buzzer alarms.
3. Cold start function
4. Intelligent Automatic Charging Technology
5. Selectable AC charge current
6. Auto restart while AC is recovering
7. All around protection function: overload, short circuit protection, Low/high battery protection
8. Configurable AC/Solar input priority via LCD setting
9. Compatible with mains voltage or generator power
10. Smart battery charge design for optimized battery performance
11. Selectable AC input voltage range for home appliances and personal computers
12. Application for Fan, light ,TV and office Appliances
Specification
Mosun Modified sine wave solar inverter with battery charger. High frequency technology. Inverter/AVR/UPS/Solar charger 4 functions into 1. Wide AC input range:90-280Vac. LCD display. Suitable for basic home appliaces such as lights, fans ,TV, etc. AC output: 230Vac
Product Description
| Model | Mosun 1KVA | Mosun 2KVA |
| The rated power | 1KVA/800W | 2KVA/1600W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280VAC (For Personal Computers), 90-280VAC (For Home Appliances) | |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | |
| Surge Power | 2000VA | 40000VA |
| Efficiency(Peak) | >95% ( Rated R load, battery full charged ) | |
| Transfer Time | 15-20ms typical(narrow range); 40ms max(wide range) | |
| Wave form | Modified sine wave | |
| BATTERY | ||
| Battery voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.75±0.2Vdc | 27.4±0.4Vdc |
| Overcharge Protection | ≥16±0.4Vdc, Fault, Buzzer alarm | ≥32±0.8Vdc, Fault, Buzzer alarm |
| SOLAR CHARGER&AC CHARGER | ||
| Maximum PV Array Power | 900W for 1KVA, 1800W for 2KVA | |
| PV input | 12-80VDC | |
| Recommend Solar panel | 3pcs*300W/36V for 1kva, 6pcs*300W/36V for 2KVA | |
| Solar Charger Type | pwm | |
| Maximum AC Charge Current | 50A | |
| Maximum solar Charge Current | 50A | |
| PHYSICAL | ||
| Communication Interface | None | |
| OPERATING ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operation Temperature | 0℃-50℃ | |
new products
other Products
Company Information
Certifications

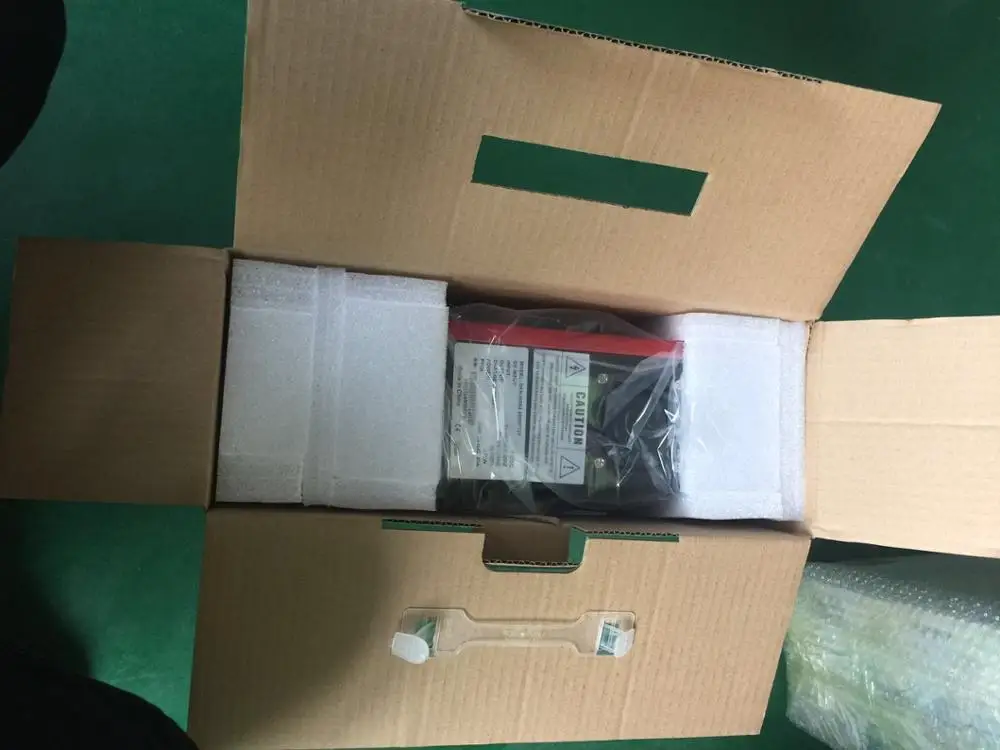

Packaging & Shipping
FAQ
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
