Product Overview
Description
Low Cost 0dBm Lora RF Transceiver Wireless Module 433MHz Communication Data Stable nRF24l01P
Product Description

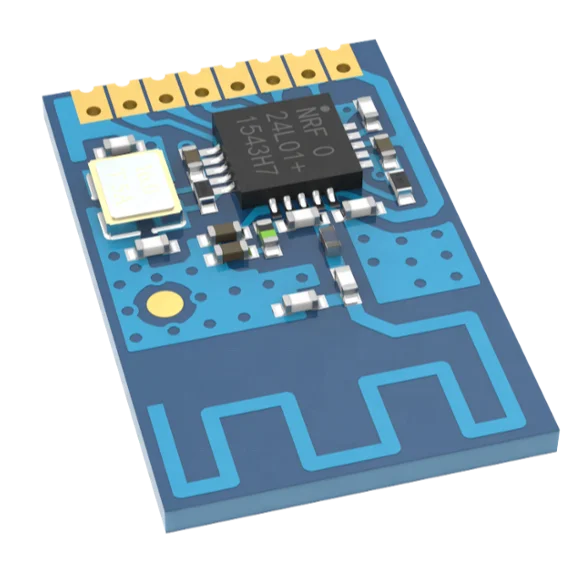

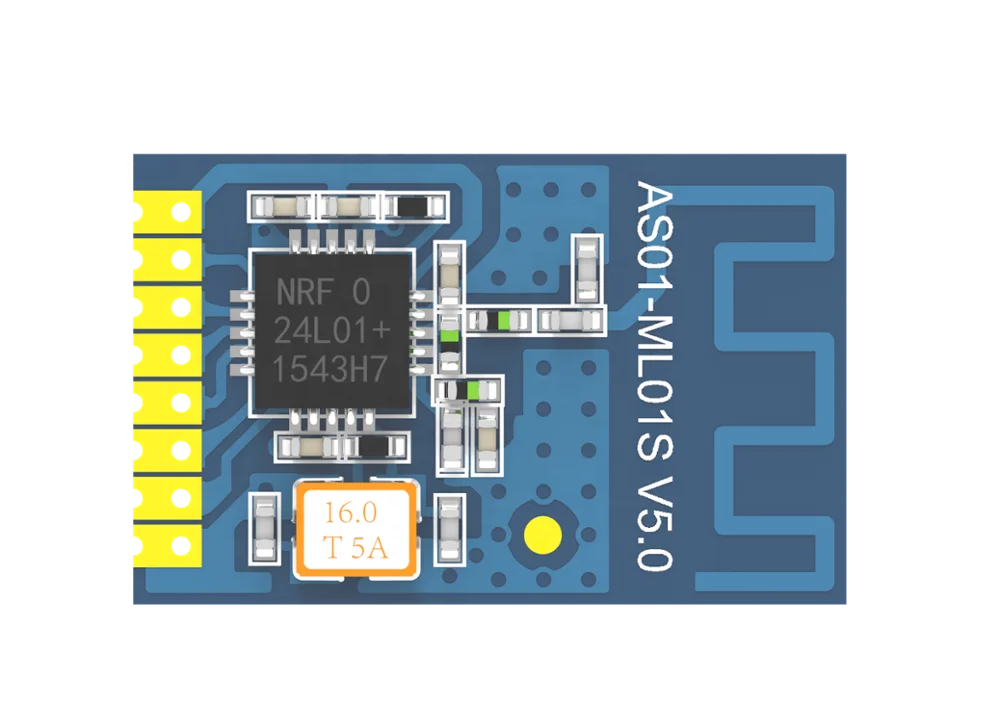

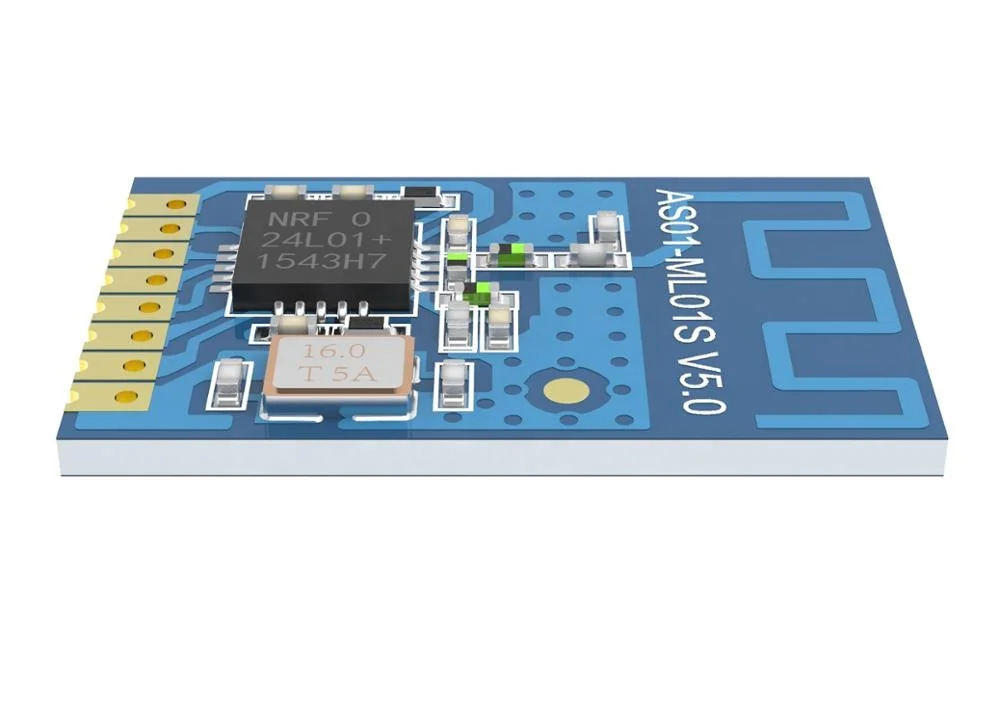

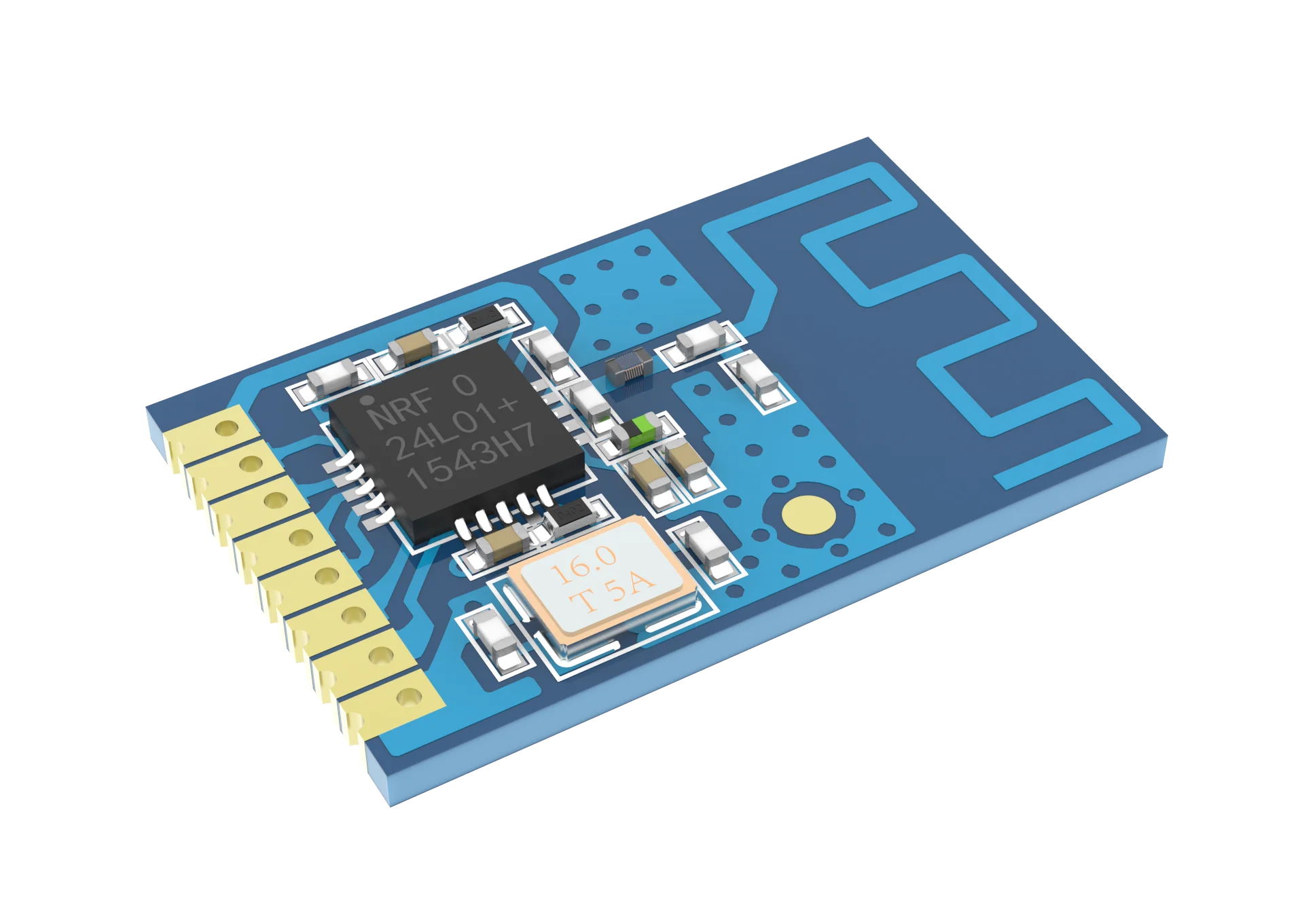

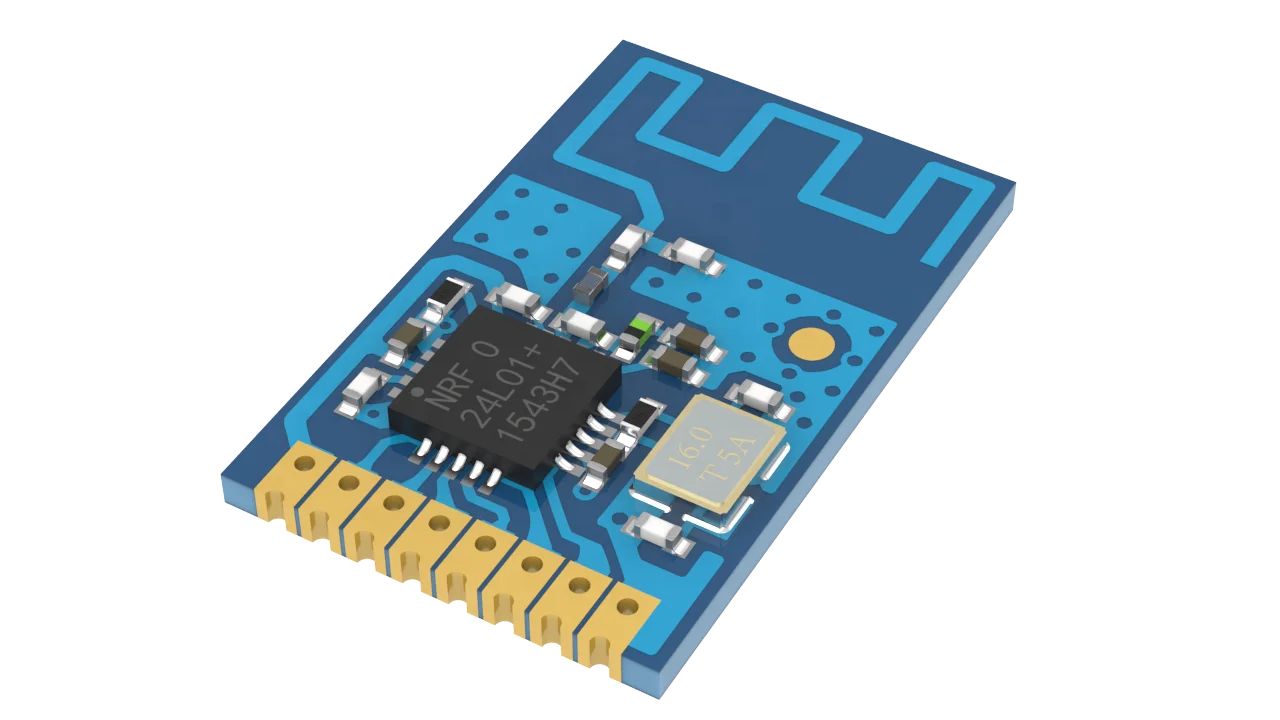

AS01-ML01S is a 1mW industrial wireless data transceiver with high speed and high stability, operates at ISM band 2.4GHz~2.525GHz (default 2.4GHz). The module uses original nRF24L01P from Nordic. It comes with high-performance PCB antenna and accurate impedance matching. It features enough power, good spectral properties, small harmonic wave, small cross talk and super small volume. Some of the devices meet military grade standard.
Electric Parameter
| No. | Parameter Name | Parameter values details |
|---|---|---|
| 1 | Module Size | 12 * 19mm (not including antenna or SMA junction) |
| 2 | Source of the devices | All imported components from Japan, USA, Germany |
| 3 | Production craft | lead-free, electrostatic bag packaging |
| 4 | Interface mode | 1 * 8 * 1.27 mm, plug in packaging, you can use the universal board and DuPont line |
| 5 | Operating frequency | 2.4-2.525GHz, factory default: 2.4GHz |
| 6 | Supply Voltage | 1.8V-3.6VDC, meet a variety of system requirements. ( if the voltage is smaller than 3.3V, the transmission power will decline, which has little impact on the receiving performance) |
| 7 | Communication level | Maximum 3.6V, The difference between the recommended and supply voltage is less than 0.7V to reduce power consumption |
| 8 | Measured distance (3.0VDC) | About 120m test conditions: sunny, open, the maximum power, Antenna gains 5dBi, higher than 2m, 250K air rate |
| 9 | Transmission power | Maximum 0dBm, about 1mW, 4 levels adjustable (0-3), increase or deduct about 3dBm each level. |
| 10 | Air rate | 3 air speeds are available (250kbps, 1Mbps, 2Mbps) |
| 11 | Transmitting current | 19.6mA@1mW |
| 12 | Receiving current | 18.9mA (mode 0, mode 1), minimum about 0.9uA (mode 2 + 2s wake up) |
| 13 | RSSI support | Built-in intelligent processing |
| 14 | Receiving sensitivity | -94dbm @ 250Kbps (receiving sensitivity has nothing to do with serial port baud rate and delay time) |
| 15 | Antenna type | PCB antenna |
| 16 | Operation temperature | -40℃ to +85℃ |
| 17 | Operation humidity | 10%-90% relative humidity, no condensation |
| 18 | Storage temperature | -40℃ to +125℃ |
Features
Contact Us
Application
Our products have been widely used in consuming electronics, industrial control, medical, security alarm, outdoor collection, intelligent home, highways, property management, water electricity gas meter reading, power monitoring and other applications.
Company Information
Chengdu Ashining Technology Co., Ltd. is a high-tech company focusing on wireless communication and applications, setting research and development, production, sales, and service as one, and professionally researches develop and produces 2.4G, 433M, 470M, 915M, 169M ... band wireless communication products. Ashining particularly emphasizes technological innovation and product quality and has received a number of patents and products certification. To save customers' valuable development time and make products more stable, our FAE team fully support for each customer by providing services of high quality. Chengdu Ashining technology company has a complete and scientific quality Control system, regards quality, belief, innovation, beyond as our developing concept, and wins the recognition of the industry by honesty, quality, service, and strength.
Certifications
More than 50 products of our company passed ROSH and CE certification. We have a total of more than 70 Patents and certificates and passed the SGS certification, ISO9001, ISO14001, OHSA18001. In 2017 our company was elected as the Chinese preferred brand, contributing to the creation of China.
Packaging & Shipping
To ensure the goods are safe when shipping, we normally pack them with antistatic bags, antistatic sponge and corrugated carton.
For sample orders, we use express, while for batch orders, express, air shipping and sea shipping is available for your choice.
