Ground type home energy storage battery pack 48V 50Ah 48V 100Ah 5.6kWh 11.2kWh LiFePO4 Lithium ion battery
- Category: >>>
- Supplier: Shenzhen Yihui Energy Technology Company Ltd.
Share on (62279006659):
Product Overview
Description
Company Profile
JIANGXI ANCHI NEW ENERGY TECHNOLOGY CO., LTD
ANC TECH is located in Shangrao city Jiangxi province and covers 30 acres of area. It was funded by
wealthy knowledge about LiFePO4 battery, EV pack, energy storage, and smart control solutions. Safe EV pack
solutions are at the heart of our product range and have been supplied successfully for many famous EV
brands. For energy storage solutions, we developed intelligent EMS and BMS for optimizing energy utilization
and maximizing electricity cost savings by peak shifting or solar generation self-consumption. ANCHI TECH is
aiming for providing safe and high-efficiency energy solutions to our global customers on the strength of
strong R&D capabilities, outstanding technologies and advanced manufacture management.
wealthy knowledge about LiFePO4 battery, EV pack, energy storage, and smart control solutions. Safe EV pack
solutions are at the heart of our product range and have been supplied successfully for many famous EV
brands. For energy storage solutions, we developed intelligent EMS and BMS for optimizing energy utilization
and maximizing electricity cost savings by peak shifting or solar generation self-consumption. ANCHI TECH is
aiming for providing safe and high-efficiency energy solutions to our global customers on the strength of
strong R&D capabilities, outstanding technologies and advanced manufacture management.

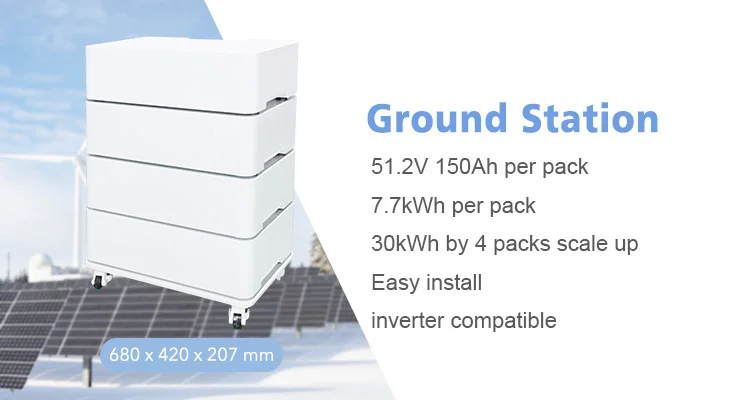

Home Battery Packs
Battery SPEC
Model Capacity | Ground Station 15kWh | Ground Station 23kWh | Ground Station 30kWh | ||
Capacity Energy | 15.6kWh | 23kWh | 30kWh | ||
Capacity Ah | 150A | 300Ah | 450Ah | ||
Suggested SOC | 5%-100% | 5%-100% | 5%-100% | ||
Usable Capacity | 14.8kWh | 21.8kWh | 28.5kWh | ||
Nominal Voltage | 51.2V | 51.2V | 51.2V | ||
Operation Voltage | 46.4V – 57.6V | 46.4V – 57.6V | 46.4V – 57.6V | ||
Maximum Charging/Discharging Current | 100A/100A | 100A/100A | 100A/100A | ||
BMS | Robust Multi point monitoring BMS pre installed | ||||
Life Cycling (0.5C 25℃) | 5000 cycles | 5000 cycles | 5000 cycles | ||
Warranty BTT | 10MWh per kWh | ||||
5 years， whichever comes sooner | |||||
Operation Temperature | 0℃ ~ 45℃ | ||||
Storage Temperature | -20℃ ~ 35℃ | ||||
Weight | 78kG each pack | ||||
Dimensions | 680x420x 500 mm | 680x420x 750 mm | 680x420x1000 mm | ||
Scalable | yes | ||||
Certifications | MSDS, UN38.3, RoHS, IEC62619, UL | ||||
Communication | RS485, CAN, Bluetooth optional | ||||

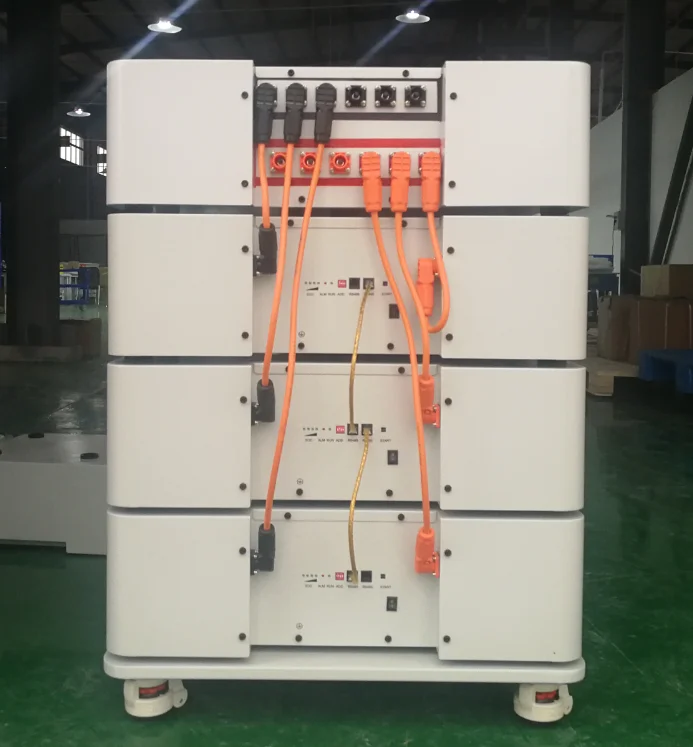

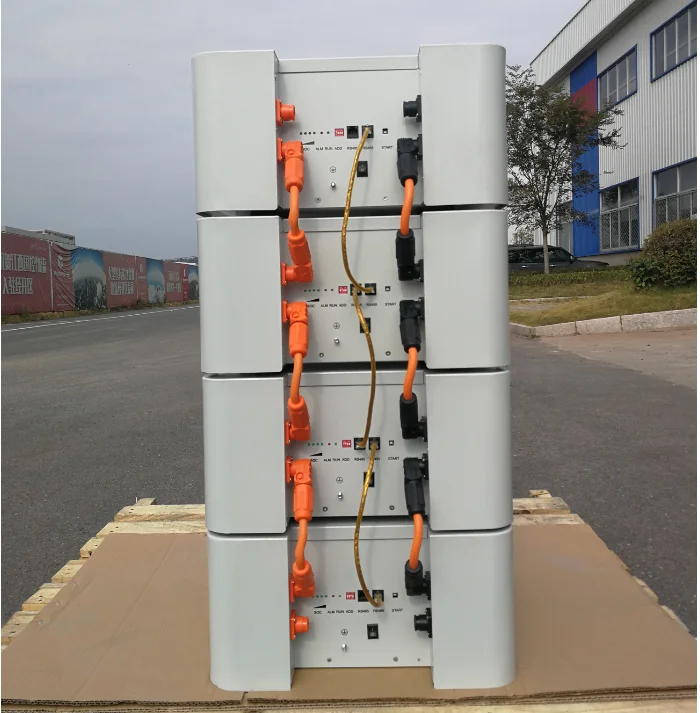

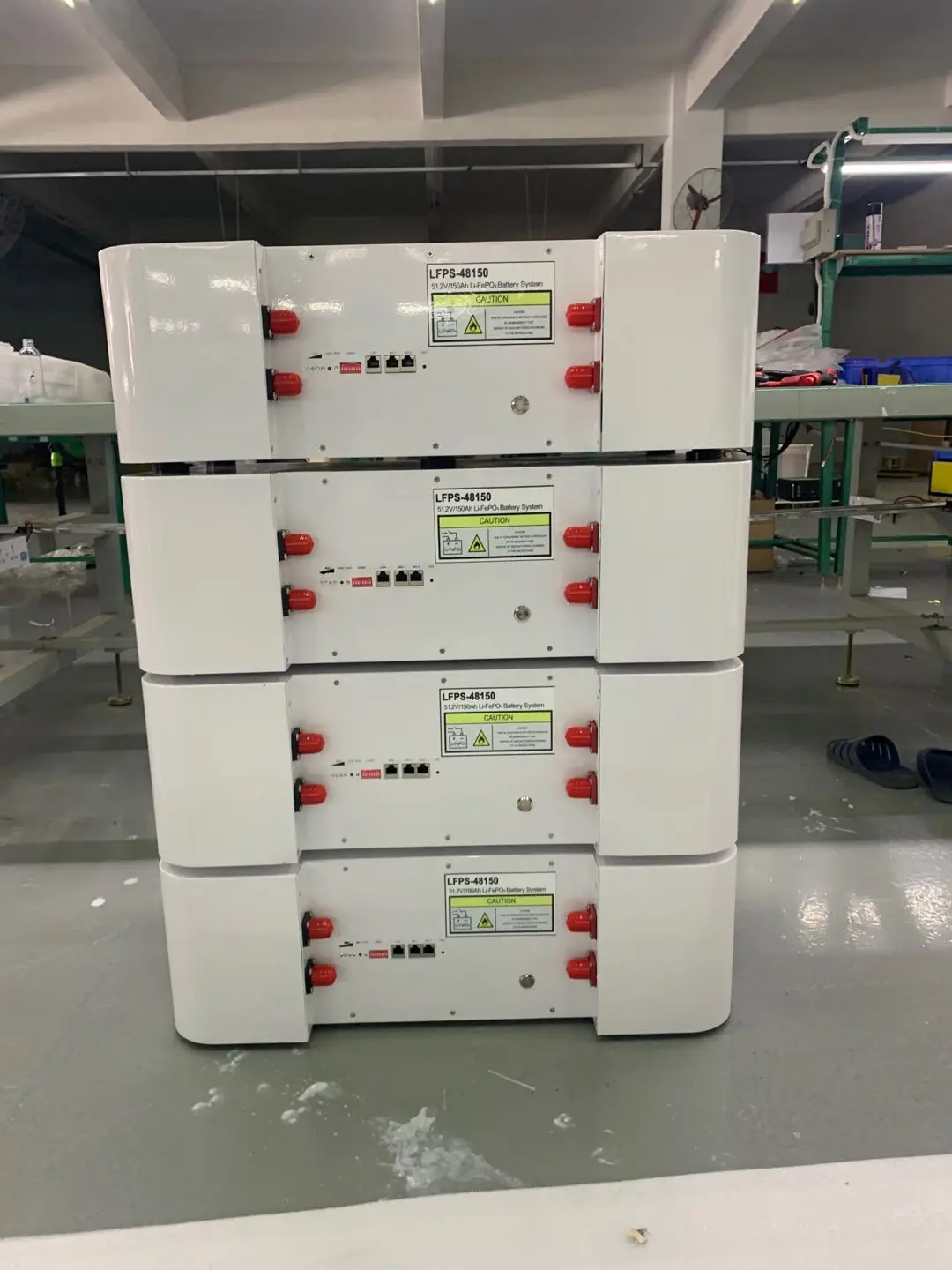

Pictures
Compatible Inverter Brands
Growatt
Goodwe
Luxpower
Deye
Voltronic
Sofarsolar
Victron
Sermatec
Luxpower
Deye
Voltronic
Sofarsolar
Victron
Sermatec

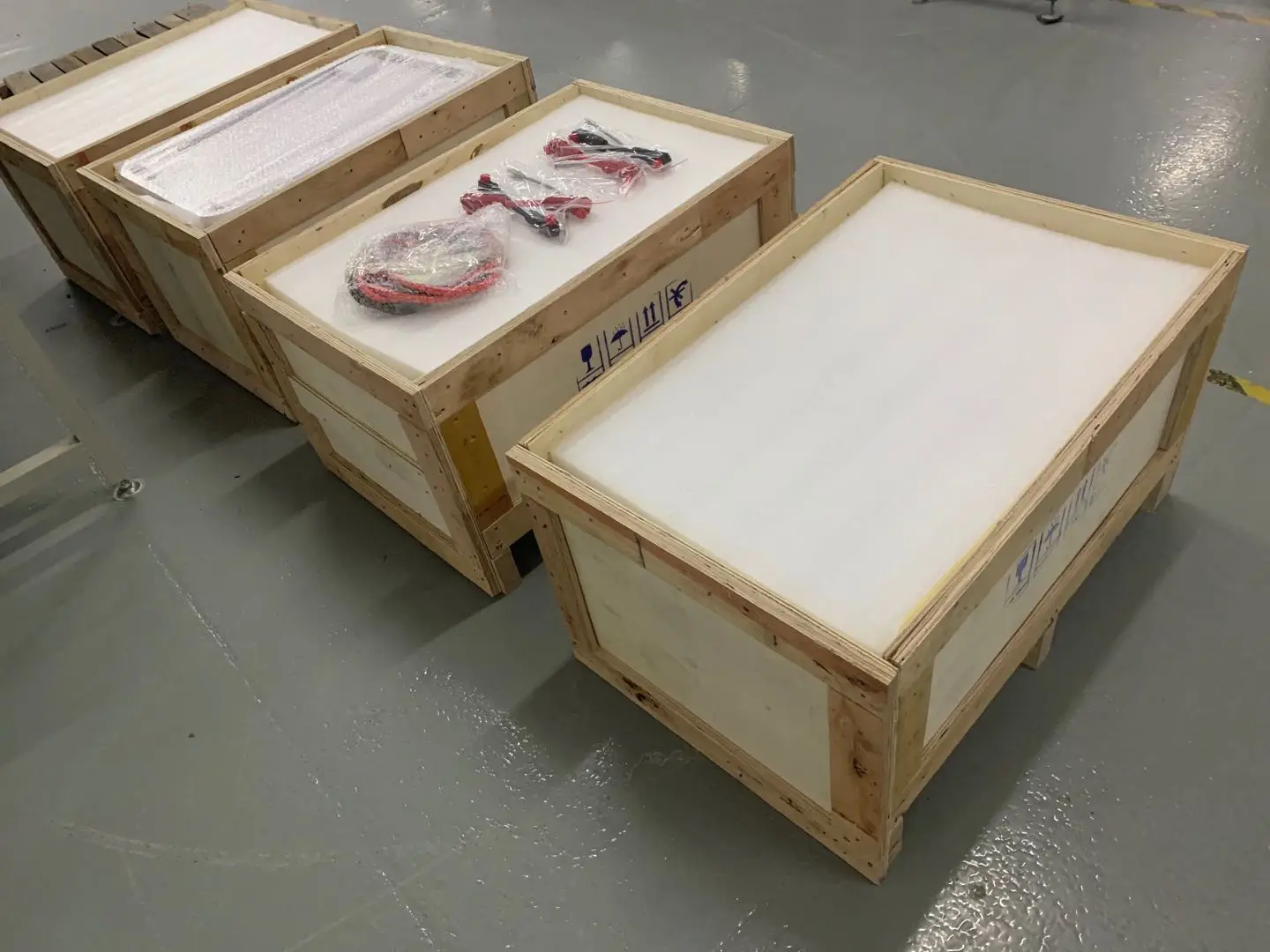

Product packaging

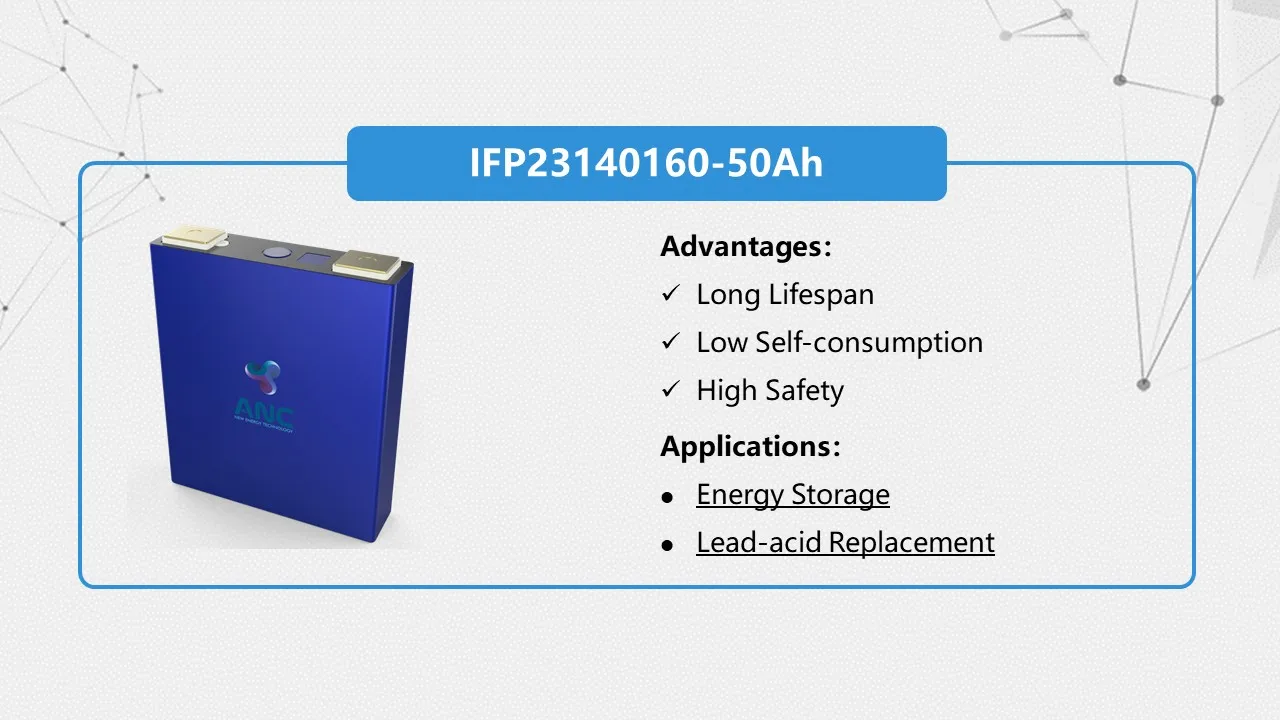

LiFePO4 BATTERY CELL
Applications
