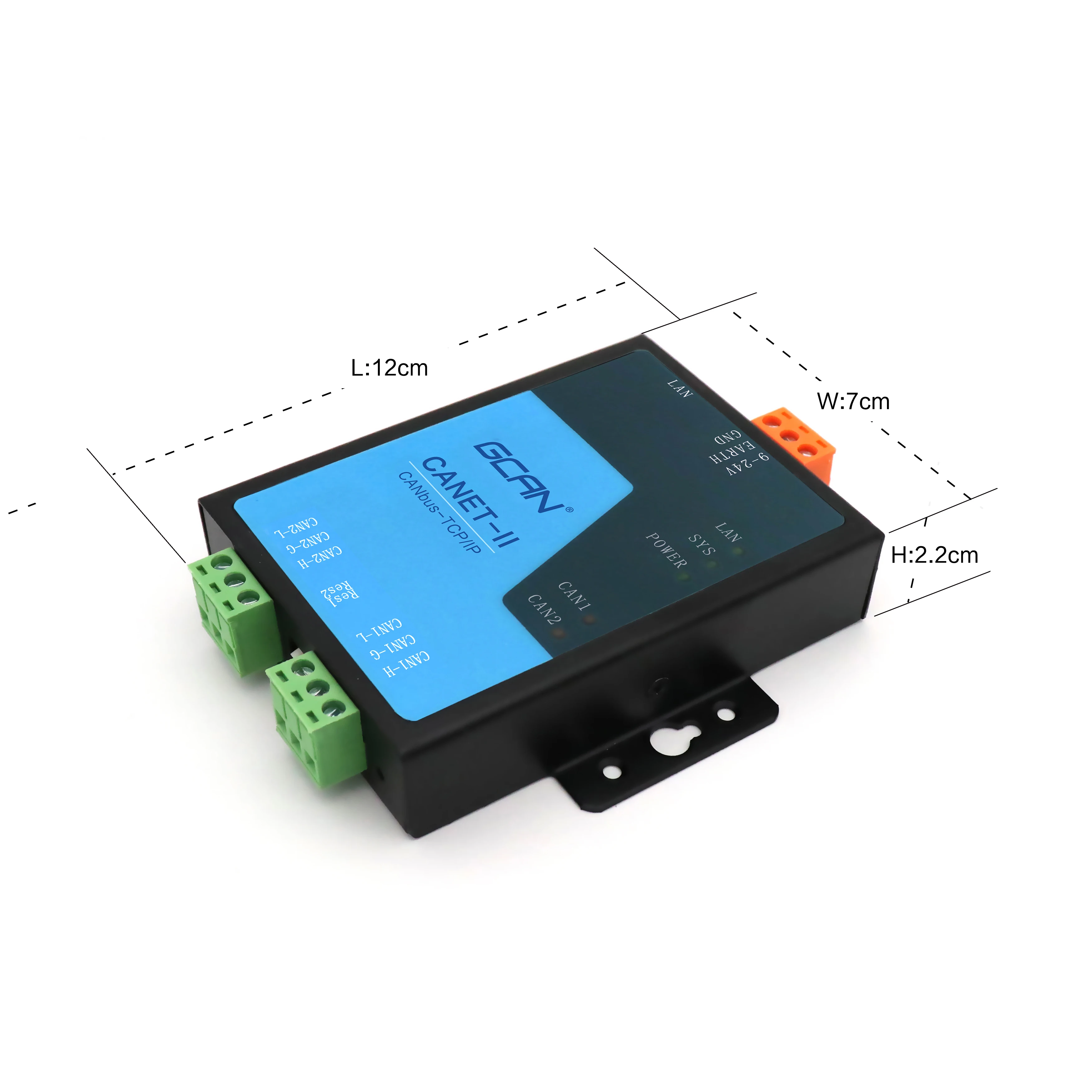

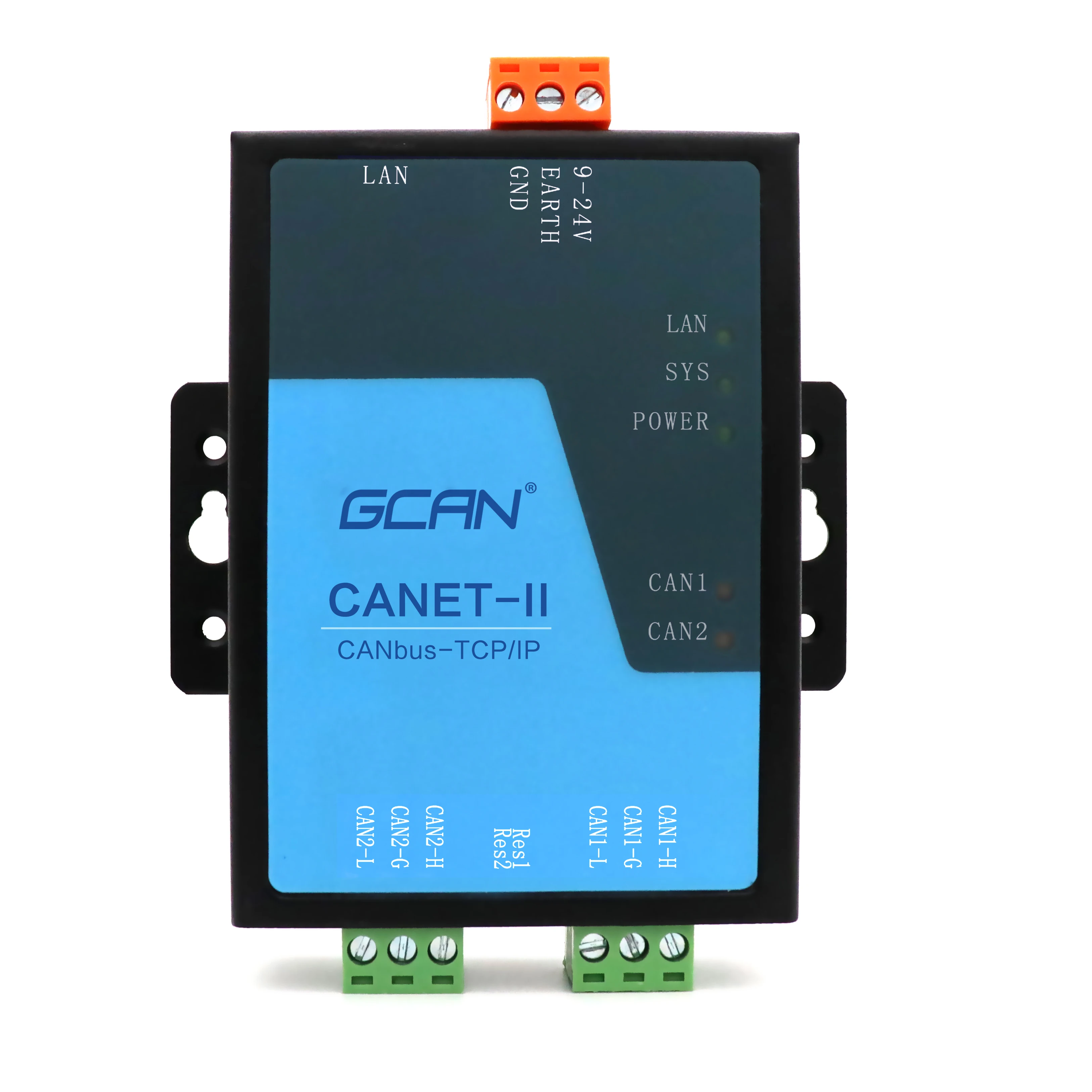

High Quality CAN Bus Protocol Gateway Ethernet Module GCAN 212

The GCAN-202(CANET II) is a CAN-Bus converter, used for Ethernet converting CAN-Bus. It is an industrial-grade CAN-Bus converter, whose function is to realize interconnection easier and extends the application scope of CAN-Bus.

CAN Features

Integrate two CAN-Bus channels, with terminal connection

Support CAN2.0A and CAN2.0B, conform to ISO/DIS11898

Support communication baud rate: 5Kbps~1Mbps

Electric isolation, insulation level: DC 3000V

32 FIFO receiving buffers, maximum flow: transmit 8000 FPS, receive14000 FPS

Ethernet Features

Restore the network connection automatically after disconnecting, can establish a TCP connection.

SOCKET working mode compatibility (TCP Server, TCP Client, UDP, etc), program communication software according to standard SOCKET rules

Support secondary development, we can provide VB routine or you can look for some another basic programming routine about Ethernet online

TCP Server Mode
GCAN-202 waits for TCP Client to connect. If connection succeeds, can make bidirectional data communication.

TCP Client Mode

GCAN-202 starts connection to TCP Server, if connection fails, TCP client will try to reconnect till success. If connection succeeds, can make bidirectional data communication.

UDP Mode
UDP mode is a communication mode without connection, makes the data communication through UDP protocol.
