PME170f Manual Start single cylinder Diesel Engine

Share on:

Price:$154.00 - $162.00
Price in USD:Details


Product Overview

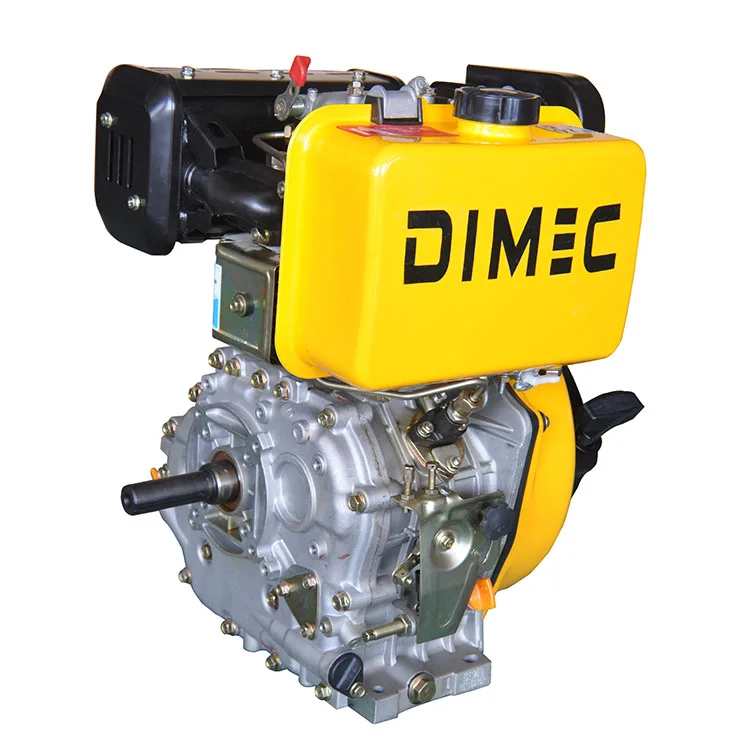

Manual start no battery Professional 4-Stroke single cylinder vertical air-cooled 4-stroke  170F  4hp diesel engine

Diesel engine.jpg

Product Description



Drive System
The drive gear design is incorporated into diesel engine which will greatly reduce vibration and noise.

Fuel System
Fuel systems assure high efficiency operation.
The precision machined and precisely timed injection pump and the direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.

Low noise
The high efficiency muffler system greatly lowers exhaust noise. With the advanced design air cleaner system, intake noise is reduced to a low level. The design or the cylinder block, engine cover, and valve train all combine to reduce engine noise levels.

Ease operation
Low vibration and noise makes operators feel comfortable even after long hours of operation.
Two kinds of easy starting system: recoil and electric
Lightweight alloys used for main engine parts
A small-sized engine body built for application in a strict environment


TypeSingle-cylinder, vertical, air-cooled, 4-stroke, diesel engine
Output typeCrankshaft outputCamshaft output
Bore×stroke [mm]70x55
Displacement [ml]211
Compression Ratio19:01
Rated speed [rpm]3000360015001800
Rated output [kw]
Max output [kw]
Fuel consumption [g/kw·h]<295
Starting systemRecoil start or Electric start
Fuel tank capacity [L]2.5
Lube oil capacity [L]0.75
Fuel type0#(summer),-10#(winter) diesel
Lube oil typeSAE 10W-30
Continuous running time [h]32.532.5
Package (L x W x H) [cm]41.5x38.5x47
N.W/G.W [kg]25/30
