led display panel 960x960mm p10 outdoor smd running text led rgb
- Category: >>>
- Supplier: Shenzhen RGX Electronics Co. Ltd.
Share on (62279412257):
Product Overview
Description
Welcome to RGX led display Factory!
we direct sale all kinds of indoor &outdoor led display,led video modules ,stage rental led display ,street digital sign board ,video procesor ,control cards,LED power supply.

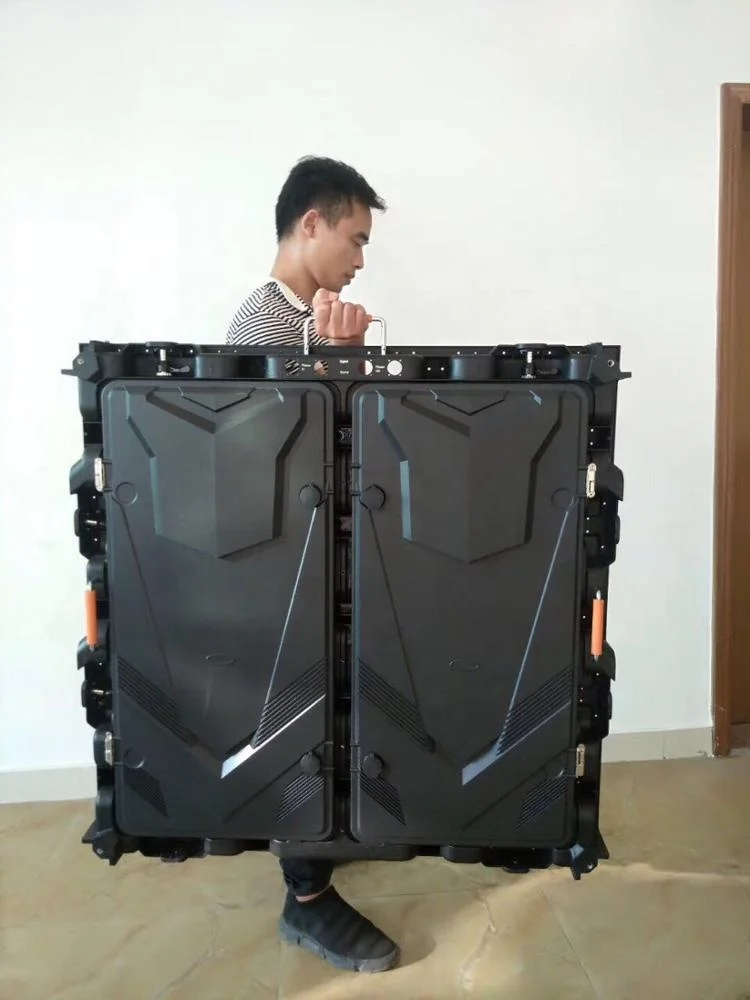

960X960mm Die Casting Magnesium Alloy LED Display Cabinet Less Weight
Product Description
Parameters
Description | Technical parameter | |
Unit module | Module size | 320x160mm |
Pixel pitch | 10mm | |
Pixel density | 10000dots/m2 | |
Pixel configuration | 1R1G1B | |
Led chips | SMD3535 | |
Pixel resolution | W:32dots*H:16dots | |
Cabinet | Dimension | 640x640mm/960x960mm |
Cabinet pixels | 96x96 dots | |
Total weight | 12kg | |
Best viewing angle | >10m | |
Temperature | Storage: -35°C~+85°C | |
Working: -35°C~+85°C | ||
Thickness | 5cm-6cm | |
Remarks: cabinet size can changed, upon project need. | ||
Power | Working voltage | AC220V/110V±10% |
Average power consumption | 150-280W | |
Max. Power consumption | ≤500W/sqm | |
Current | ≤20mA(single LED) | |
Control system | CPU | Pentium4 or above |
Control method | Synchronization | |
Main technical parameter | Driving device | 1/4scan |
Drive type | Constant Current driver IC MBI ICN | |
Display type | Video/Graphics/Animation/Message/Text | |
Refresh frequency | 1920-3840Hz | |
Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
Brightness of white balance | 6500-7500cd/sqm | |
Brightness adjustment | 256 levels of each color(R/G/B)by software | |
Operating ambient humidity | 10%--95% | |
Video signal | PAL/NTSC VGA HDM1 DVI S-VIDEO RF RGBHV YUV …etc. | |
Life span | ≥100,000hours | |
Power switch | Automatic switch | |
Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. | |
Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM | ||
Software | LED media player | |
960x960x75mm aluminum led cabinet,55" big led video panel ,only 22kg/piece!
High Brightness Outdoor 960x960mm Die-casting Cabinet P10 96x96 pixels big panel
Build LED Display Screen for your magic stage in 30 minutes!Plug&Play!
Samll size?big size?Any size will be OK!create your"Magic stage"!
High fresh rate ,make your video more vividly!
Led screens intensify sporting events and provide spectators with a unique experience: live broadcast of the game, zooming in on players and game action, broadcasts of highlights.
Led screens and led perimeter displays are excellent tools that enhance your partners' communication efforts and strengthen the impact of advertising.
The sale of advertising space to your partners and advertisers enable you to have a return on investment from your LED video solution very quickly. As a result, your equipment can quickly
Online Serives
Click on my profile picture below, 7x24 hours online service
You can also add WhatsAPP/Wechat: +86 180 3806 9578
Outdoor stage LED
Video function RGB full color 7500 nits outdoor video wall panel protable
Packaging
Our Services
1. After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period,
only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 2 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
2. Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes
and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate
with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made,
we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
