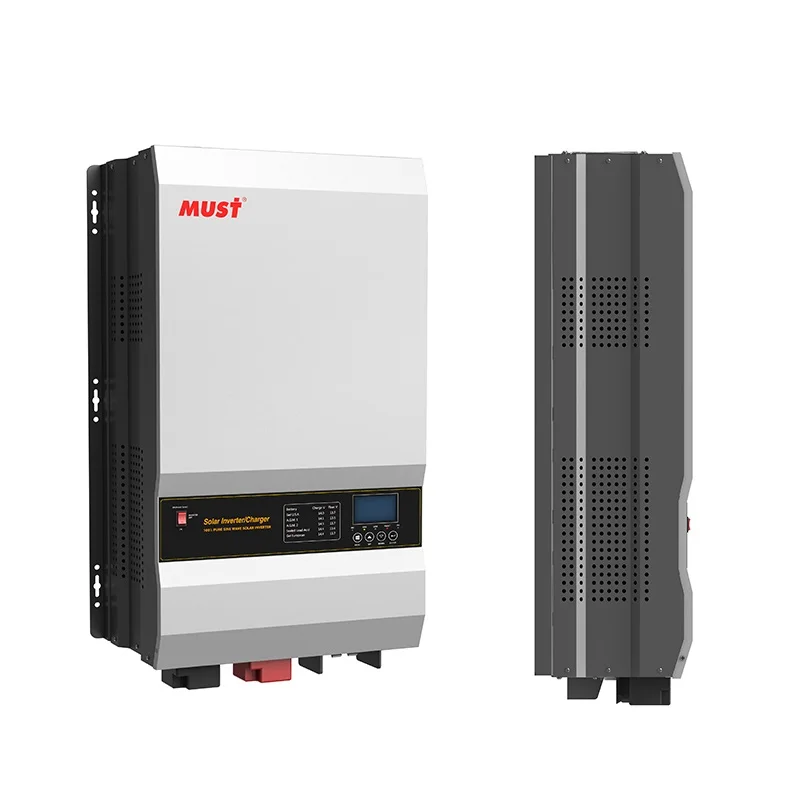

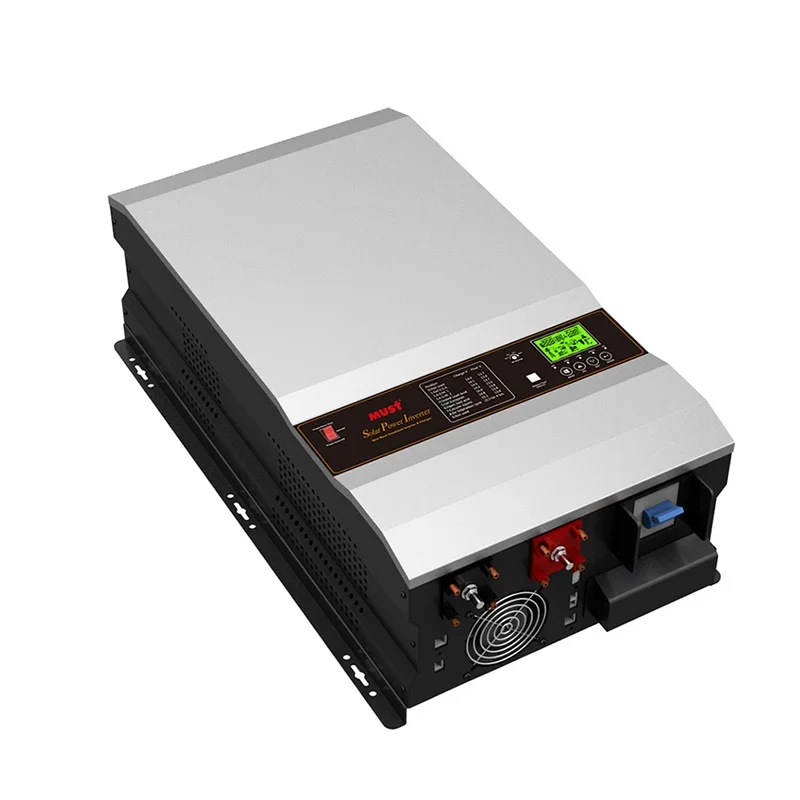

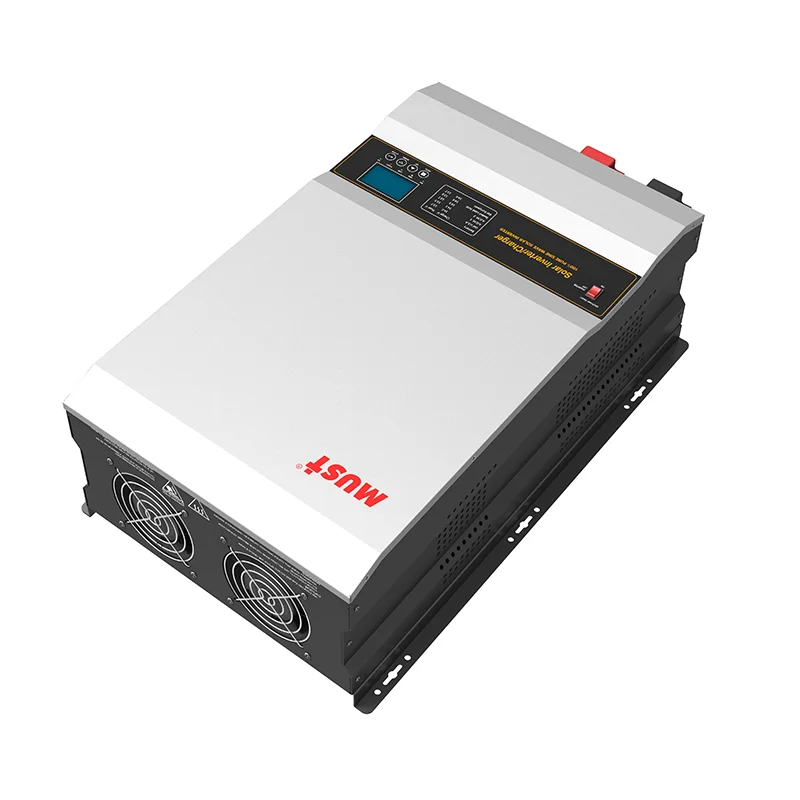

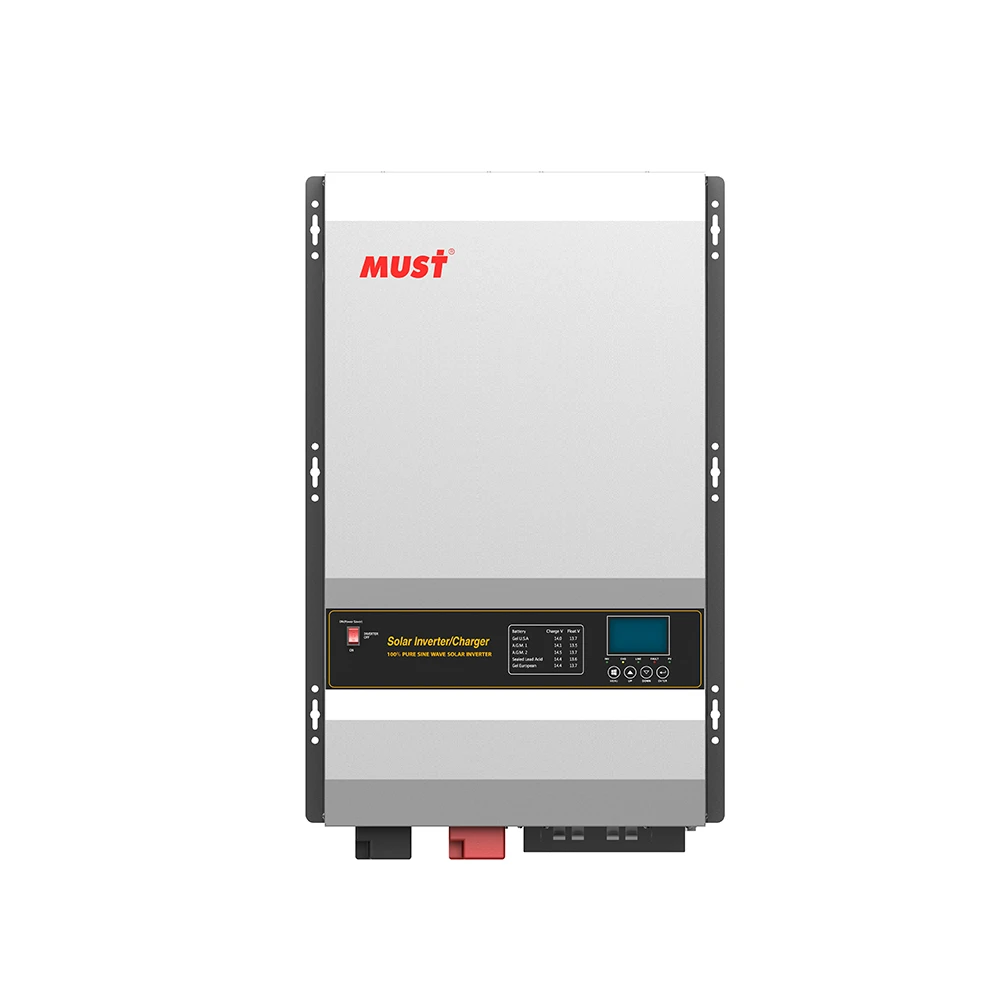

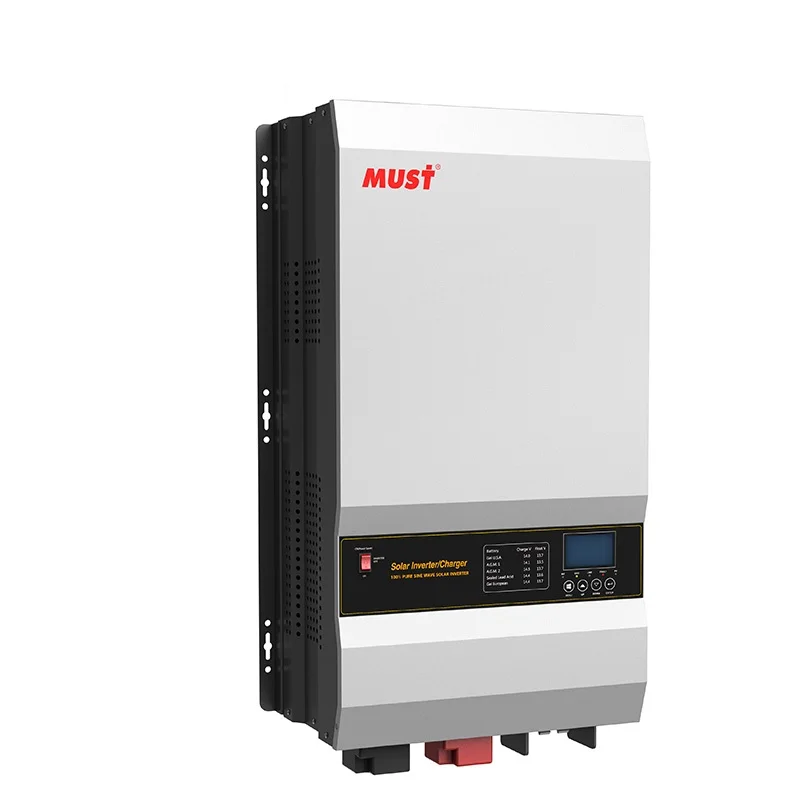

Must Hot Sell Model Solar Inverter 10 Kw Middle East and Africa Solar Edge Inverter Single White Solar Power System 98% 36 98kg
- Category: >>>
- Supplier: Must Energy (guangdong) Tech Co. Ltd.
Share on (62279812859):
Product Overview
Description
Must hot sell model solar inverter 10 kw Middle east and Africa solar edge inverter
Product Description
| MODEL | PV35-4K | PV35-5K | PV35-6K | PV35-8K | PV35-10K | PV35-12K | |
| Nominal Battery System Voltage | 24V | 48V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | |||||||
| Rated Power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | |
| Surge Rating (20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | |
| Capable Of Starting Electric Motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | |
| Waveform | Pure sine wave/ same as input (bypass mode) | ||||||
| Nominal Output Voltage RMS | 220V/230V/240VAC(+/-10% RMS) | ||||||
| Output Frequency | 50Hz/60Hz +/-0.3 Hz | ||||||
| Inverter Efficiency(Peak) | >85% | >88% | |||||
| Line Mode Efficiency | >95% | ||||||
| Power Factor | 0.8 | ||||||
| Typical Transfer Time | 10ms(max) | ||||||
| AC INPUT | |||||||
| Voltage | 230VAC | ||||||
| Selectable Voltage Range | 154~272VAC(For Personal Computers) | ||||||
| Frequency Range | 50Hz/60Hz (Auto sensing) | ||||||
| BATTERY | |||||||
| Minimum Start Voltage | 20.0VDC/21.0VDC for24VDC mode (40.0VDC/42.0VDC for 48VDC mode) | ||||||
| Low Battery Alarm | 21.0VDC+/-0.3V for 24VDC mode (42.0VDC+/-0.6V for 48VDC mode) | ||||||
| Low Battery Cutoff | 20.0VDC+/-0.3V for 24VDC mode (40.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Voltage Alarm | 32.0VDC+/-0.3V for 24VDC mode (64.0VDC+/-0.6V for 48VDC mode) | ||||||
| High Battery Voltage Recover | 31.0VDC+/-0.3V for 24VDC mode (62.0VDC+/-0.6V for 48VDC mode) | ||||||
| Idle Consumption-Search Mode | <25W when power saver on | <25W when power saver on | |||||
| AC CHARGER | |||||||
| Output Voltage | Depends on battery type | ||||||
| Charger AC Input Breaker Rating | 40A | 40A | 50A | 80A | 80A | 80A | |
| Overcharge Protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | ||||||
| Maximum Charge Current | 65A | 40A | 50A | 60A | 70A | 80A | 100A |
| BTS | |||||||
| Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | ||||||
| BYPASS & PROTECTION | |||||||
| Input Voltage Waveform | Sine wave (grid or generator) | ||||||
| Nominal Input Frequency | 50Hz or 60Hz | ||||||
| Overload Protection (SMPS Load) | Circuit breaker | ||||||
| Output Short Circuit Protection | Circuit breaker | ||||||
| Bypass Breaker Rating | 40A | 63A | 63A | 63A | |||
| Max Bypass Current | 40Amp | 80Amp | |||||
| SOLAR CHARGER | |||||||
| Maximum PV Charge Current | 60A | 60A(120A optional) | |||||
| DC Voltage | 24V/48V Auto work | 48V | |||||
| Maximum PV Array Power | 1600W | 3200W | 3200W | 3200W | 3200W(6400W for 120A optional) | ||
| MPPT Range @ Operating Voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | |||||
| Maximum PV Array Open Circuit Voltage | 147VDC | ||||||
| Maximum Efficiency | >98% | ||||||
| Standby Power Consumption | <2W | ||||||
| MECHANICAL SPECIFICATIONS | |||||||
| Mounting | Wall mount | ||||||

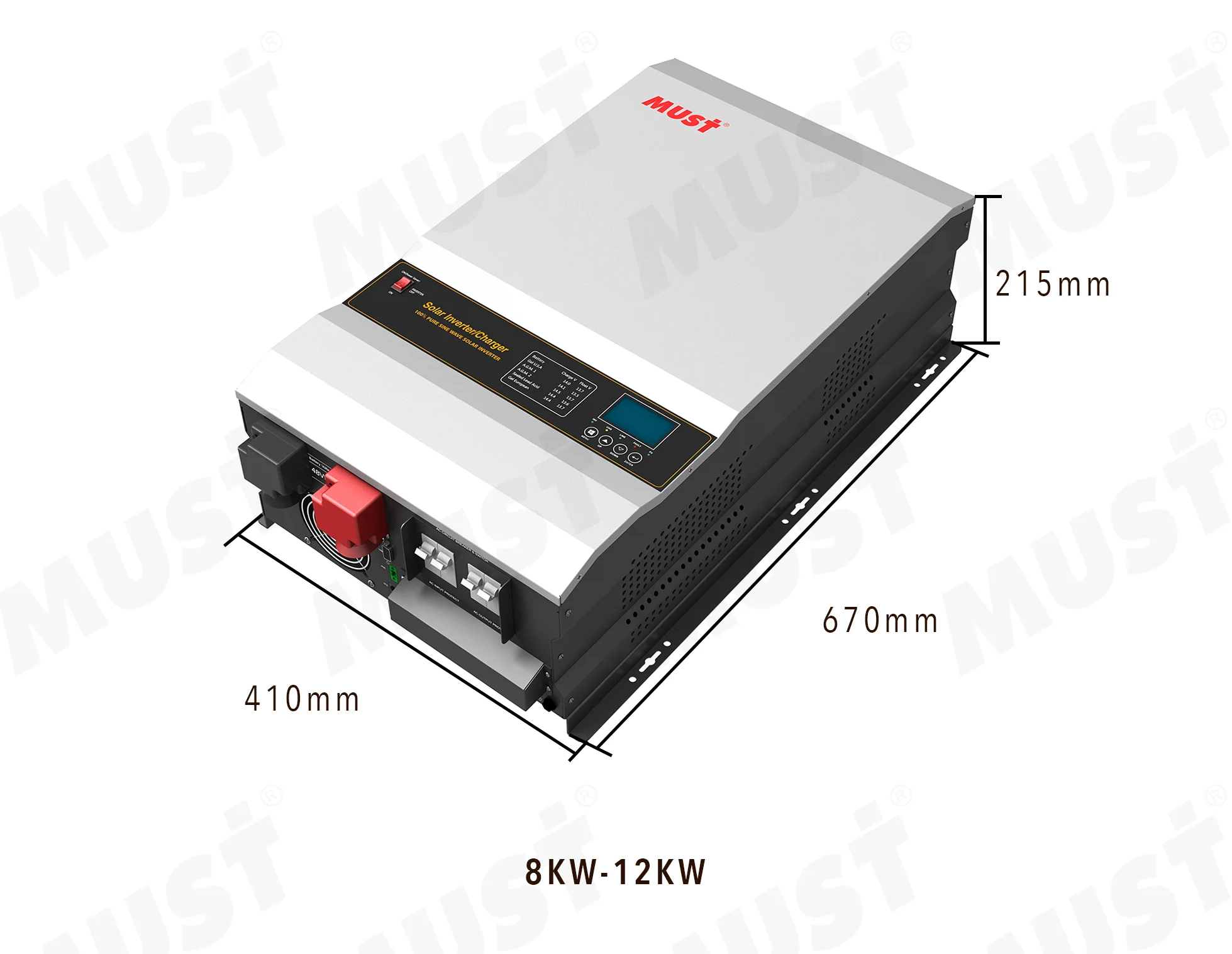

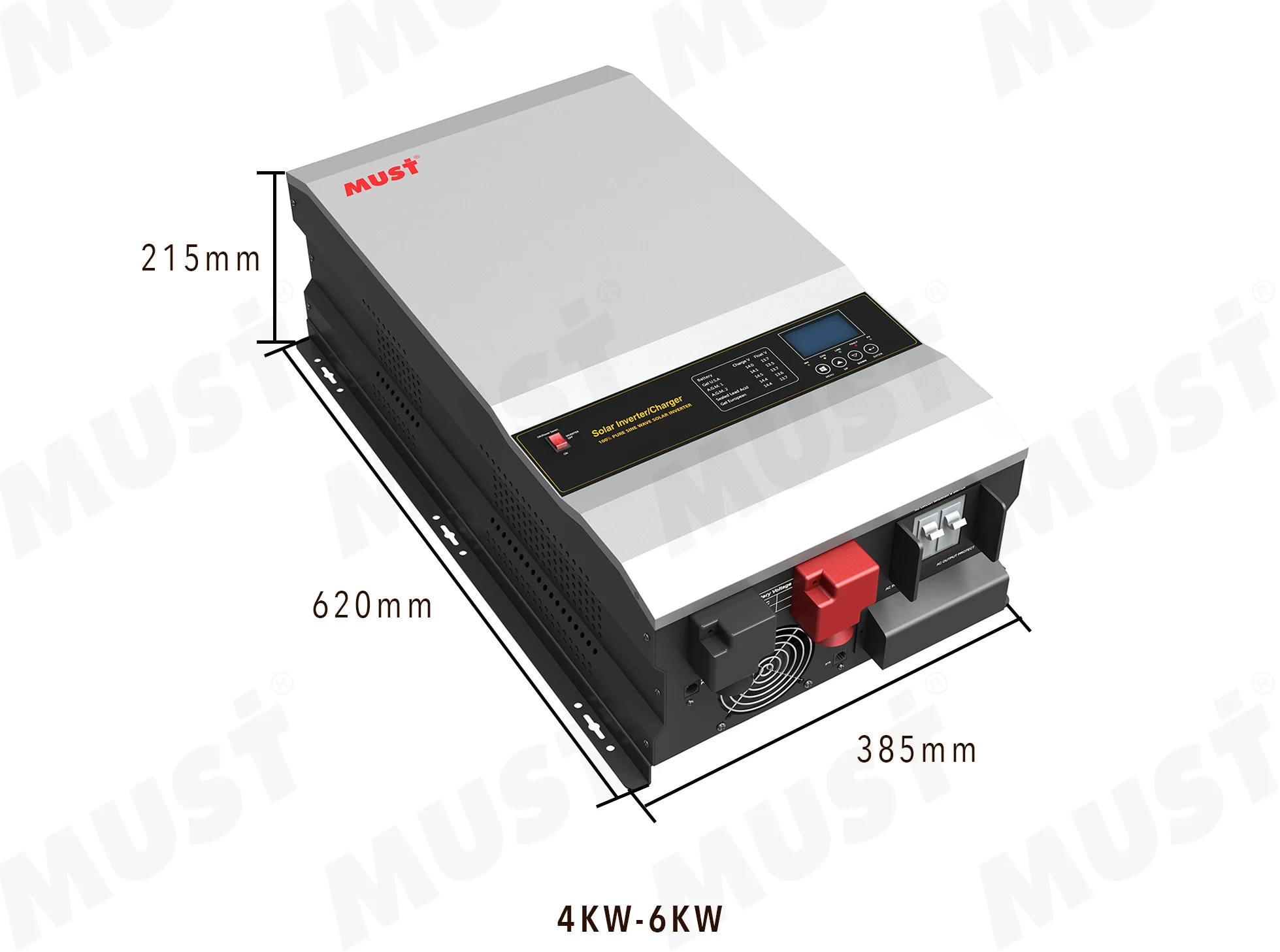

| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | |||||
| Net Weight (Solar CHG) kg | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | |
| Shipping Dimensions(W*H*D) | 755*515*455mm | 884*618*443mm | |||||
| Shipping Weight (Solar CHG) kg | 56 | 61 | 64 | 89+2.5 | 95.5+2.5 | 95.5+2.5 | |
| OTHER | |||||||
| Operation Temperature Range | 0°C to 40°C | ||||||
| Storage Temperature | -15°C to 60°C | ||||||
| Audible Noise | 60dB MAX | ||||||

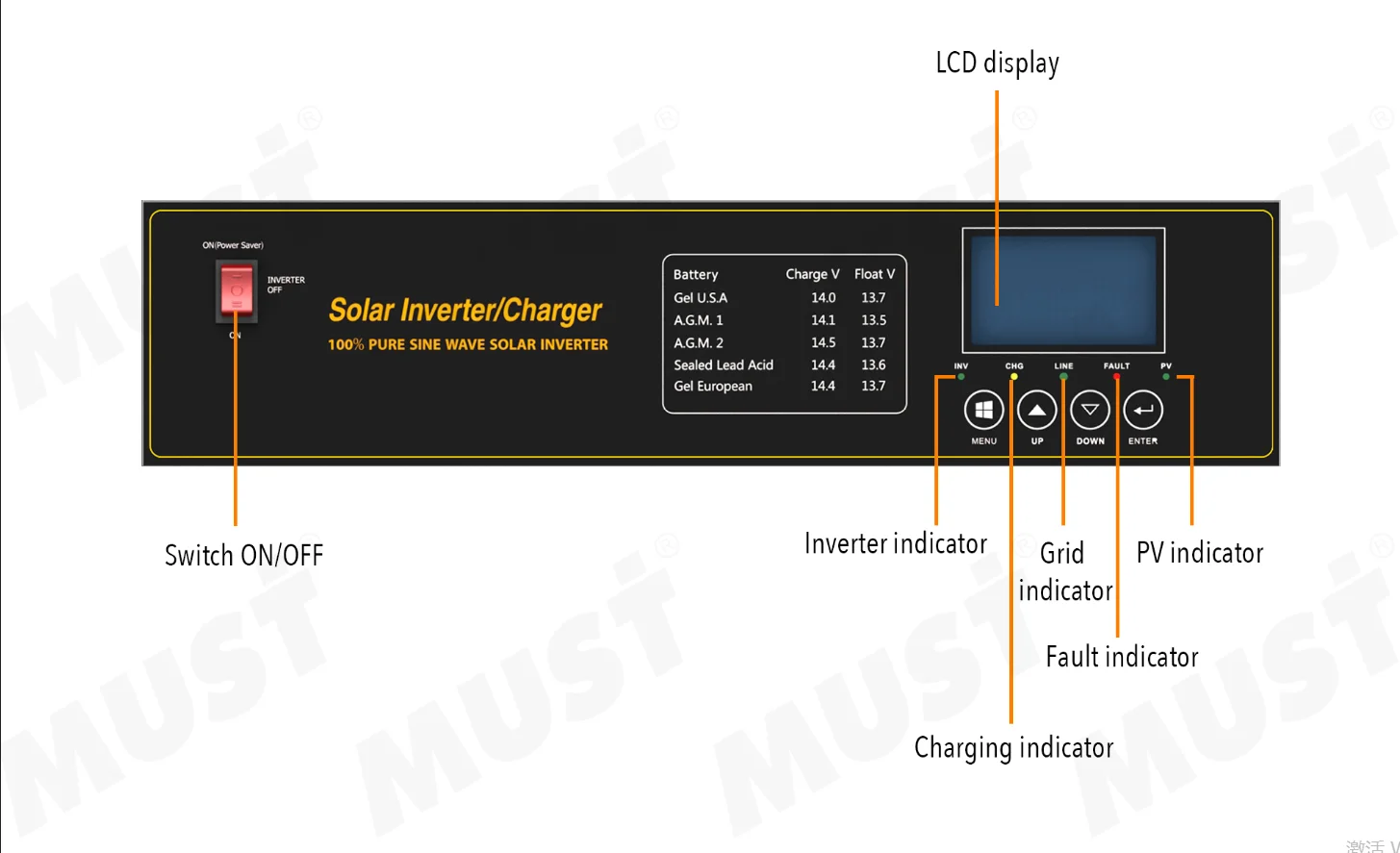

| Display | LED+LCD | ||||||
| Loading(20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | ||||||

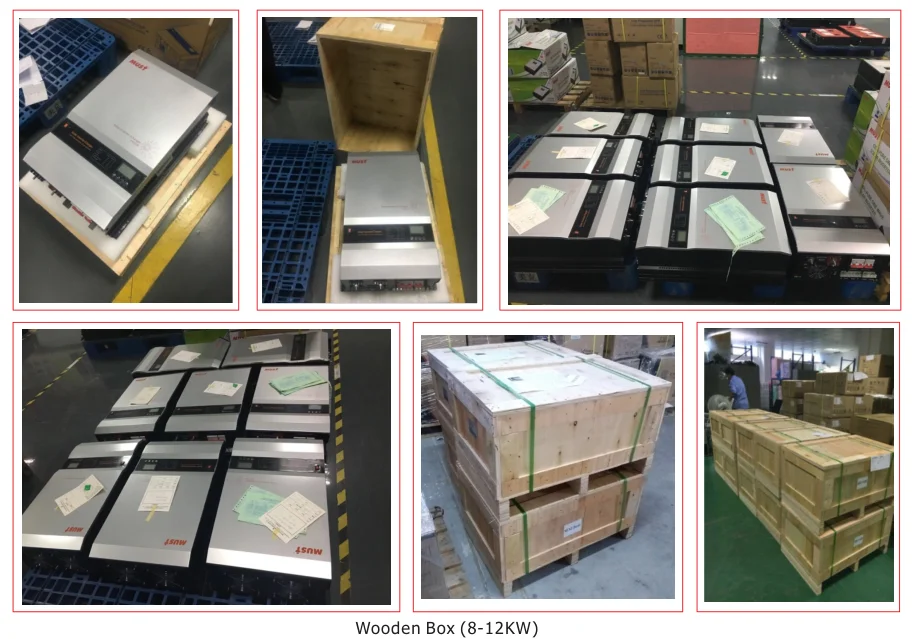

Packaging & Shipping
Our Services
Company Information
FAQ
Q: MUST main products?
A: 1) solar inverter, such as 1KW to 12KW off grid solar inverter with controller inside, on & off grid solar inverter 5000W, pure on grid inverter
2) home power inverter, such as 1000W to 12KW home inverter with AC charger
3) UPS
4) MPPT solar charge controller from 40A to 80A
Q: OEM service is available?
A: it would be warmly welcome for bulk order
